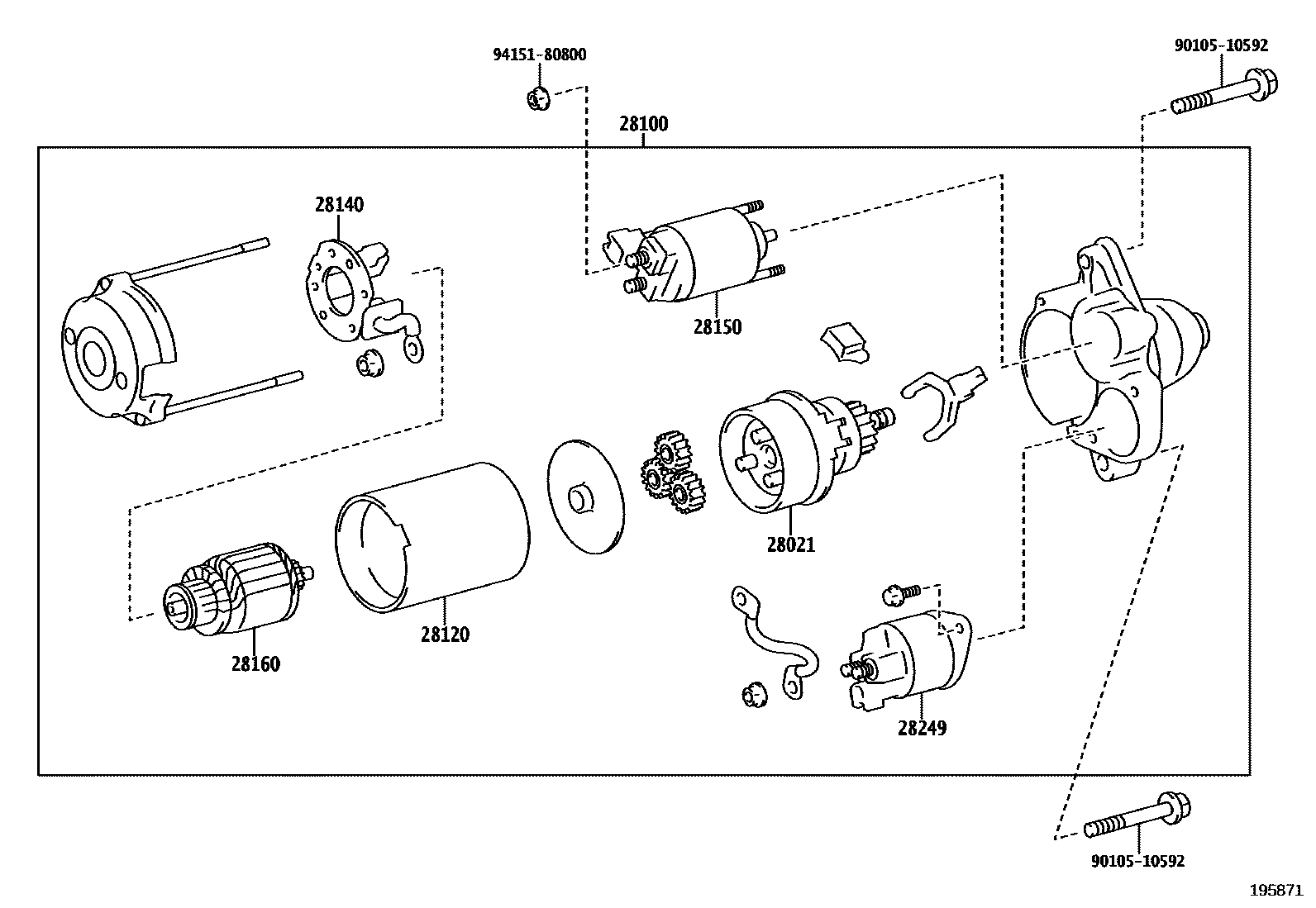

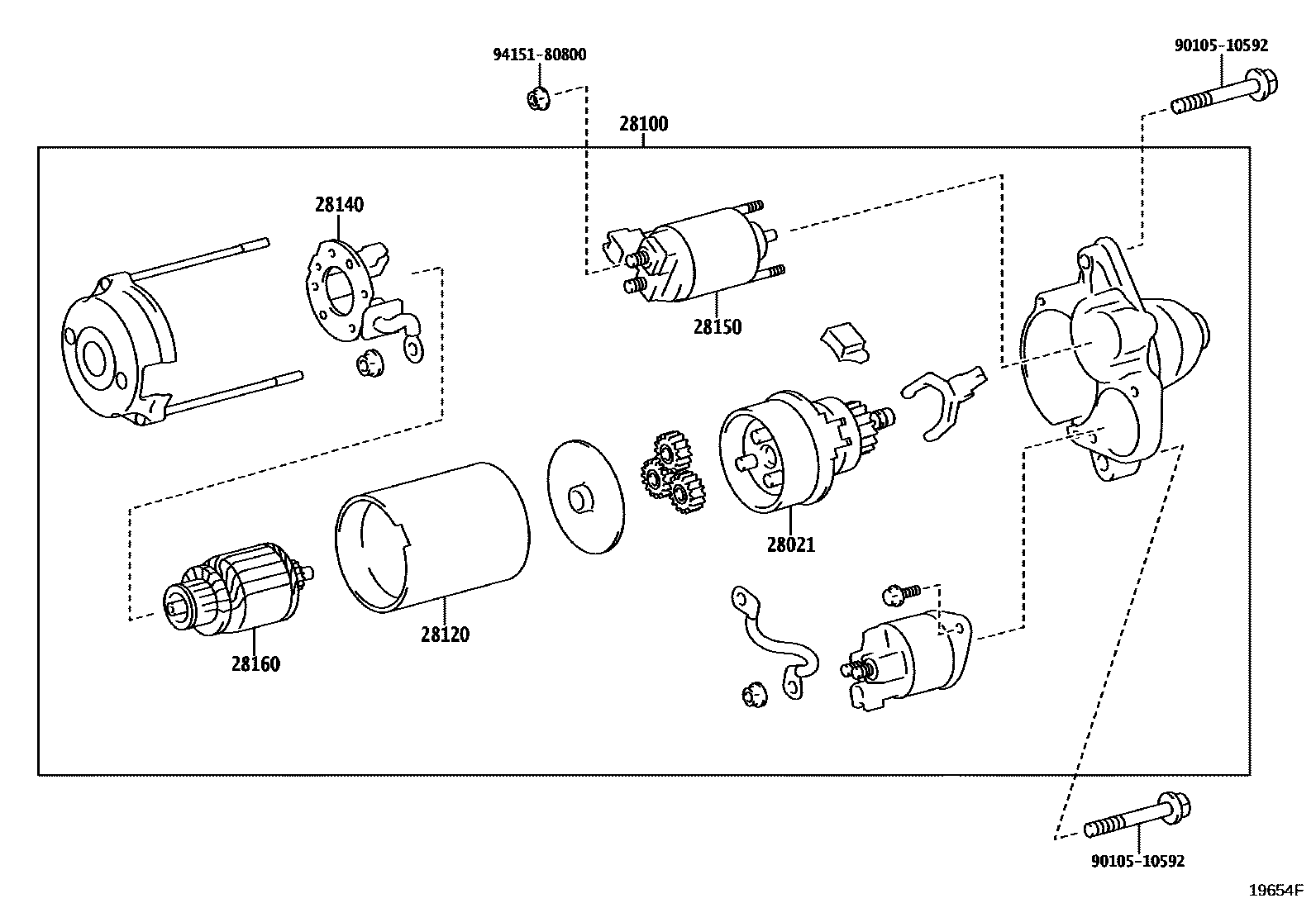

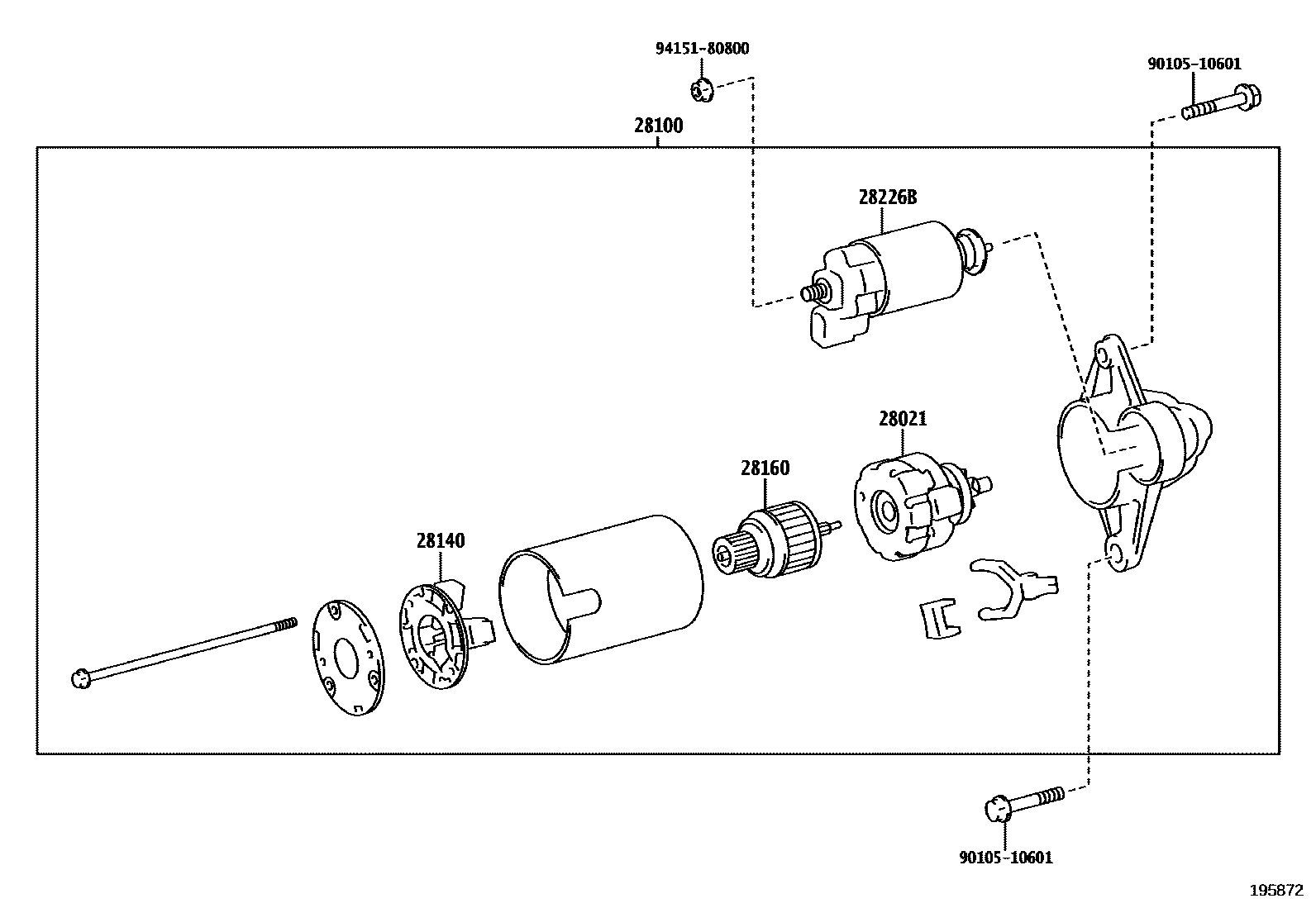

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-25070 · 28021-K0040 |
| 28100 | Starter assembly | 28100-18010 · 28100-18020 · 28100-18030 · 28100-K0040 · 28100-K0050 |
| 28120 | Starter yoke assembly | 28120-18010 · 28120-18030 · 28120-37100 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-21100 · 28140-37050 · 28140-38070 |
| 28150 | Starter electromagnetic switch assembly | 28150-18010 · 28150-47260 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-21080 · 28160-31090 · 28160-36110 |
| 28226B | starter magnetic switch | 28226-K0040 |
| 28249 | Toyota part | 28249-47280 |
