Toyota YARIS Air Cleaner — Figure 1703

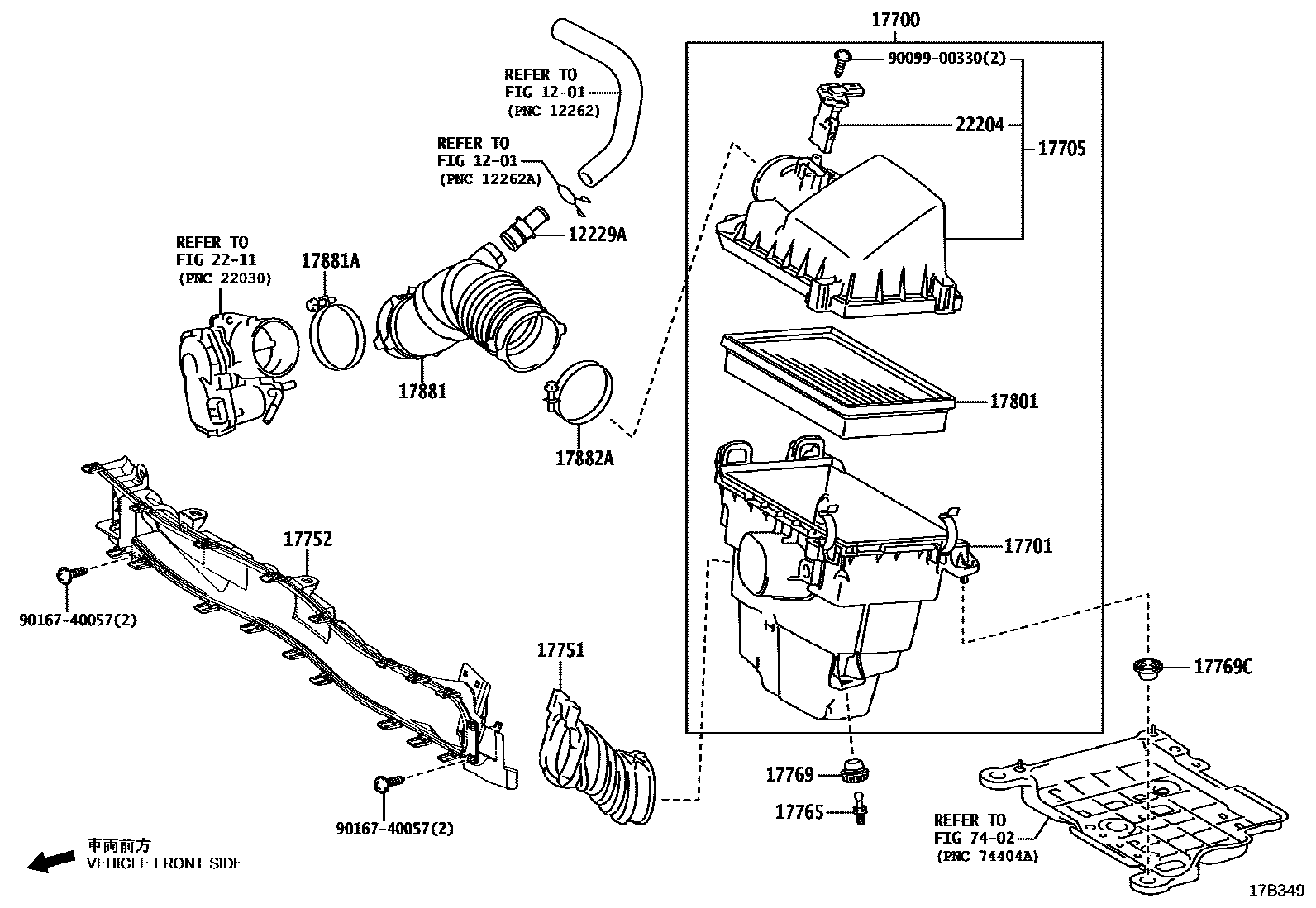

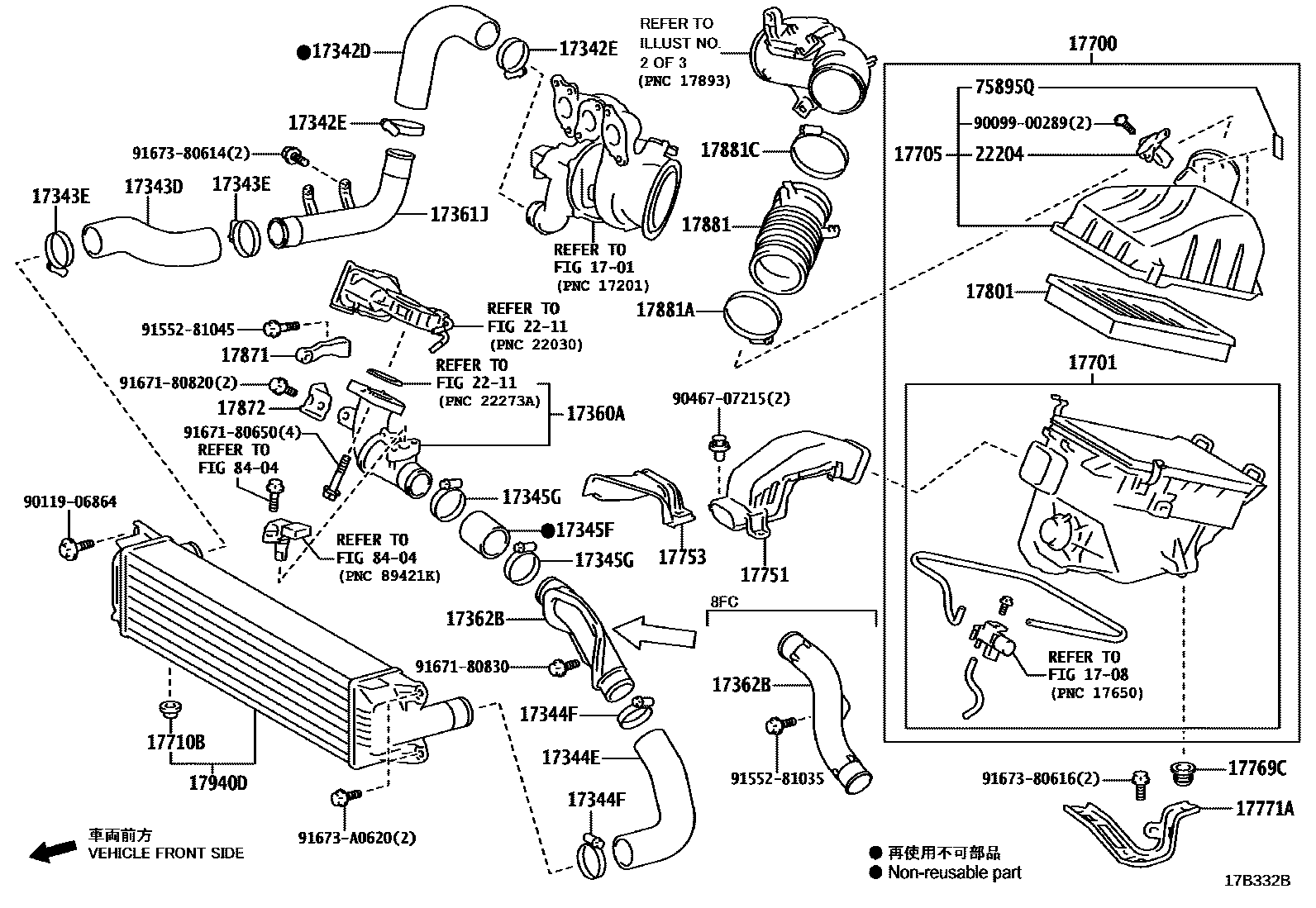

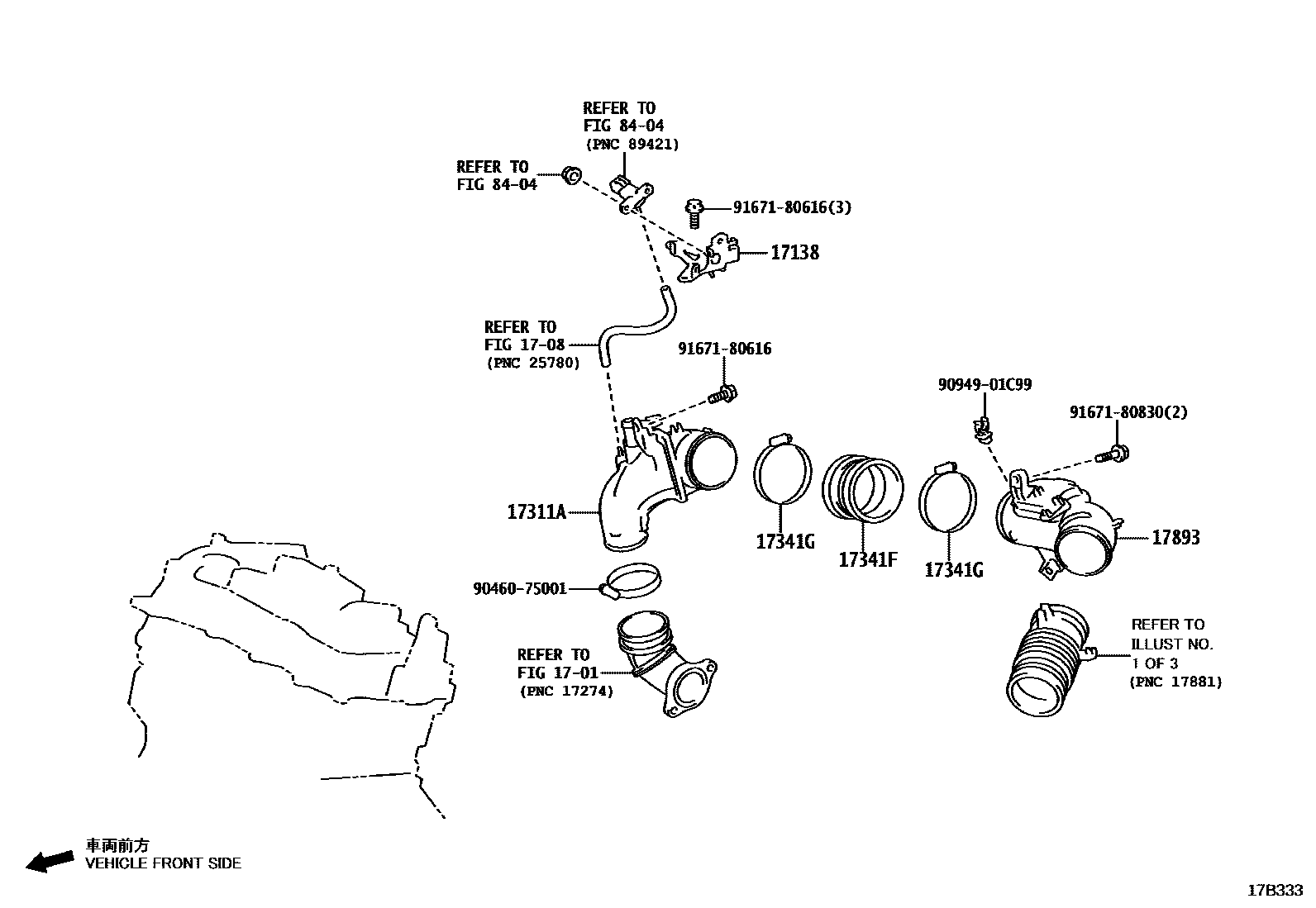

Toyota YARIS EPC diagram 1703, Air Cleaner, with 4 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17138 | Air intake pipe or air intake hose stay | 17138-18010 |
| 17311A | No. 1 air inlet duct | 17311-18010 |
| 17341F | Air hose No. 1 | 17341-18020 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-92002 |
| 17342D | Air hose No. 2 | 17342-18010 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-50008 |
| 17343D | No. 3 air hose | 17343-18020 · 17343-18021 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-60006 |
| 17344E | No. 4 air hose | 17344-18010 · 17344-18011 · 17344-18030 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-60006 |
| 17345F | No. 5 air hose | 17345-18010 |
| 17345G | Clip or clip (for size 5 air hose) | 90460-60006 |
| 17360A | air pipe assembly | 17360-18010 |
| 17361J | Air tube No. 1 | 17361-18020 · 17361-18021 |
| 17362B | No. 2 air pipe | 17362-18010 · 17362-18020 |
| 17700 | air filter assembly | 17700-15390 · 17700-15410 · 17700-18050 |
| 17701 | Air filter housing sub-assembly | 17701-15290 · 17701-15310 · 17701-18050 |
| 17705 | Air filter cover sub-assembly | 17705-15200 · 17705-18020 |
| 17710B | gasket | 90480-22025 |
| 17751 | No. 1 air filter air inlet | 17750-18010 · 17751-15090 · 17751-18010 · 17751-18030 |
| 17752 | No. 2 air filter air inlet | 17752-15070 |
| 17753 | No. 3 air filter air inlet | 17753-18010 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25030 |
| 17769C | Toyota part | 17769-25020 |
| 17771A | air filter bracket | 17771-18010 |
| 17801 | Air filter element sub-assembly | 17801-15090 · 17801-25020 |
| 17871 | Air intake connecting pipe stay | 17871-18010 |
| 17872 | Air intake connecting pipe bracket | 17872-18010 |
| 17881 | No. 1 air cleaner hose | 17880-18010 · 17881-15210 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-88001 · 96111-10690 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 90460-90005 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10710 |
| 17893 | Intake resonator | 17893-18010 |
| 17940D | Intercooler assembly | 17940-18010 · 17940-18020 · 17940-18030 |
| 17990 | Toyota part | 17990-18010 |
| 17992 | Toyota part | 17992-18010 |
| 17993 | Toyota part | 17993-18010 |
| 179A0 | Toyota part | 179A0-18010 · 179A0-18030 |
| 179A0A | Toyota part | 85371-24010 |
| 179B0 | Toyota part | 179B0-18010 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75040 |
| 75895Q | Toyota part | 75895-52050 |
| 85330G | Toyota part | 85330-33070 |
| 85391 | Toyota part | 85391-52220 |
