Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 6 PNC and OE references.

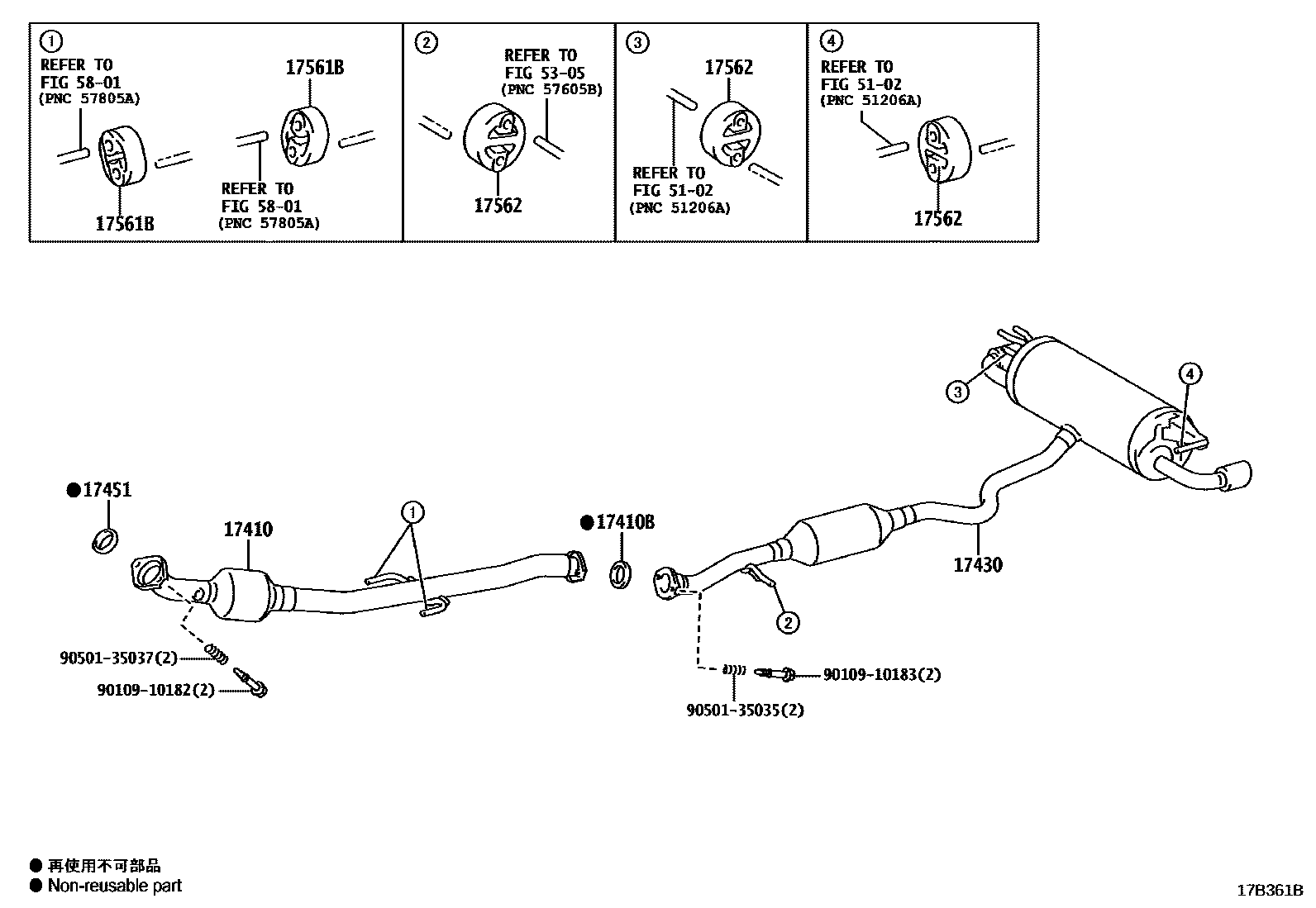

Toyota YARIS Exhaust Pipe EPC diagram — 17B361B — Exhaust Pipe — 17B361B (202009 – 999999)

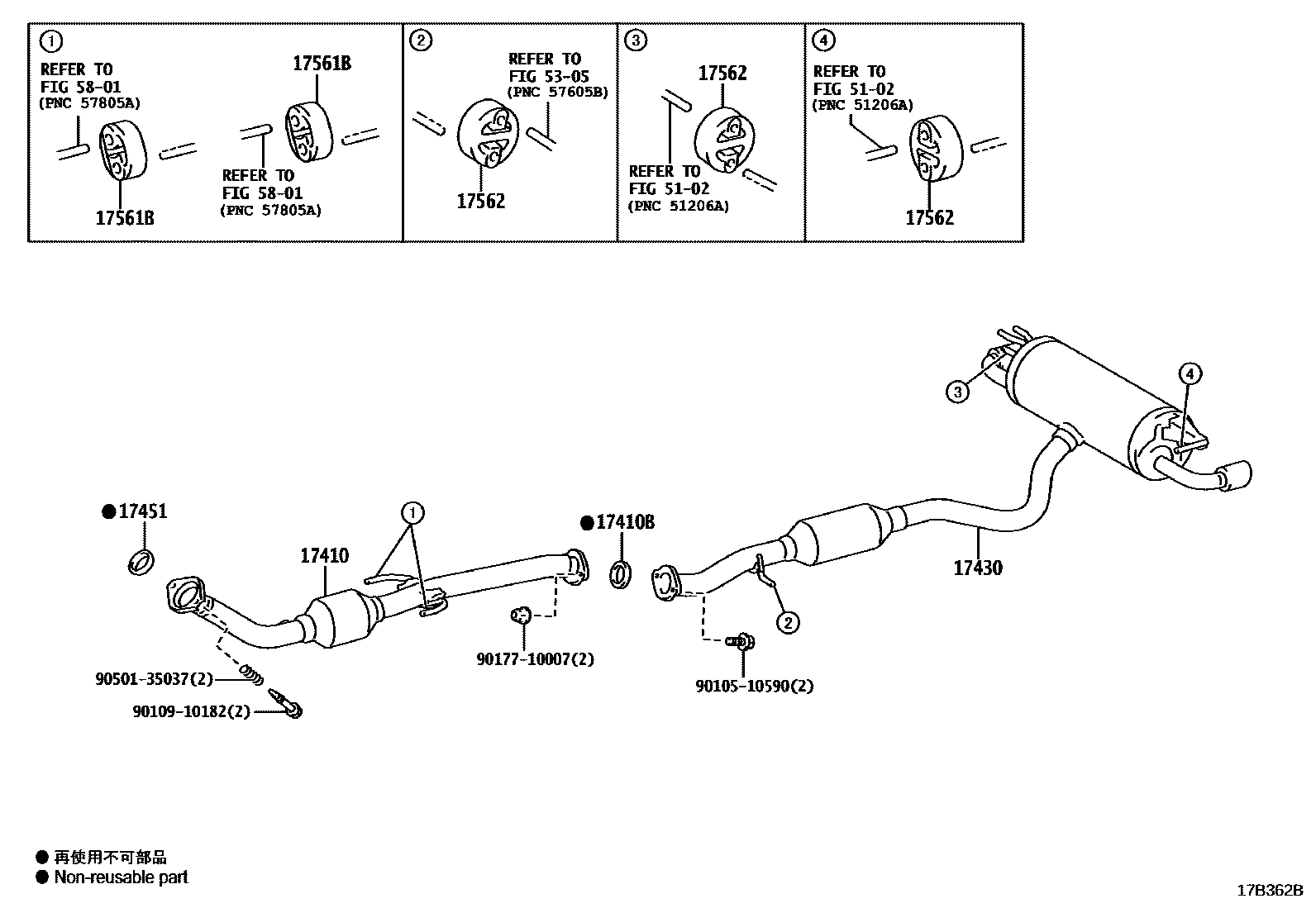

Toyota YARIS Exhaust Pipe EPC diagram — 17B362B — Exhaust Pipe — 17B362B (202008 – 202404)

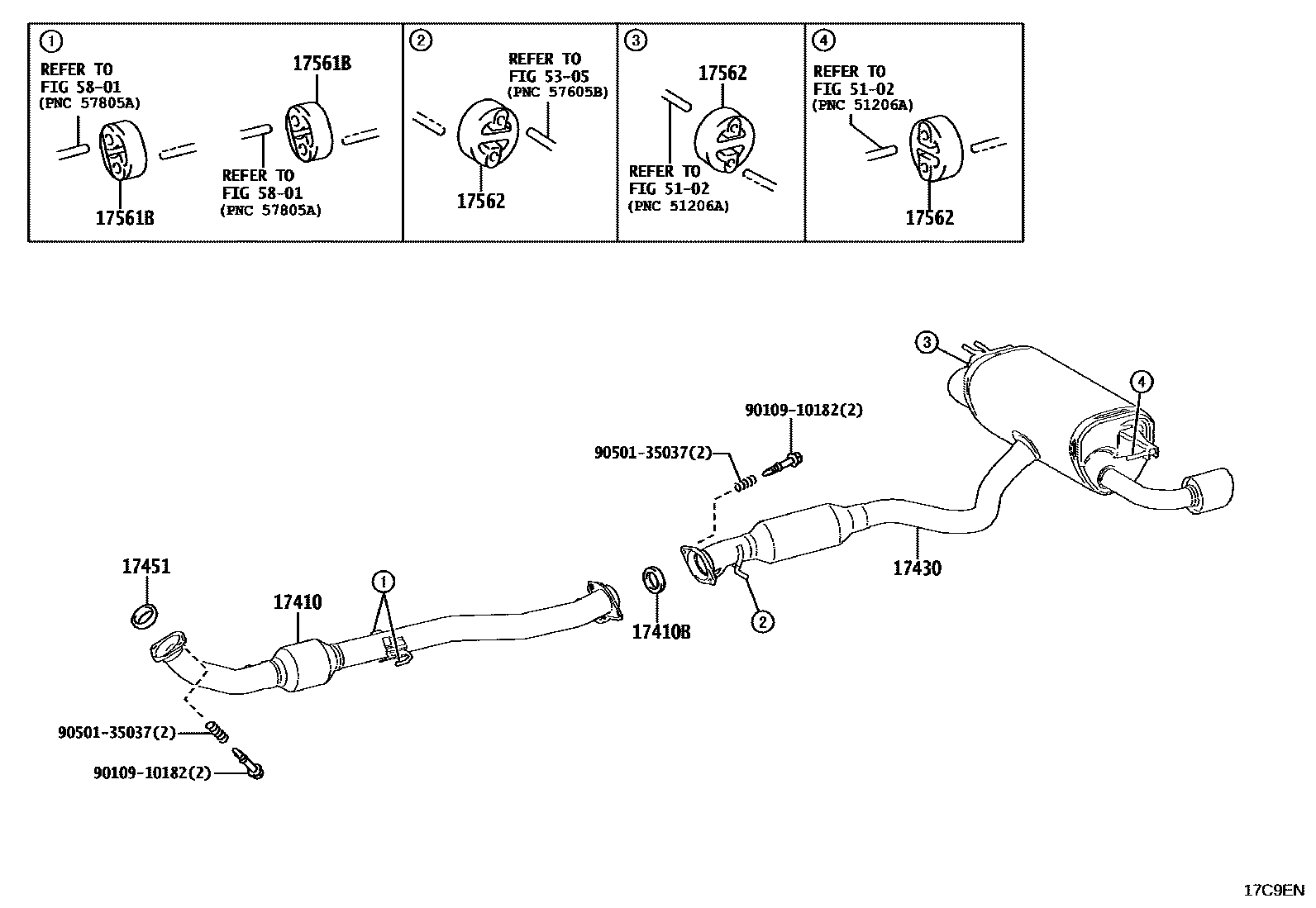

Toyota YARIS Exhaust Pipe EPC diagram — 17C9EN — Exhaust Pipe — 17C9EN (202404 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-15280 · 17410-18060 · 17410-18090
17410B	Exhaust pipe gasket	17451-23042 · 17451-23043 · 17451-52050 · 90917-06070
17430	Exhaust tailpipe assembly	17430-15700 · 17430-18040 · 17430-18070
17451	Exhaust pipe gasket	17451-21070 · 17451-28040 · 17451-28041 · 17451-52050
17561B	No. 1 exhaust pipe lifting lug	17565-47010
17562	No. 2 exhaust pipe lifting lug	17565-28010
