Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 3 images and 30 PNC and OE references.

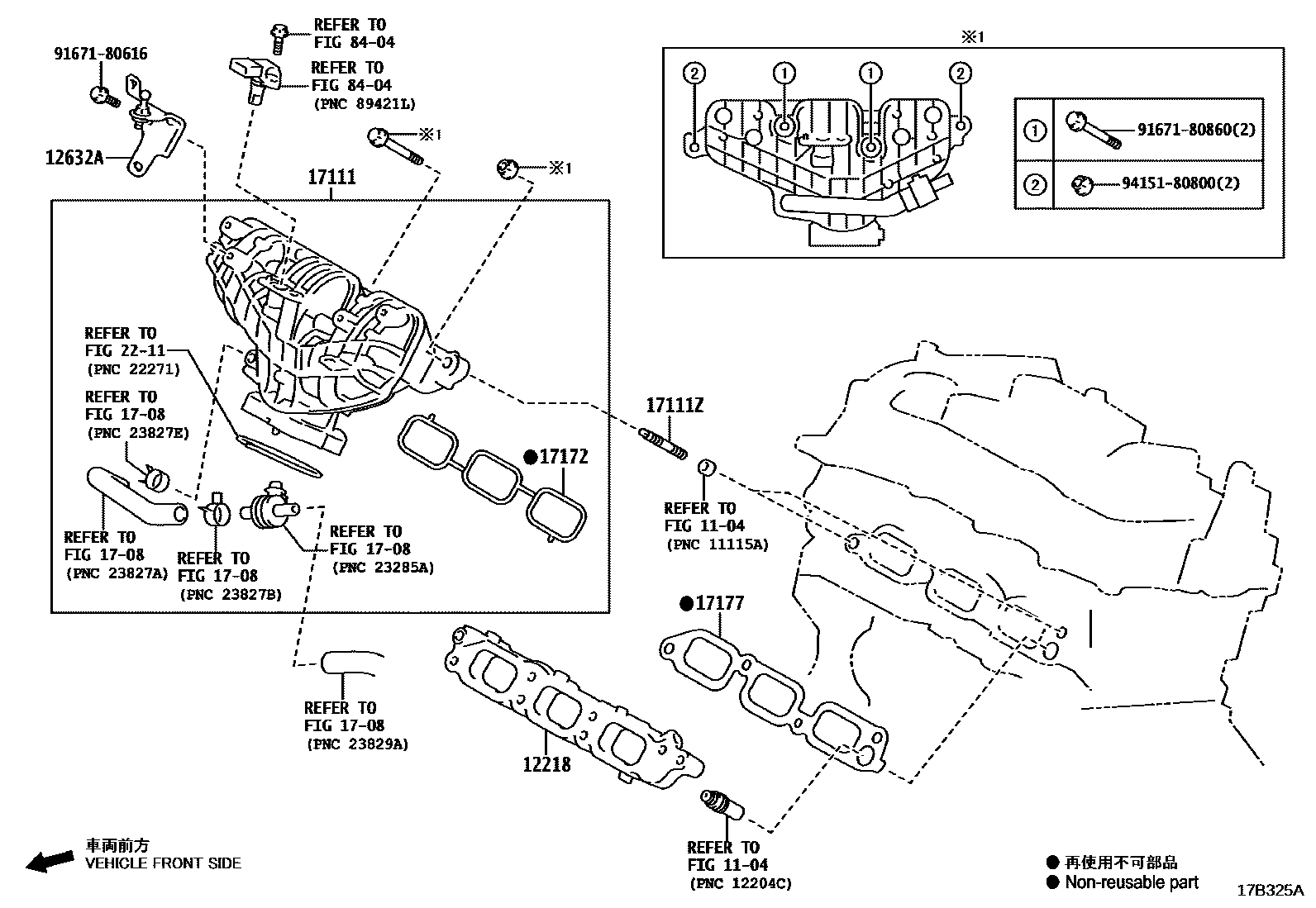

Toyota YARIS Manifold EPC diagram — 17B325A
Manifold — 17B325A (202008 – 999999)

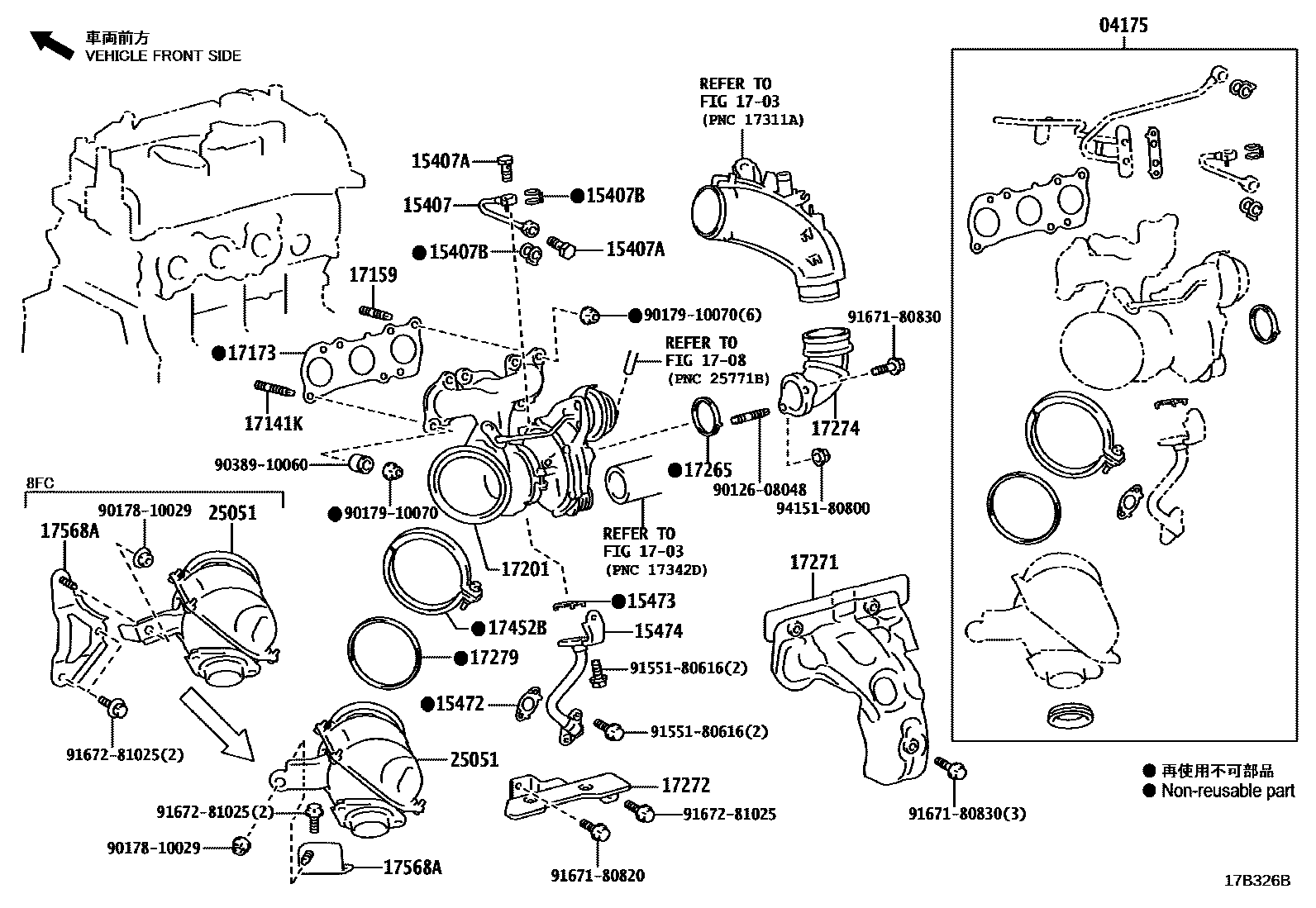

Toyota YARIS Manifold EPC diagram — 17B326B
Manifold — 17B326B (202008 – 999999)

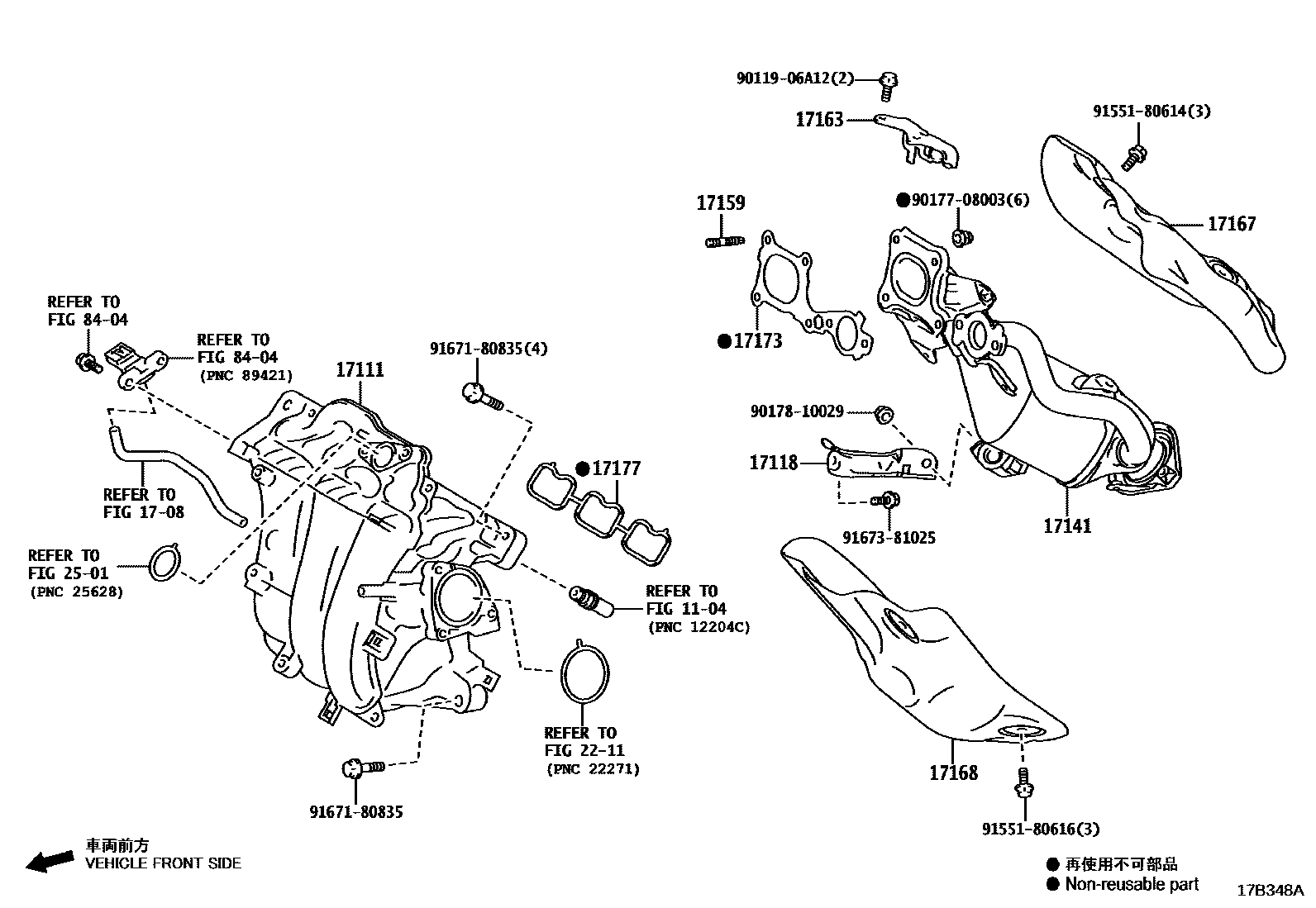

Toyota YARIS Manifold EPC diagram — 17B348A
Manifold — 17B348A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-18010 · 04175-18011
12218Toyota part12218-18010
12632AToyota part12632-18010
15407Turbine oil inlet pipe sub-assembly15407-18010
15407AConnector bolt (for turbine oil inlet pipe)90401-12097
15407BGasket (for turbine oil inlet pipe)90904-30004
15472No. 1 turbine oil outlet pipe gasket15472-18010
15473No. 2 turbine oil outlet pipe gasket15473-18010
15474Turbine oil outlet pipe15474-18010
17111Intake Manifold17101-15120 · 17101-F3010 · 17120-18010
17111ZStud bolts (for intake manifold to cylinder head)90126-08056
17118Manifold stays17118-15090
17141exhaust manifold17141-15180
17141KStud bolts (for exhaust manifold to cylinder head)90126-10024
17159Studs (for manifold to cylinder head)90126-08052 · 90126-10048
17163No. 1 insulation pad bracket17163-15010
17167Exhaust manifold No. 1 heat shield17167-15100
17168Exhaust manifold No.2 insulation pad17168-15040
17172Gasket (manifold to cylinder head)17171-18010
17173Gasket (exhaust manifold to cylinder head)17173-15050 · 17173-18010
17177No. 1 gasket (intake manifold to cylinder head)17171-15040 · 17177-18010
17201Turbocharger sub-assembly17201-18010 · 17201-18030
17265Toyota part22271-47060
17271No. 1 turbine vibration isolation pad17271-18010
17272No. 2 turbine vibration isolation pad17272-18010
17274Compressor oil inlet elbow pipe17274-18010
17279Turbine outlet elbow gasket17279-0W010
17452BToyota part17452-36020
17568AToyota part17568-18010 · 17568-18020
25051Exhaust manifold three-way catalytic converter sub-assembly25051-18020 · 25051-18060 · 25051-18110
