Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 3 PNC and OE references.

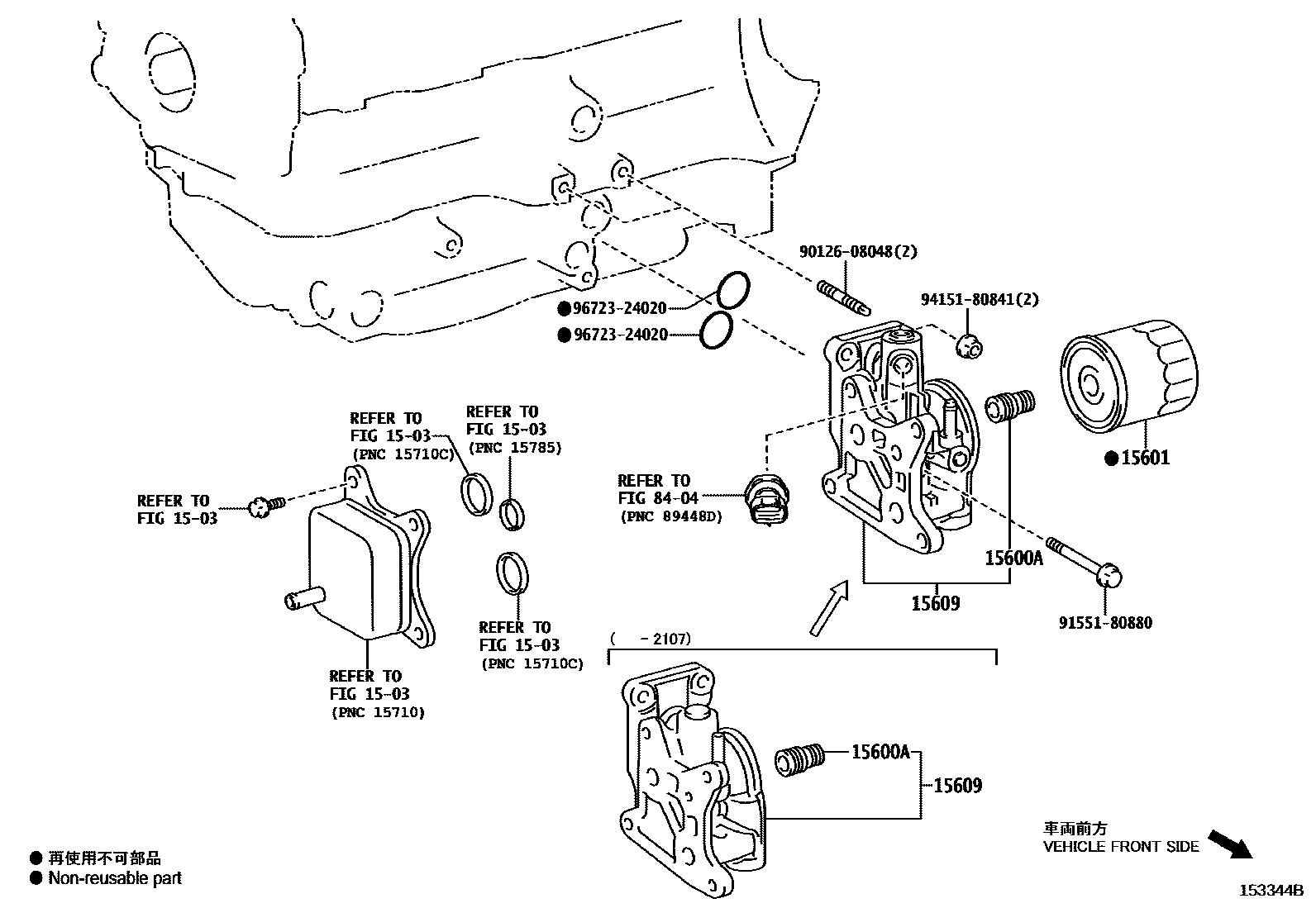

Toyota YARIS Oil Filter EPC diagram — 153344B
Oil Filter — 153344B (202008 – 999999)

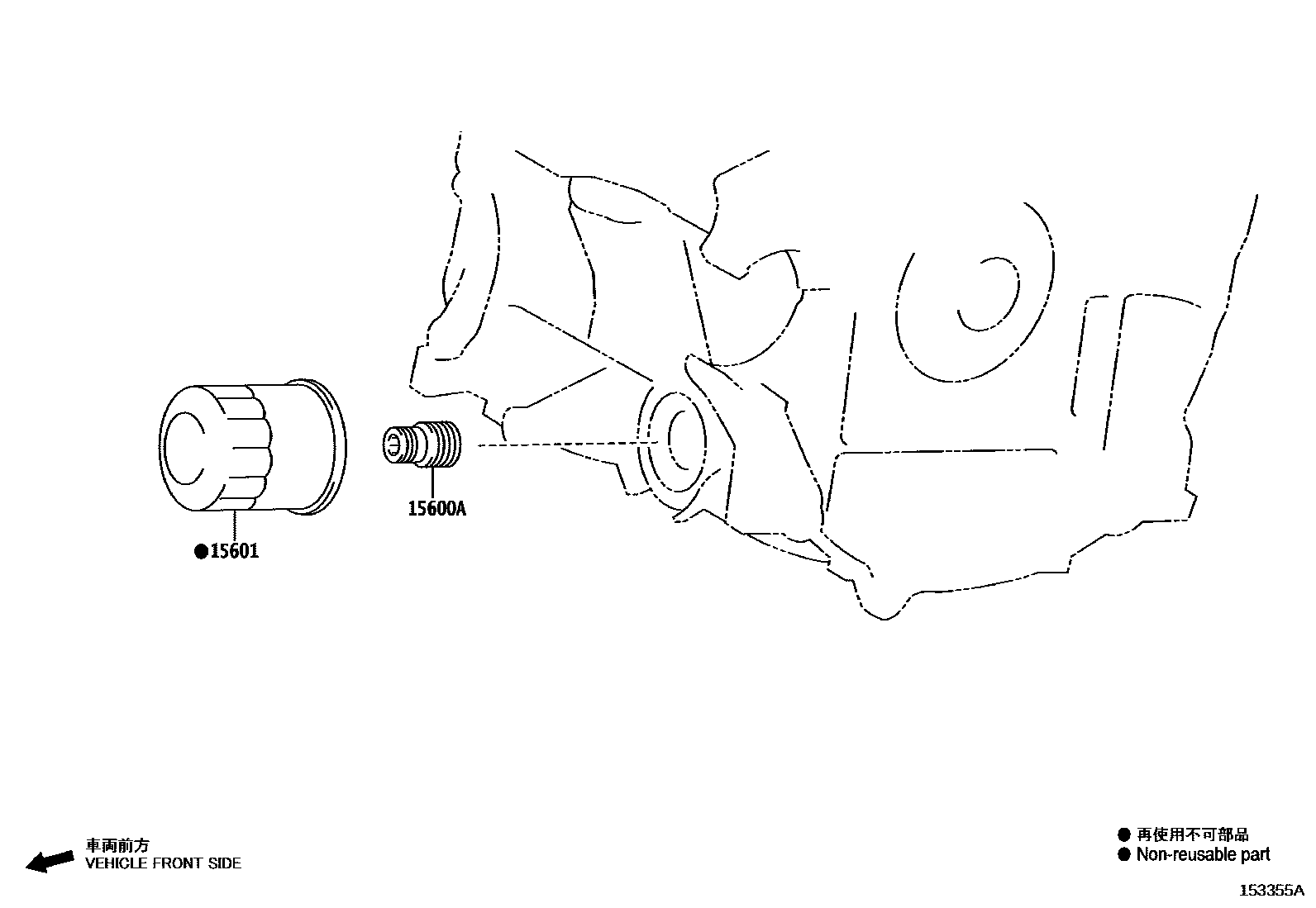

Toyota YARIS Oil Filter EPC diagram — 153355A
Oil Filter — 153355A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10009
15609Oil filter bracket sub-assembly15609-18010 · 15609-18011
