Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 2 images and 3 PNC and OE references.

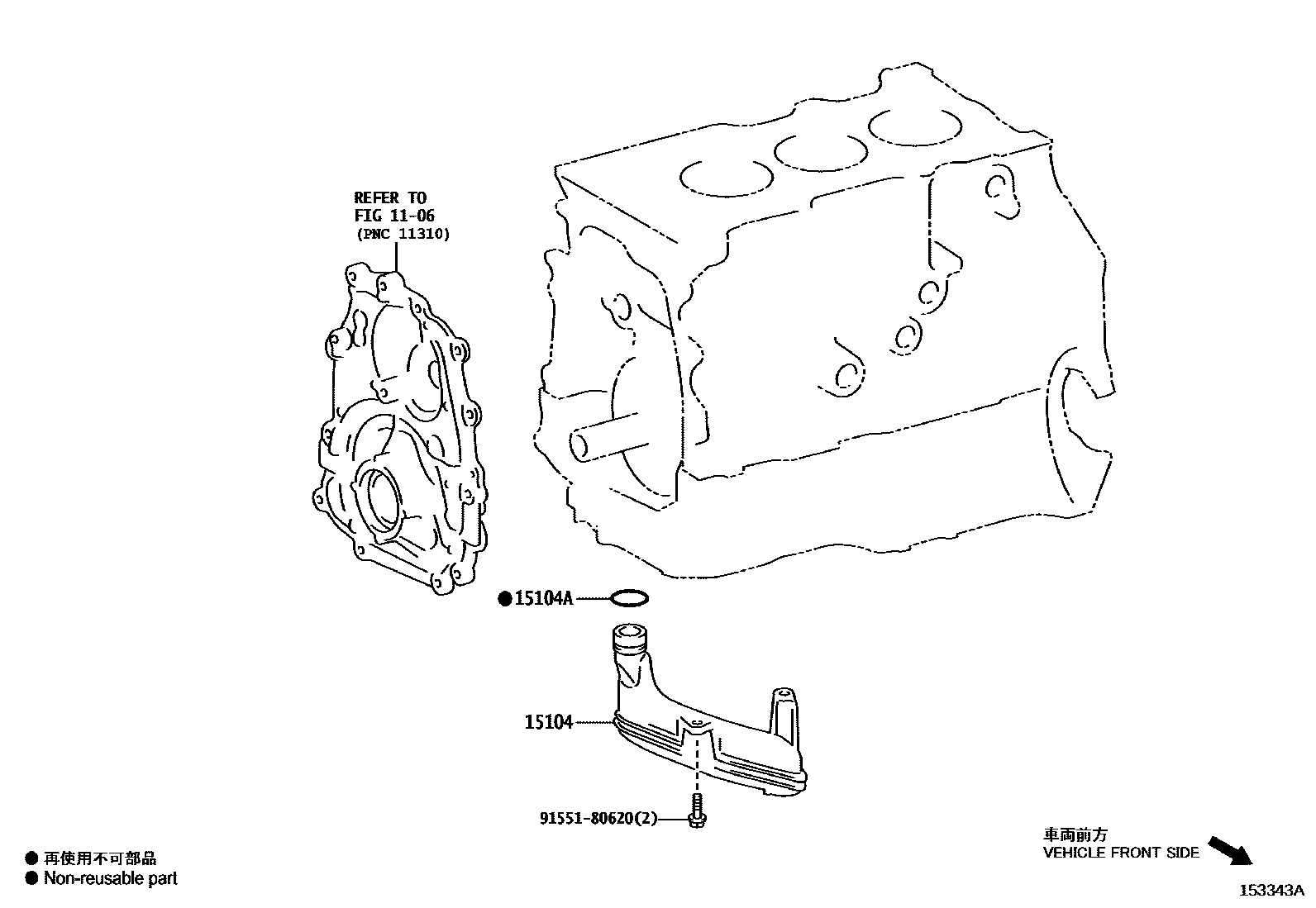

Toyota YARIS Engine Oil Pump EPC diagram — 153343A — Engine Oil Pump — 153343A (202008 – 999999)

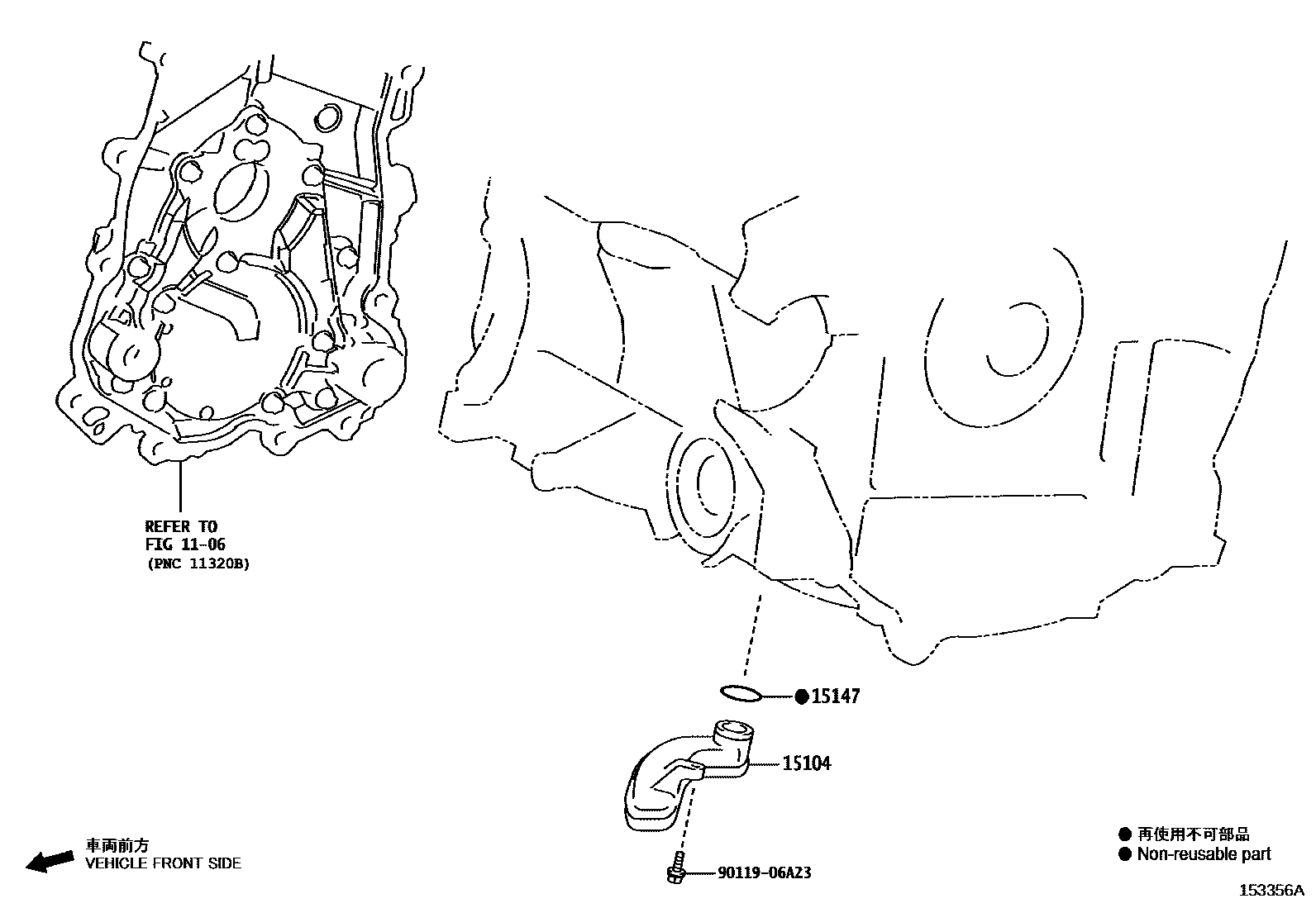

Toyota YARIS Engine Oil Pump EPC diagram — 153356A — Engine Oil Pump — 153356A (202009 – 999999)

PNC and OE references

PNC	Part name	OE numbers
15104	Oil filter sub-assembly	15104-15110 · 15104-18010
15104A	O-ring (for oil filter)	96721-24025
15147	Oil filter gasket	15147-25010
