Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 8 PNC and OE references.

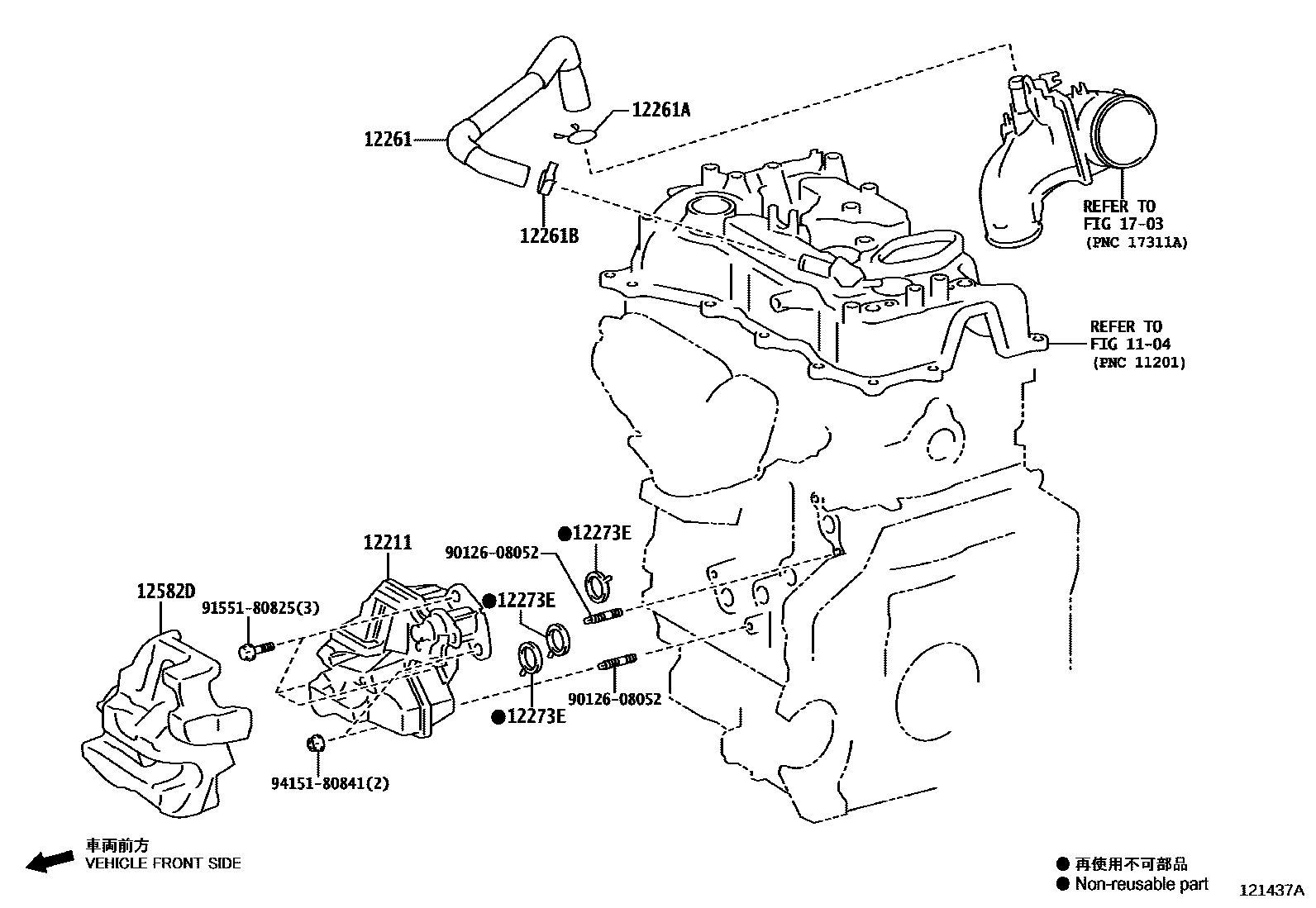

Toyota YARIS Ventilation Hose EPC diagram — 121437A
Ventilation Hose — 121437A (202008 – 999999)

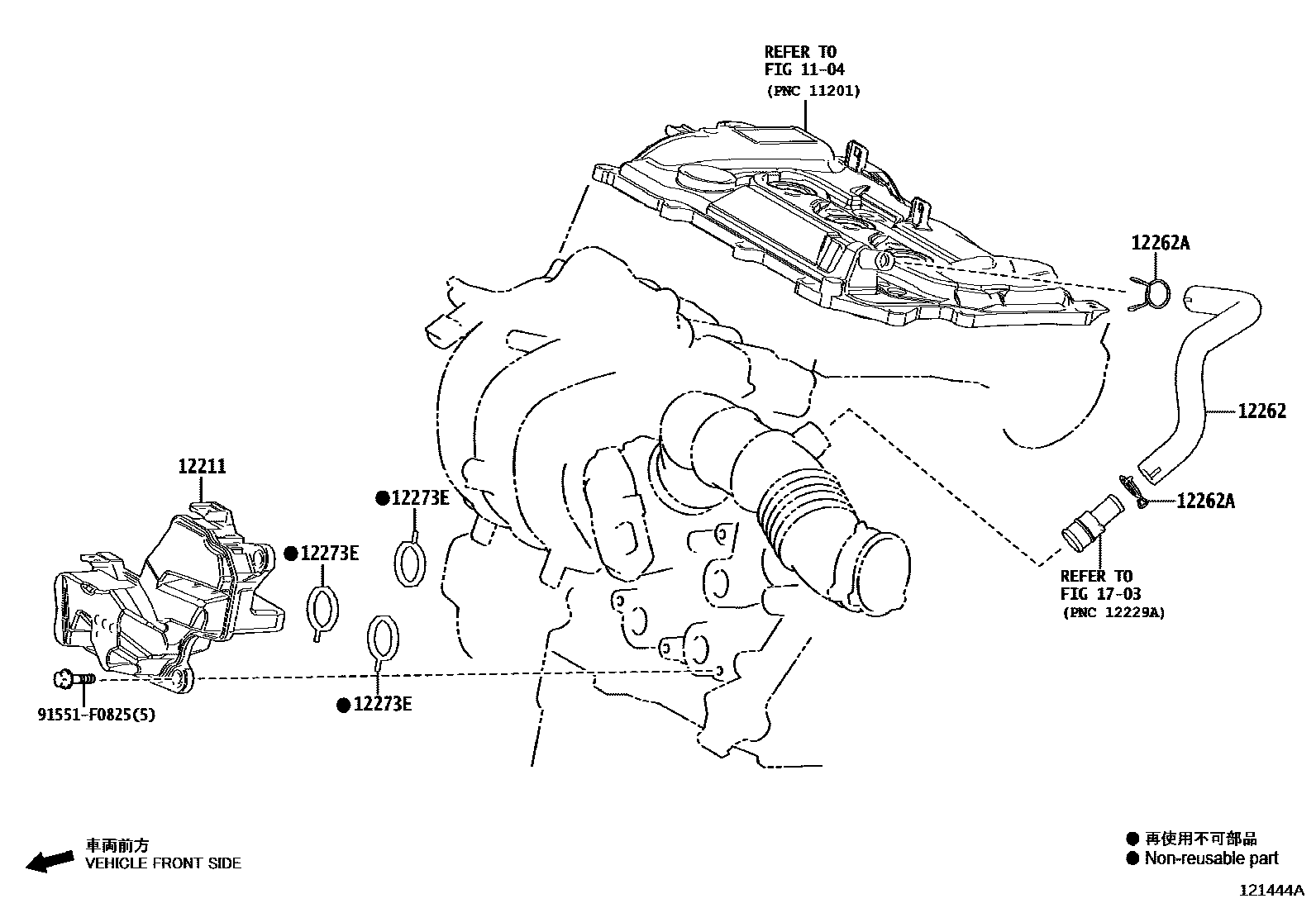

Toyota YARIS Ventilation Hose EPC diagram — 121444A
Ventilation Hose — 121444A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-15060 · 12211-15061 · 12211-18010
12261Ventilation Hose12261-18010
12261AClip or clip (for vent hose)90467-24038
12261BClip or clip (for vent hose)96136-42201
12262Ventilation hose No. 212262-15100
12262AClamp (for vent hose No. 2)90467-21004
12273EToyota part12273-15010 · 12273-24010
12582DToyota part12582-18010
