Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 7 PNC and OE references.

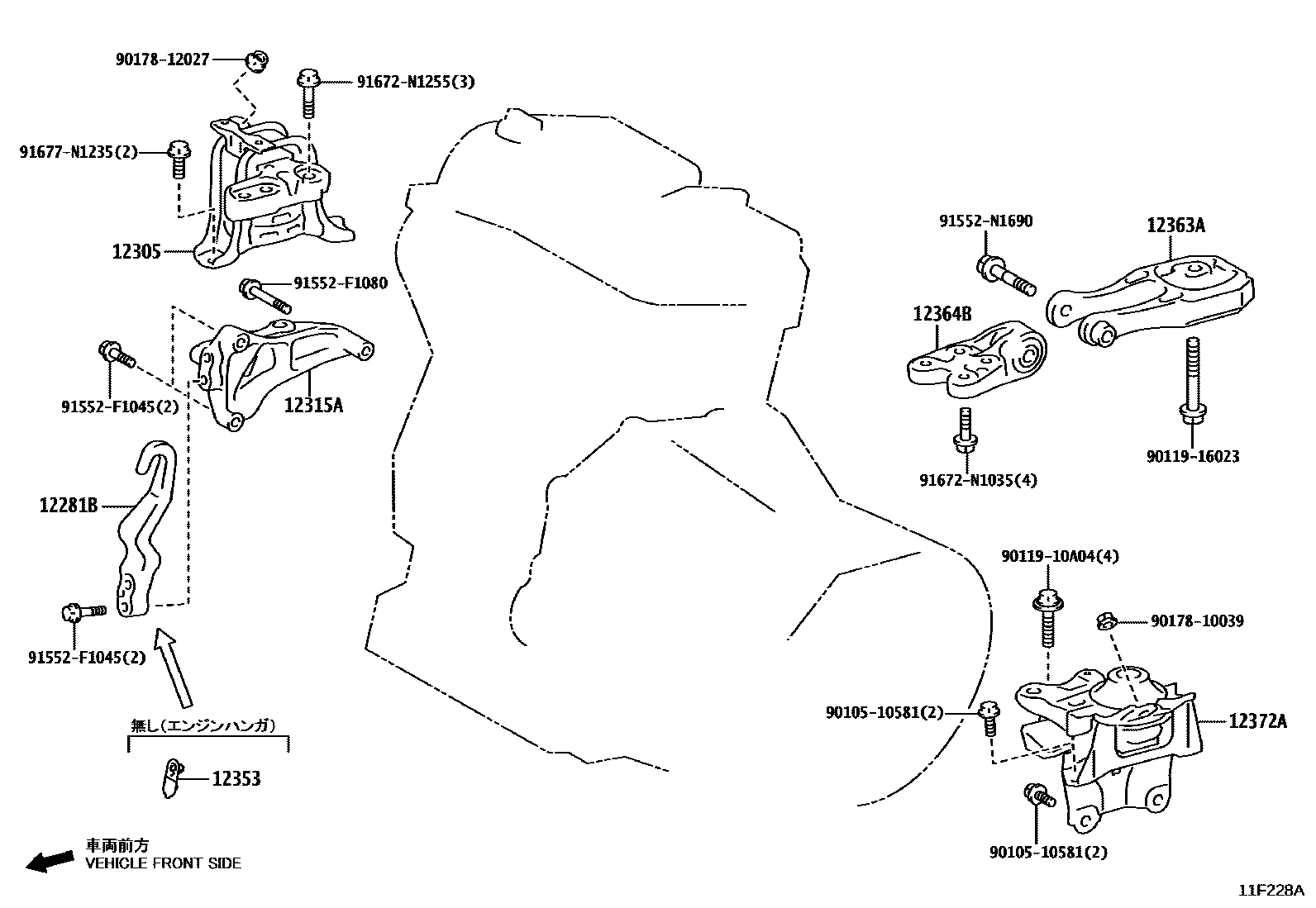

Toyota YARIS Engine Mounting EPC diagram — 11F228A
Engine Mounting — 11F228A (202008 – 999999)

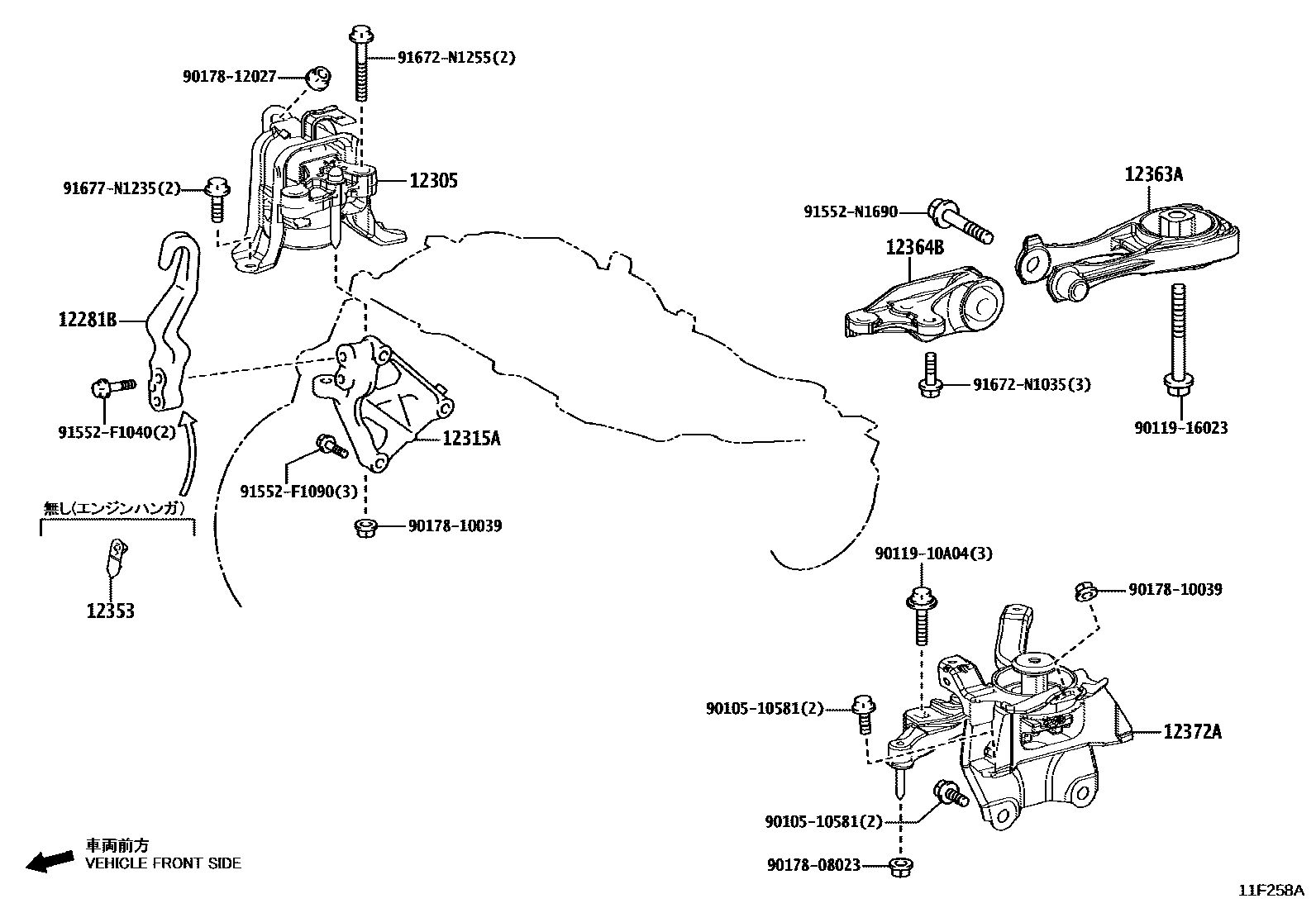

Toyota YARIS Engine Mounting EPC diagram — 11F258A
Engine Mounting — 11F258A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BToyota part12281-25030
12305Engine right side mounting vibration isolation pad sub-assembly12305-15100 · 12305-18050 · 12305-18070
12315AEngine right side mounting bracket (for transversely mounted engine)12315-15090 · 12315-18010
12353Toyota part12353-15010
12363AEngine movement control lever12363-15030 · 12363-15060 · 12363-18010 · 12363-18030
12364BEngine No. 2 motion control lever12364-15040 · 12364-18010 · 12364-18030
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-15281 · 12372-18010 · 12372-18011 · 12372-18030
