Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 14 PNC and OE references.

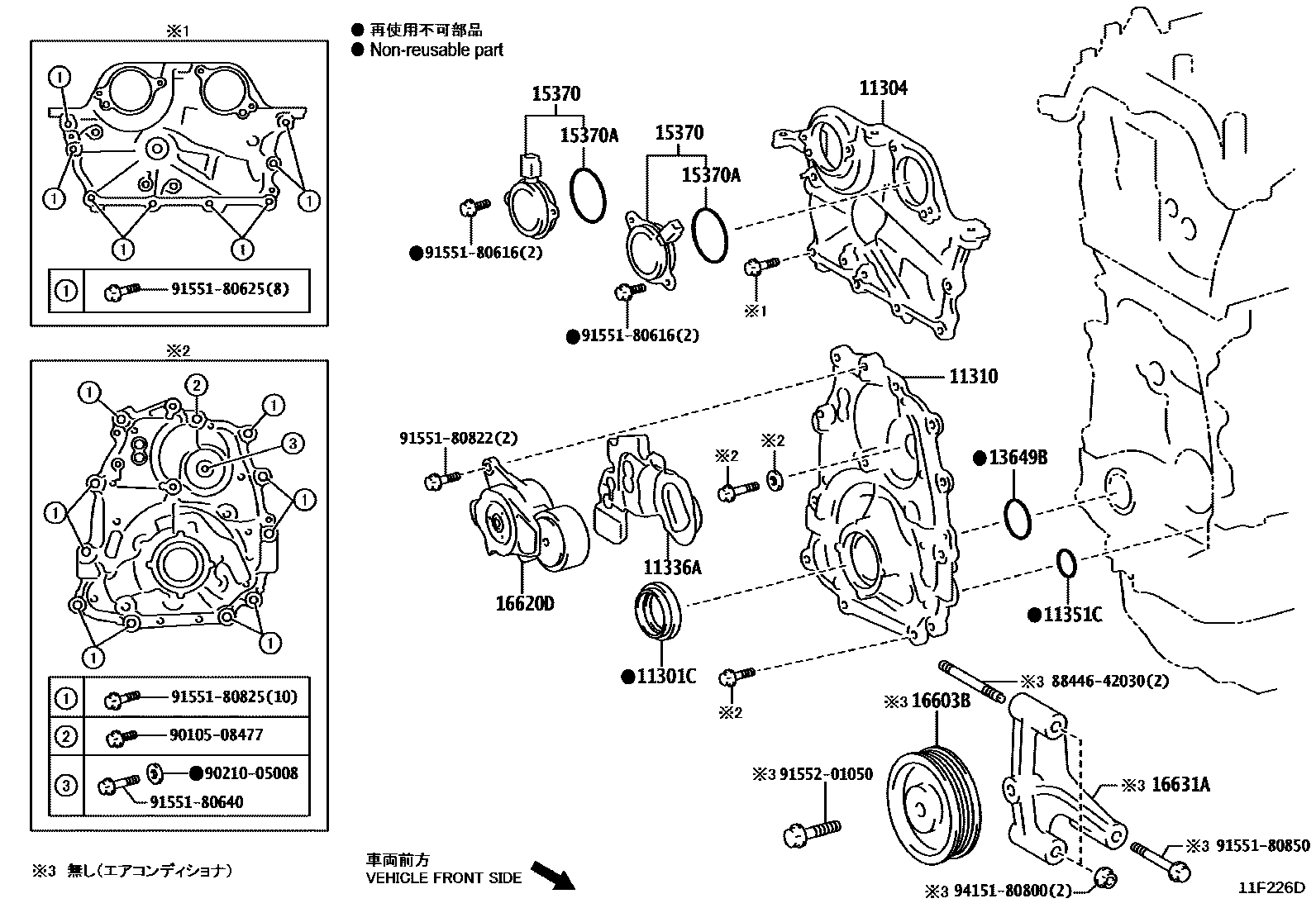

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F226D
Timing Gear Cover & Rear End Plate — 11F226D (202008 – 999999)

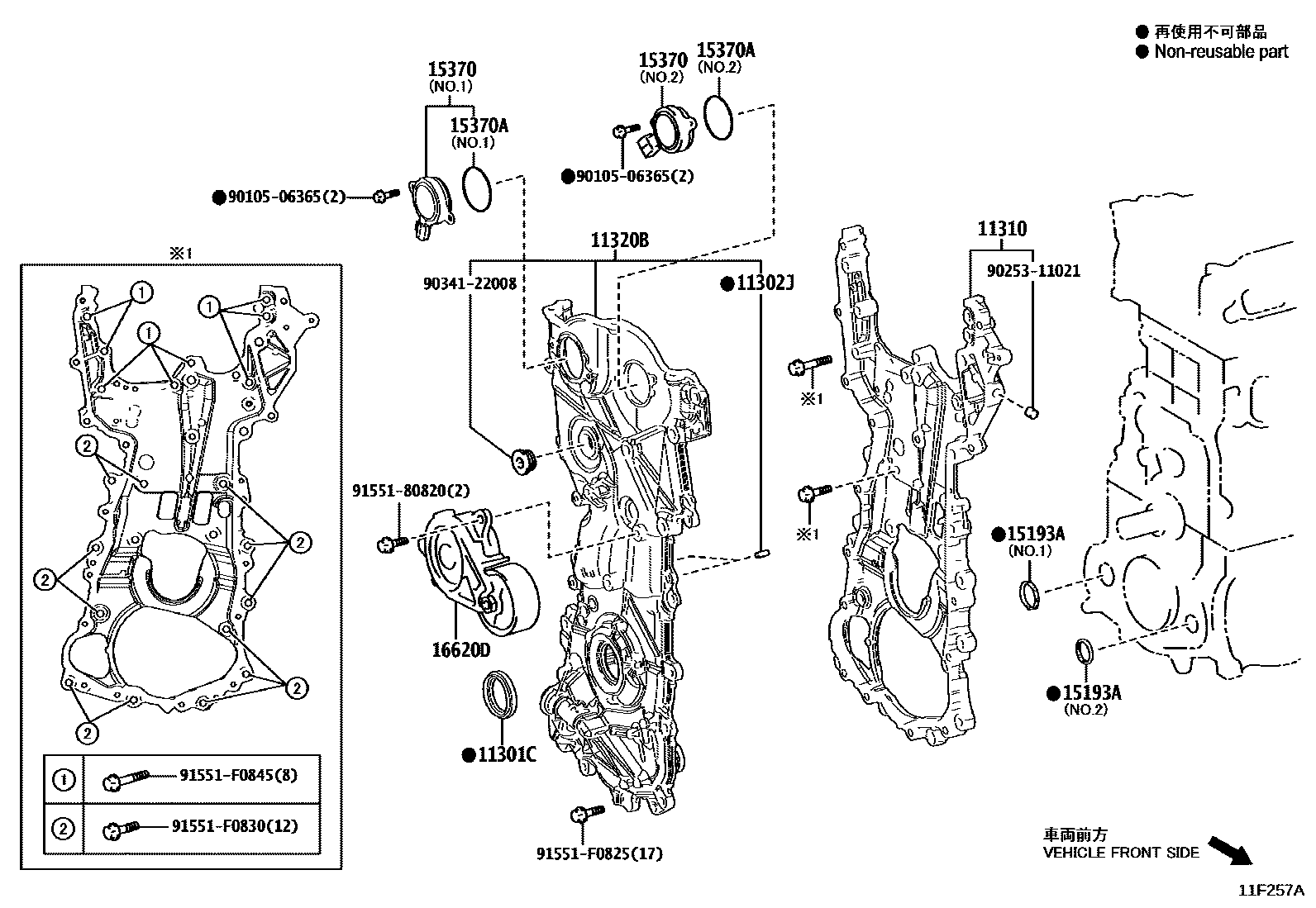

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F257A
Timing Gear Cover & Rear End Plate — 11F257A (202009 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044
11302JDirect sales (for timing chain cover)90250-06003
11304No. 2 timing chain or timing belt cover11322-18010
11310Toyota part11310-15010 · 11310-18020
11320BToyota part11320-15010
11336ATiming gear cover vibration isolation pad11336-18010
11351CO-ring90301-20012
13649BO-ring96723-35028
15193Aoil pump gasket15193-15010 · 15197-15040
15370Toyota part15370-25020 · 15370-36010
15370AToyota part90301-44006 · 90301-50003
16603BIdler gear sub-assembly16603-18010 · 16603-18011
16620DPoly V-belt tensioner assembly16620-18010 · 16620-24020 · 16620-24021
16631AIdler gear bracket16631-18010
