Toyota YARIS Cylinder Head — Figure 1104

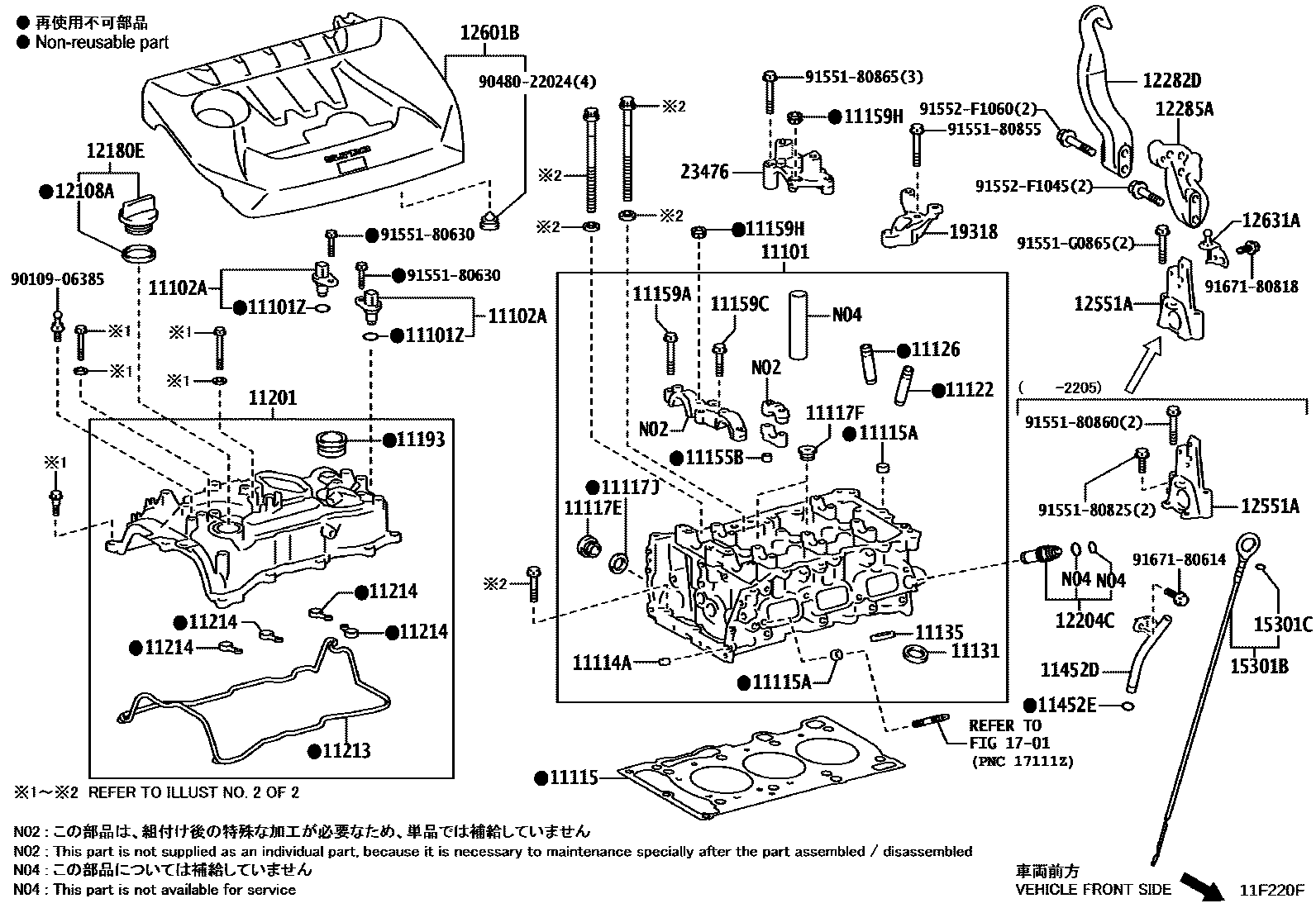

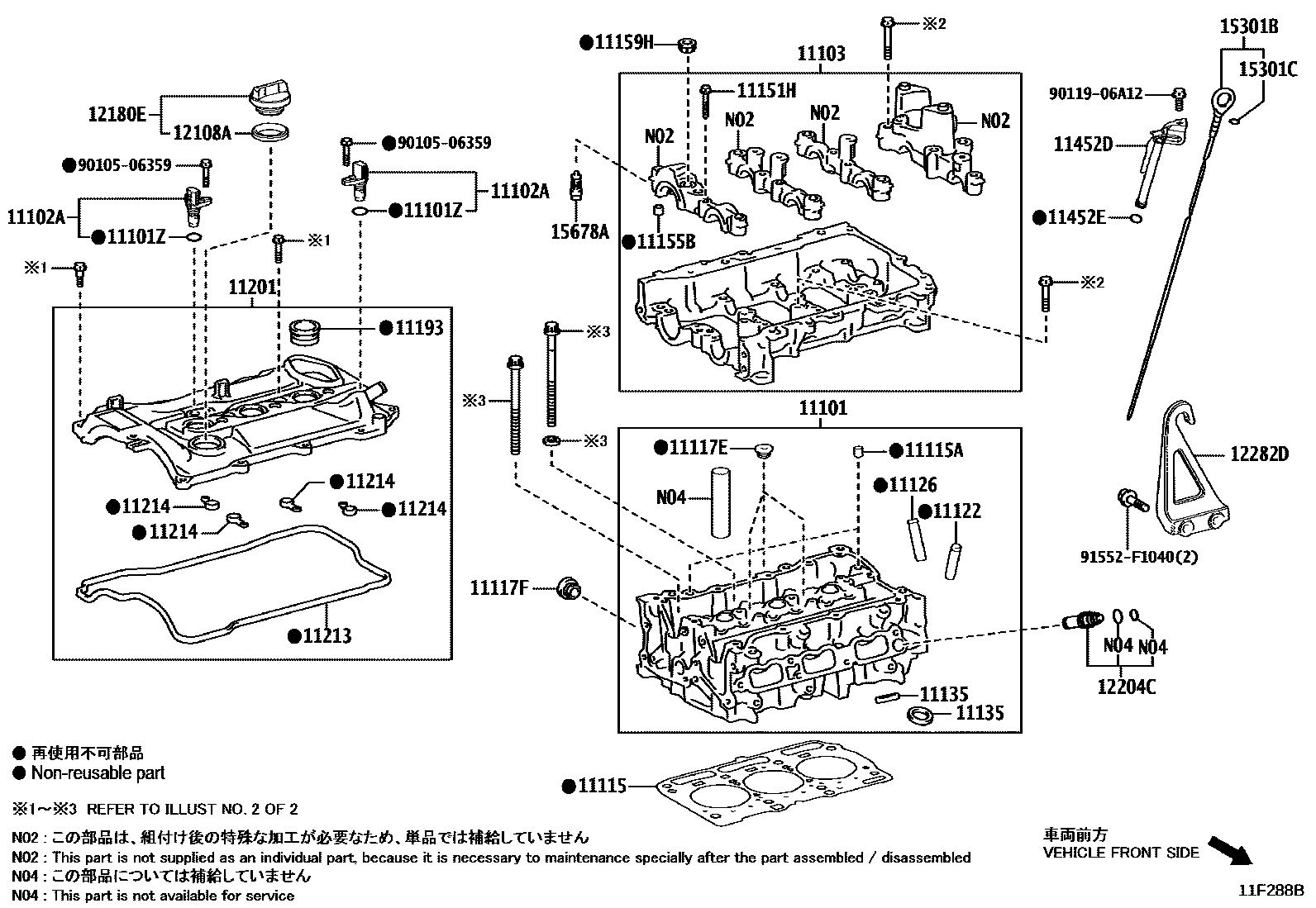

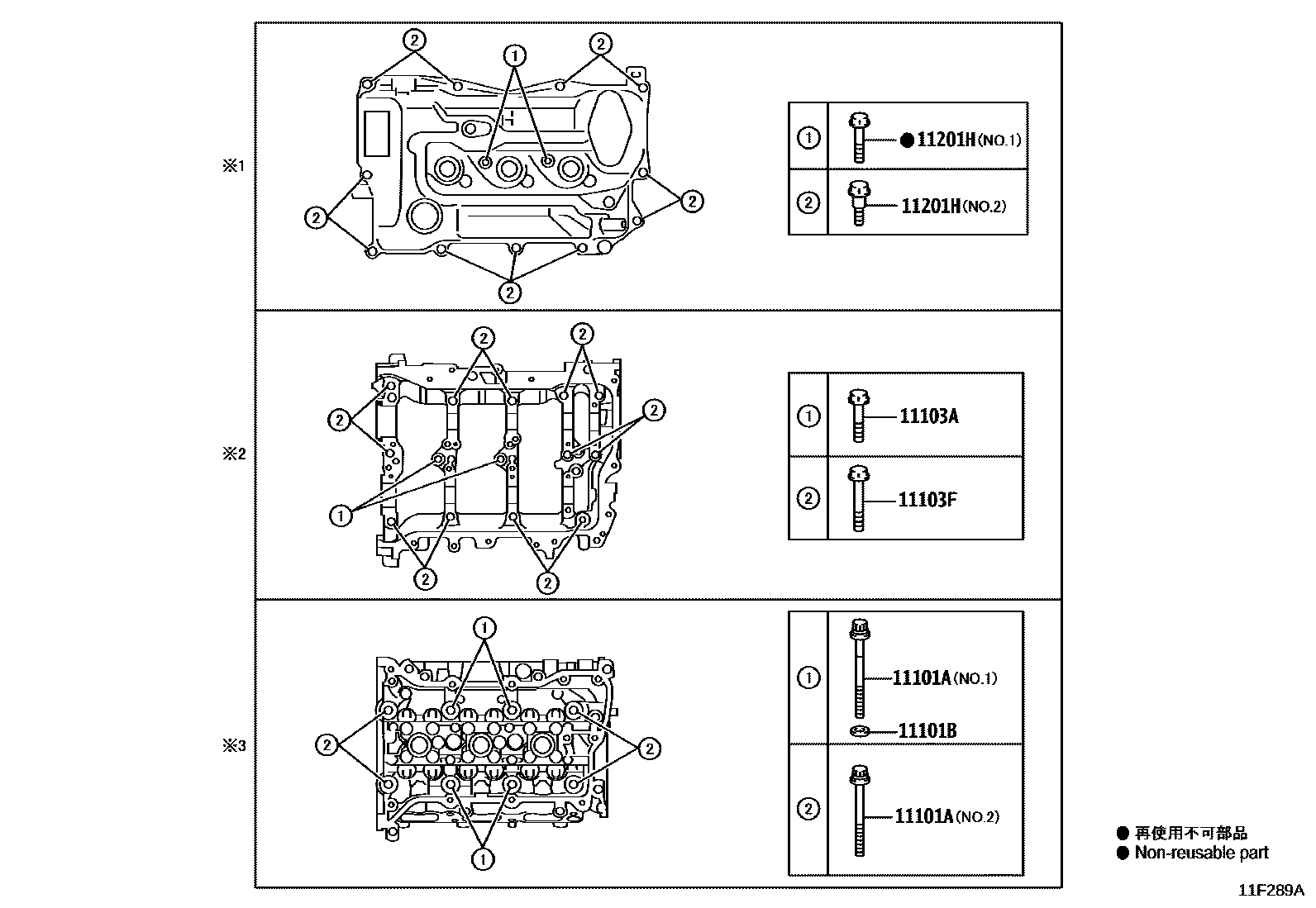

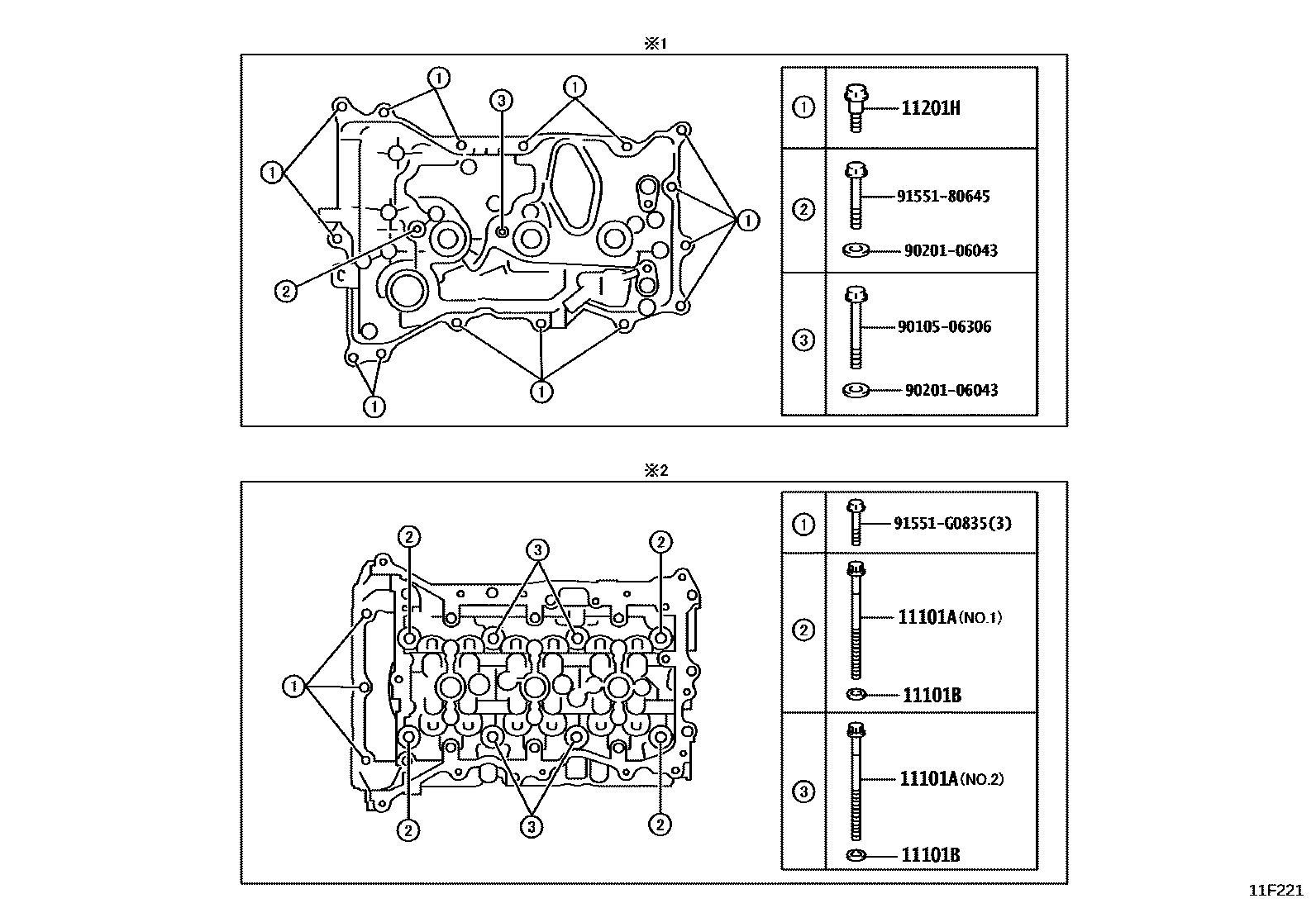

Toyota YARIS EPC diagram 1104, Cylinder Head, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19535 · 11101-19555 · 11101-19565 · 11101-19566 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02202 · 90910-02205 · 90910-02209 · 90910-02210 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-12079 |
| 11101Z | Toyota part | 90301-11038 · 90301-14016 |
| 11102A | Camshaft position sensor | 90919-05073 · 90919-05096 |
| 11103 | Camshaft housing sub-assembly | 11103-15010 |
| 11103A | Bolts (for camshaft housing assembly) | 91551-G0840 |
| 11103F | Bolts (for camshaft housing assembly) | 91551-G0865 |
| 11114A | direct selling | 90250-05027 |
| 11115 | GASKET, CYLINDER HEAD | 11115-15100 · 11115-18020 |
| 11115A | PIN, RING | 90253-11021 · 90253-12002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-27010 |
| 11117F | No. 2 headed straight thread plug | 90341-14015 · 90341-20012 |
| 11117J | Gasket (for cylinder head thread plug) | 16258-36110 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31090 · 11123-31090 · 11126-18010 · 11126-18011 · 11127-18010 · 11127-18011 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11123-31041 · 11123-47010 · 11126-18010 · 11126-18011 · 11127-18010 · 11127-18011 |
| 11131 | intake valve seat | 11131-18010 |
| 11135 | Exhaust valve seat | 11135-24020 · 11135-31110 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155B | PIN, RING | 90253-11021 · 90253-13005 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 91551-G0865 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 91551-G0840 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-31040 |
| 11193 | spark plug bushing gasket | 11193-37030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-15030 · 11201-18020 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90109-06384 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-15100 · 11213-18020 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Toyota part | 11452-18040 · 11452-24020 |
| 11452E | Toyota part | 96741-19010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Toyota part | 12180-18010 · 12180-38010 |
| 12204C | Toyota part | 12204-18010 · 12204-25010 |
| 12282D | ENGINE HANGER, NO.2 | 12282-18010 · 12282-25010 |
| 12285A | Toyota part | 12285-18010 |
| 12551A | No. 1 vacuum pump bracket | 12551-18010 · 12551-18020 |
| 12601B | No. 1 engine hood sub-assembly | 12601-18010 |
| 12631A | hood bracket | 12631-18010 |
| 15301B | Engine oil level scoring assembly | 15301-15060 · 15301-18040 |
| 15301C | O-ring (for engine oil level gauge) | 96741-19005 |
| 15678A | Oil control valve filter | 15678-46020 |
| 19318 | Toyota part | 19318-18010 · 19318-18020 |
| 23476 | fuel pump tappet housing | 23476-18010 · 23476-18011 |
