Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

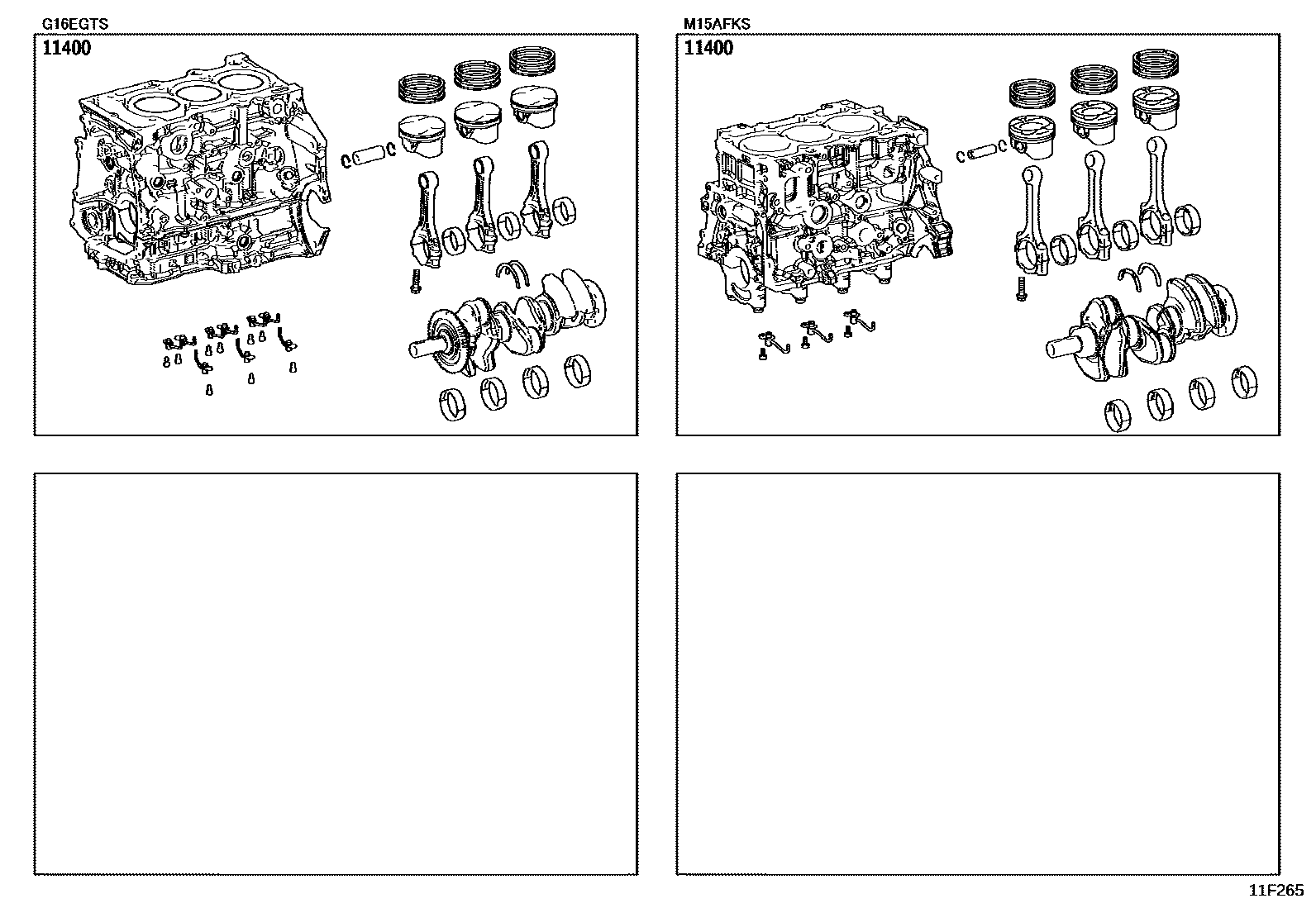

Toyota YARIS Short Block Assembly EPC diagram — 11F265
Short Block Assembly — 11F265 (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-15090 · 11400-18050 · 11400-18051 · 11400-18060
