Toyota YARIS 空气净化器或离子发生器 — Figure 8724

Toyota YARIS EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 3 PNC and OE references.

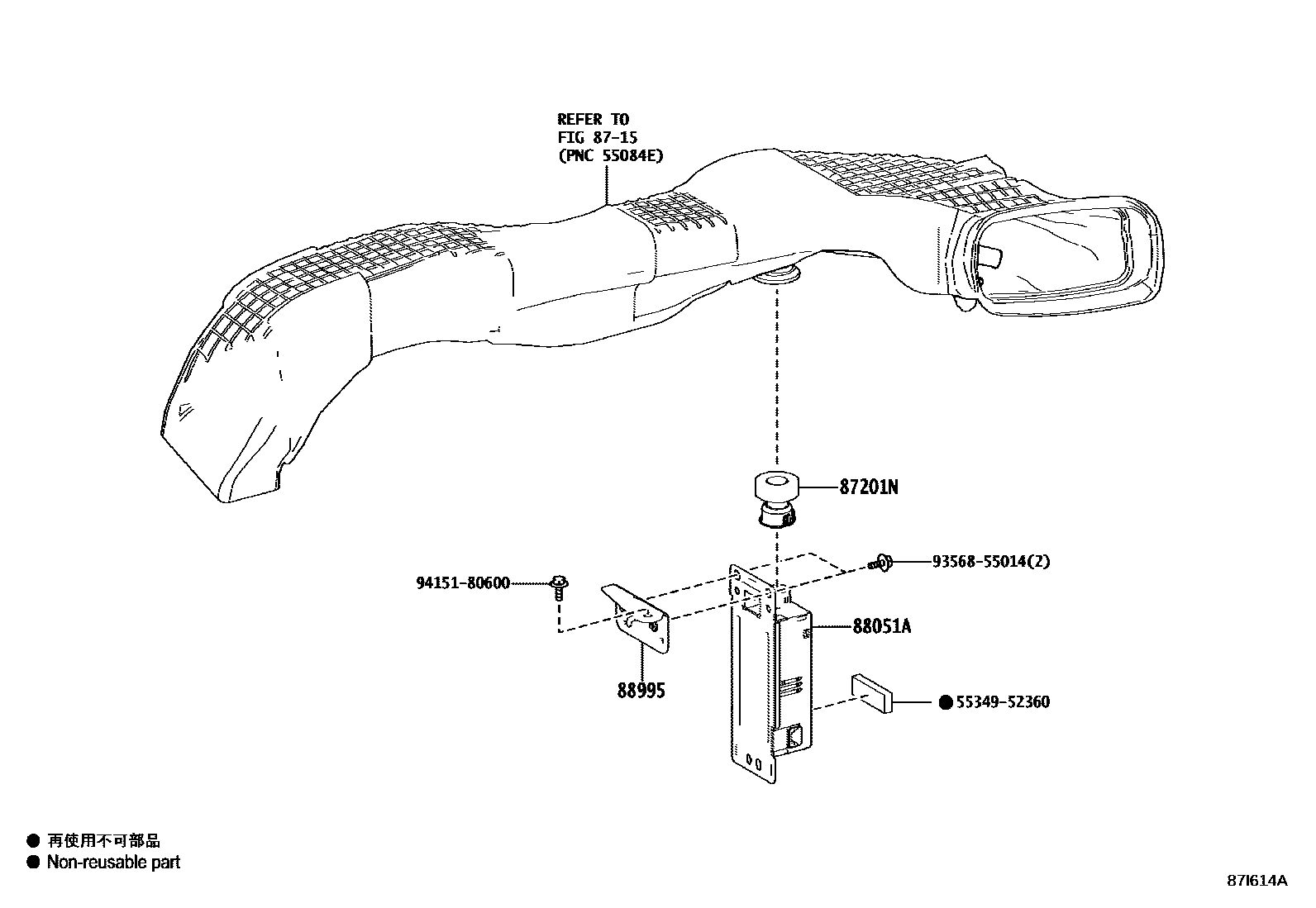

Toyota YARIS 空气净化器或离子发生器 EPC diagram — 87I614A
空气净化器或离子发生器 — 87I614A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly87201-K0010
88051AIon generator sub-assembly88051-28060 · 88051-48010
88995Toyota part88995-K0010
