Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

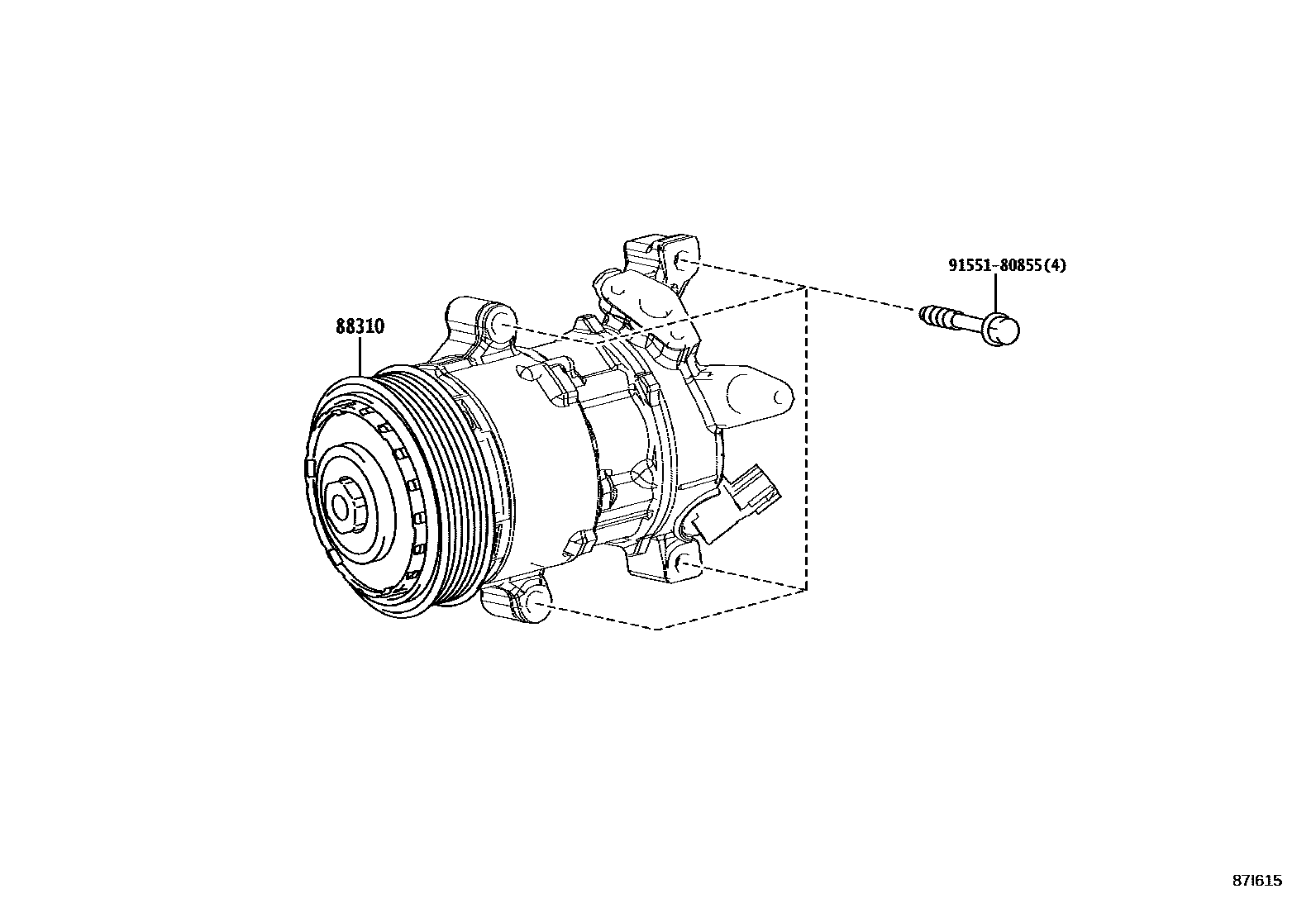

| 88310 | Compressor assembly with pulley | 88310-K0050 |

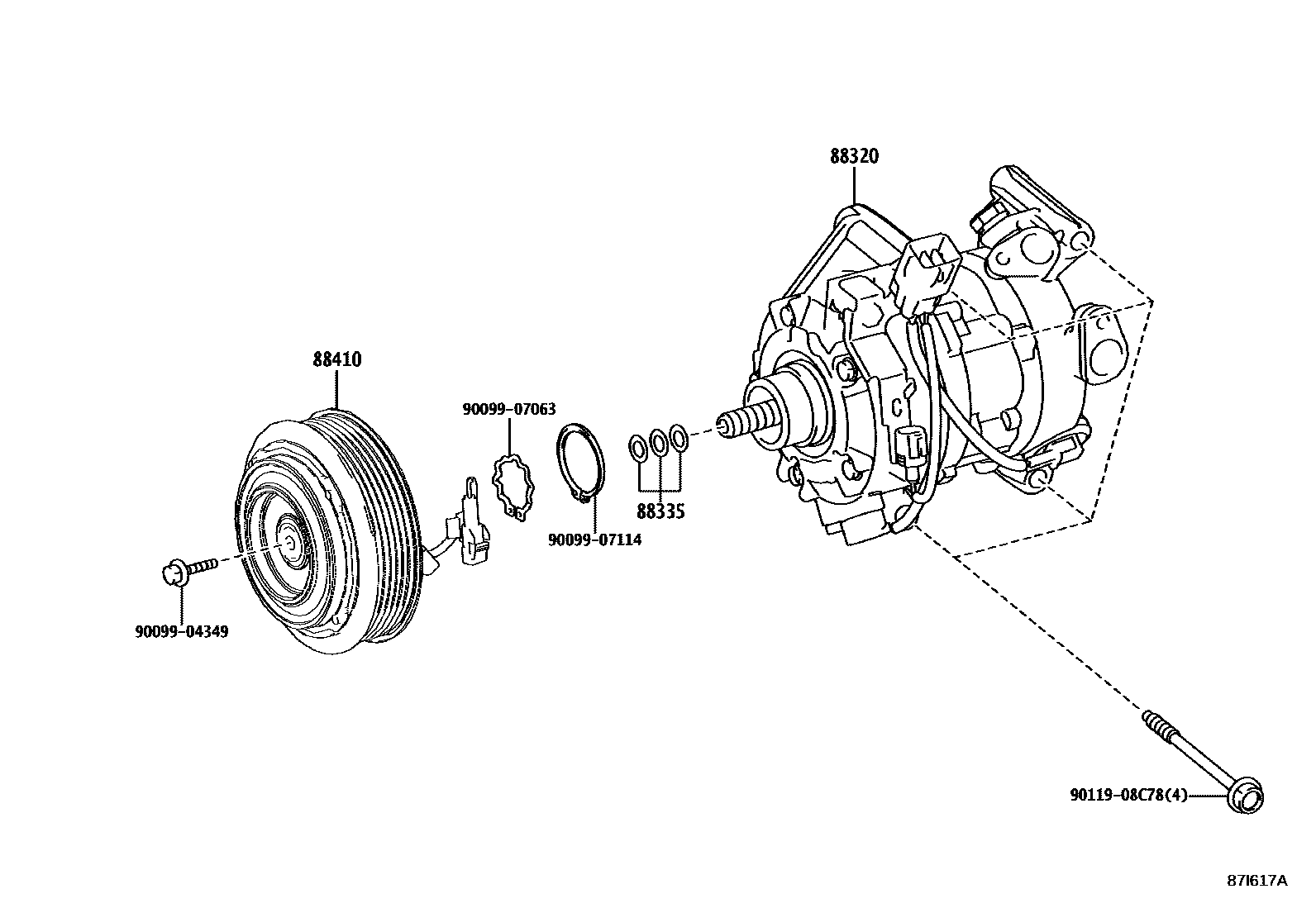

| 88320 | Cooler Compressor Assembly | 88320-K0010 |
| 88335 | Overhaul gasket assembly | 88335-14020 |

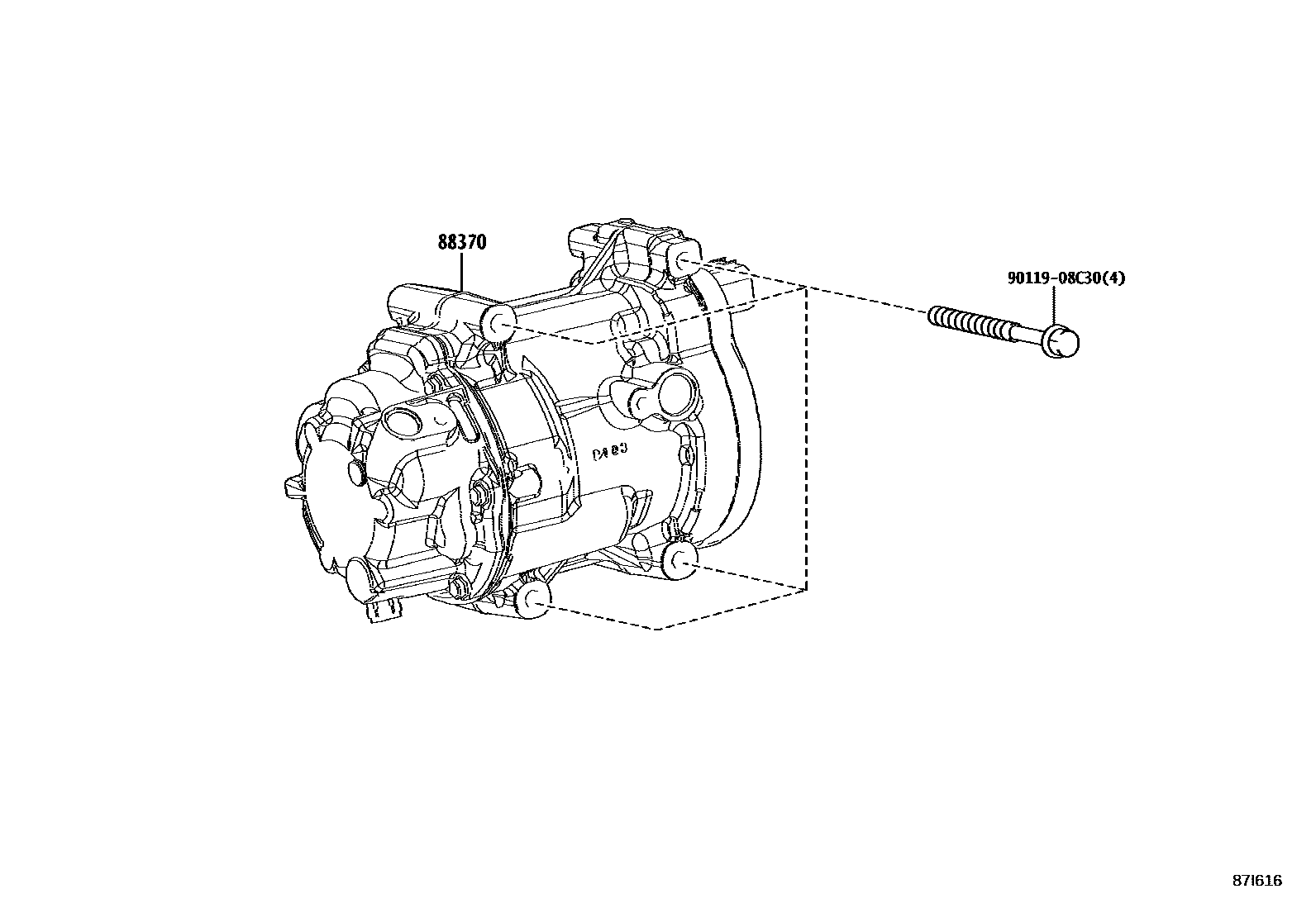

| 88370 | Compressor assembly with motor | 88370-K0010 |
| 88410 | Magnetic Clutch Assembly | 88410-52310 |
