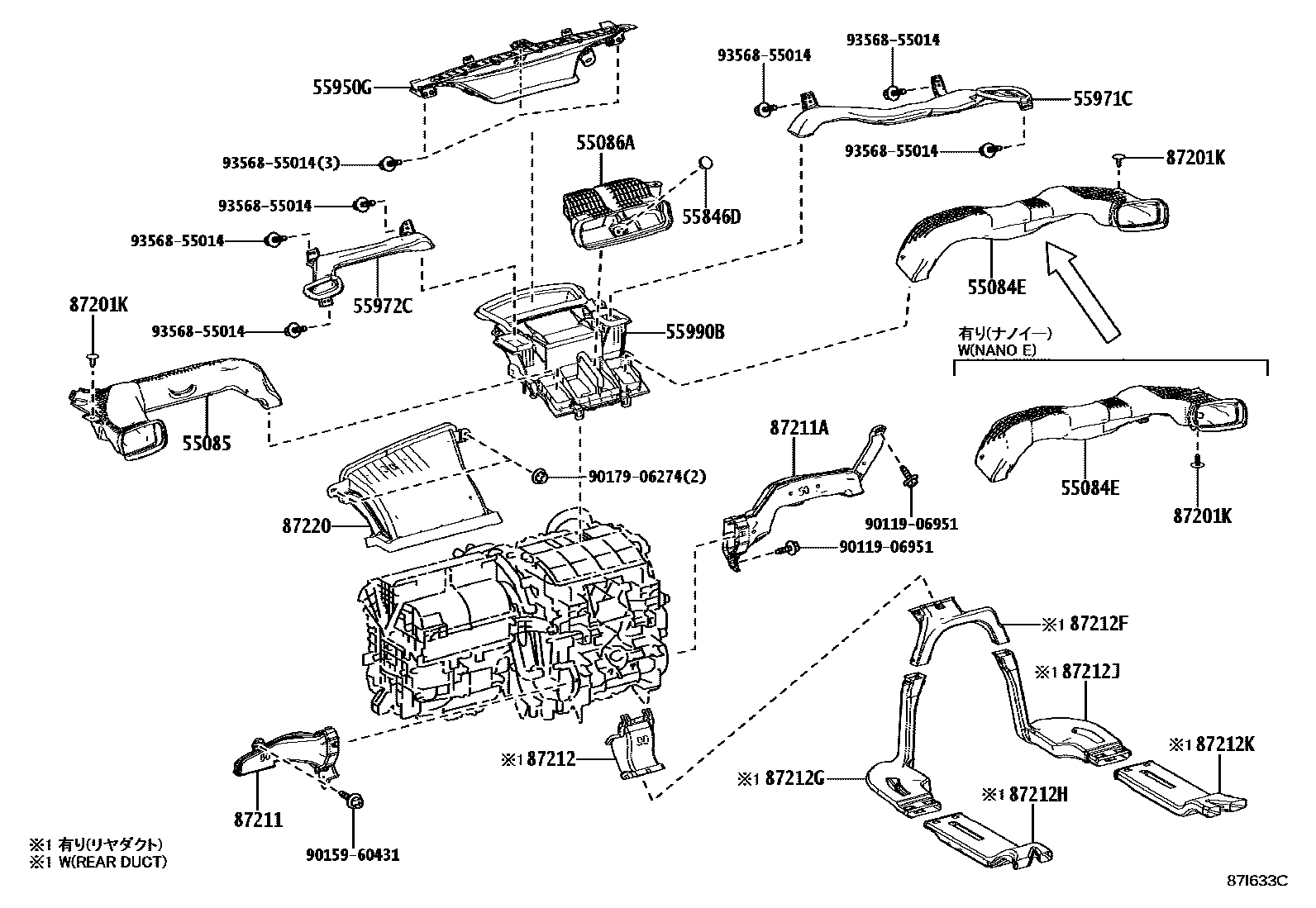

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-K0010 · 55084-K0020 · 55084-K0021 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-52120 · 55085-K0010 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-K0010 |

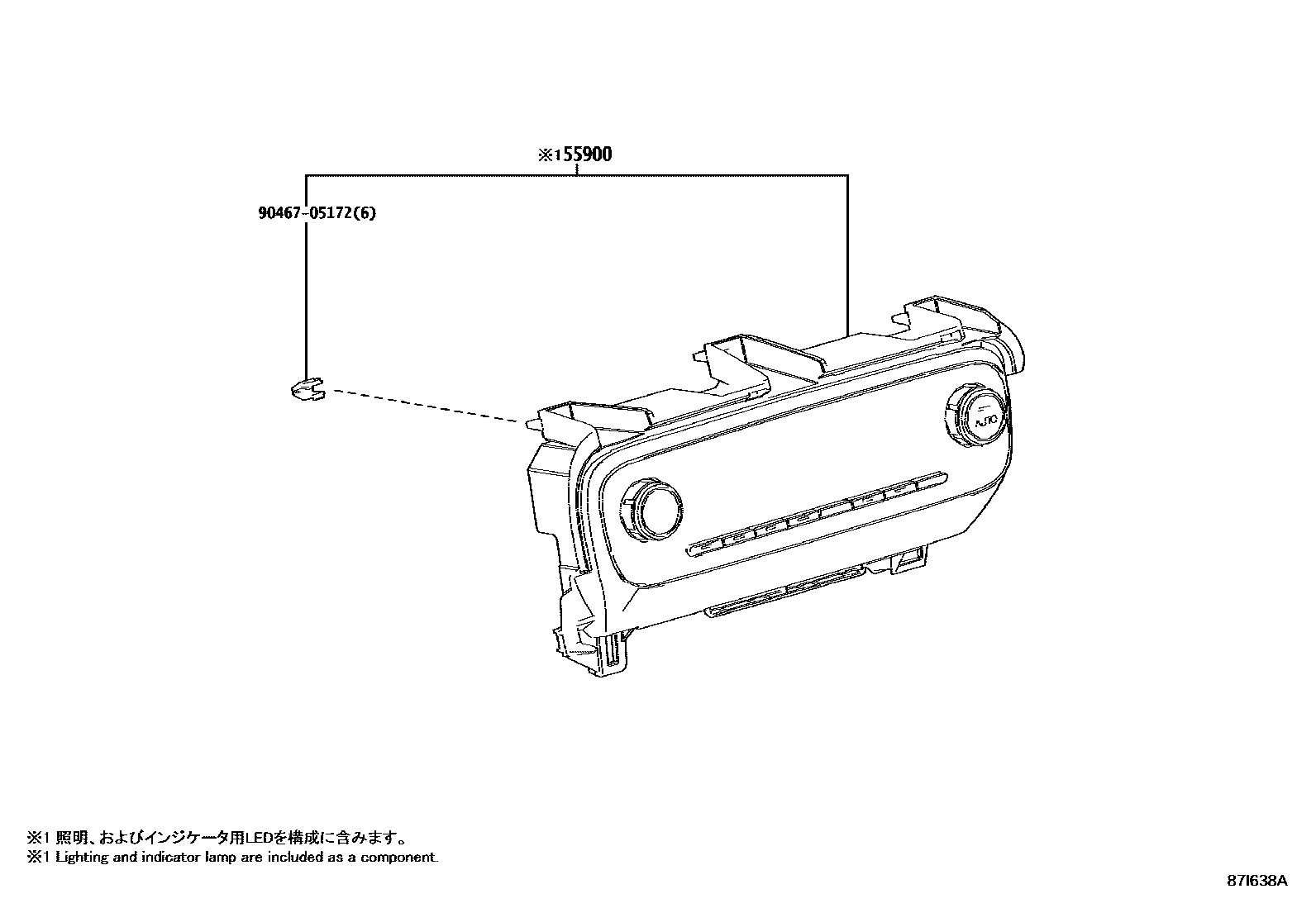

| 55900 | Air conditioning control assembly | 55900-52C00 · 55900-52D90 · 55900-52E00 · 55900-52E10 · 55900-K0040 · 55900-K0041 · 55900-K0050 · 55900-K0051 · 55900-K0060 · 55900-K0061 · 55900-K0240 · 55900-K0241 |

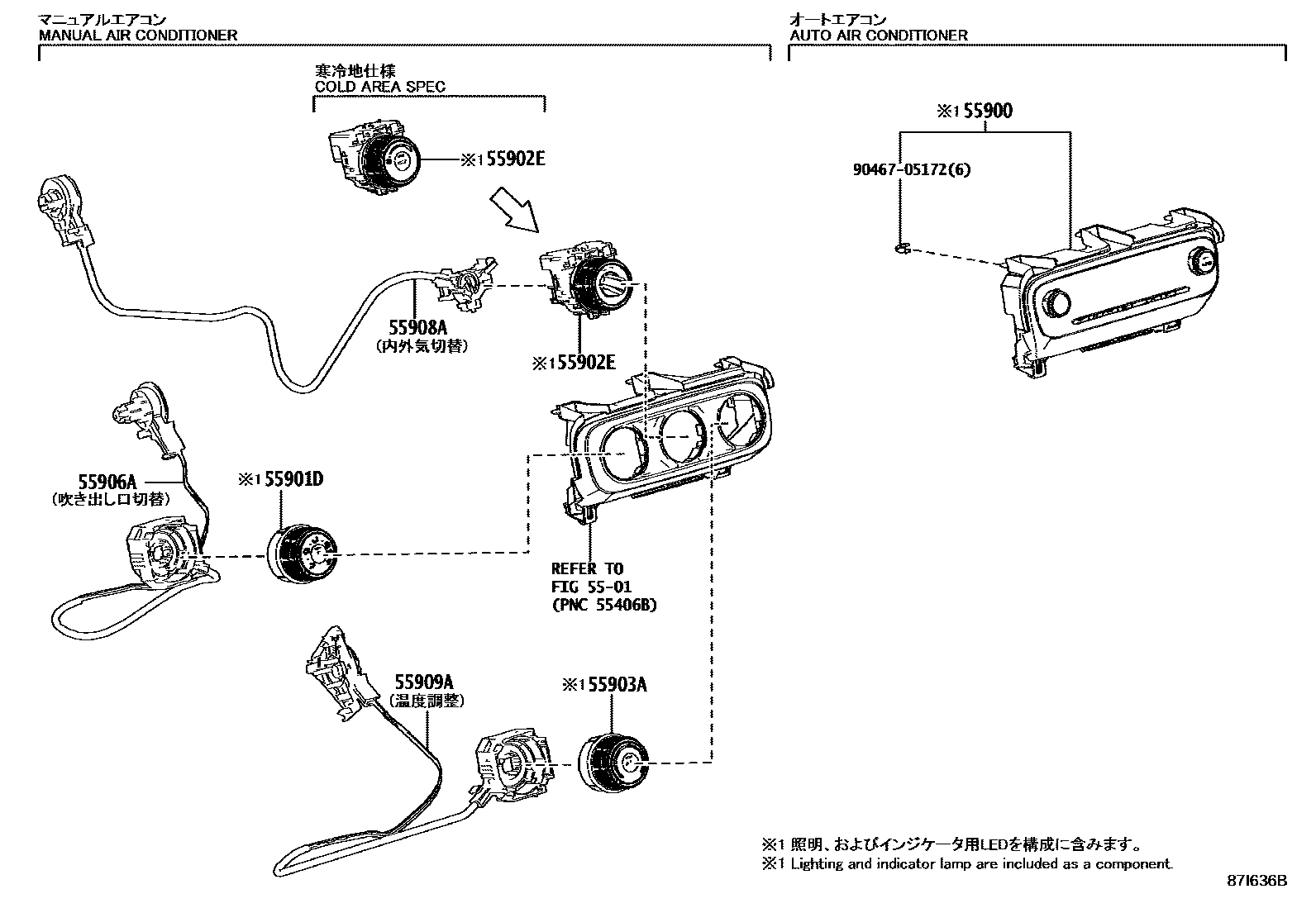

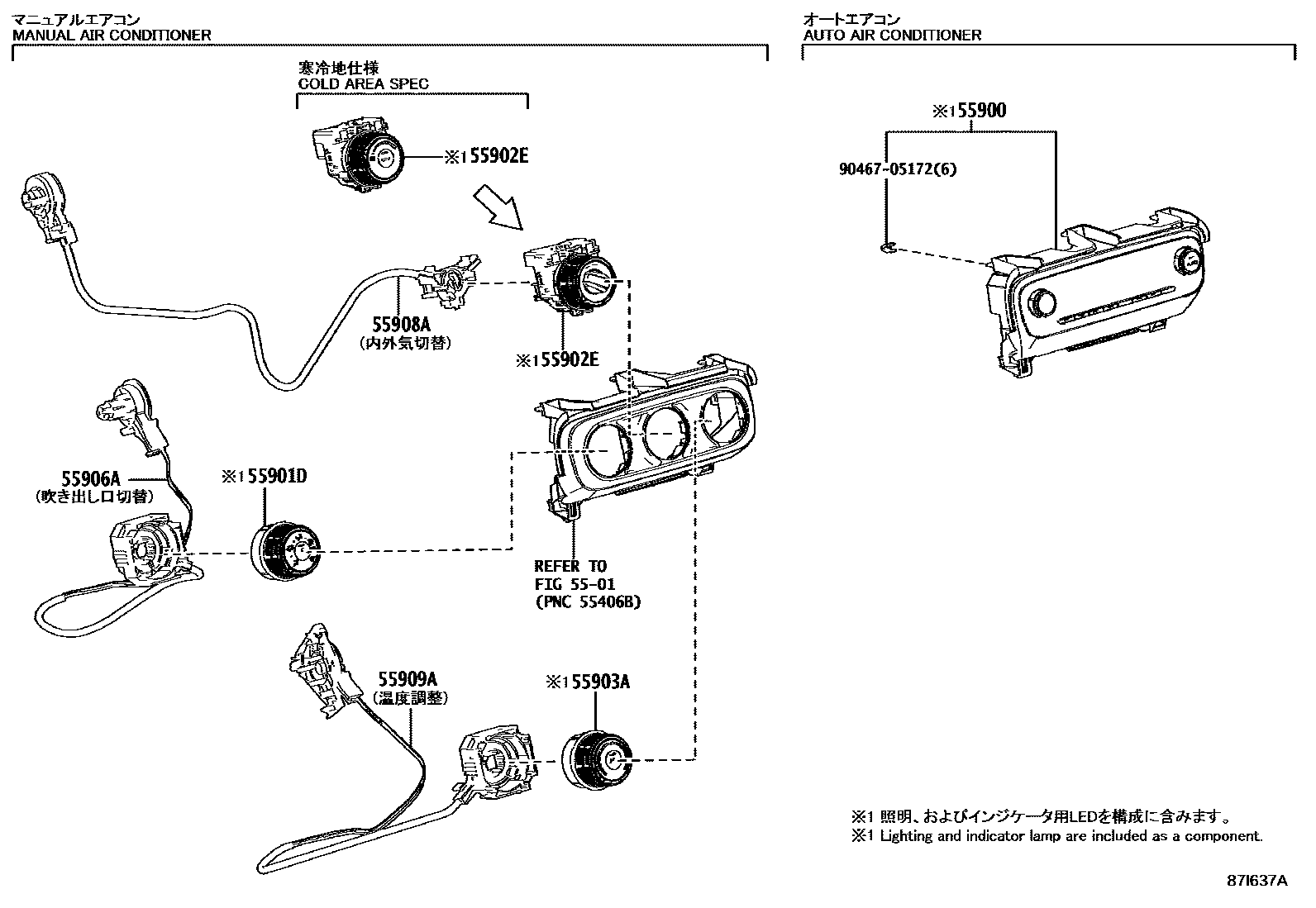

| 55901D | No. 1 heater control sub-assembly | 55901-12280 · 55901-12340 · 55901-52430 · 55901-K0030 |
| 55902E | No. 2 heater control sub-assembly | 55902-12410 · 55902-26150 · 55902-52360 · 55902-K0030 |
| 55903A | No. 3 heater control sub-assembly | 55903-12380 · 55903-12390 · 55903-26140 · 55903-52590 |
| 55906A | Defroster damper control cable sub-assembly | 55906-K0010 · 55906-K0011 |
| 55908A | Intake air valve control cable sub-assembly | 55908-K0010 |
| 55909A | Air mix damper control cable sub-assembly | 55909-K0010 · 55909-K0011 |
| 55950G | Defroster nozzle assembly | 55950-K0010 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-K0010 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-K0010 |
| 55990B | Lower defroster nozzle assembly | 55990-K0010 |
| 87211 | No. 1 air duct | 87211-K0060 |
| 87211A | Duct No. 2 | 87211-52240 · 87211-K0050 |
| 87212 | No. 1 rear air duct | 87114-K0090 |
| 87212F | No. 2 rear air duct | 87215-K0020 |
| 87212G | No. 3 rear air duct | 87213-K0010 |
| 87212H | No. 4 rear air duct | 87217-K0010 |
| 87212J | No. 5 rear air duct | 87212-K0010 |
| 87212K | No. 6 rear air duct | 87216-K0010 |
| 87220 | Air duct assembly | 87220-K0030 |

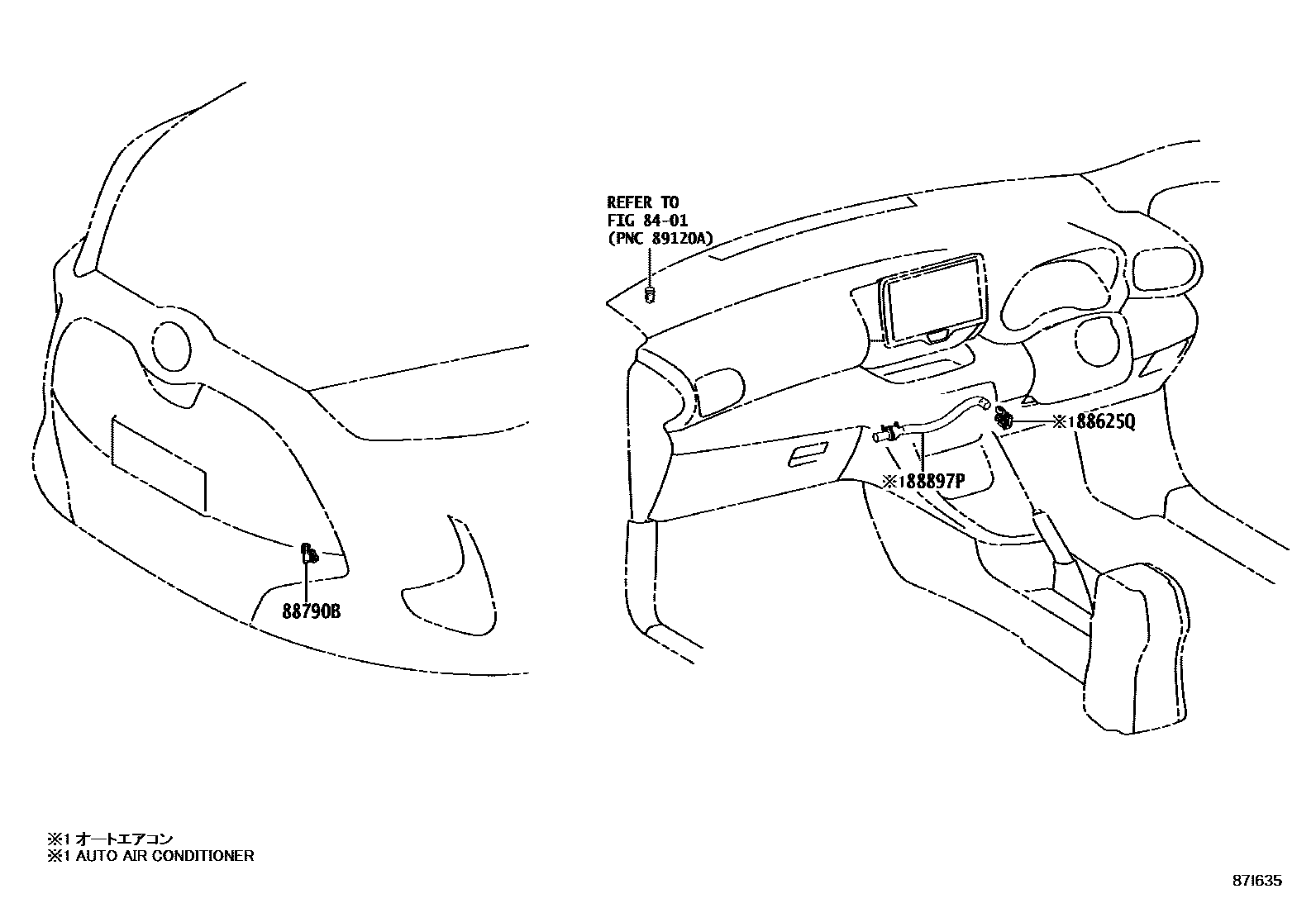

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-K0030 |
