Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 3 images and 15 PNC and OE references.

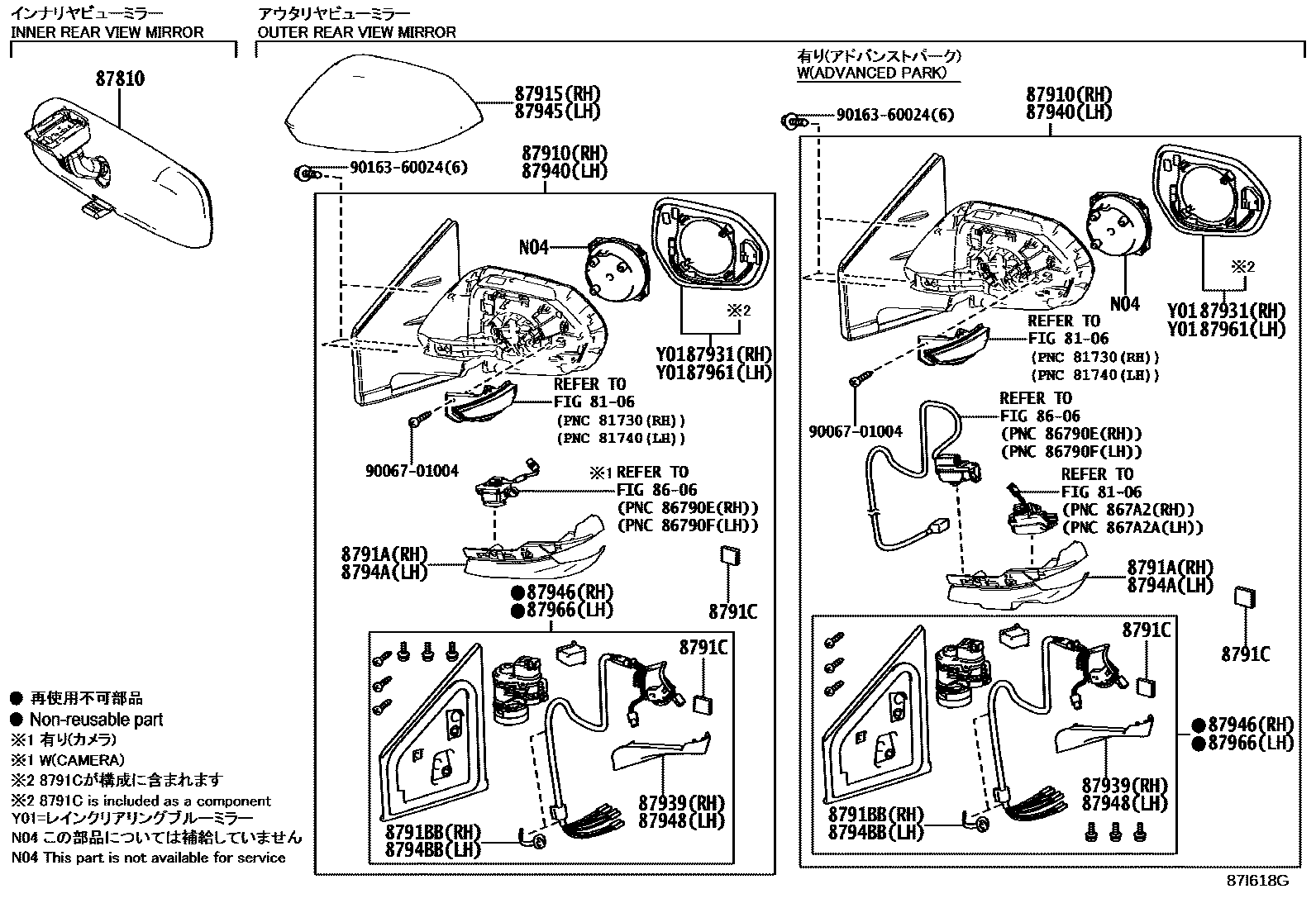

Toyota YARIS 后视镜 EPC diagram — 87I618G
后视镜 — 87I618G (202002 – 202006)

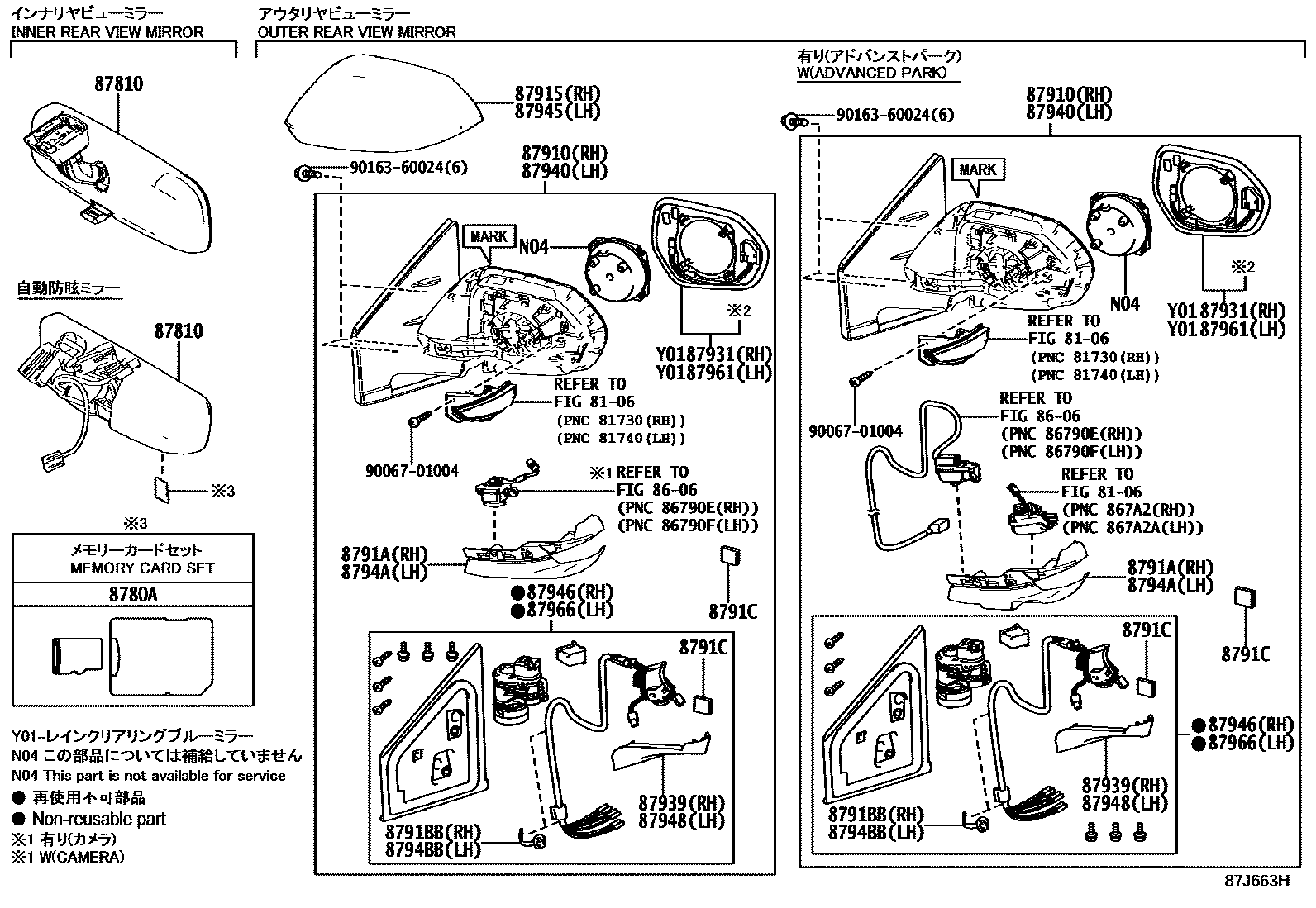

Toyota YARIS 后视镜 EPC diagram — 87J663H
后视镜 — 87J663H (202006 – 202401)

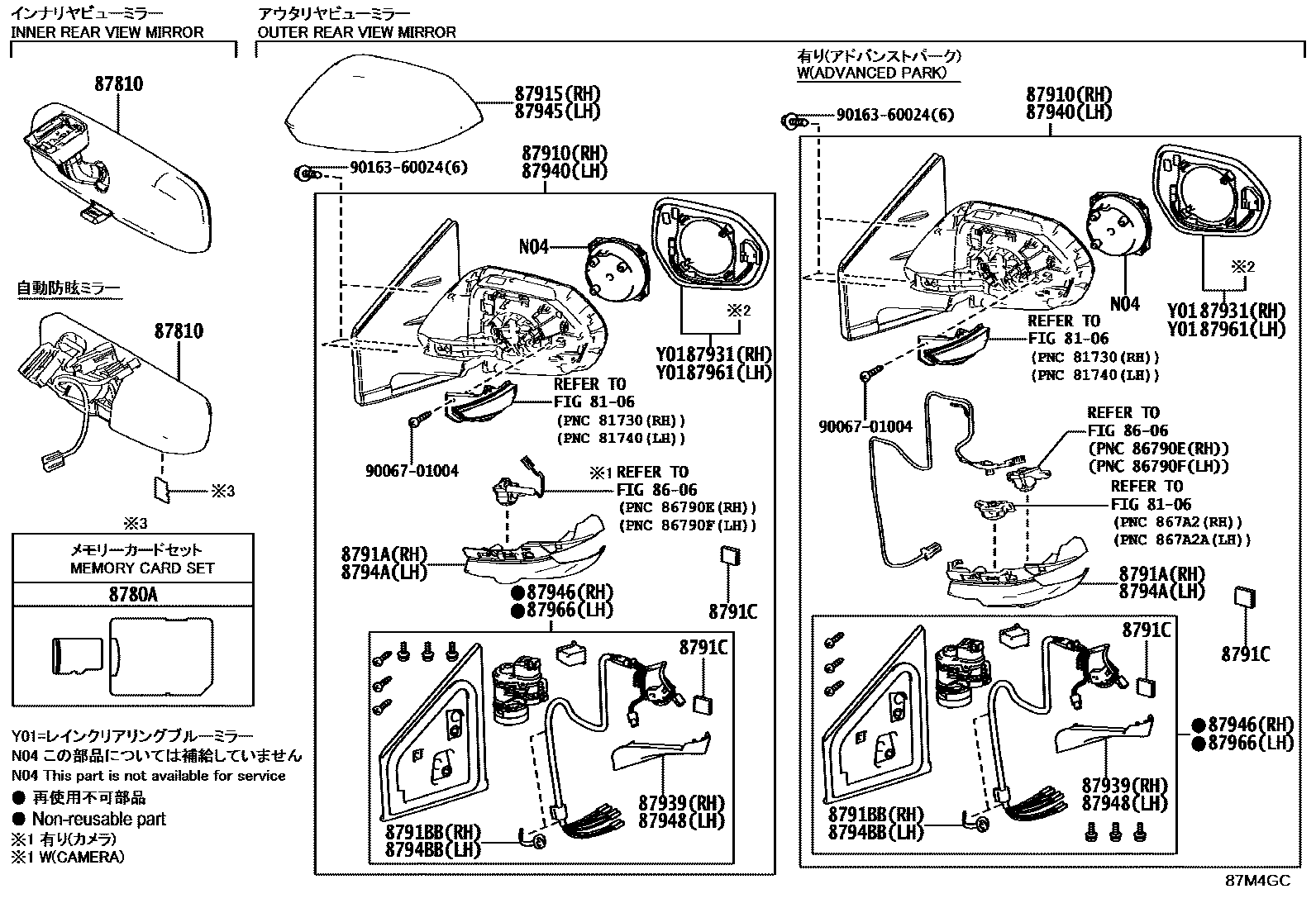

Toyota YARIS 后视镜 EPC diagram — 87M4GC
后视镜 — 87M4GC (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
8780AToyota part8780A-52010
87810Interior rearview mirror assembly87810-28140 · 87810-52041 · 87840-0W370 · 87840-0W371 · 87840-0W610
87910Right exterior rearview mirror assembly87910-52N40 · 87910-52N50 · 87910-52N60 · 87910-K0050 · 87910-K0070 · 87910-K0310 · 87910-K0320 · 87910-K0321 · 87910-K0330 · 87910-K0331 · 87910-K0340 · 87910-K0350
8791ARight exterior rearview mirror cover No. 28791A-52N40 · 8791A-52N60 · 8791A-K0310 · 8791A-K0321 · 8791A-K0340
8791BBToyota part8791B-K0310
8791CToyota part8791C-K0310
87931Right exterior rearview mirror87931-K0050 · 87931-K0070 · 87931-K0310
87939Right exterior rearview mirror hole cover87939-K0310
87940Left exterior rearview mirror assembly87940-52N50 · 87940-52N60 · 87940-52N70 · 87940-K0050 · 87940-K0070 · 87940-K0370 · 87940-K0380 · 87940-K0381 · 87940-K0390 · 87940-K0391 · 87940-K0400 · 87940-K0410
87946Right exterior rearview mirror retractor87946-52N40 · 87946-52N50 · 87946-52N60 · 87946-K0050 · 87946-K0070 · 87946-K0310 · 87946-K0320 · 87946-K0330 · 87946-K0340 · 87946-K0350
87948Left exterior rearview mirror hole cover87948-K0370
8794ANo. 2 left exterior rearview mirror cap8794A-52N50 · 8794A-52N70 · 8794A-K0370 · 8794A-K0381 · 8794A-K0400
8794BBToyota part8791B-K0310
87961Left exterior rearview mirror87961-K0050 · 87961-K0070 · 87961-K0370
87966Left exterior rearview mirror retractor87966-52N50 · 87966-52N60 · 87966-52N70 · 87966-K0050 · 87966-K0070 · 87966-K0370 · 87966-K0380 · 87966-K0390 · 87966-K0400 · 87966-K0410
