Toyota YARIS 预碰撞安全系统 — Figure 8617

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 6 PNC and OE references.

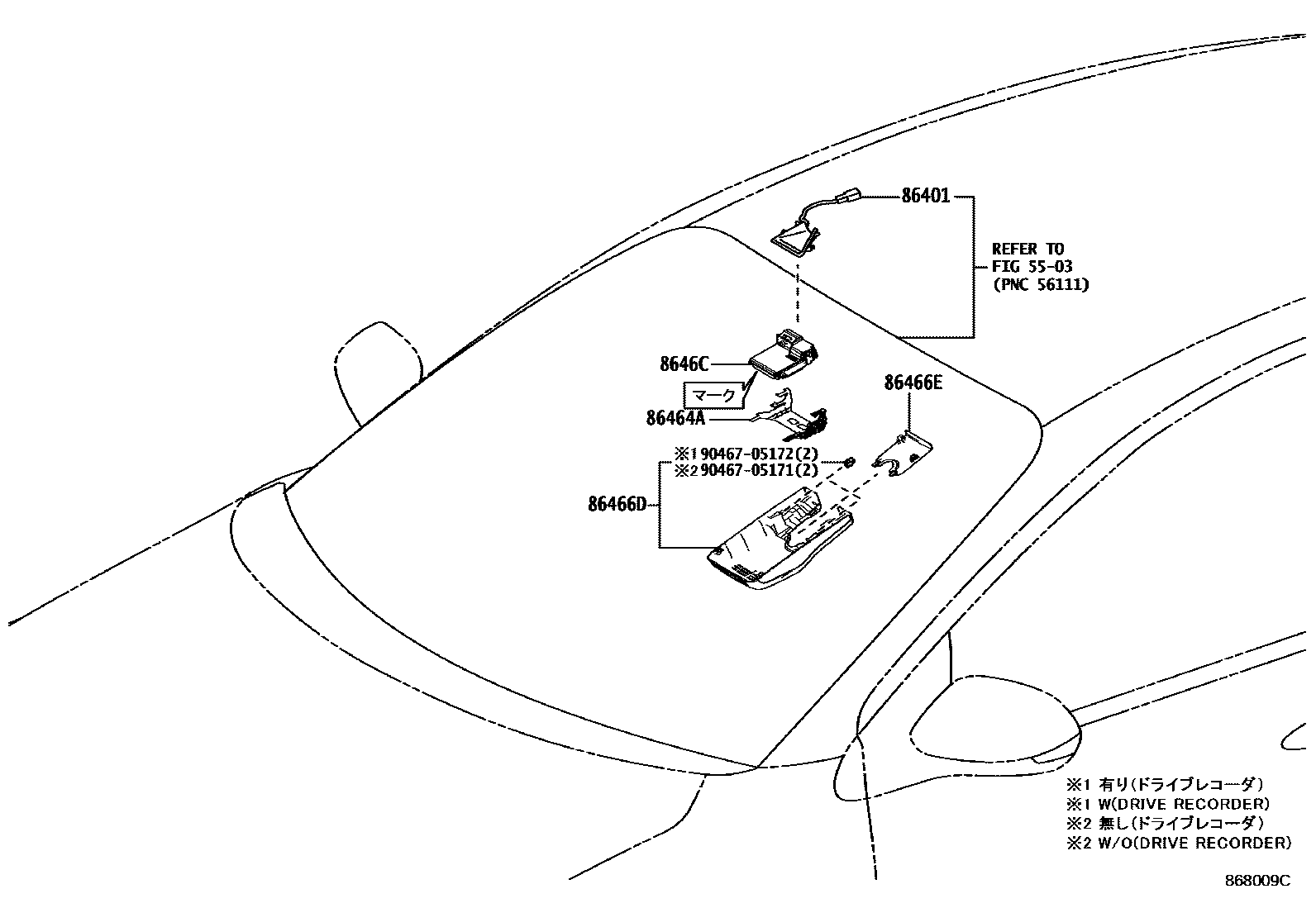

Toyota YARIS 预碰撞安全系统 EPC diagram — 868009C
预碰撞安全系统 — 868009C (202002 – 999999)

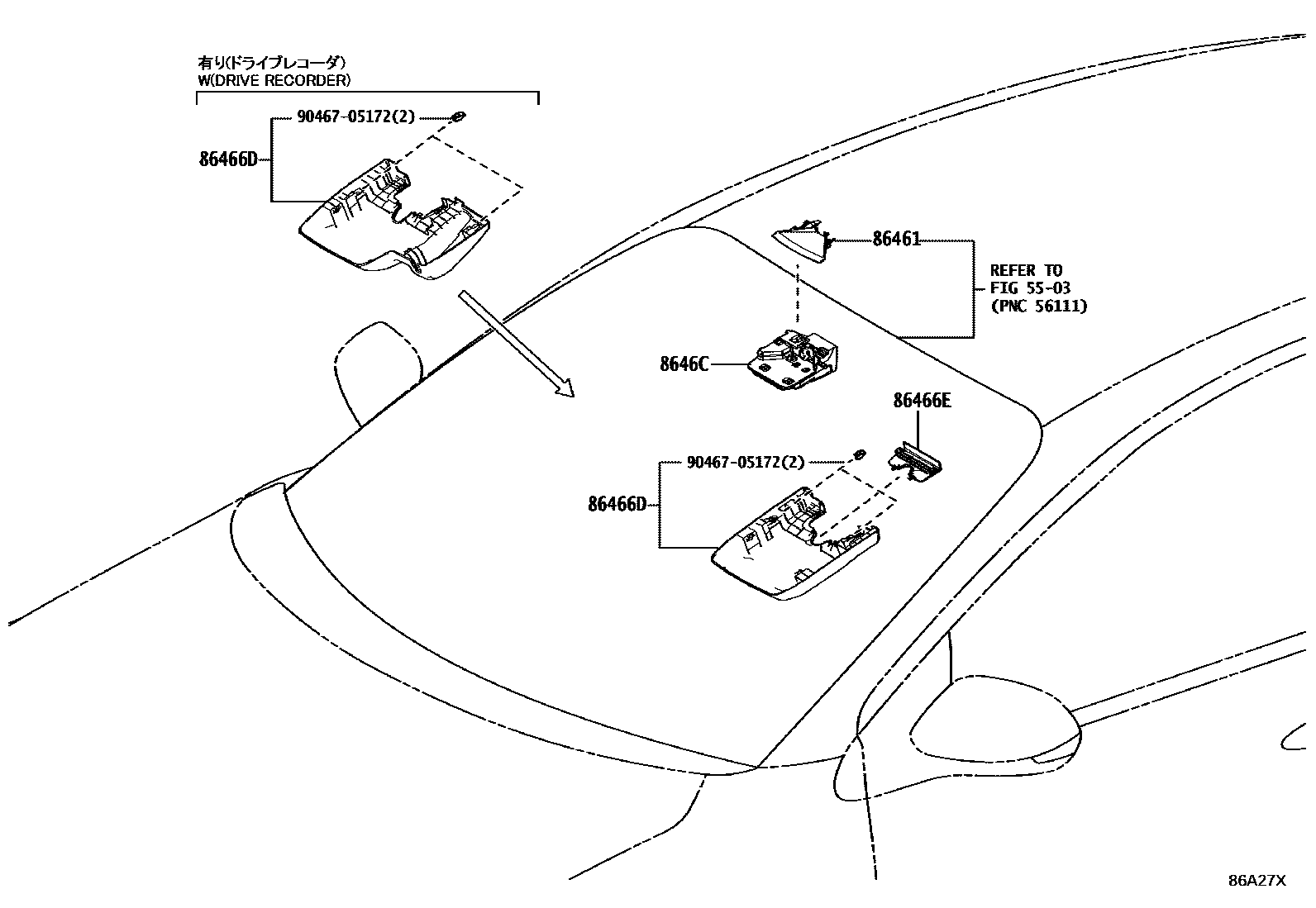

Toyota YARIS 预碰撞安全系统 EPC diagram — 86A27X
预碰撞安全系统 — 86A27X (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
86401Toyota part86401-K0010
86461Toyota part86461-52070
86464AToyota part86464-K0010
86466DToyota part86466-52100 · 86466-52170 · 86466-52190 · 86466-K0010
86466EToyota part86466-K0020 · 86467-52070
8646CToyota part8646C-52030 · 8646C-52080 · 8646C-52250 · 8646C-K0010
