Toyota YARIS 倒车影像和摄像头 — Figure 8606

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 2 images and 13 PNC and OE references.

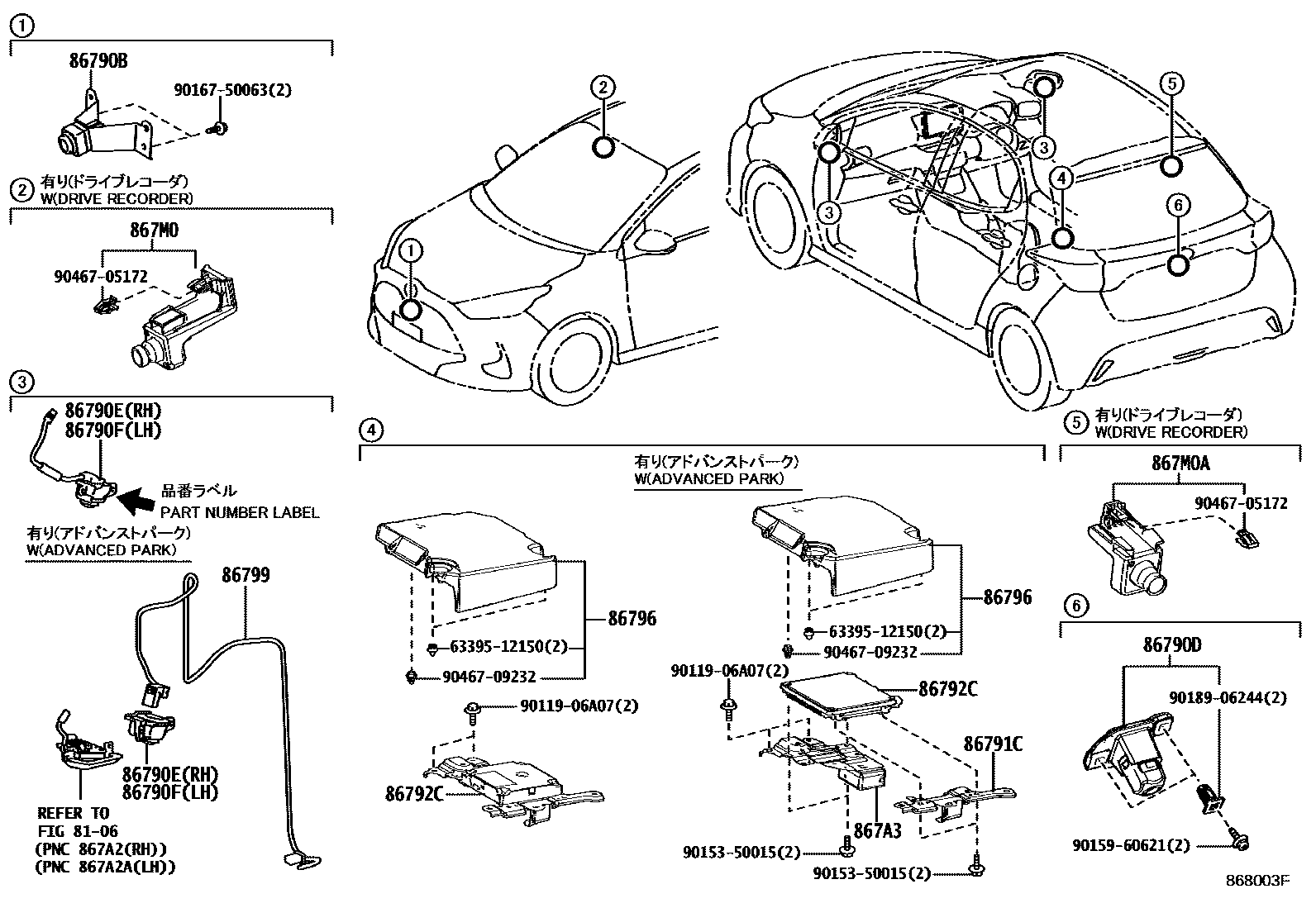

Toyota YARIS 倒车影像和摄像头 EPC diagram — 868003F
倒车影像和摄像头 — 868003F (202002 – 999999)

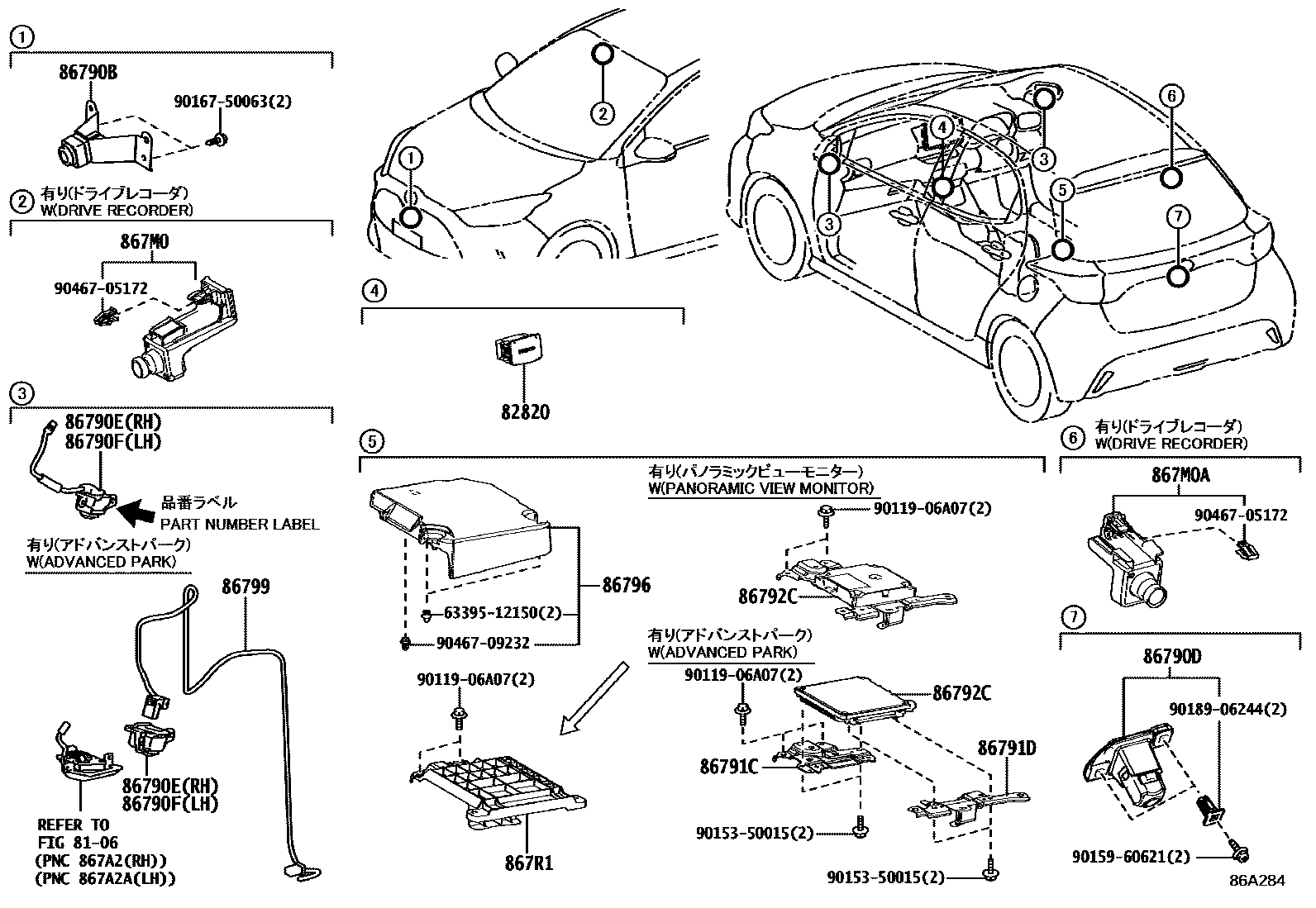

Toyota YARIS 倒车影像和摄像头 EPC diagram — 86A284
倒车影像和摄像头 — 86A284 (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
86790BFront image camera assembly86790-52670 · 86790-52680 · 86790-K0070 · 86790-K0080 · 86790-K0081
86790DRear reversing image camera assembly86790-52340 · 86790-52650 · 86790-52660 · 86790-K0020 · 867B0-52120 · 867B0-K0010
86790EToyota part86790-52700 · 86790-52800 · 86790-K0040 · 86790-K0041 · 86795-K0020
86790FToyota part86790-52690 · 86790-52790 · 86790-K0030 · 86790-K0031 · 86795-K0010
86791CToyota part86791-52250 · 86791-K0020
86791DToyota part86791-52260
86792CParking assist ECU86792-52100 · 86792-52190 · 86792-52260 · 86792-K0010 · 86792-K0011 · 86792-K0020
86796Parking assist ECU cover86796-K0010
86799Reversing image camera wiring harness86799-K0010
867A3Toyota part867A3-K0010
867M0Toyota part867M0-0W010
867M0AToyota part867M0-0W020
867R1Toyota part867R1-52010
