Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 9 PNC and OE references.

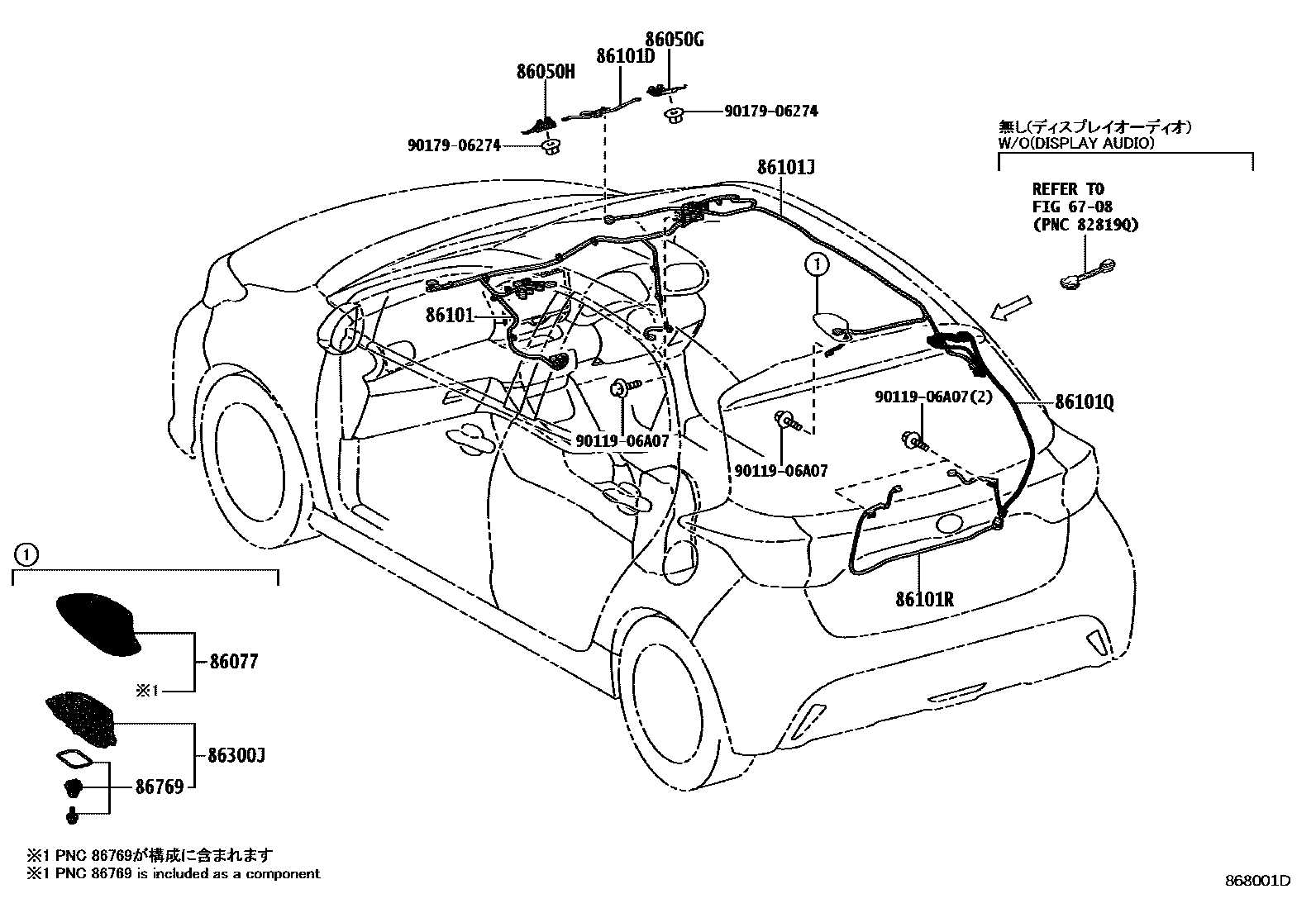

Toyota YARIS antenna EPC diagram — 868001D
antenna — 868001D (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050GToyota part86050-53180
86050HToyota part86050-53190
86101Antenna wire sub-assembly86101-52F70 · 86101-52Q80 · 86101-52Q90 · 86101-52R00 · 86101-52R30 · 86101-52R40 · 86101-K0410 · 86101-K0820
86101DNo. 3 antenna wire sub-assembly86101-52S30 · 86101-K0010
86101JNo. 2 antenna wire sub-assembly86101-52K80 · 86101-52P80 · 86101-52Q10 · 86101-K0250
86101QNo. 4 antenna wire sub-assembly86101-52S40 · 86101-K0160
86101RNo. 5 antenna wire sub-assembly86101-52S50 · 86101-K0780
86300JRoof antenna assembly86300-42250 · 86760-K0010
86769Toyota part86769-K0010
