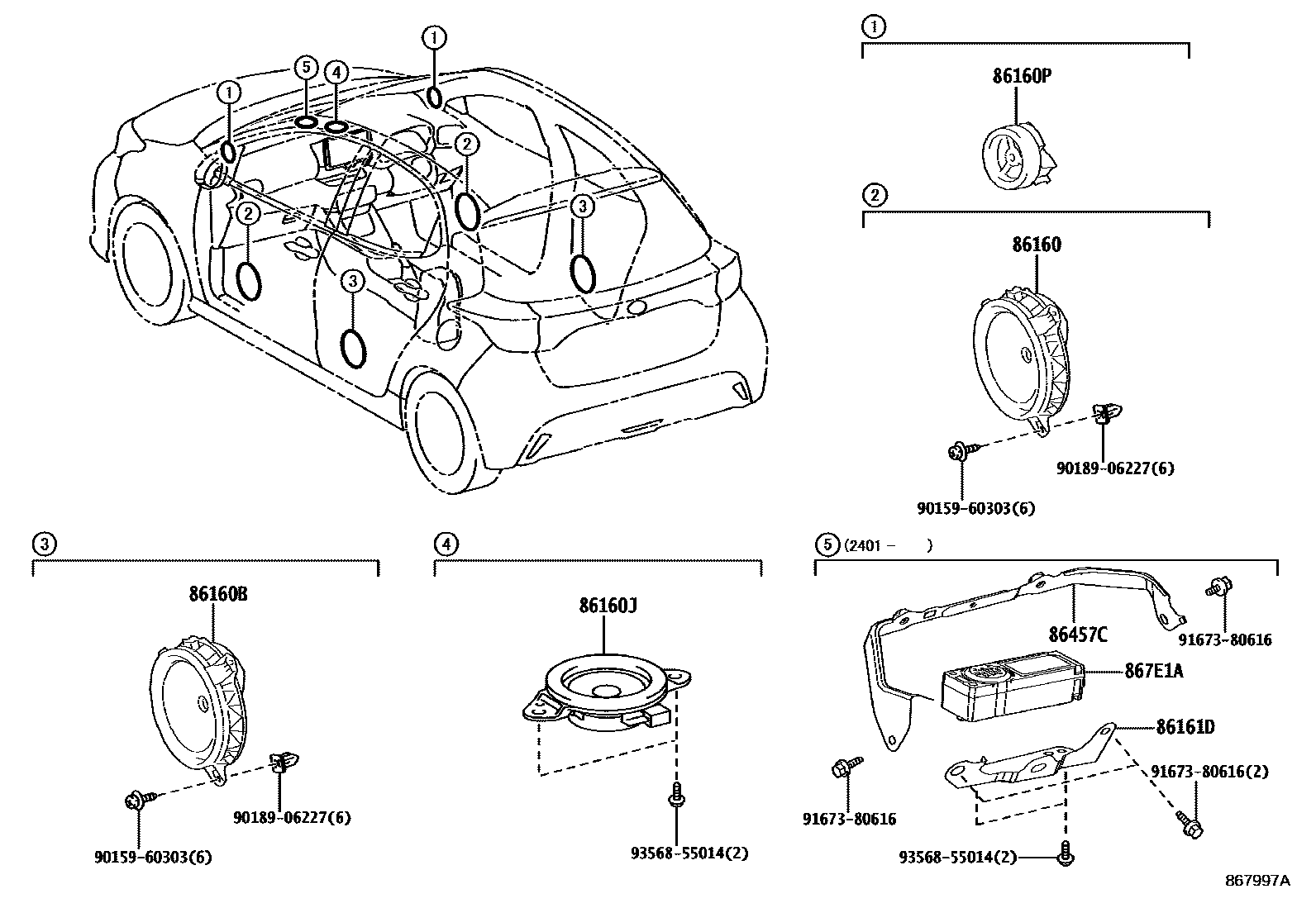

Toyota YARIS 扬声器 — Figure 8602
Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-30E00 |
| 86160B | Rear speaker assembly | 86160-30E00 |
| 86160J | No. 3 front speaker assembly | 86150-52100 |
| 86160P | No. 2 front speaker assembly | 86160-52170 |
| 86161D | Speaker 1 mounting bracket | 86161-52040 |
| 86457C | Toyota part | 86457-K0110 |
| 867E1A | Toyota part | 867E1-33020 |
