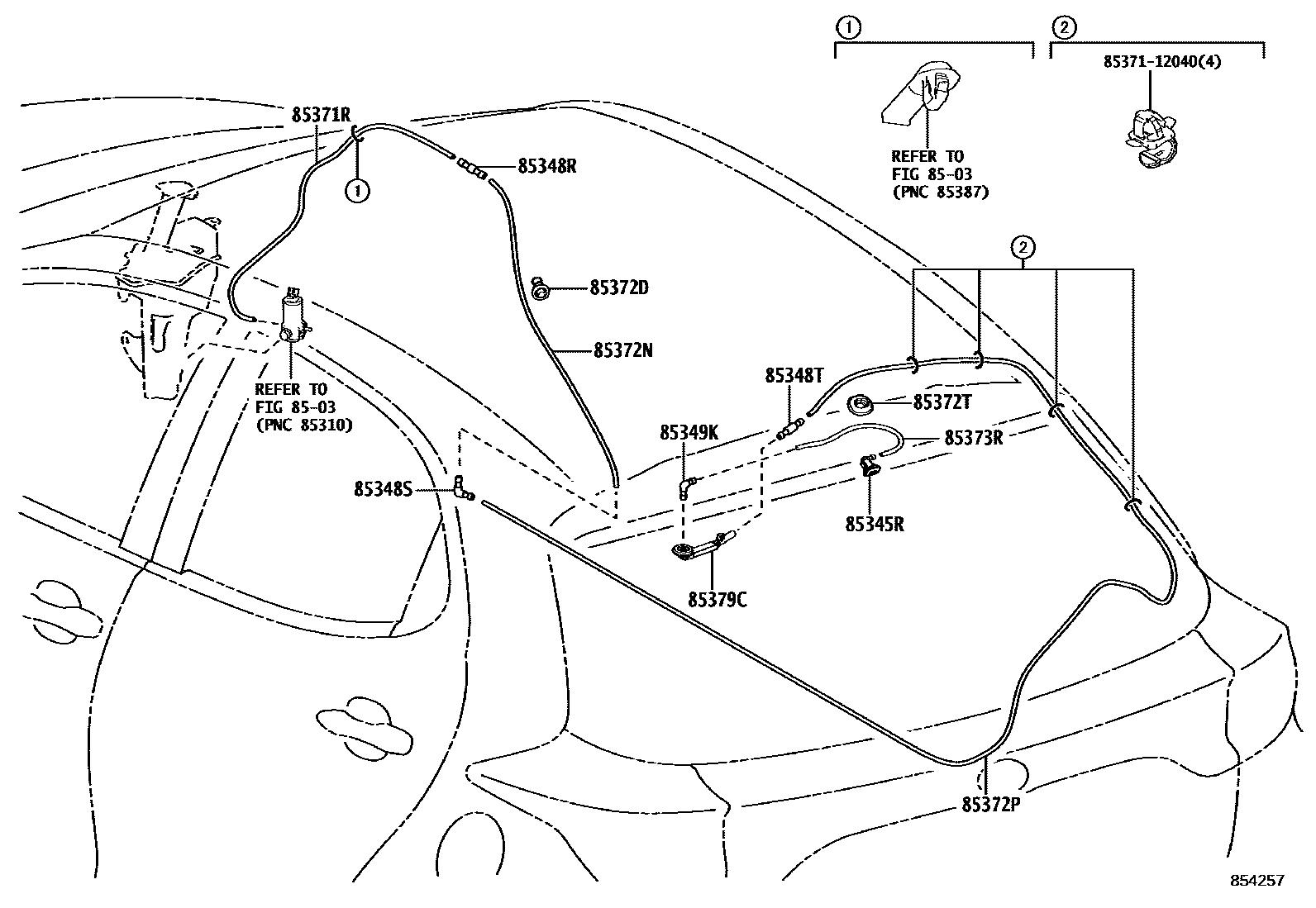

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-K0010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85371R | Rear washer hose (from motor to connector) | 90099-62226 |
| 85372D | Rear washer hose seal | 85379-12850 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90099-59377 |
| 85372T | Cleaner seal | 85372-20020 · 85373-52030 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-62206 |
| 85379C | No. 1 rear washer hose seal | 85372-20040 |
