Toyota YARIS 挡风玻璃清洗器 — Figure 8503

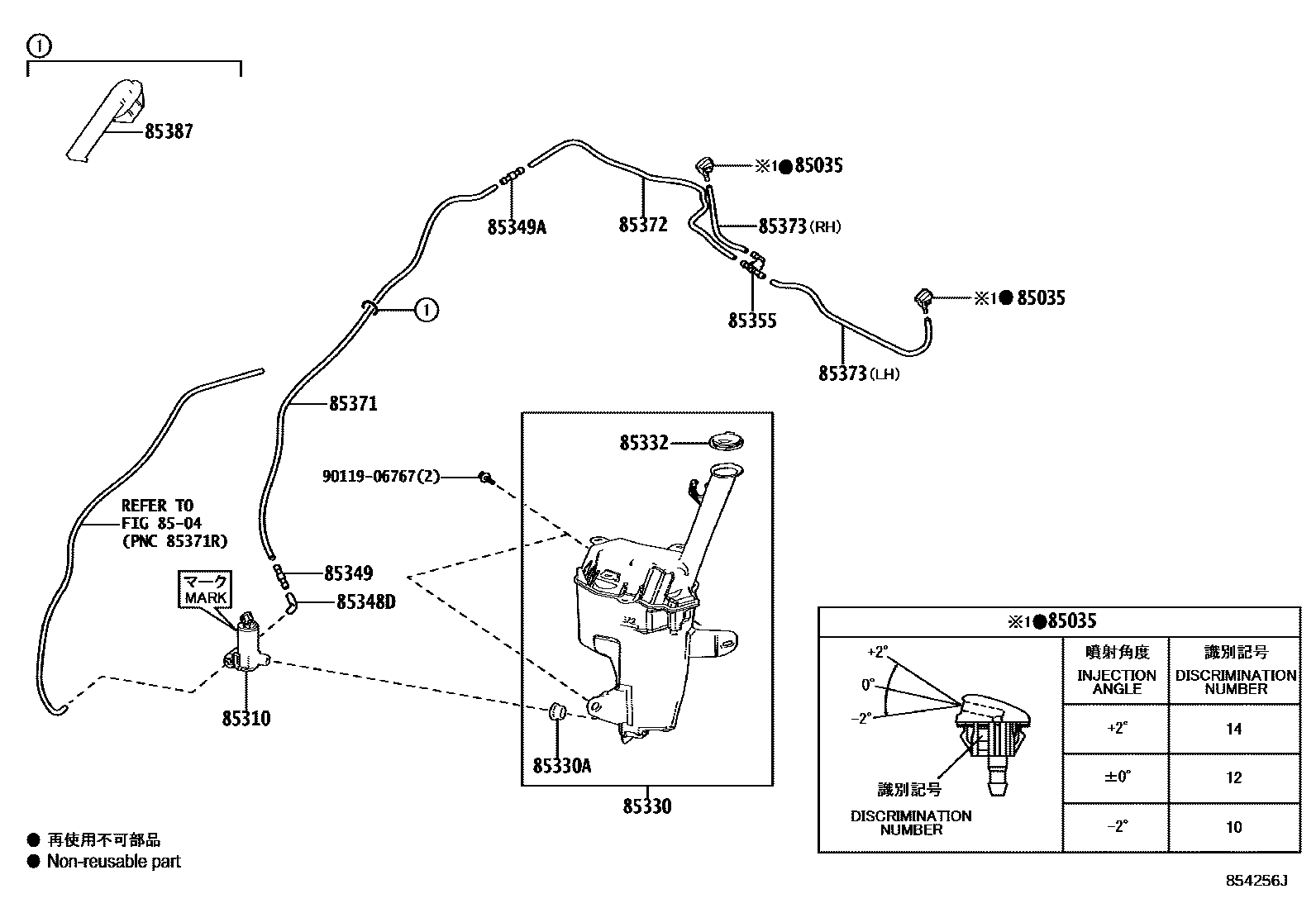

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52430 · 85381-52440 · 85381-52450 |
| 85310 | Windshield washer motor and pump assembly | 85330-47090 · 85330-47091 |
| 85330 | Windshield washer fluid tank assembly | 85315-K0030 · 85315-K0040 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-16070 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12230 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85349A | Windshield washer hose connector No. 2 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-62228 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-52090 |
