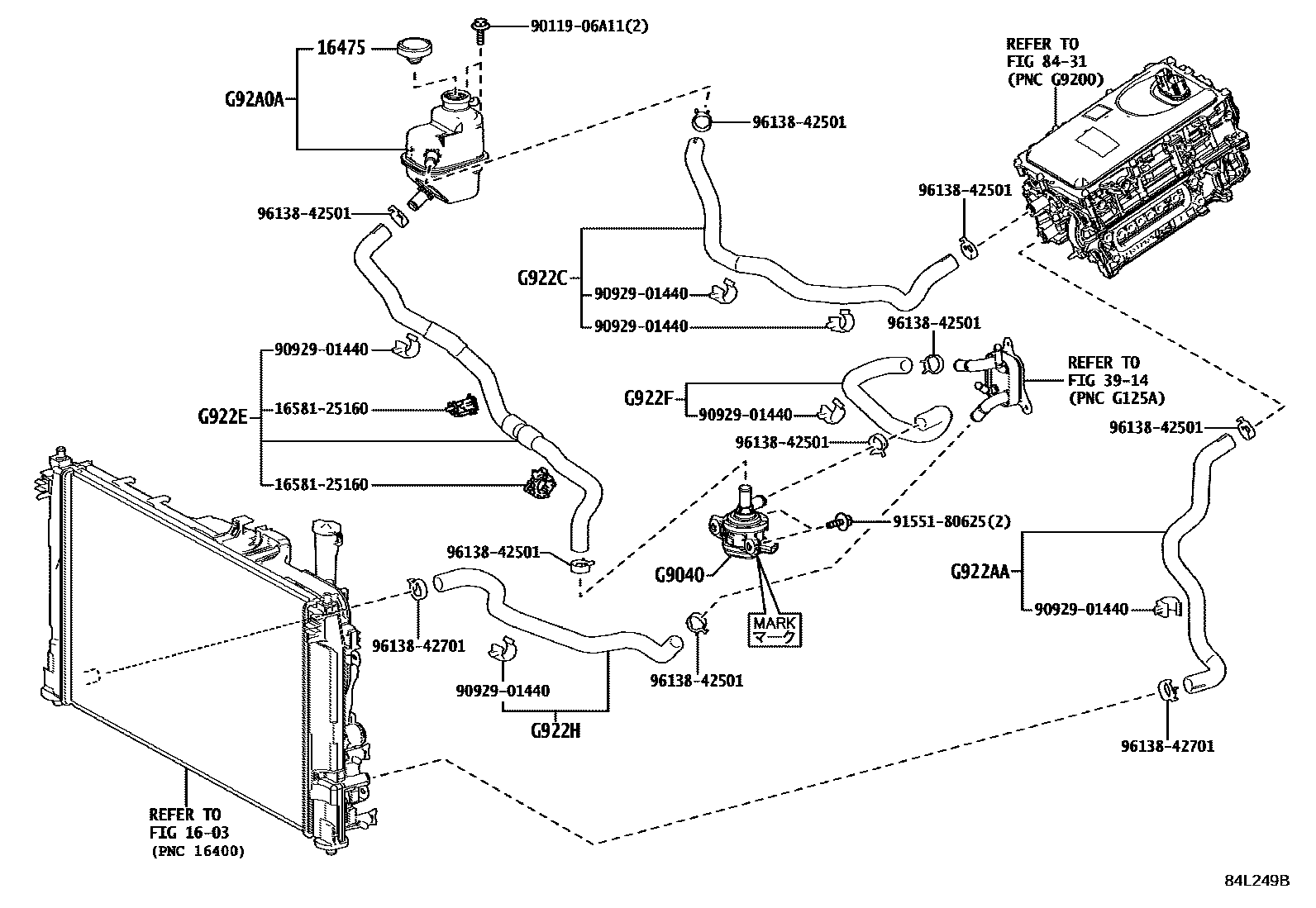

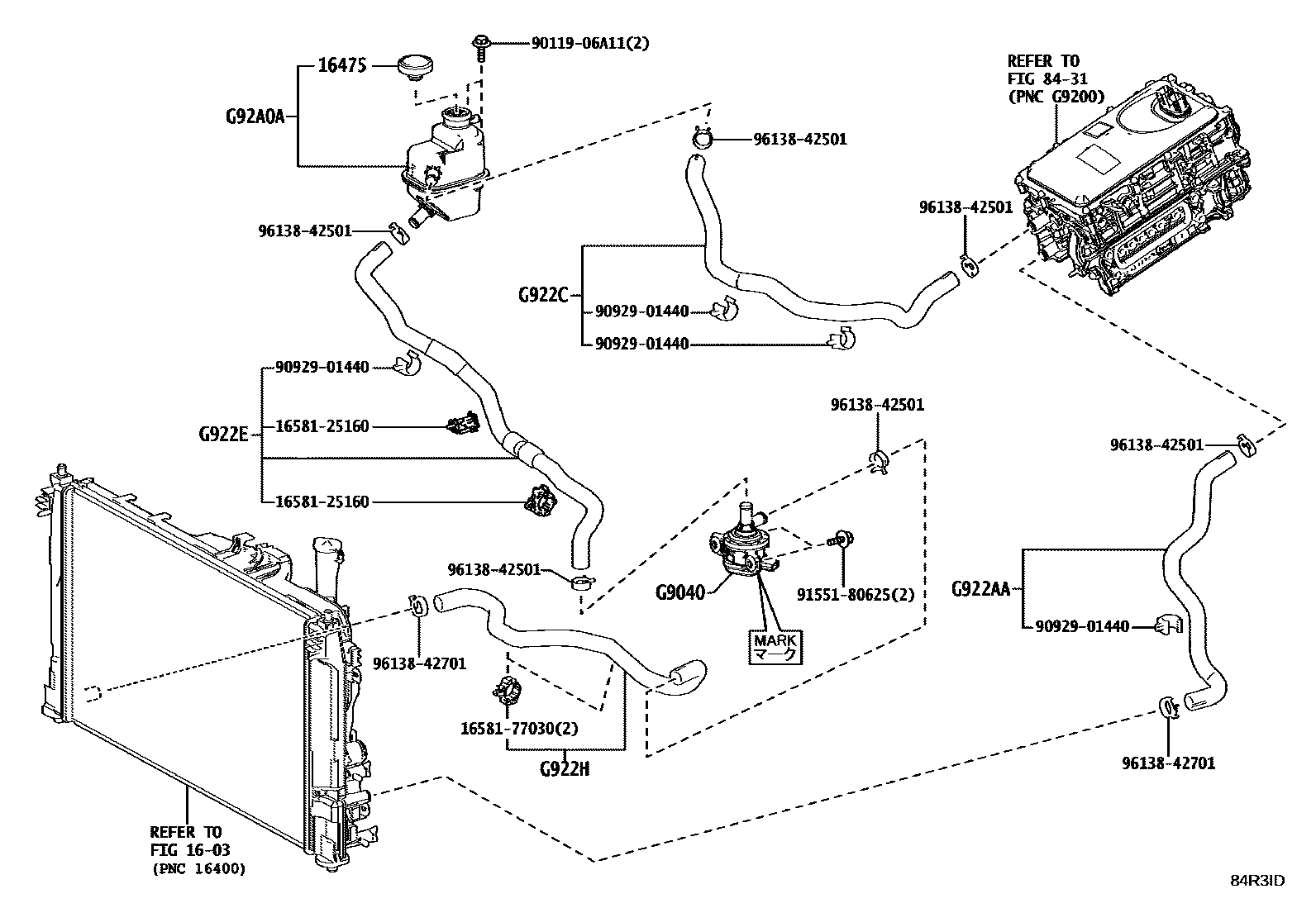

Toyota YARIS 逆变器冷却系统 — Figure 8432
Toyota YARIS EPC diagram 8432, 逆变器冷却系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 |
| G9040 | Inverter water pump assembly (with motor) | G9040-52030 · G9040-K0010 |
| G922AA | No. 1 inverter cooling water inlet hose | G922A-52010 |
| G922C | No. 1 inverter cooling water outlet hose | G922C-52010 |
| G922E | HV water pump water inlet hose | G922E-52030 |
| G922F | No. 1 HV water pump outlet hose | G922F-52040 |
| G922H | HV radiator water inlet hose | G922H-52010 · G922H-52020 |
| G92A0A | Inverter liquid tank assembly | G91H0-52010 |
