Toyota YARIS 空气囊 — Figure 8421

Toyota YARIS EPC diagram 8421, 空气囊, with 2 images and 9 PNC and OE references.

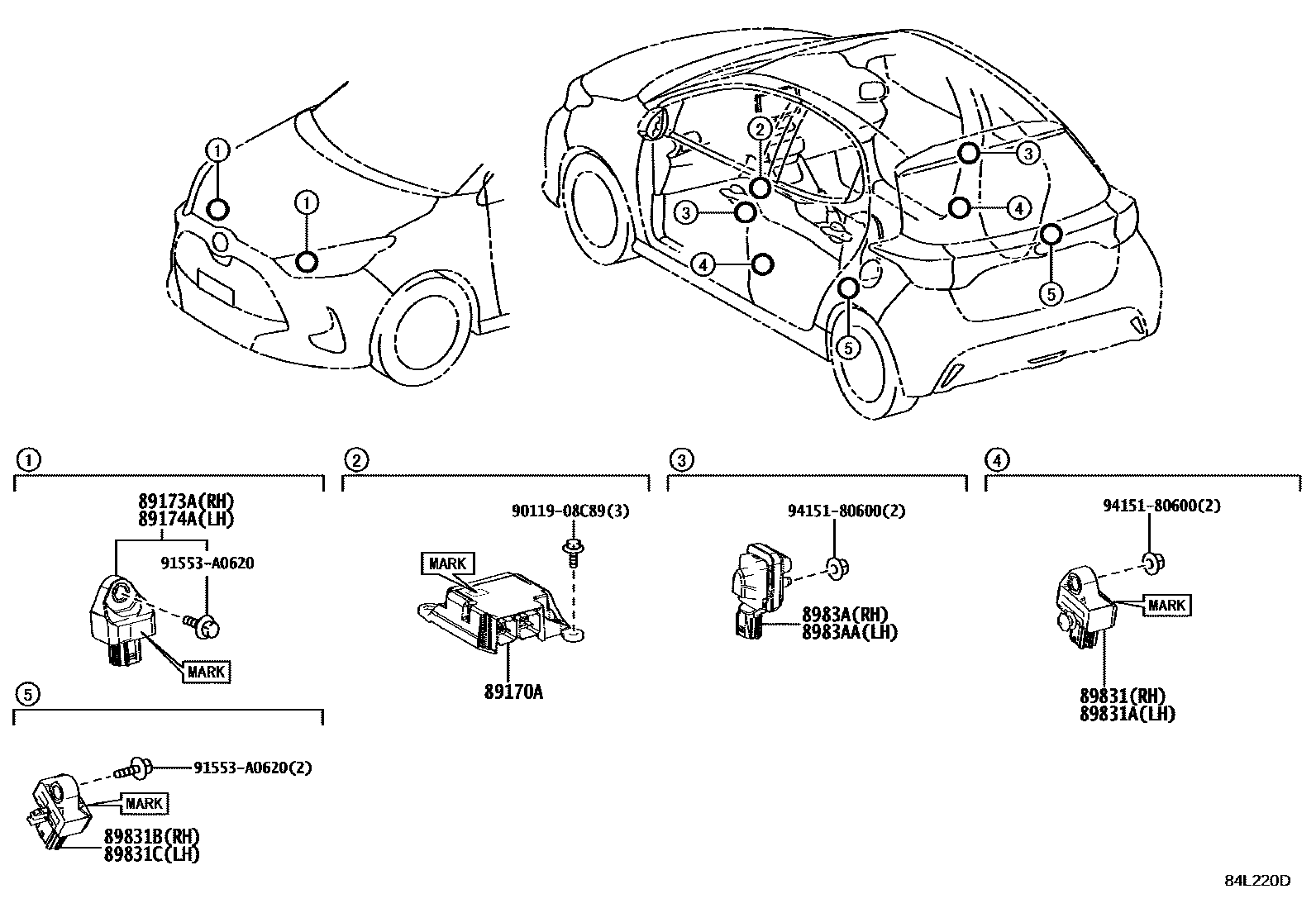

Toyota YARIS 空气囊 EPC diagram — 84L220D
空气囊 — 84L220D (202002 – 999999)

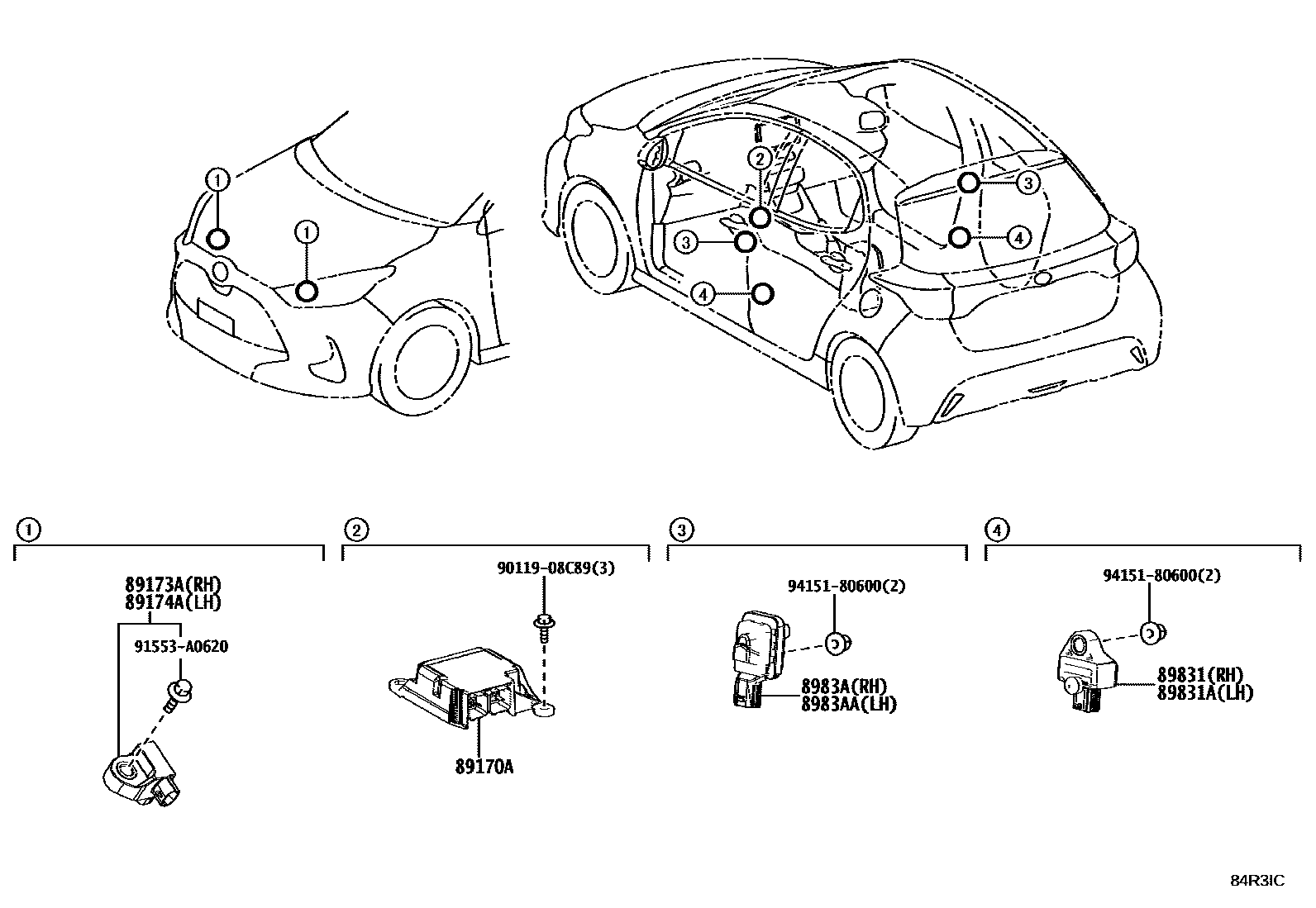

Toyota YARIS 空气囊 EPC diagram — 84R3IC
空气囊 — 84R3IC (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
89170AAir bag ECU assembly89170-52Q50 · 89170-52T40 · 89170-52U10 · 89170-K0010
89173ARight front air bag sensor89173-19515 · 89173-59335 · 89173-59415
89174ALeft front air bag sensor89173-19515 · 89173-59335 · 89173-59415
89831Toyota part89831-52120 · 89831-52180
89831AToyota part89831-52120 · 89831-52180
89831BToyota part89831-52130
89831CToyota part89831-52130
8983AToyota part8983A-12030 · 8983A-52010 · 8983A-52011
8983AAToyota part8983A-12030 · 8983A-52010 · 8983A-52011
