Toyota YARIS 遥控门锁 — Figure 8420

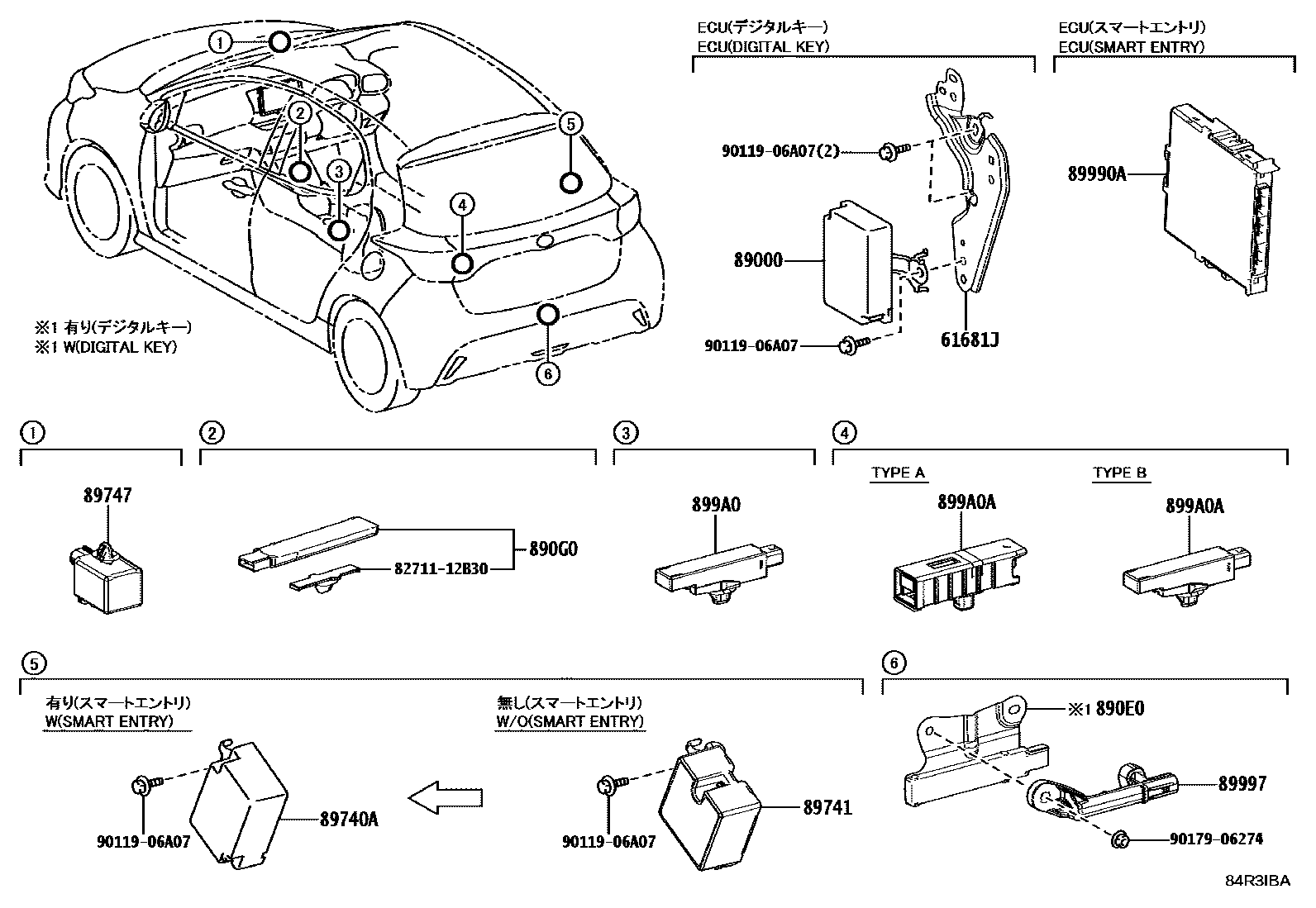

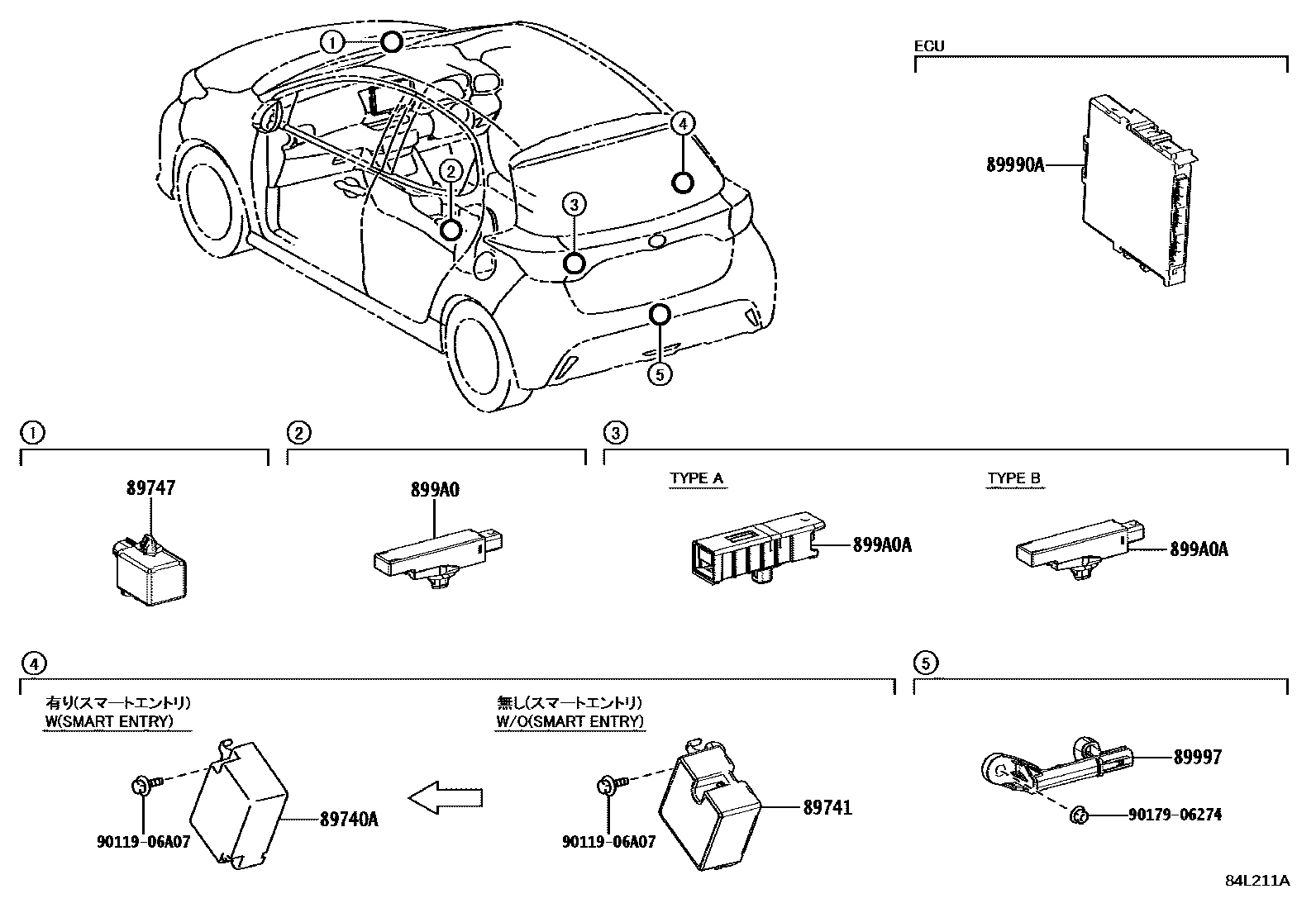

Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61681J | Toyota part | 61681-52020 |
| 89000 | Toyota part | 89000-52070 · 89000-52200 |
| 890E0 | Toyota part | 890E0-52060 |
| 890G0 | Toyota part | 890G0-V1010 |
| 89740A | Toyota part | 89740-52630 · 89740-K0020 |
| 89741 | door control receiver | 89741-K0020 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-52150 · 899H0-52160 · 899H0-52270 · 899H0-52280 · 899H0-52290 · 899H0-52300 · 899H0-K0011 · 899H0-K0021 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 · 899A0-K0040 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12080 · 899A0-12090 |
