Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.

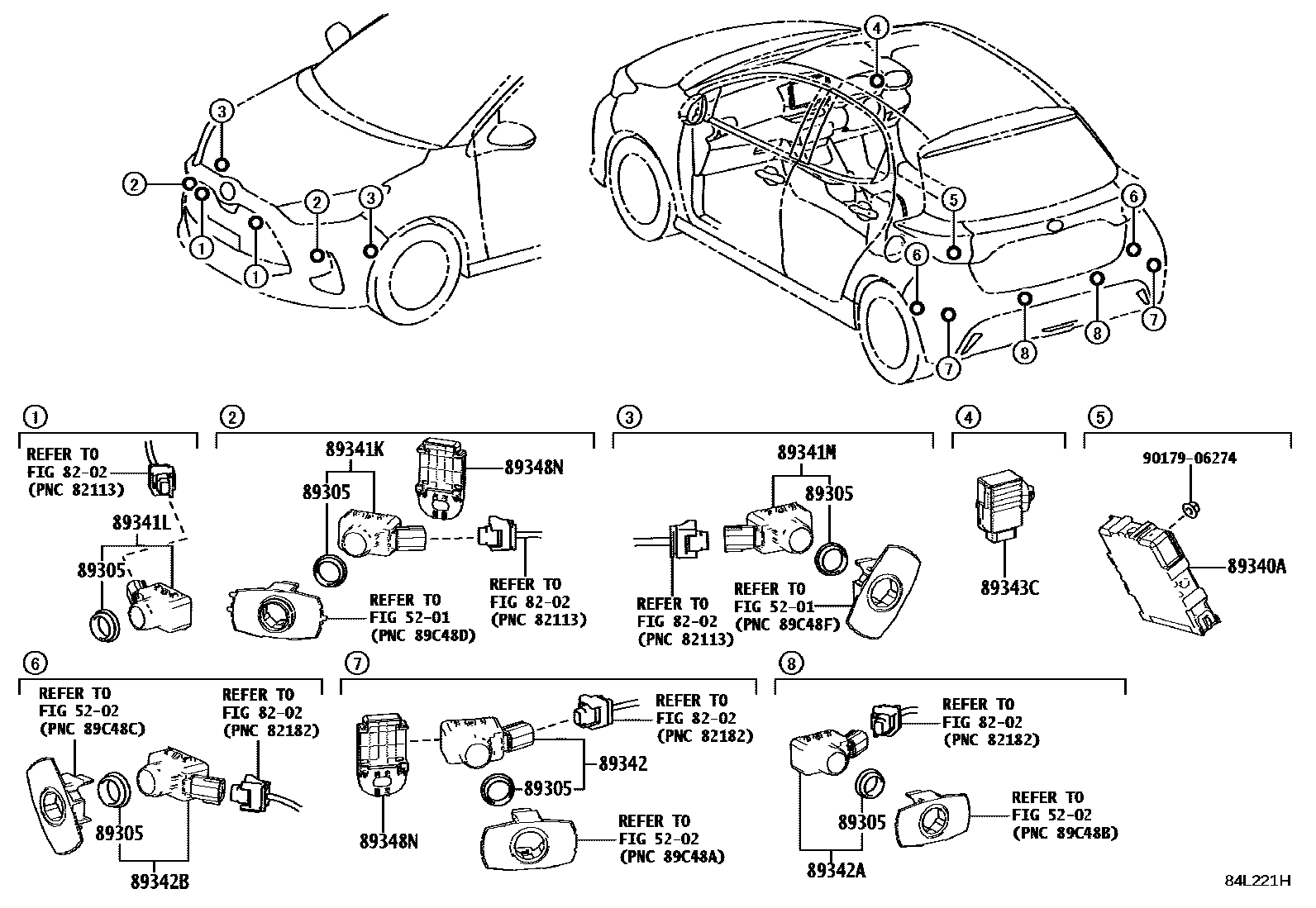

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84L221H
测距雷达和倒车雷达 — 84L221H (202002 – 999999)

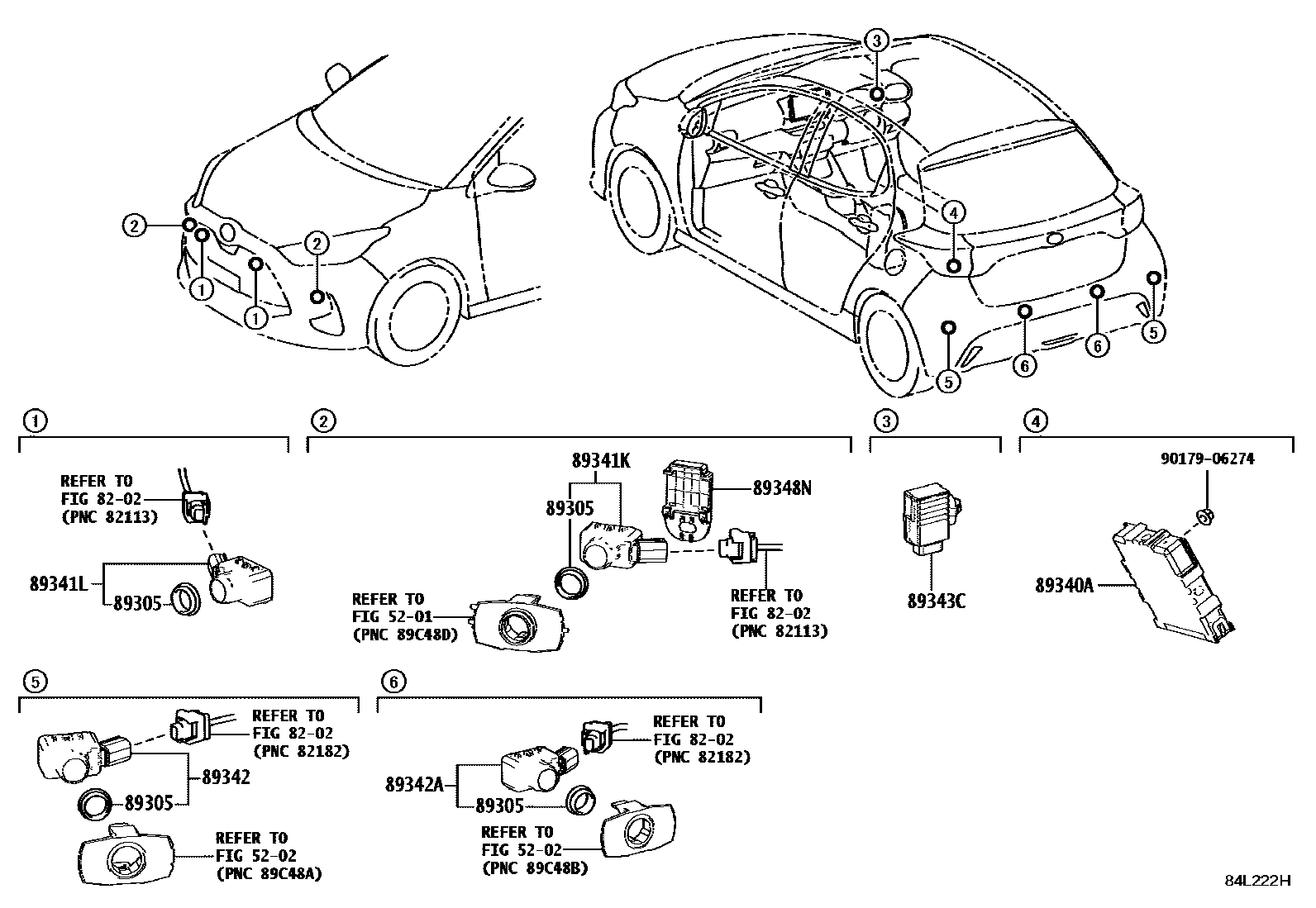

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84L222H
测距雷达和倒车雷达 — 84L222H (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
89305Toyota part89305-52010
89340ADistance warning ECU assembly89340-52210 · 89340-52220 · 89340-52370 · 89340-52380 · 89340-52450 · 89340-K0010 · 89340-K0020
89343CNo. 1 distance warning buzzer89343-48010
89348NToyota part89348-58130
