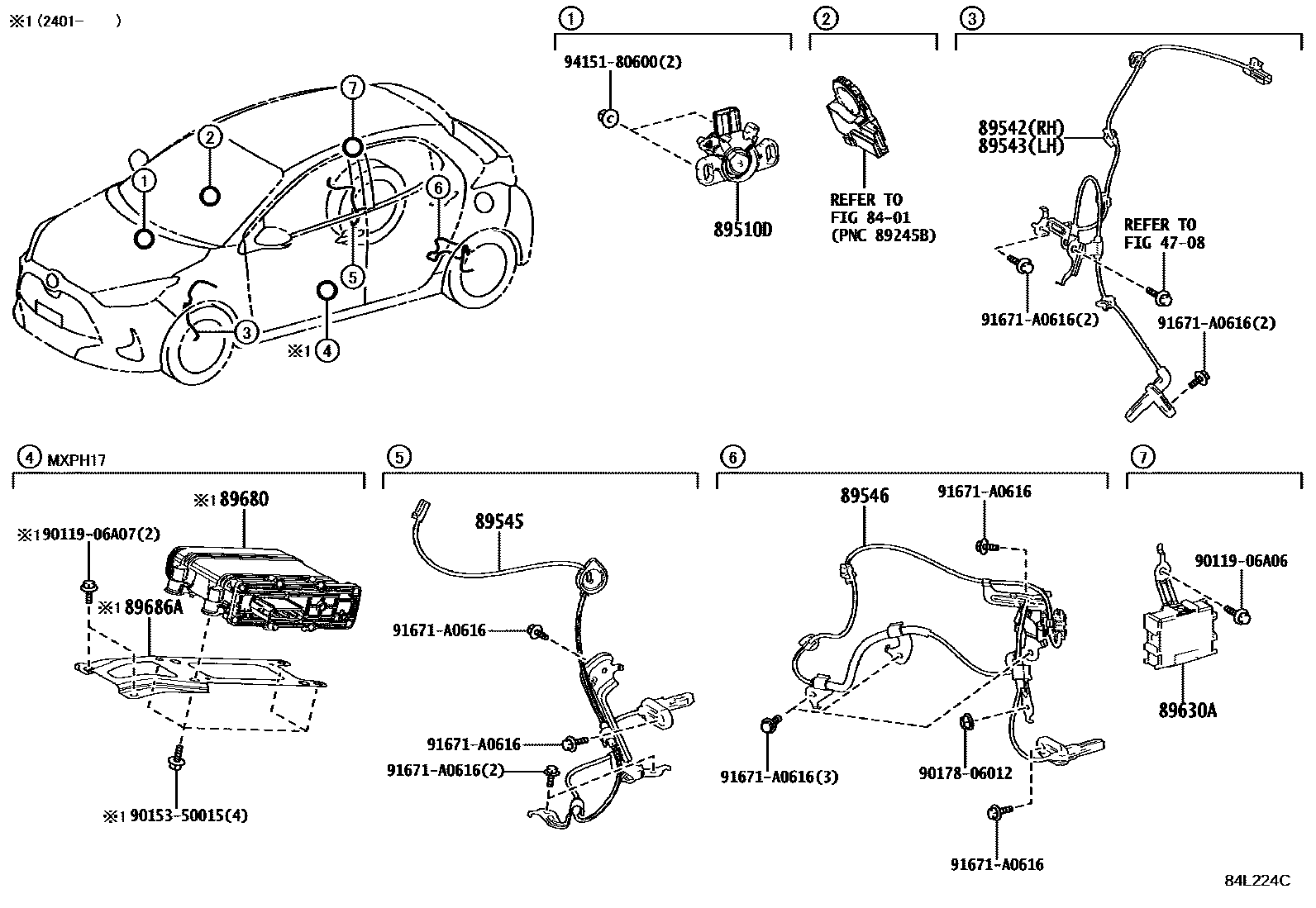

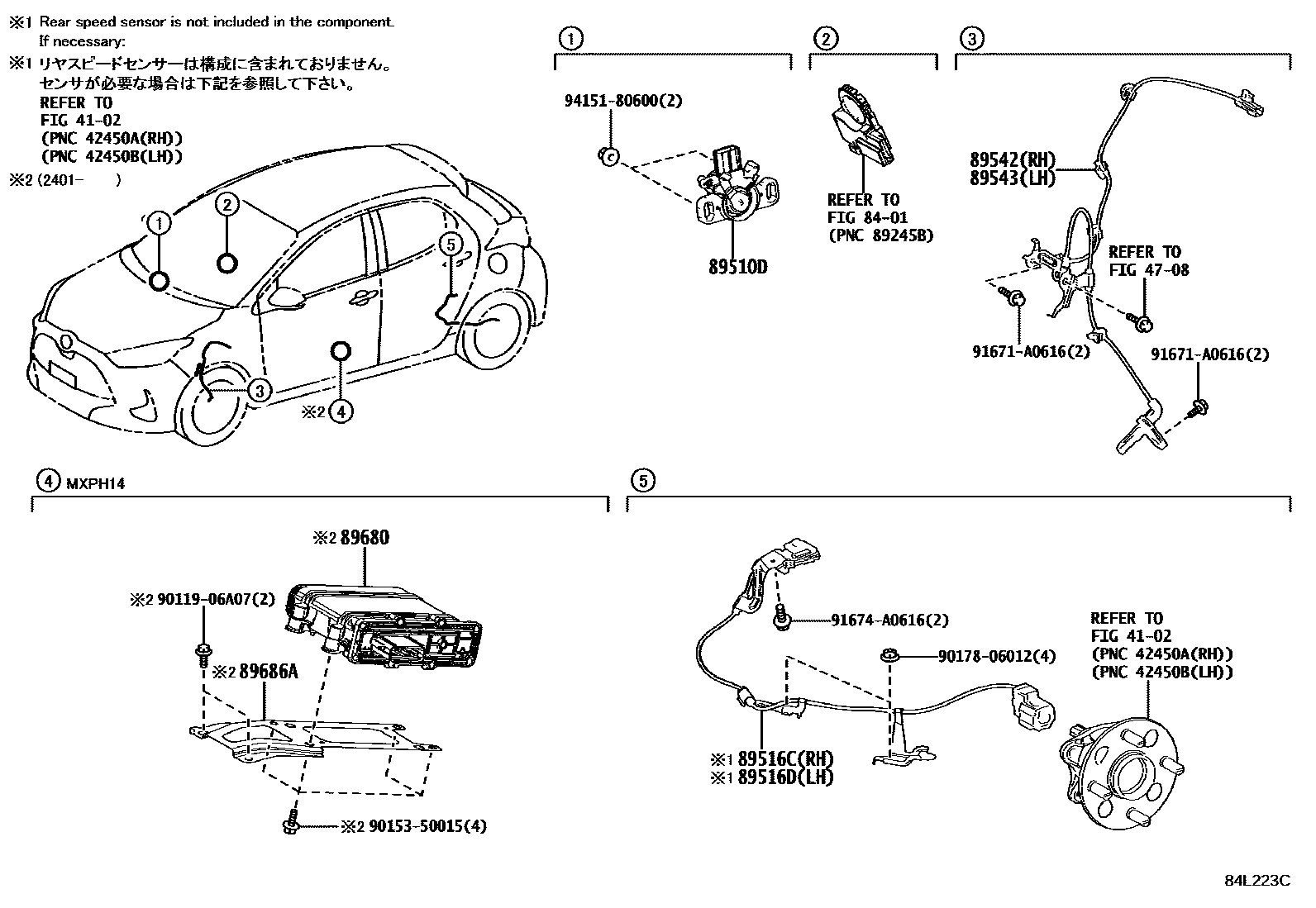

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-42020 · 89510-47030 |
| 89516C | Right anti-skid control sensor harness | 89516-K0011 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-K0021 |
| 89542 | Right front wheel speed sensor | 89542-K0011 |
| 89543 | Left front wheel speed sensor | 89543-K0011 |
| 89545 | Right rear wheel speed sensor | 89545-K0011 |
| 89546 | Left rear wheel speed sensor | 89546-K0011 |
| 89630A | Four-wheel drive ECU assembly | 89630-52200 · 89630-K0020 |
| 89680 | Brake control power supply assembly | 89680-48030 |
| 89686A | No. 1 brake control power bracket | 89686-52020 |
