Toyota YARIS 开关和继电器和ECU — Figure 8401

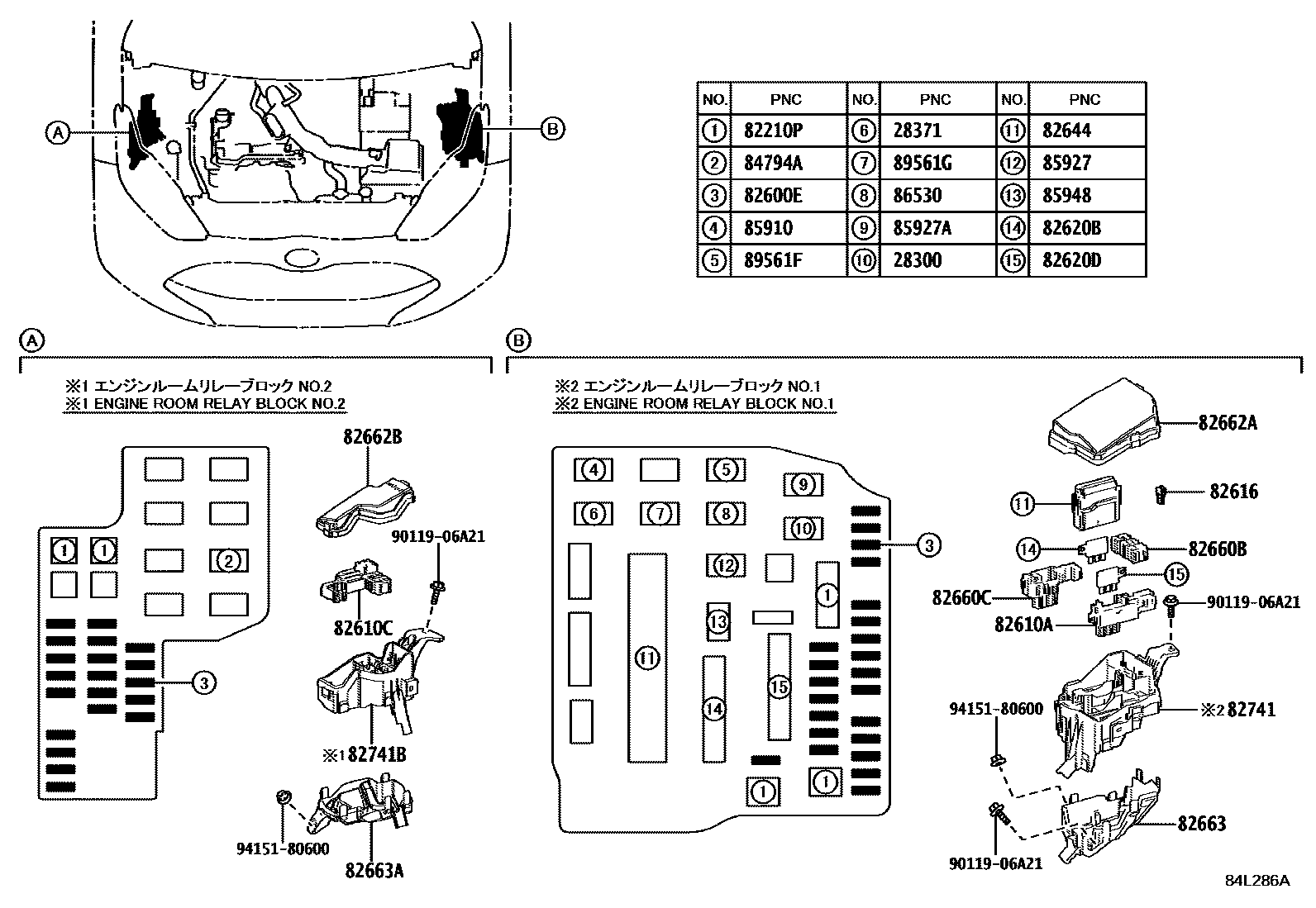

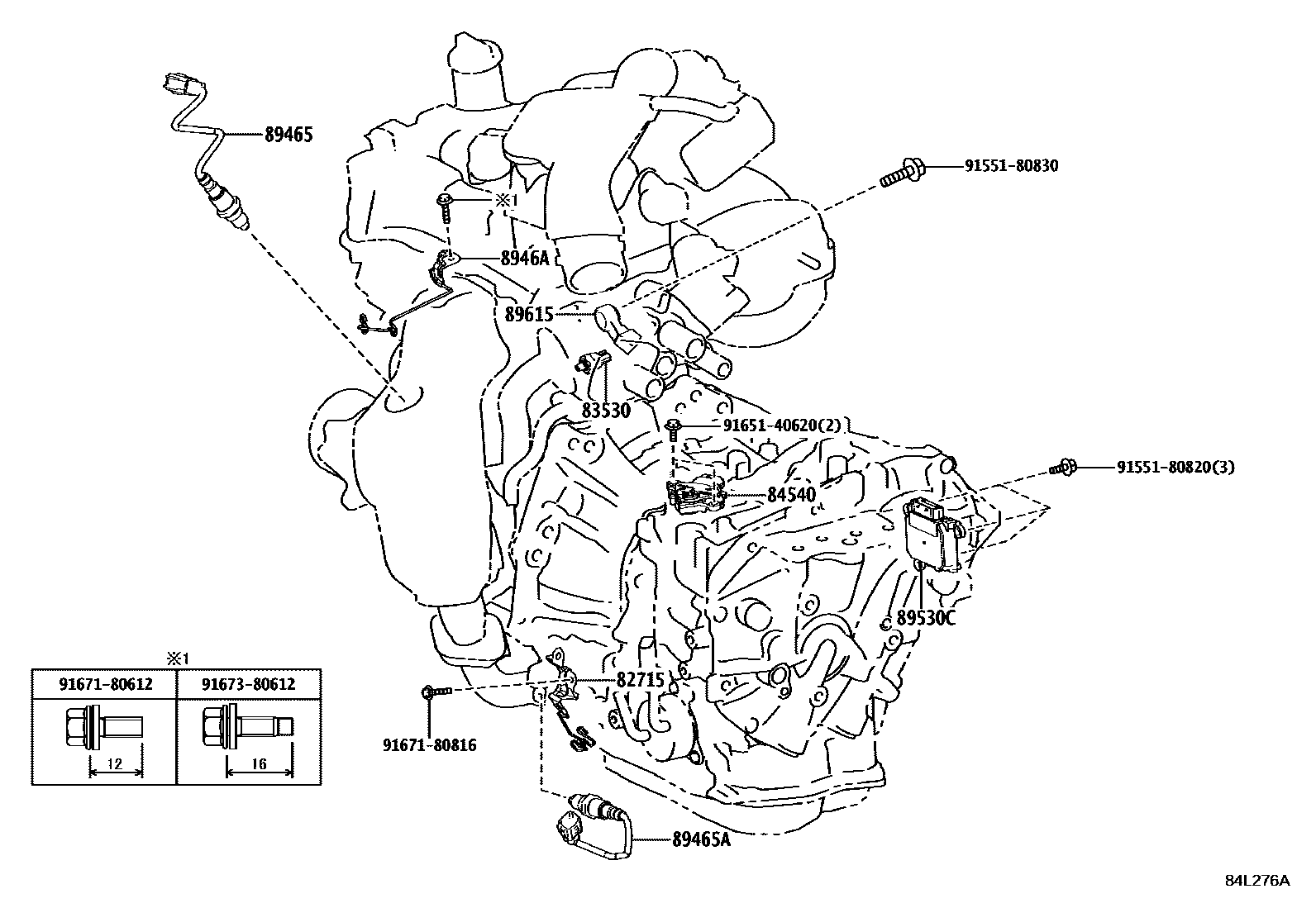

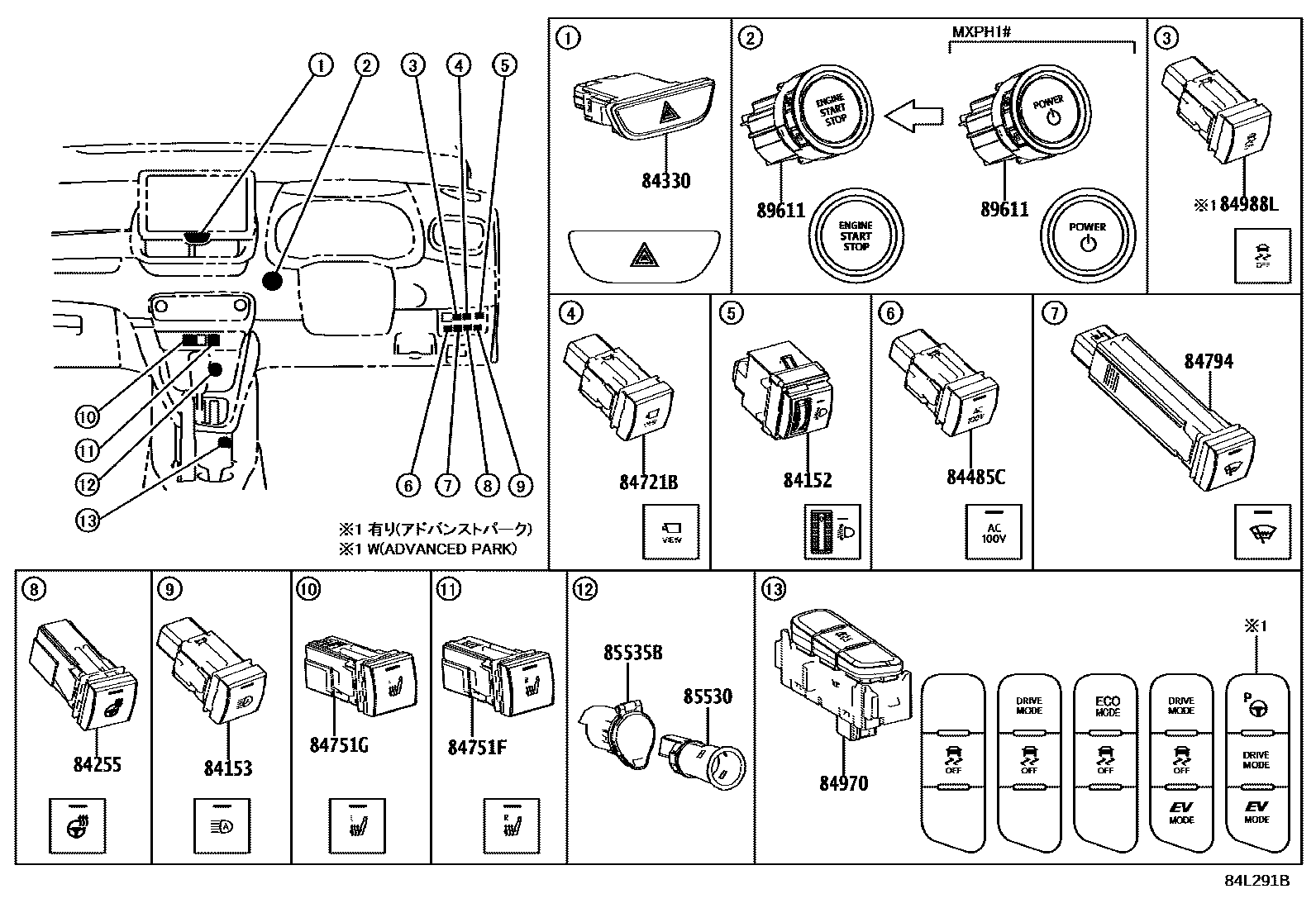

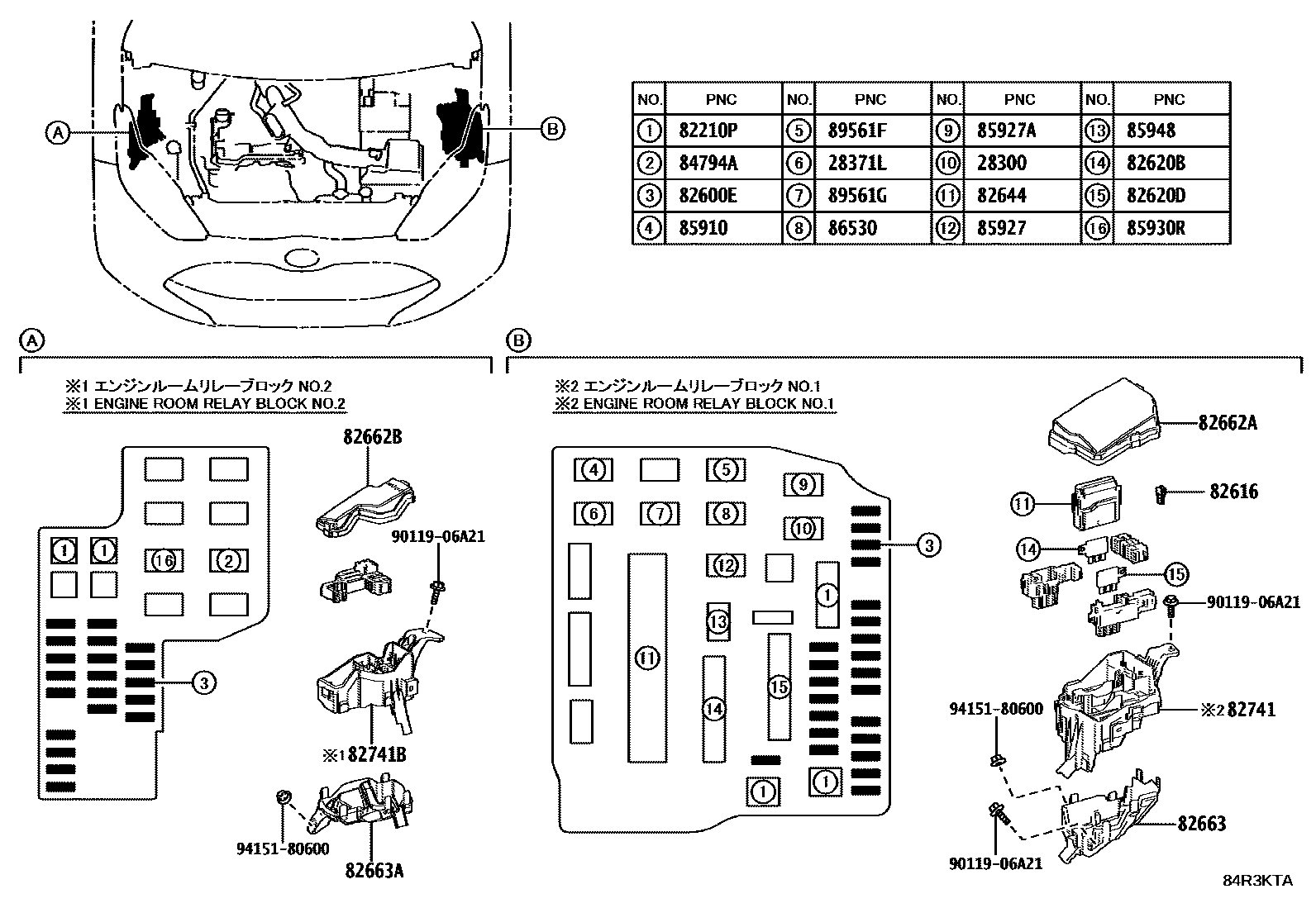

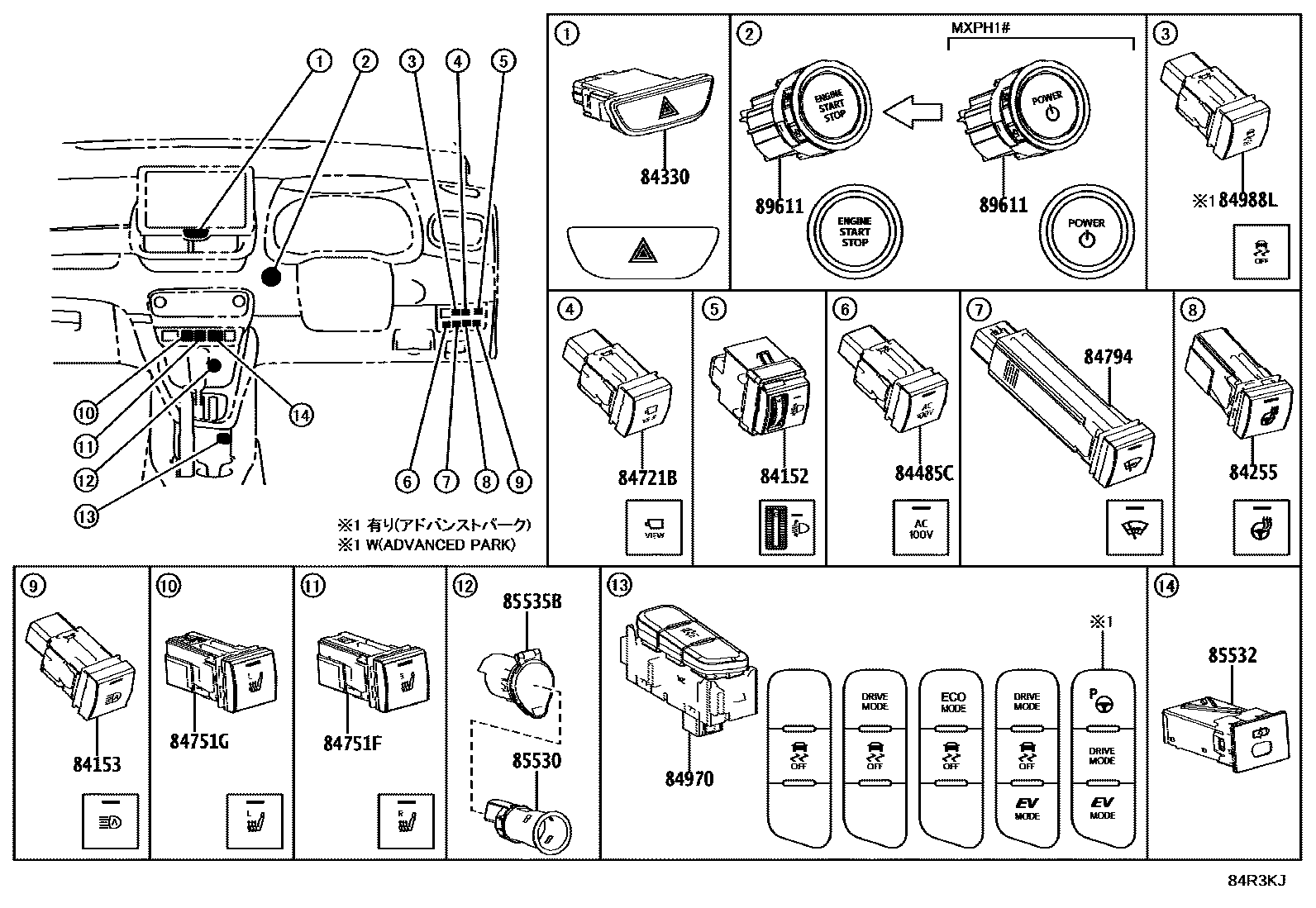

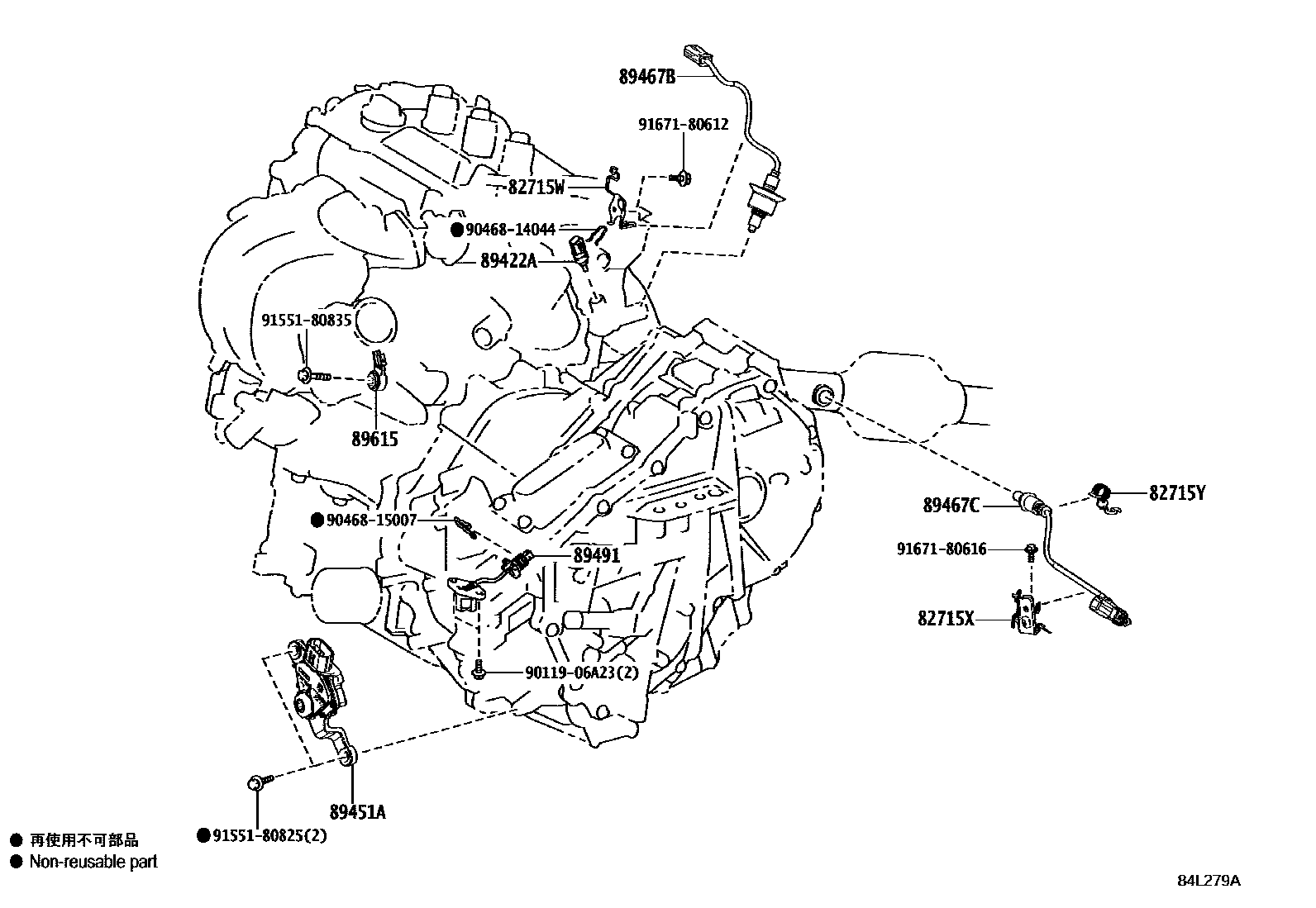

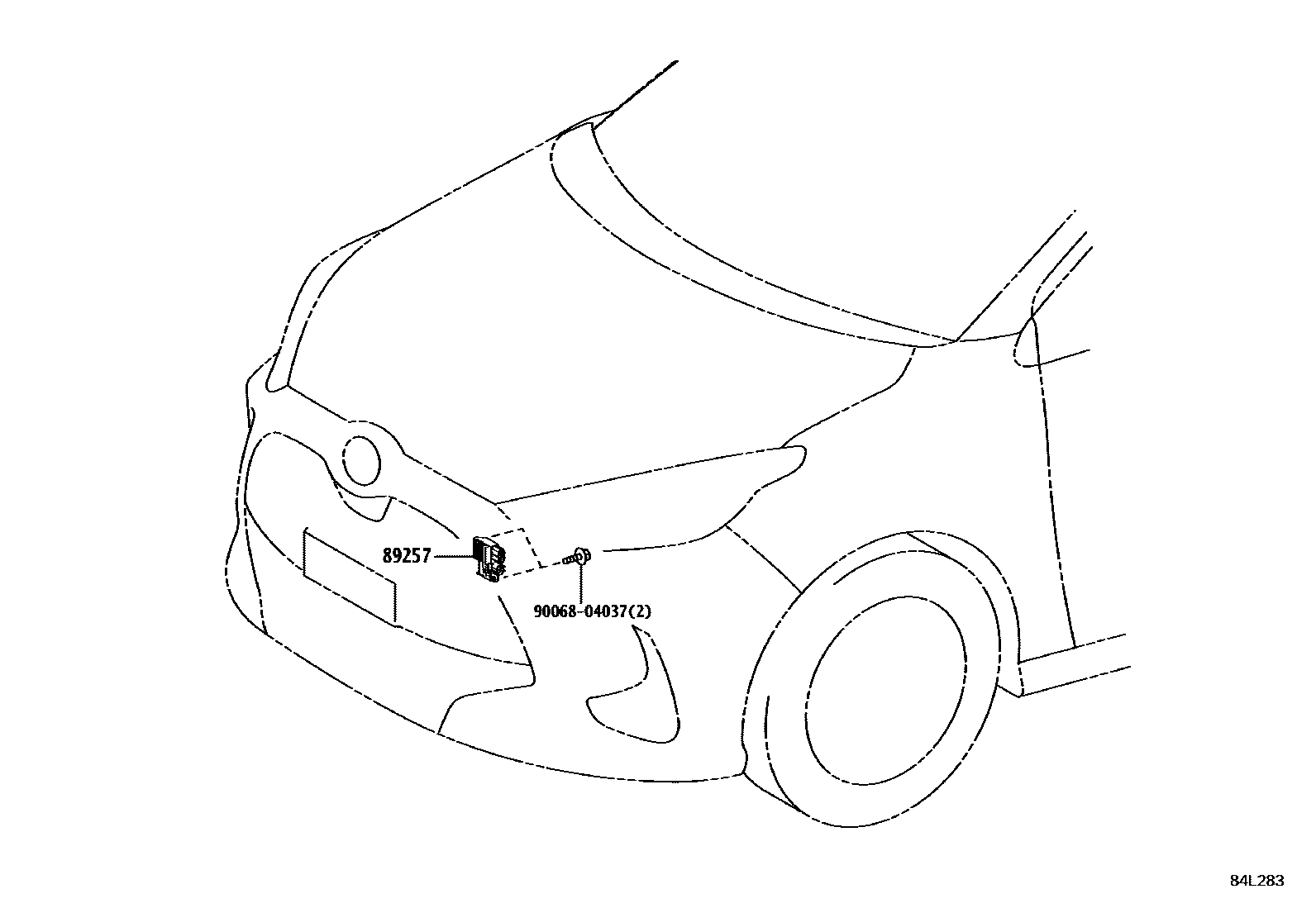

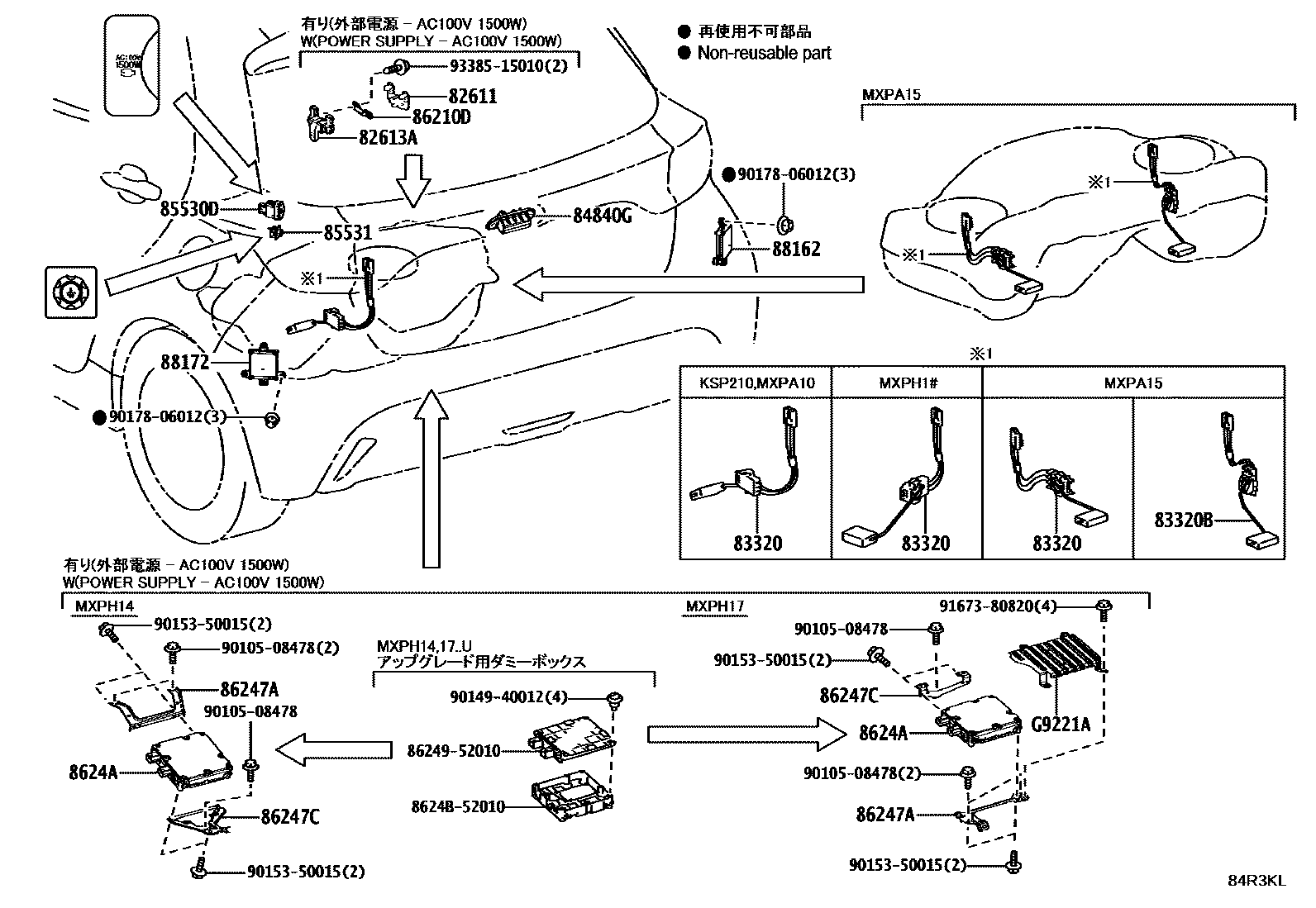

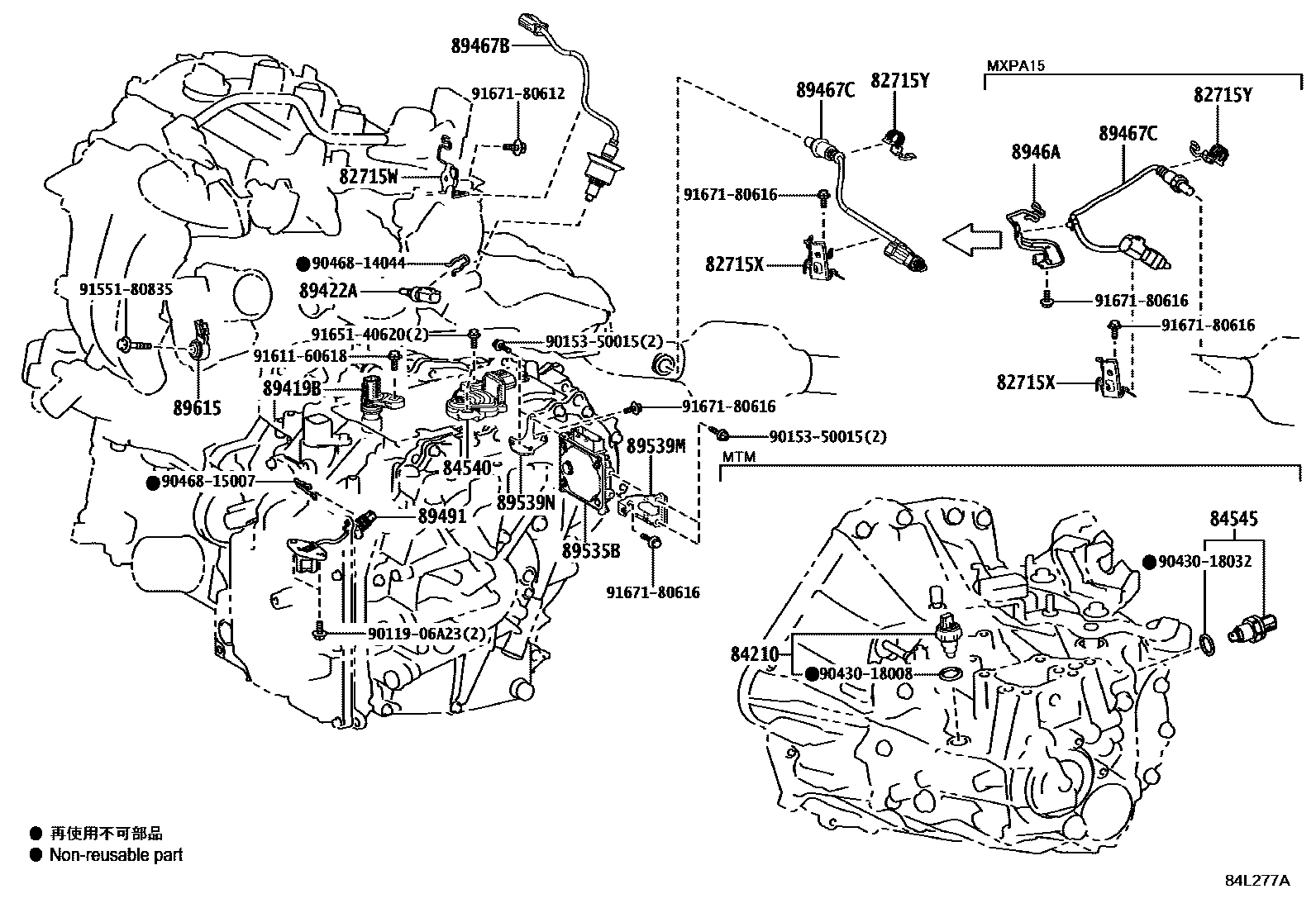

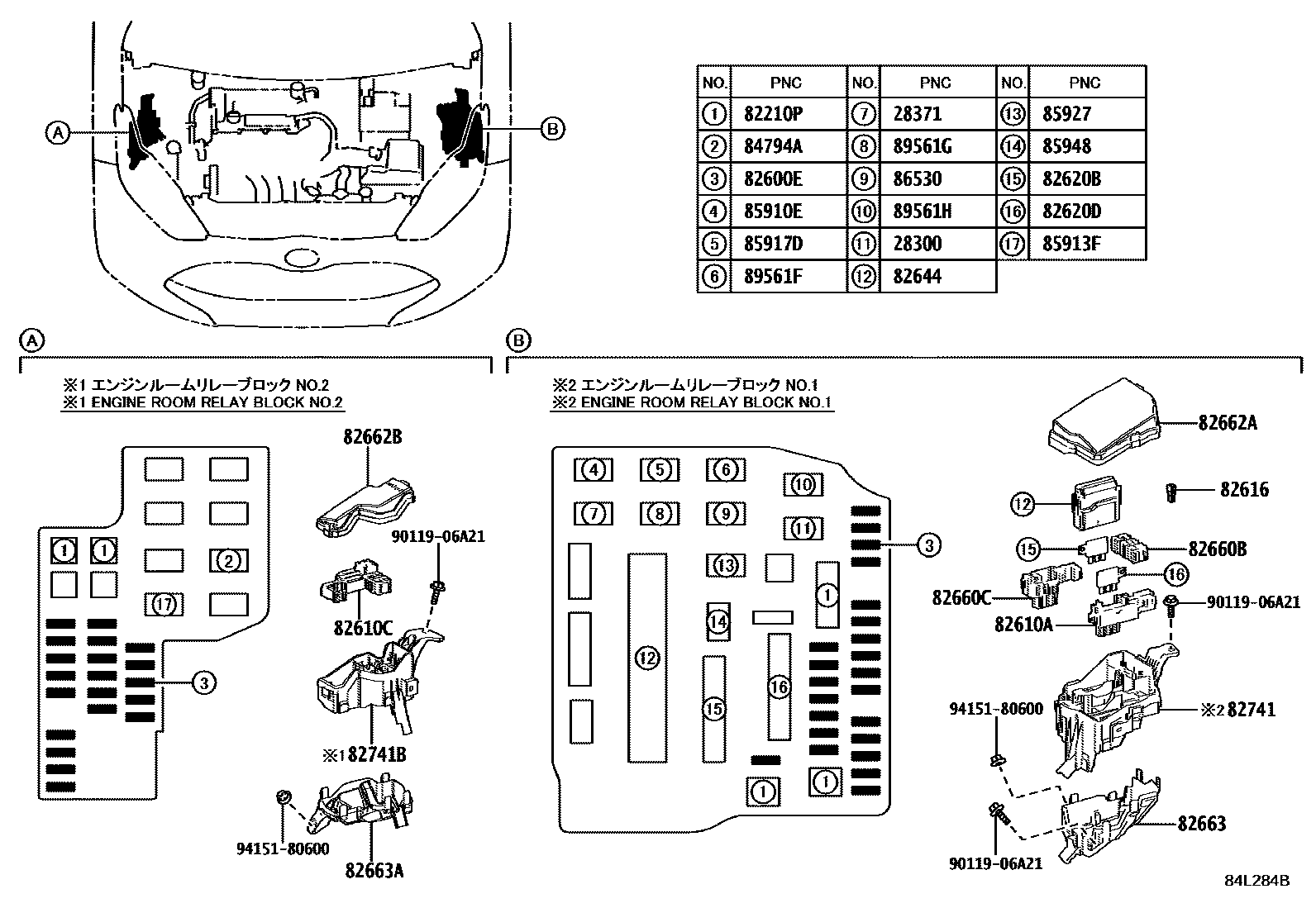

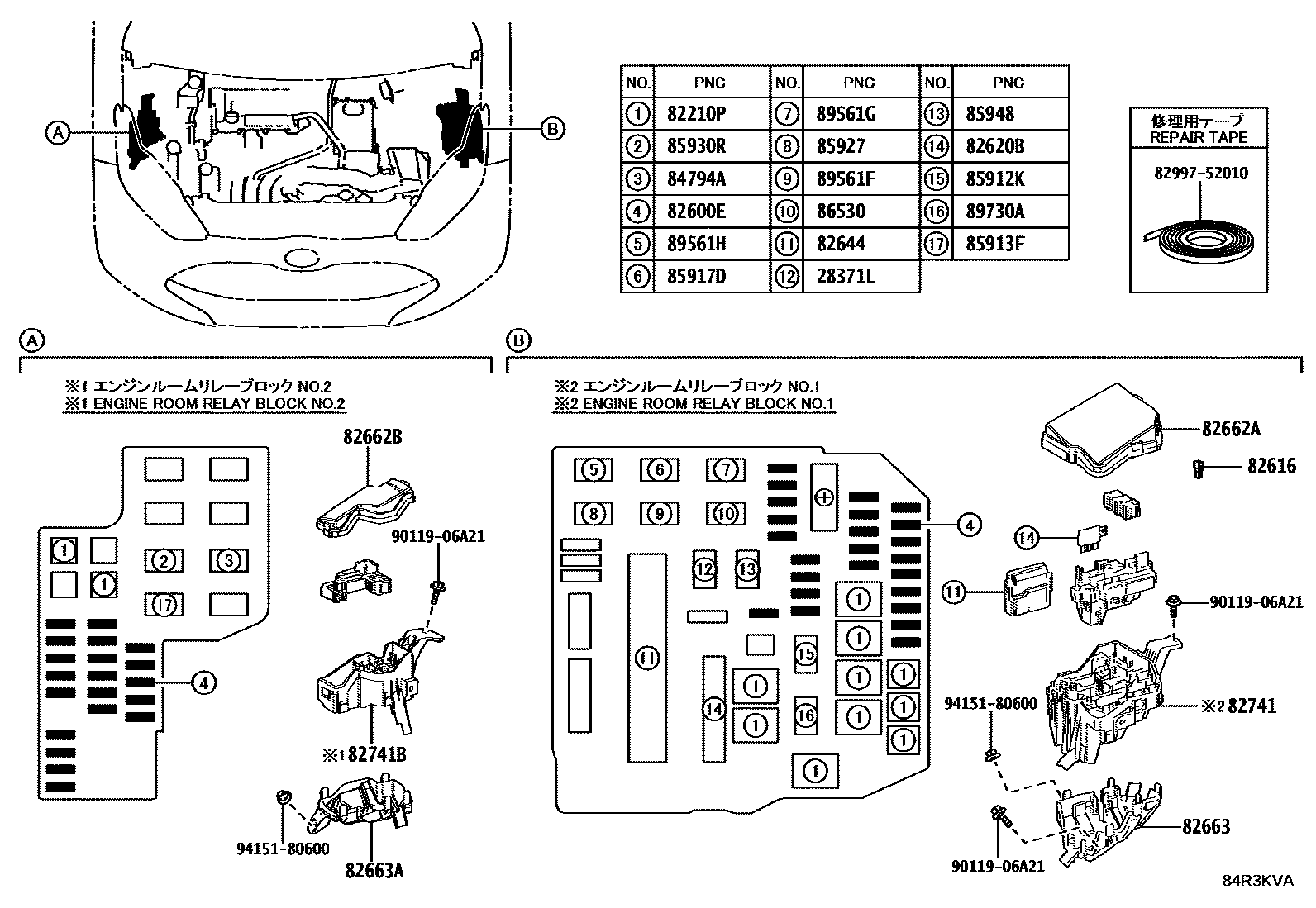

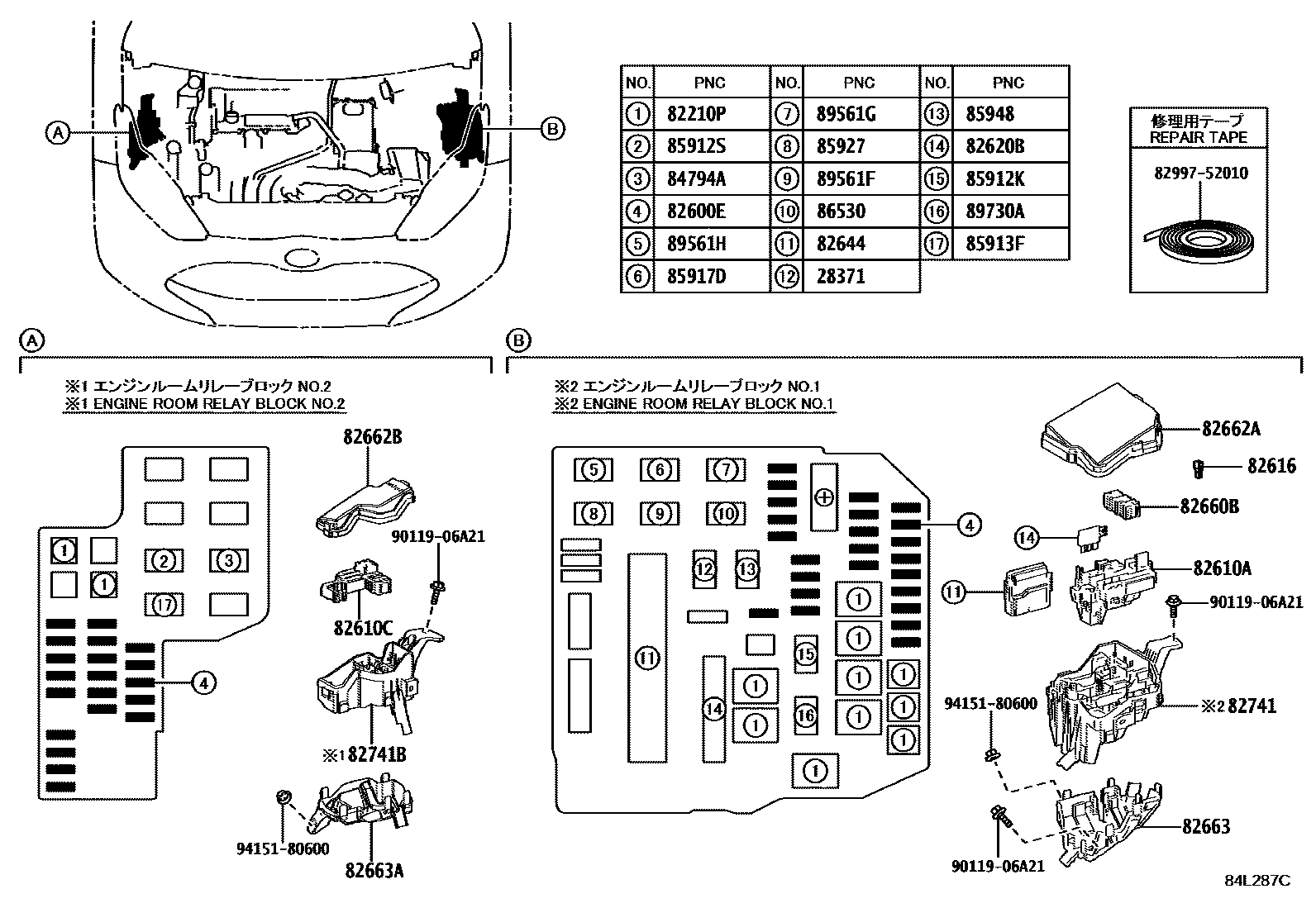

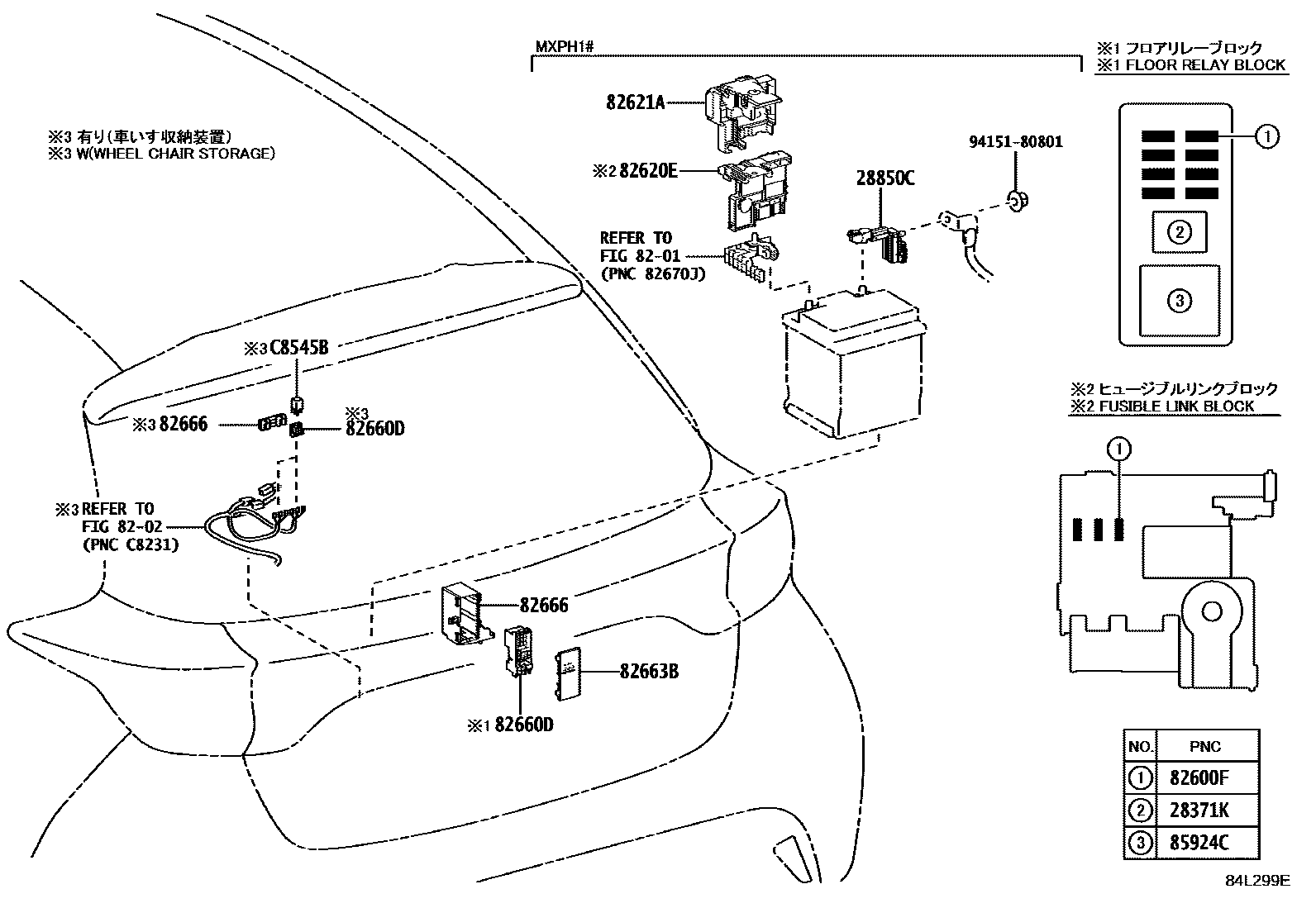

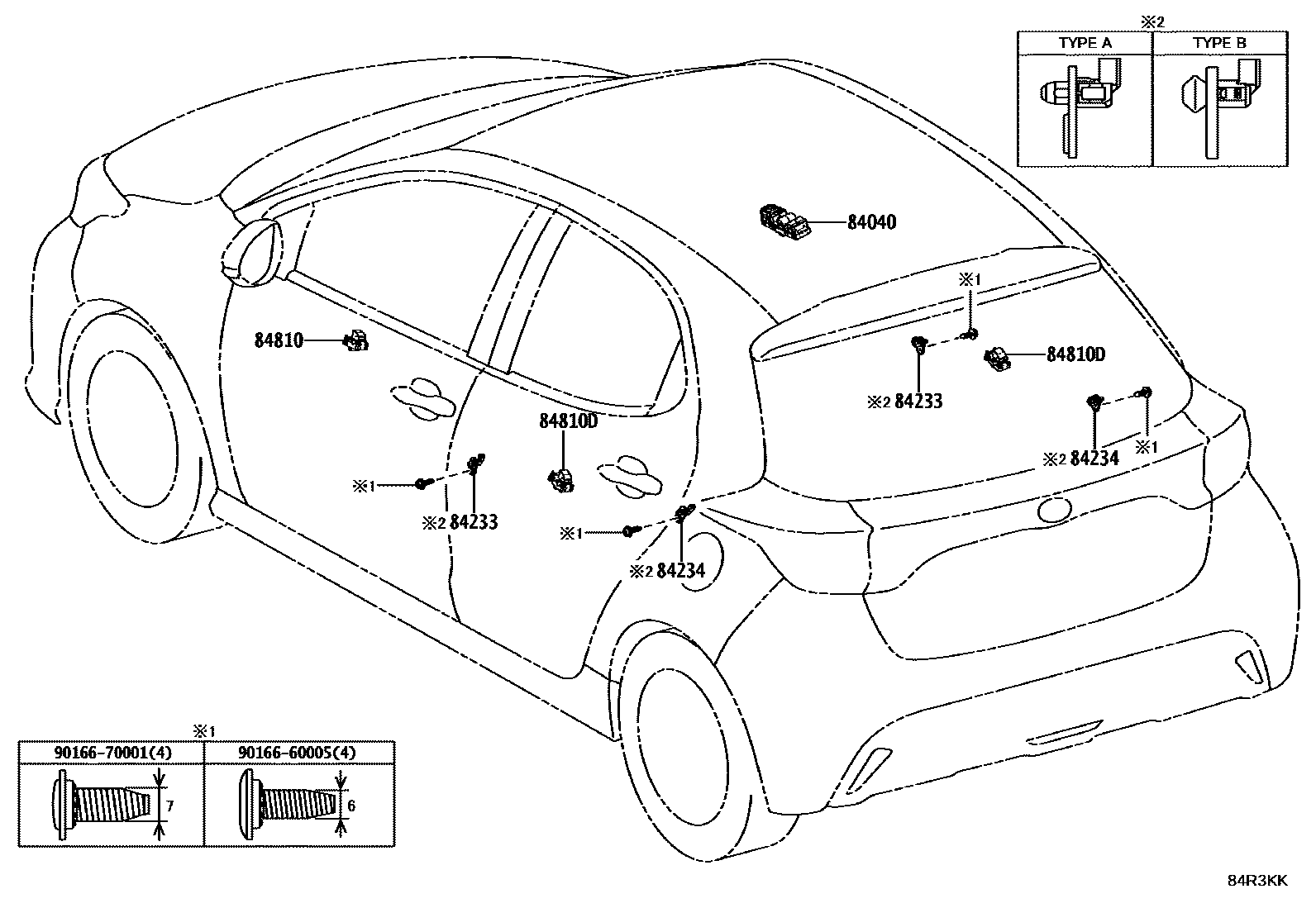

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 22 images and 131 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 |
| 28371K | Toyota part | 90987-02027 |
| 28371L | Toyota part | 90987-02027 |
| 28850C | Toyota part | 28850-K0020 |
| 82210N | Instrument panel fuse | 90982-08306 · 90982-08311 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-K0010 · 82610-K0020 |
| 82610C | Fuse box assembly | 82610-K0030 |
| 82611 | fuse box cover | 82611-47060 |
| 82613A | fuse box base | 82613-47020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-K0030 |
| 82620B | Fuse box assembly | 82620-K0040 · 82620-K0050 |
| 82620D | Fuse box assembly | 82620-K0060 |
| 82620E | Fuse box assembly | 82620-K0020 |
| 82621A | Fuse cover | 82621-52180 |
| 82644 | Toyota part | 82644-52050 · 82644-52090 · 82644-52100 · 82644-52110 · 82644-K0050 · 82644-K0070 · 82644-K0080 · 82644-K0090 |
| 82644B | Toyota part | 82644-52040 · 82644-K0060 |
| 82660B | Relay assembly | 82660-K0030 |
| 82660C | Relay assembly | 82660-K0020 |
| 82660D | Relay assembly | 82660-53010 · 82660-K0010 |
| 82662A | No. 1 relay box upper cover | 82662-52C00 · 82662-52C20 · 82662-52C30 · 82662-52C60 · 82662-52D80 |
| 82662B | No. 2 relay box upper cover | 82662-52B90 · 82662-52C10 · 82662-52D60 · 82662-52D70 |
| 82663 | Relay box lower cover | 82663-K0050 · 82663-K0060 |
| 82663A | No. 2 relay box lower cover | 82663-K0070 |
| 82663B | No. 3 relay box lower cover | 82663-K0040 |
| 82666 | Connector holder | 82666-60070 · 82666-K0090 |
| 82672K | Toyota part | 82672-52220 · 82672-52230 · 82672-K0010 · 82672-K0020 |
| 82673A | Junction box bracket | 82673-K0010 |
| 82673B | Junction box bracket | 82673-K0020 |
| 82715 | Wire harness clamp bracket | 82715-52Y00 |
| 82715W | Toyota part | 82715-K0030 |
| 82715X | Toyota part | 82715-K0040 · 82715-K0080 |
| 82715Y | Toyota part | 82715-72040 |
| 82730G | Toyota part | 82730-52S20 · 82730-52S30 · 82730-52S40 · 82730-52S50 · 82730-52S60 · 82730-52S70 · 82730-52S80 · 82730-K0010 · 82730-K0030 · 82730-K0040 · 82730-K0050 · 82730-K0070 · 82730-K0120 |

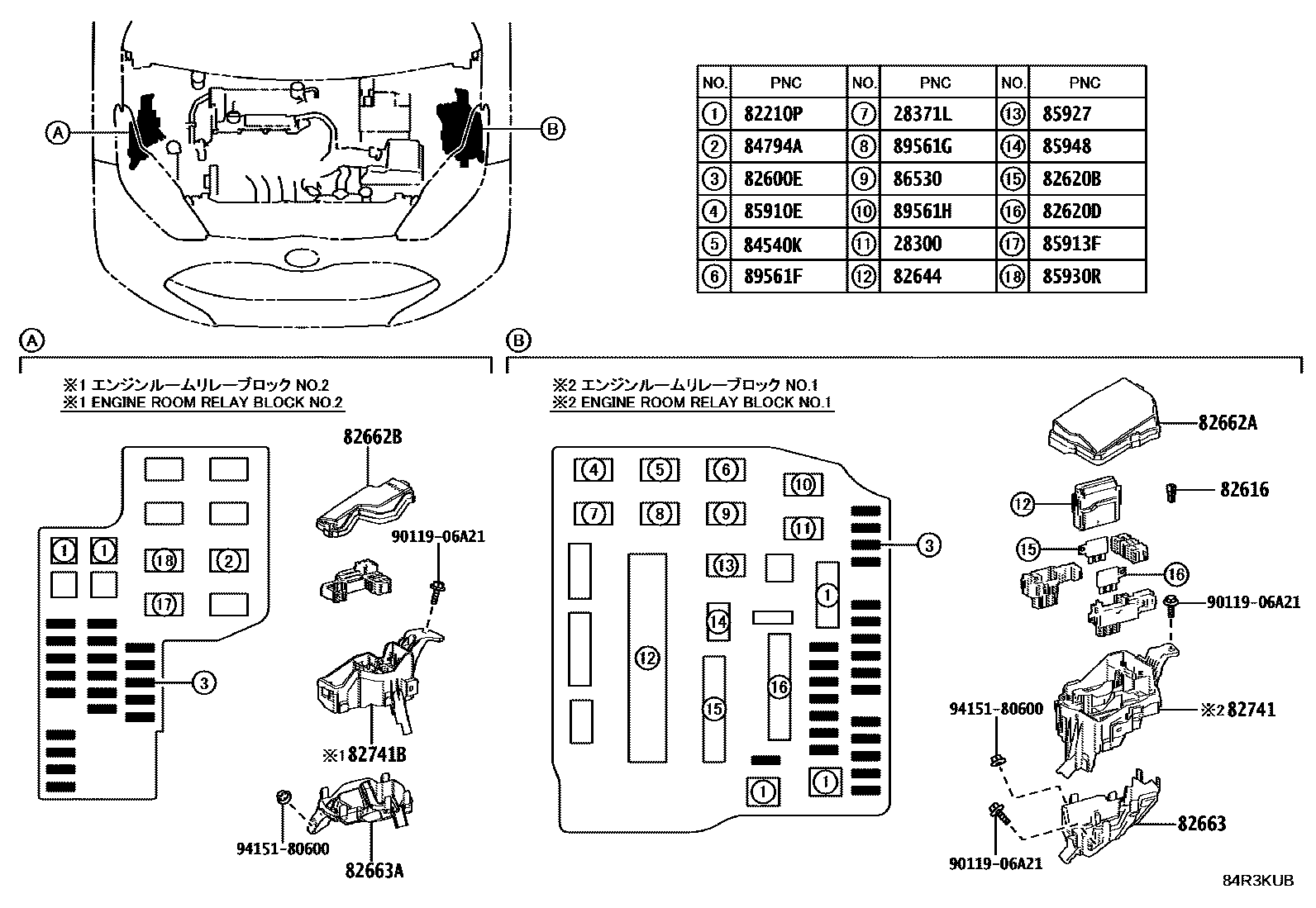

| 82741 | Engine room relay box | 82741-K0040 · 82741-K0050 |
| 82741B | Engine room relay box | 82741-K0060 |
| 82878 | Left ECU integrated box | 82878-52010 |
| 83320 | Fuel gauge sensor assembly | 83320-K0030 · 83320-K0031 · 83320-K0060 · 83320-K0070 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-K0040 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 84040 | Multi-channel network main switch assembly | 84040-52060 · 84040-52180 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-52020 · 84231-53010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 · 84231-53010 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |

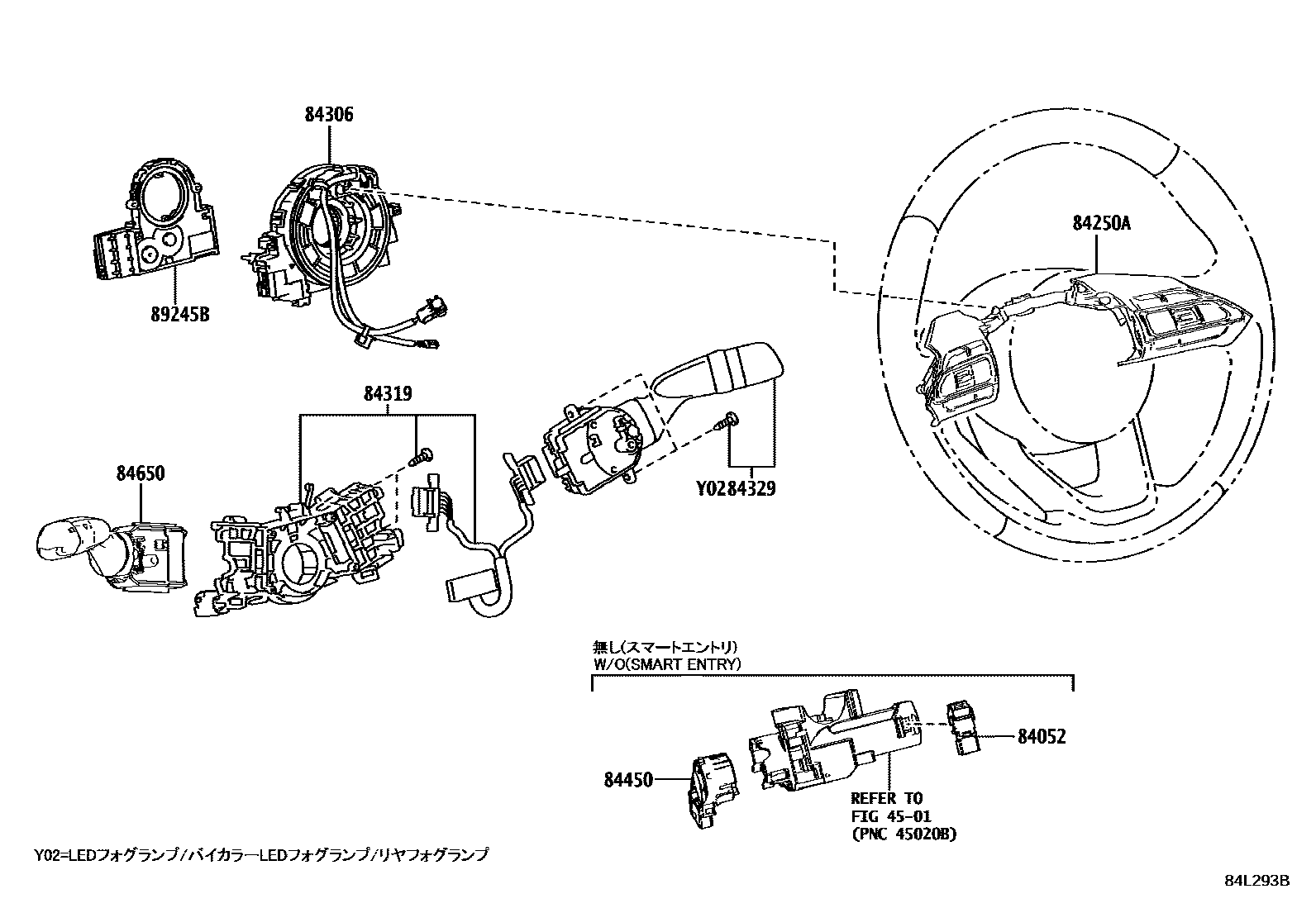

| 84306 | Spiral cable sub-assembly | 84308-12020 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-52170 · 84332-52200 |
| 84340 | brake light switch assembly | 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84485C | Toyota part | 84485-12010 · 84485-12020 |
| 84520 | Clutch start switch assembly | 88280-70010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-K0010 |
| 84540K | neutral start switch relay | 28300-21020 |
| 84545 | Toyota part | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 · 84652-12B50 |
| 84721B | Toyota part | 84721-60030 · 84721-K0010 |
| 84751F | Seat heater switch | 84751-15030 · 84751-52180 |
| 84751G | Seat heater switch | 84751-15020 · 84751-52120 |
| 84794 | Front wiper de-icer switch | 84794-33050 · 84794-62010 |
| 84794A | Front wiper de-icer relay | 90987-02027 |

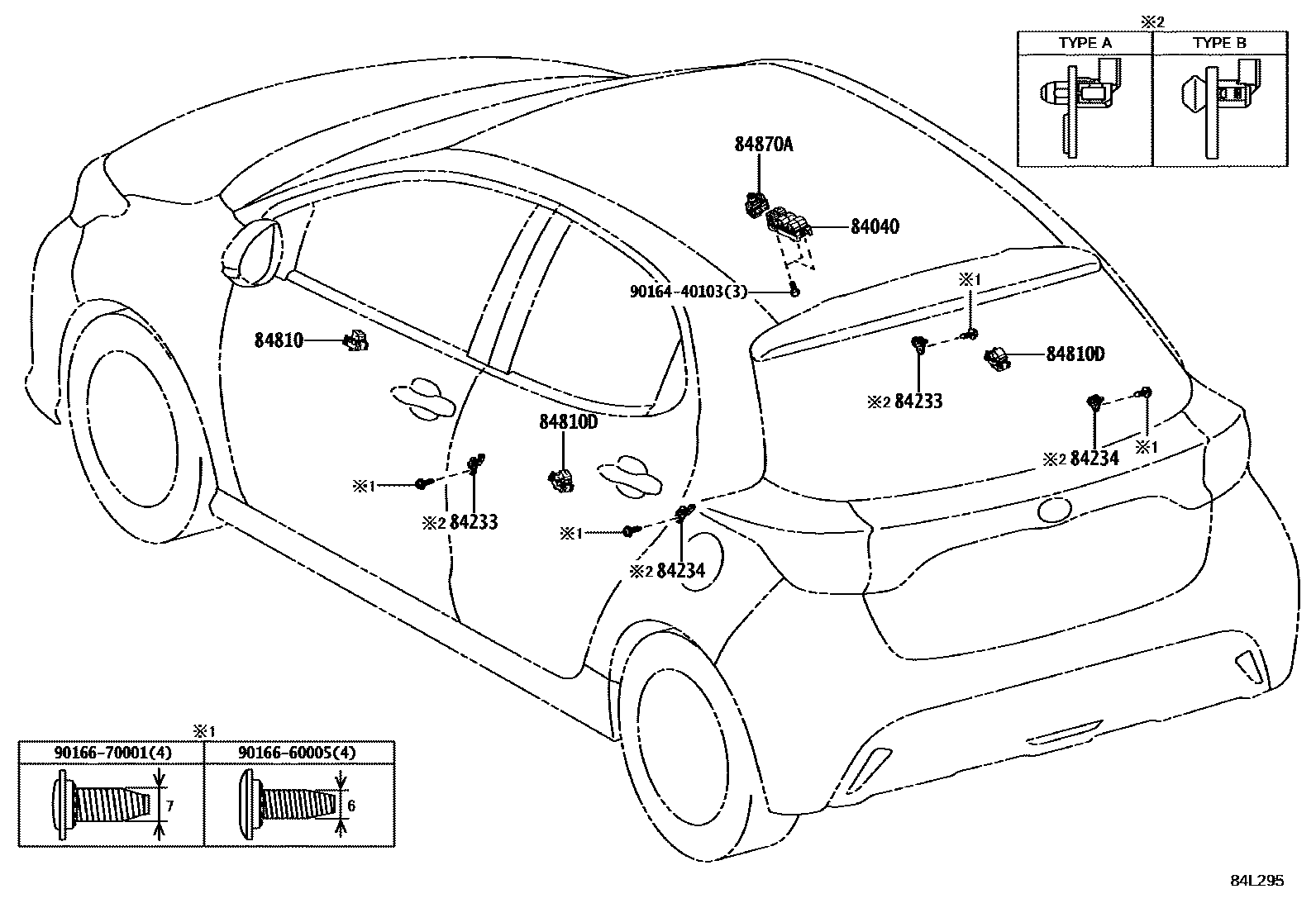

| 84810 | Electric window lift switch assembly | 84810-12100 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-47070 |
| 84970 | Combination switch assembly | 84970-52300 · 84970-52530 · 84970-52540 · 84970-52560 · 84970-52570 · 84970-52600 · 84970-52680 · 84970-K0020 · 84970-K0030 · 84970-K0040 · 84970-K0100 |
| 84988L | VSC off switch | 84988-52070 · 84988-52100 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85532 | Toyota part | 85532-47040 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910E | Injector relay | 90987-02027 |
| 85912K | Toyota part | 90987-02027 |
| 85912S | Toyota part | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85917D | Toyota part | 90987-02027 |
| 85924C | Toyota part | 90987-02031 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |

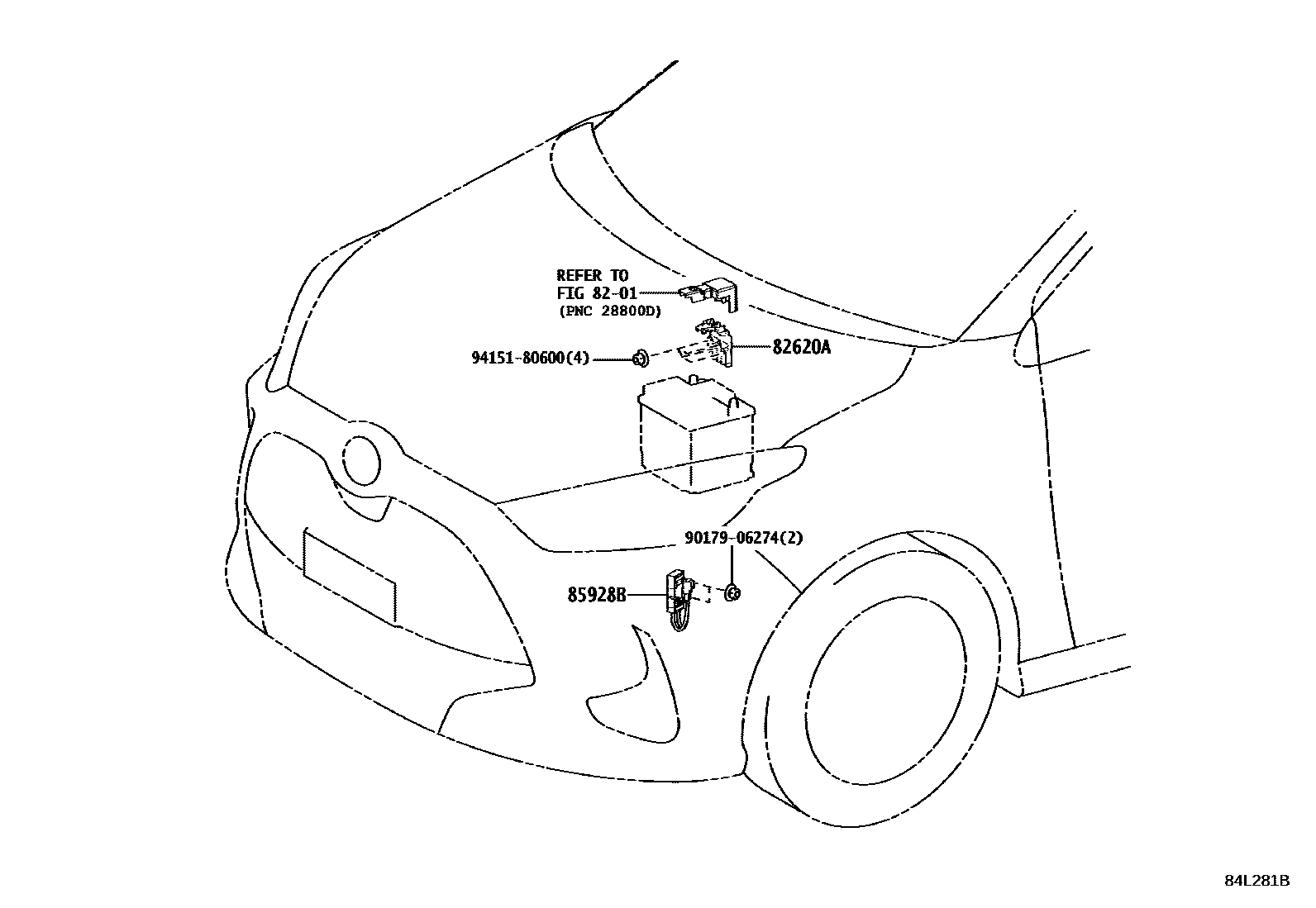

| 85928B | Cooling fan resistor | 85928-K0010 |
| 85930R | Toyota part | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-K0010 |
| 85948 | windshield wiper relay | 90987-02027 |
| 86210D | High voltage fuse | 90982-11053 |
| 86247A | Voltage inverter bracket | 86247-K0010 · 86247-K0080 |
| 86247C | Toyota part | 86247-K0070 · 86247-K0090 |
| 8624A | Toyota part | 8624A-52020 · 8624A-K0010 |
| 86530 | Speaker relay assembly | 90987-02027 |

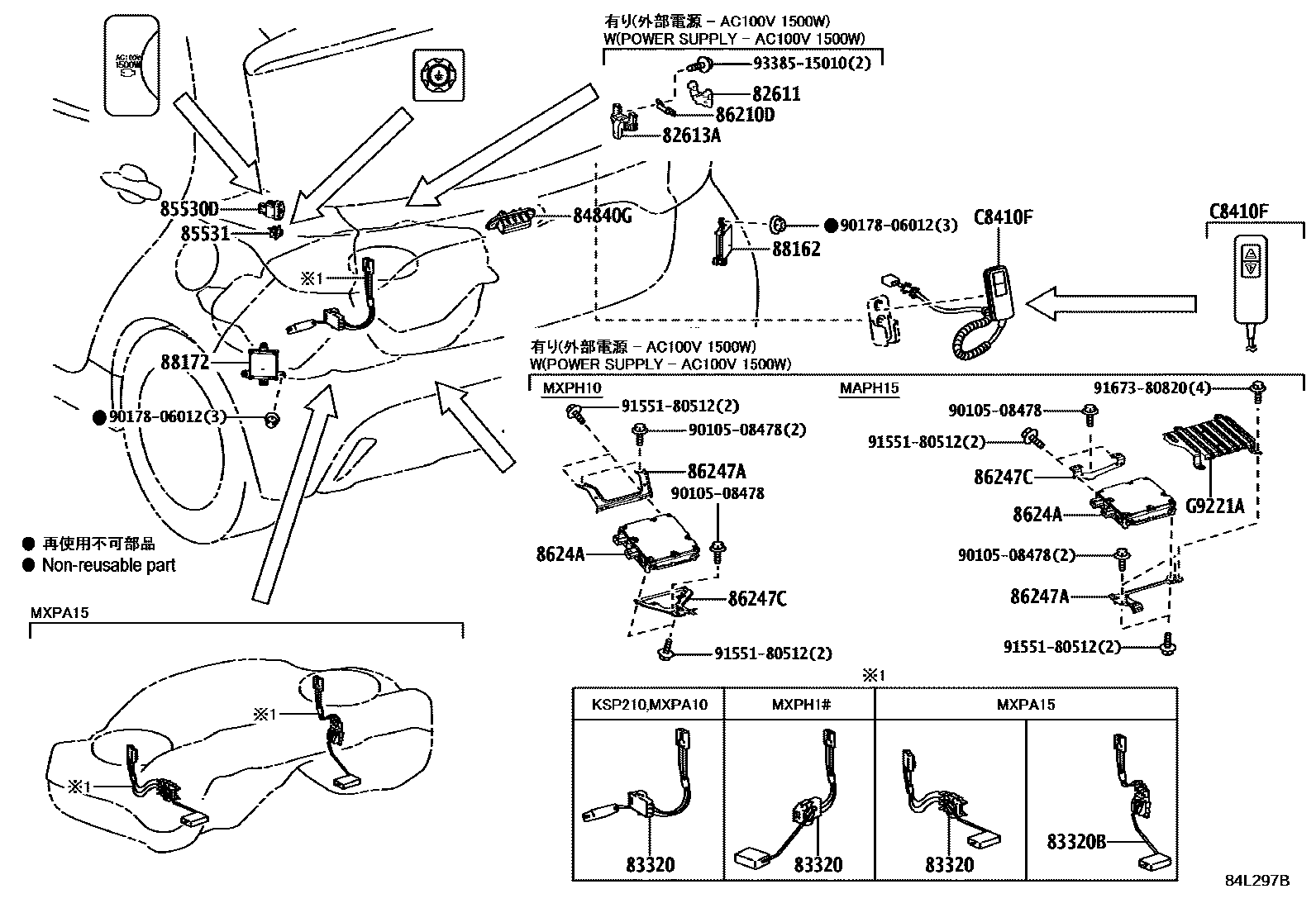

| 88162 | Blind spot monitor right sensor | 88162-52070 · 88162-K0040 |
| 88172 | Blind spot monitor left sensor | 88162-52070 · 88162-K0040 |
| 88280A | Clutch switch assembly | 88280-42010 |

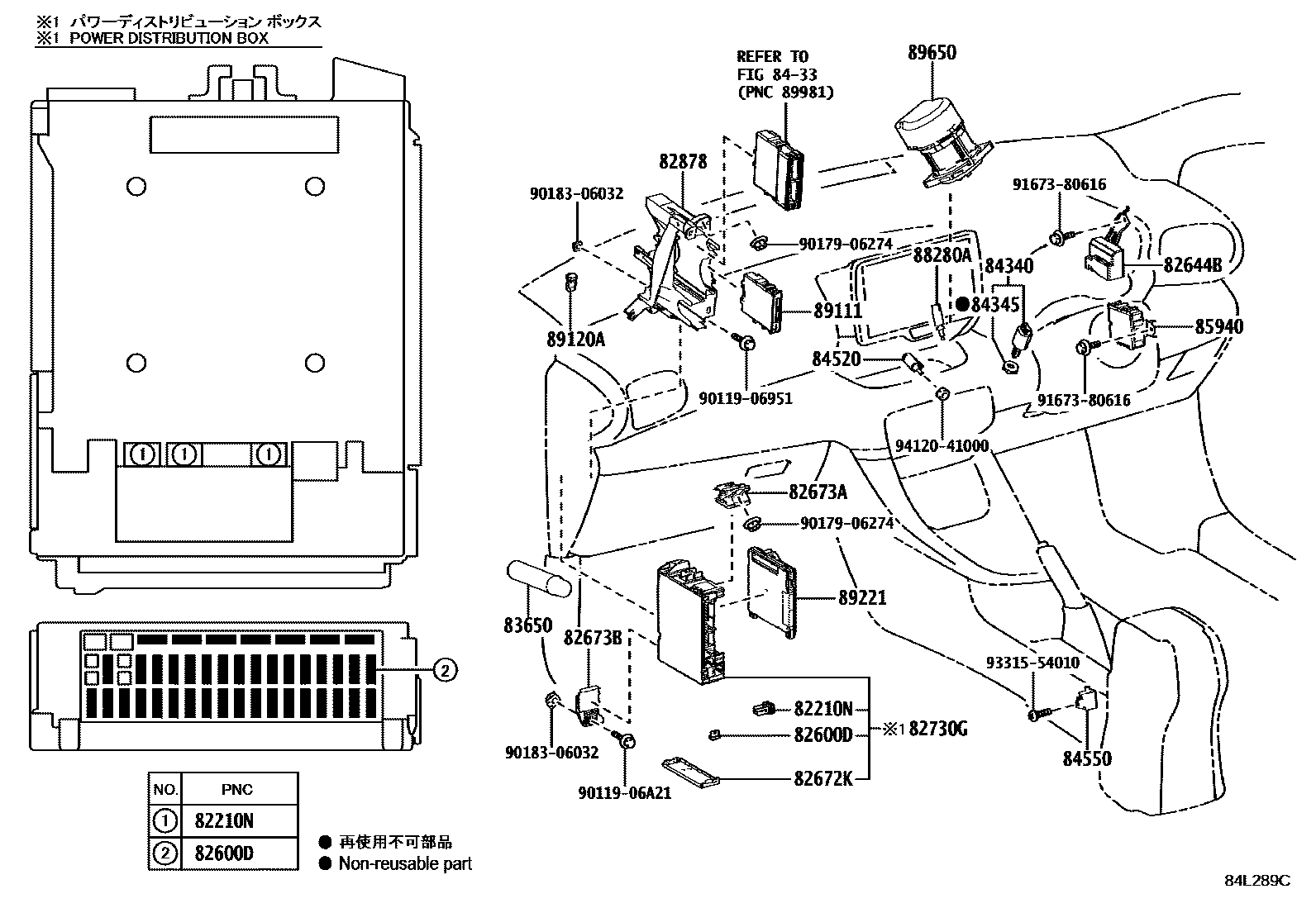

| 89111 | Network gateway ECU | 89111-52040 · 89111-52140 · 89111-52200 · 89111-60140 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-52D50 · 89220-52D51 · 89220-52D52 · 89220-52D53 · 89220-52D60 · 89220-52D61 · 89220-52D62 · 89220-52D63 · 89220-52D70 · 89220-52D71 · 89220-52D72 · 89220-52D73 · 89220-52D80 · 89220-52D81 · 89220-52D82 · 89220-52D83 · 89220-52D90 · 89220-52D91 · 89220-52D92 · 89220-52D93 · 89220-52E00 · 89220-52E01 · 89220-52E02 · 89220-52E03 · 89220-5C520 · 89220-5C530 · 89220-5C540 · 89220-5C550 · 89220-5C560 · 89220-5C570 · 89220-5C580 |
| 89245B | steering sensor | 8924B-60010 · 8924B-K0010 · 8924B-V1010 |

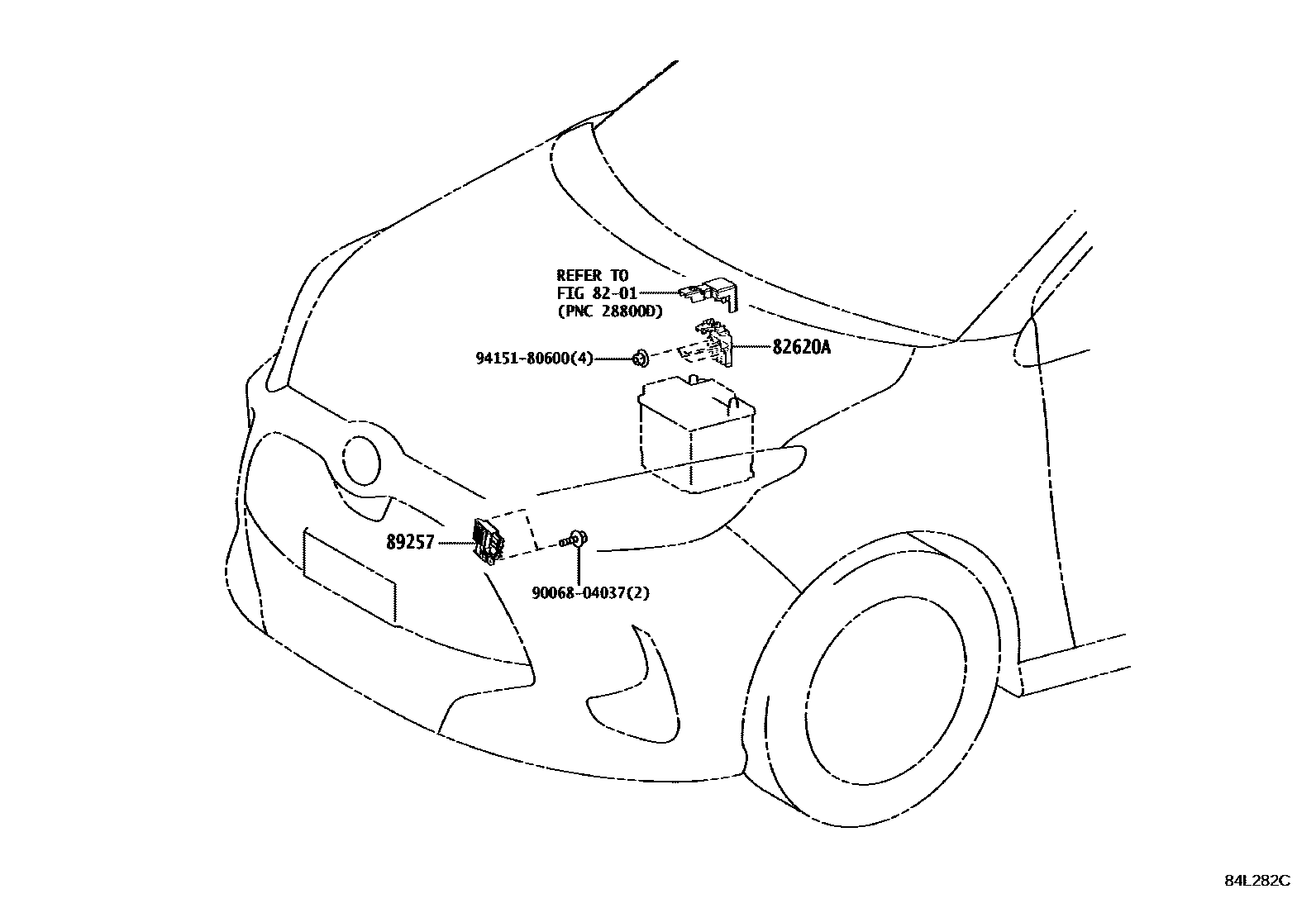

| 89257 | Cooling fan ECU | 89257-K0010 · 89257-K0020 |
| 89419B | Toyota part | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |

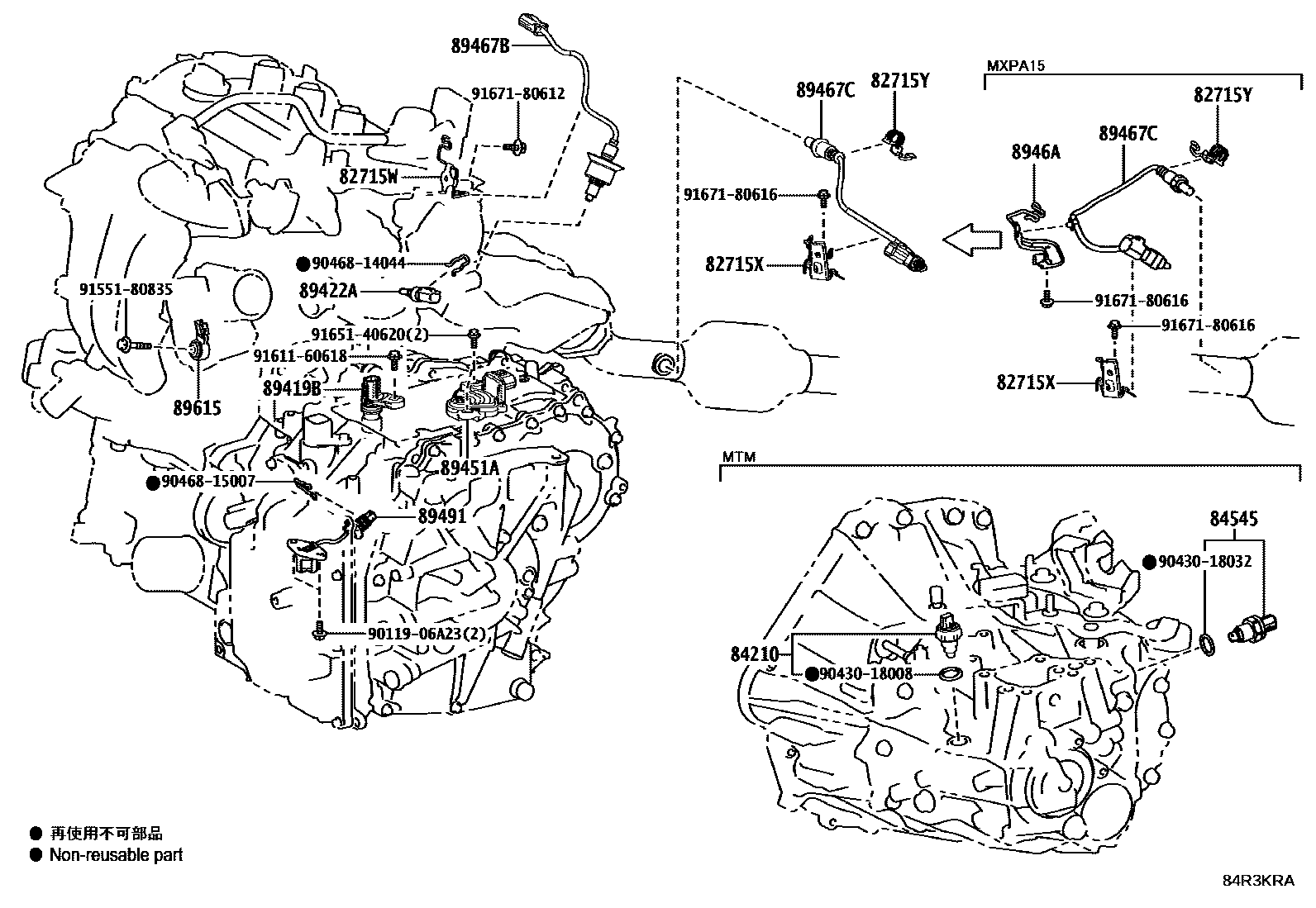

| 89451A | shift lever position sensor | 89451-10010 · 89451-42010 |
| 89465 | oxygen sensor | 89465-0H060 |
| 89465A | Oxygen sensor No. 2 | 89465-0H080 · 89465-52840 |
| 89467B | air fuel ratio sensor | 89467-52390 · 89467-K0020 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-52370 · 89467-52380 · 89467-K0030 · 89467-K0040 |
| 8946A | Toyota part | 8946A-52040 · 8946A-52090 |
| 89491 | Engine oil level sensor | 89491-50081 · 89491-50082 |
| 89530C | Transmission control ECU assembly | 89530-52630 · 89530-K0200 |
| 89535B | Toyota part | 89535-52210 · 89535-52220 · 89535-52230 · 89535-K0050 · 89535-K0051 · 89535-K0071 |
| 89539M | No. 1 transmission control ECU bracket | 89539-K0010 |
| 89539N | No. 2 transmission control ECU bracket | 89539-K0020 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02033 |
| 89611 | push button start switch | 89611-12010 · 89611-12020 · 89611-42030 · 89611-52080 |
| 89615 | knock control sensor | 89615-0H010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52G90 · 89650-52J80 · 89650-52R80 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| C8410F | Toyota part | C8211-52020 |
| C8545B | Toyota part | 88263-D1010 |
| G9221A | Inverter top cover | G9221-K0030 |
