Toyota YARIS 高位刹车灯 — Figure 8117

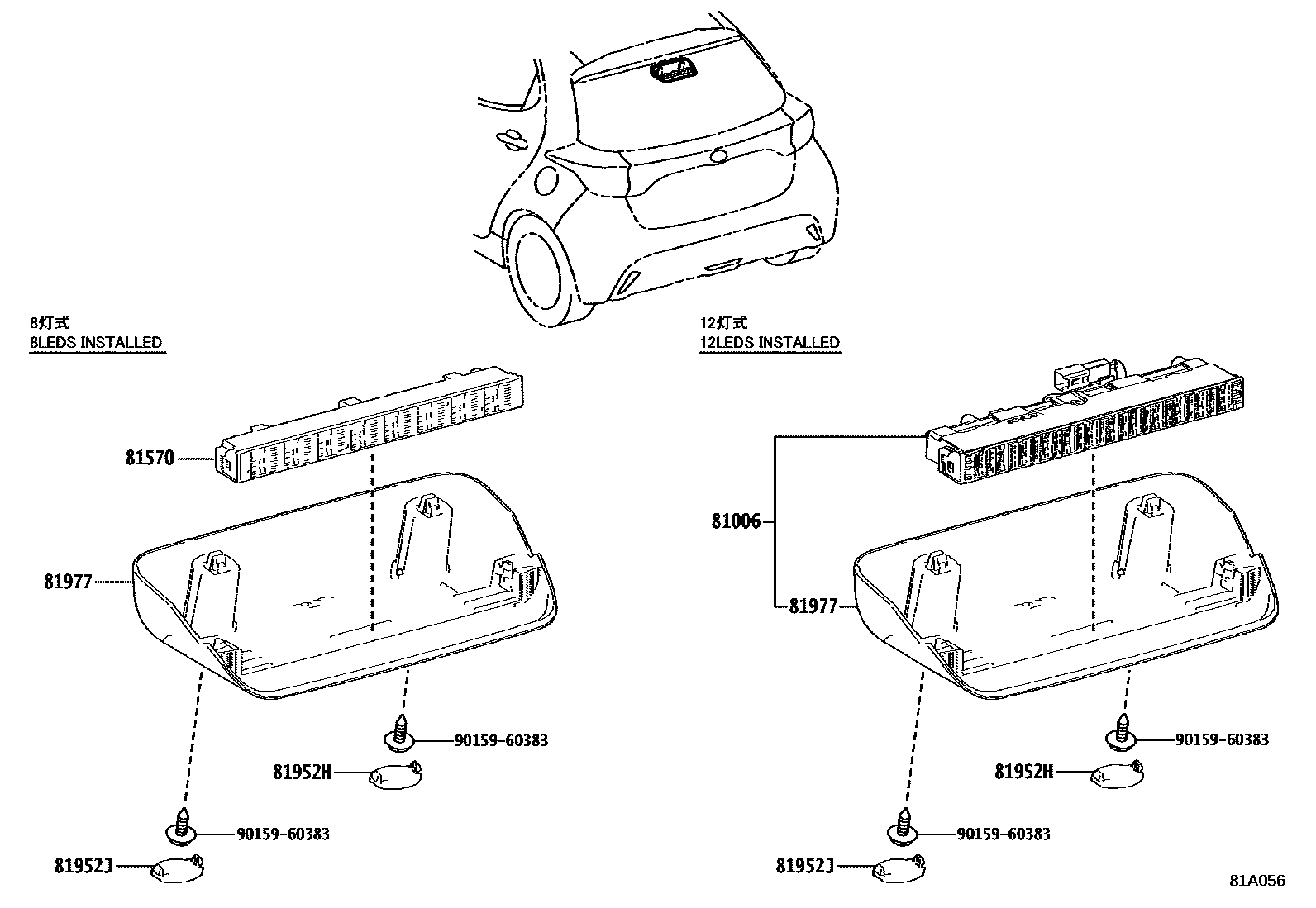

Toyota YARIS EPC diagram 8117, 高位刹车灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81006-52190 · 81006-K0050 |
| 81570 | Central brake light assembly | 81570-K0040 |
| 81952H | Toyota part | 81952-K0010 |
| 81952J | Toyota part | 81952-K0010 |
| 81977 | Central brake light cover | 81977-52180 · 81977-K0010 |
