Toyota YARIS Side Turn Signal & Outer Mirror Lamp — Figure 8106

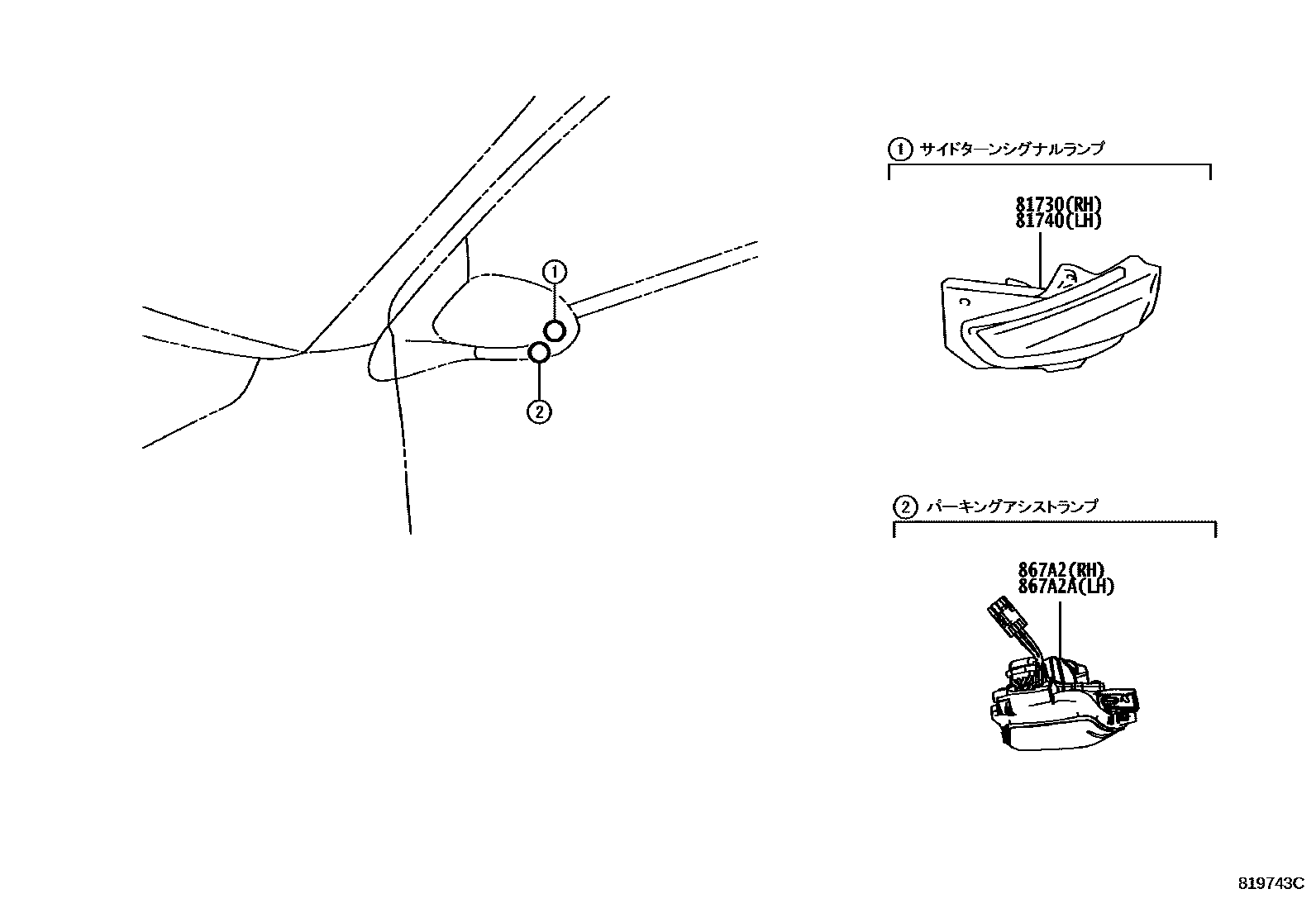

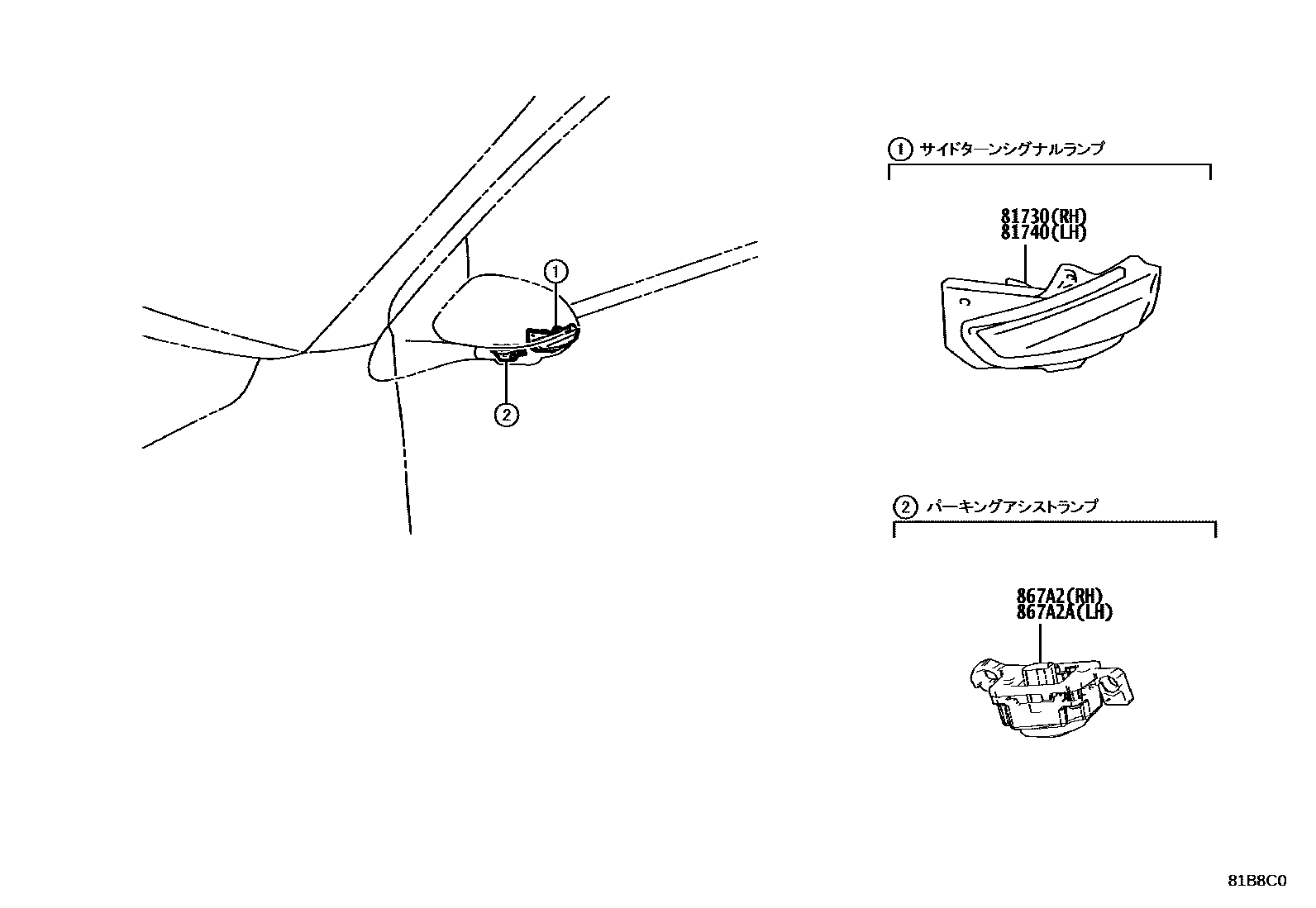

Toyota YARIS EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-52110 · 81730-52111 |
| 81740 | Left side turn signal light assembly | 81740-52060 · 81740-52061 |
| 867A2 | Toyota part | 867A2-52060 · 867A2-K0010 |
| 867A2A | Toyota part | 867A2-52050 · 867A2-K0020 |
