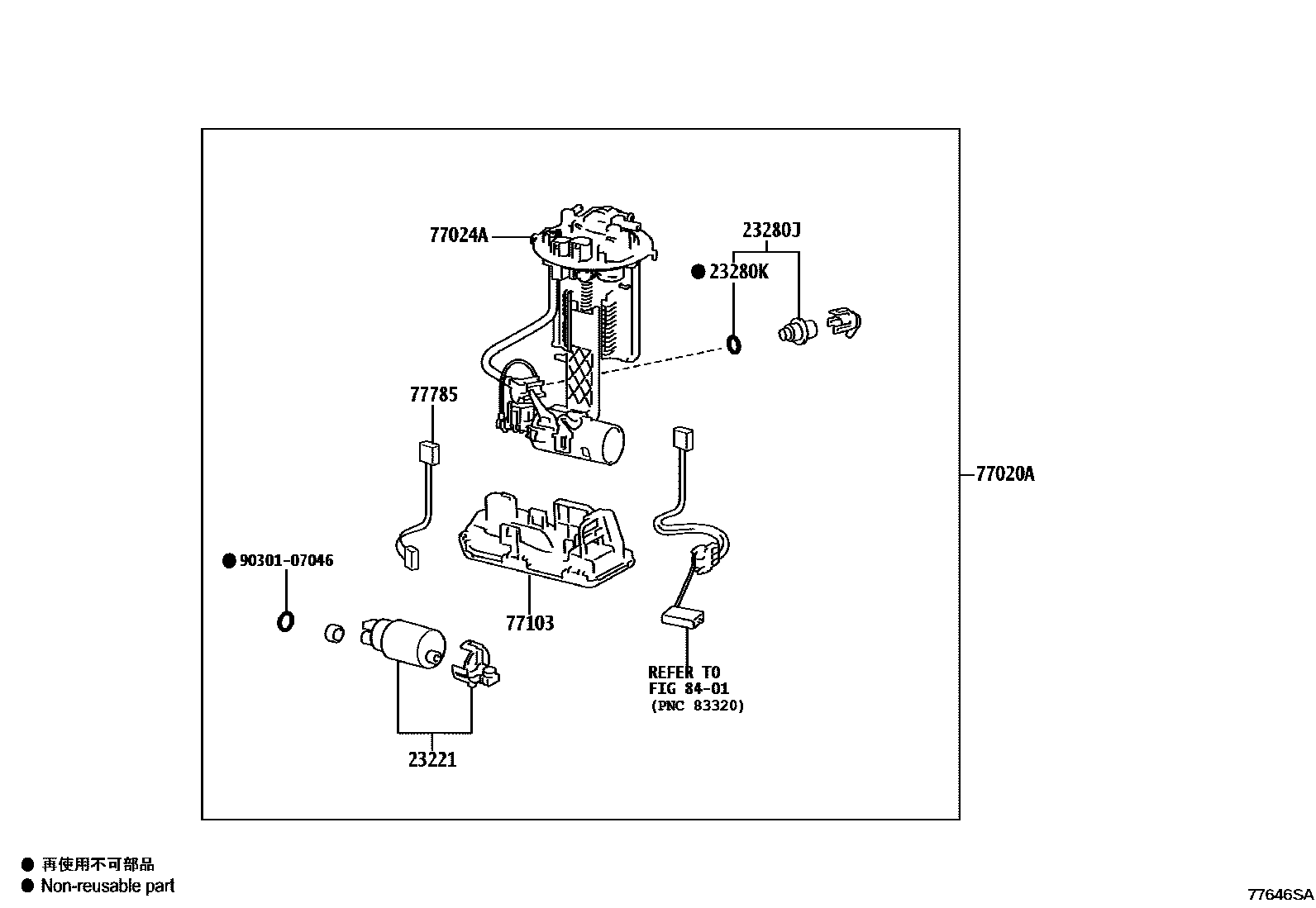

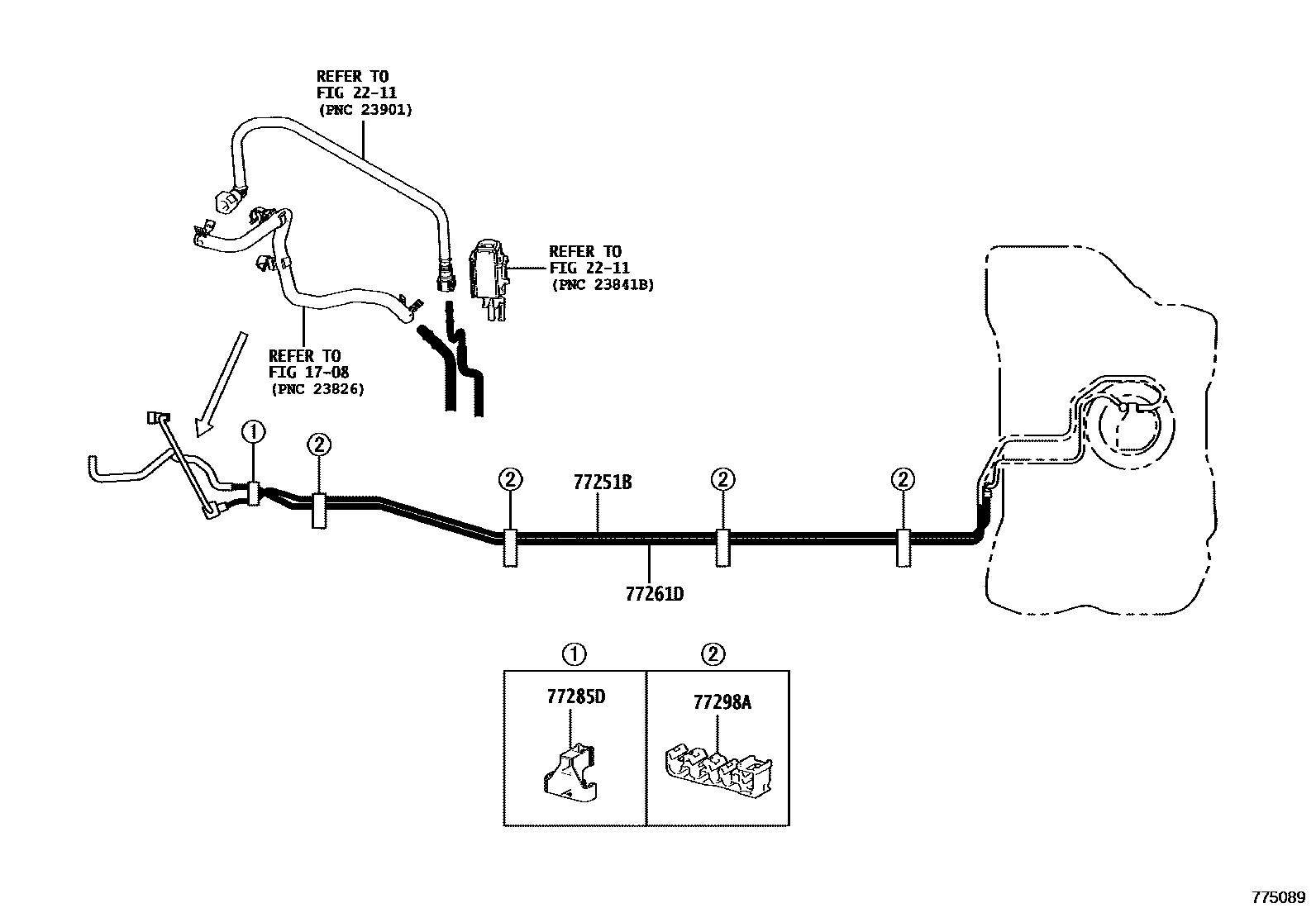

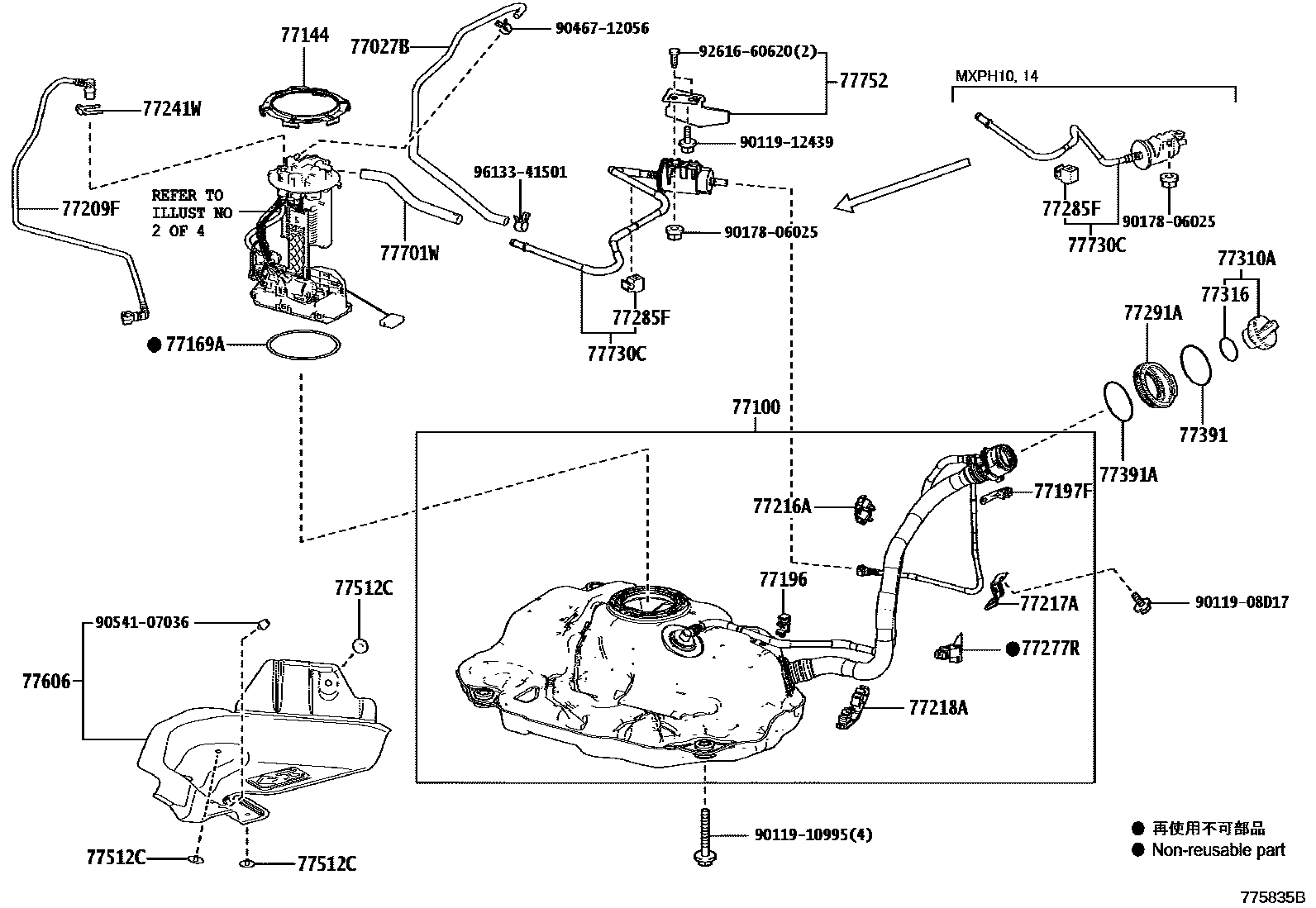

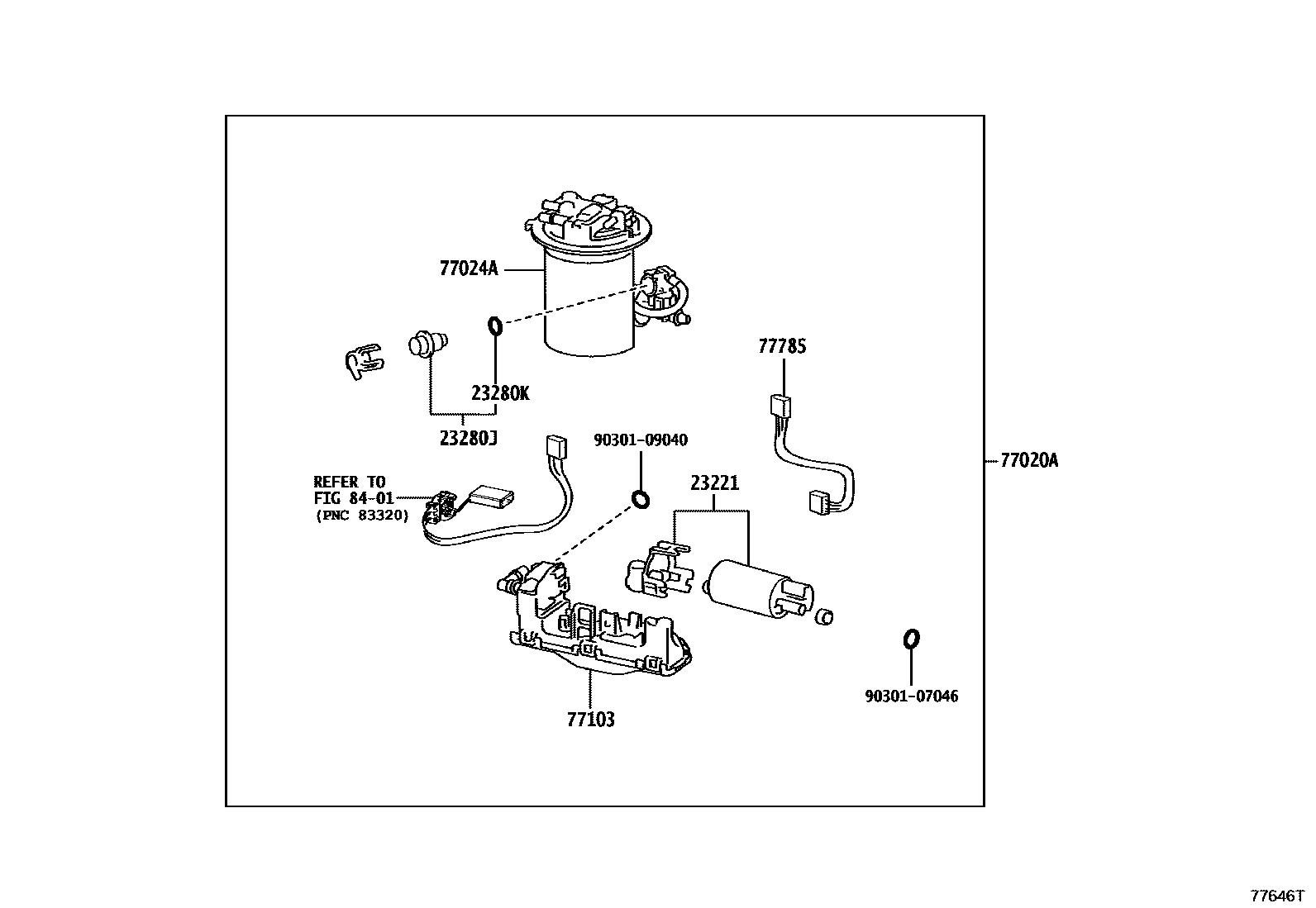

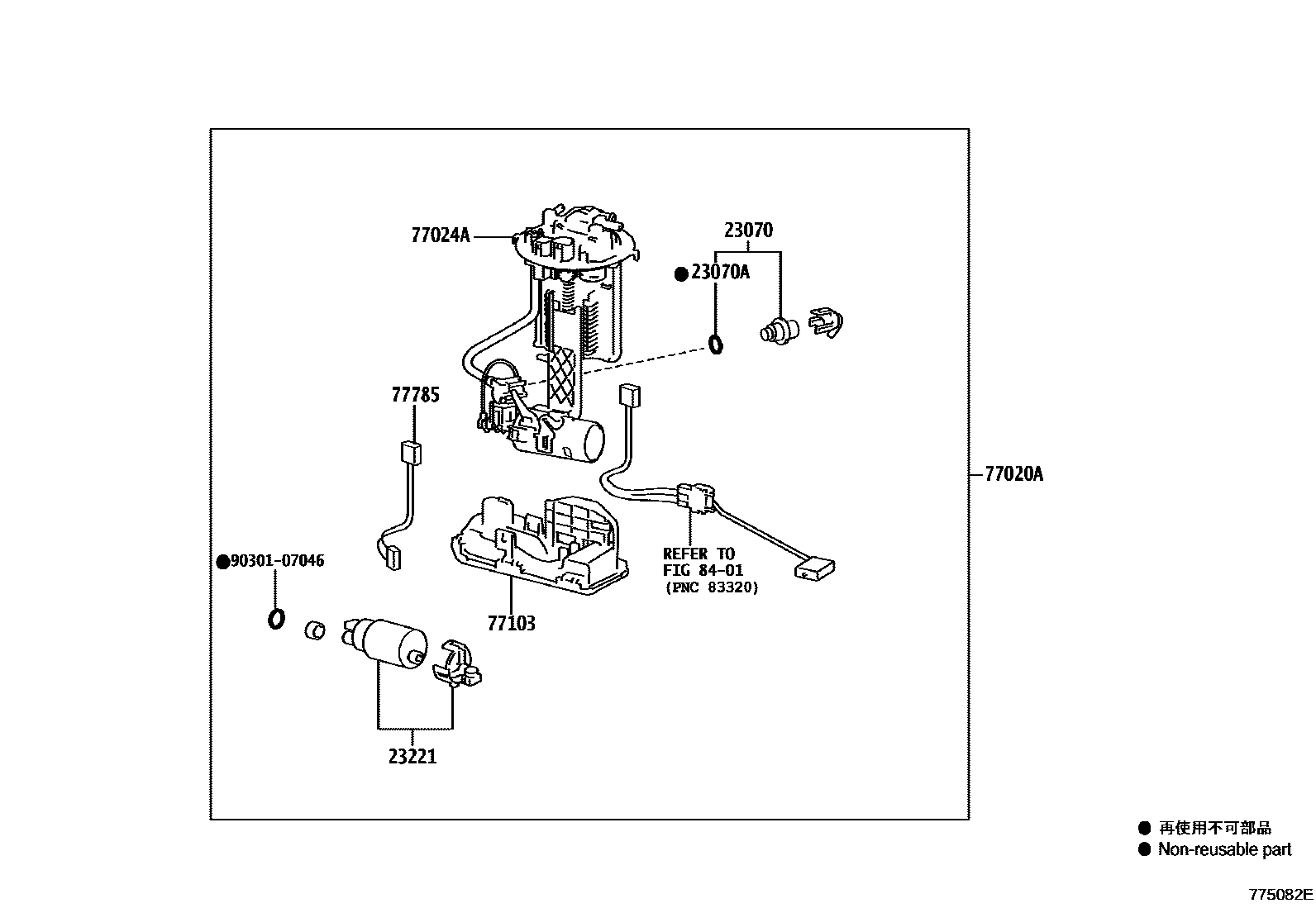

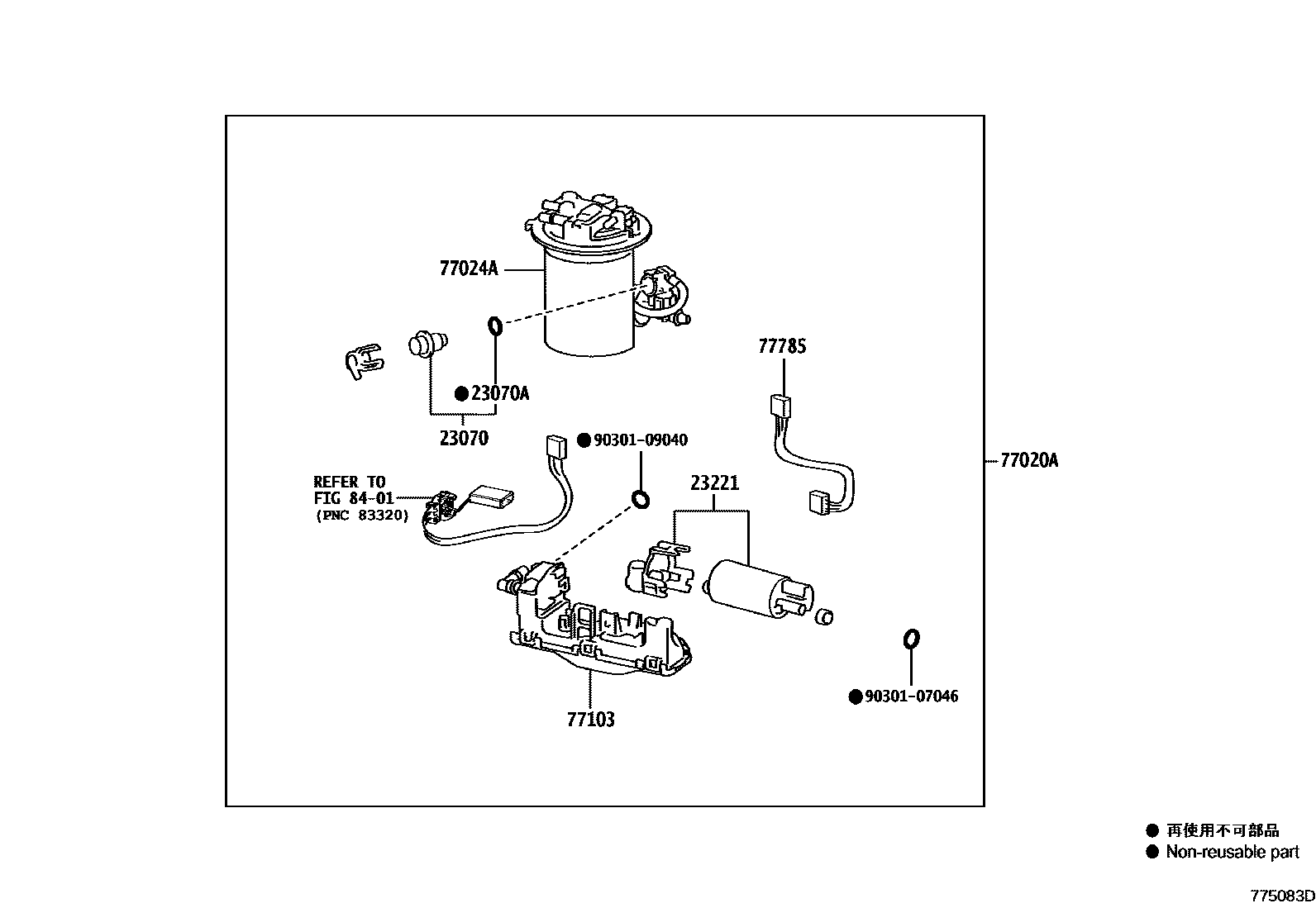

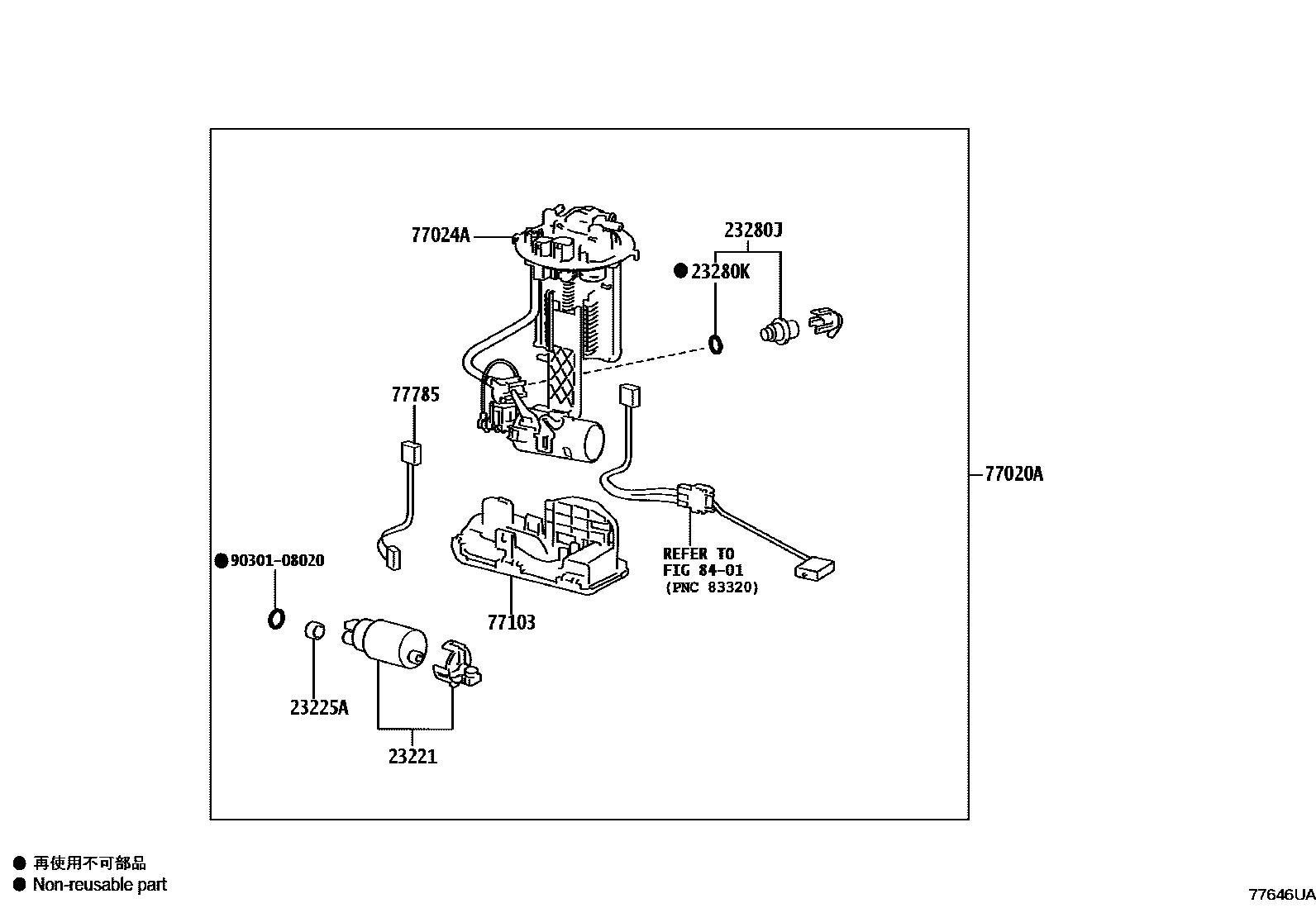

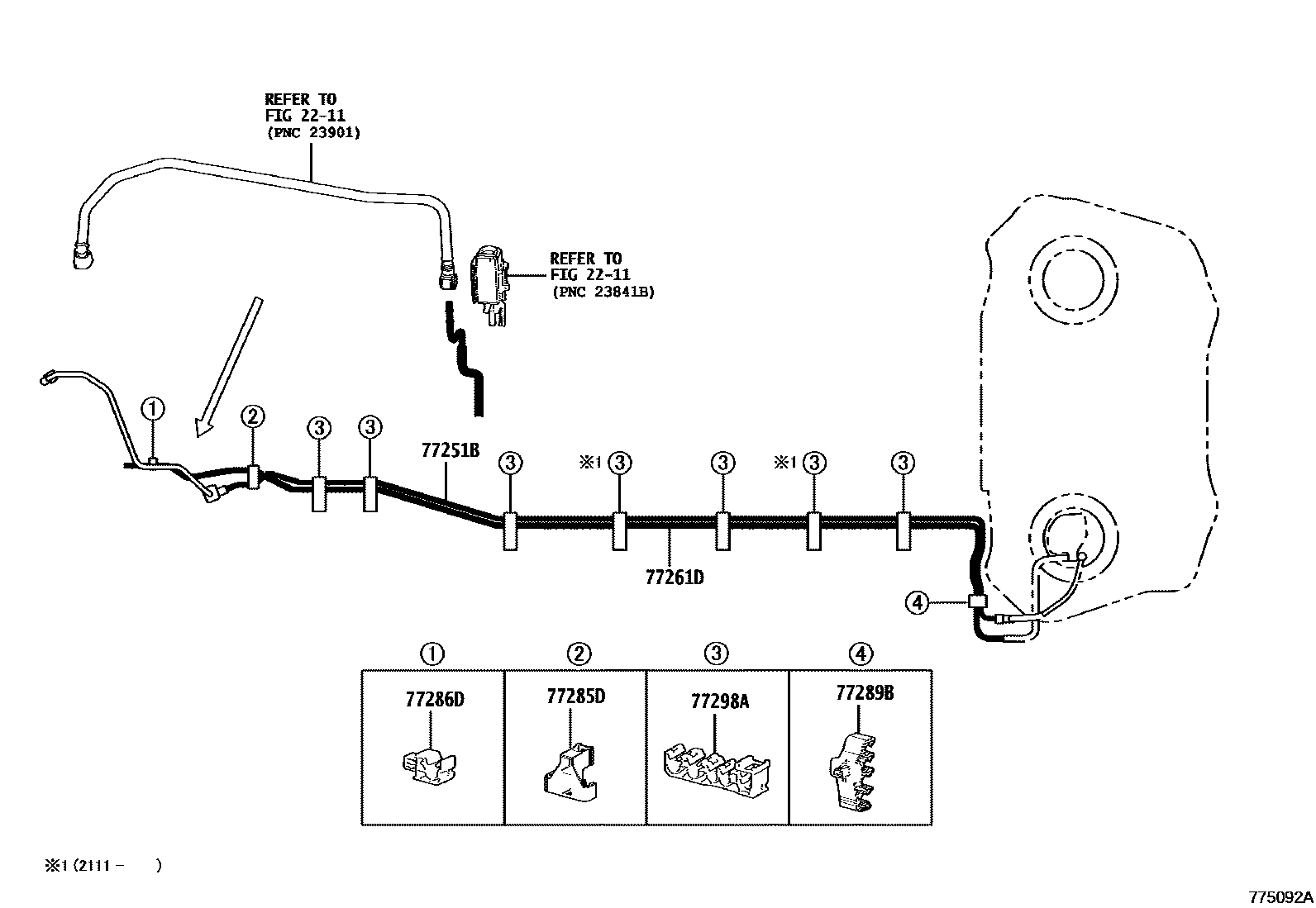

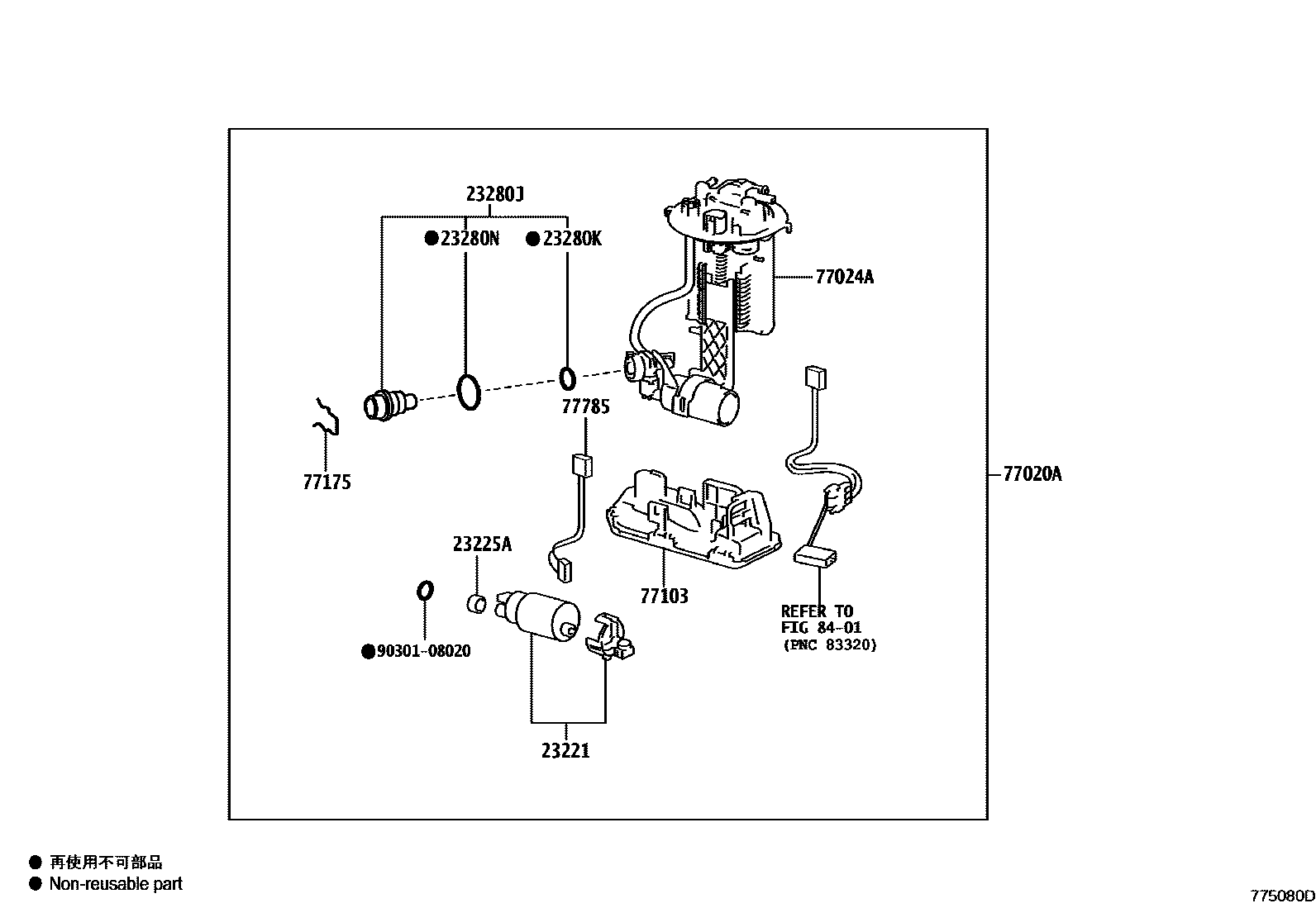

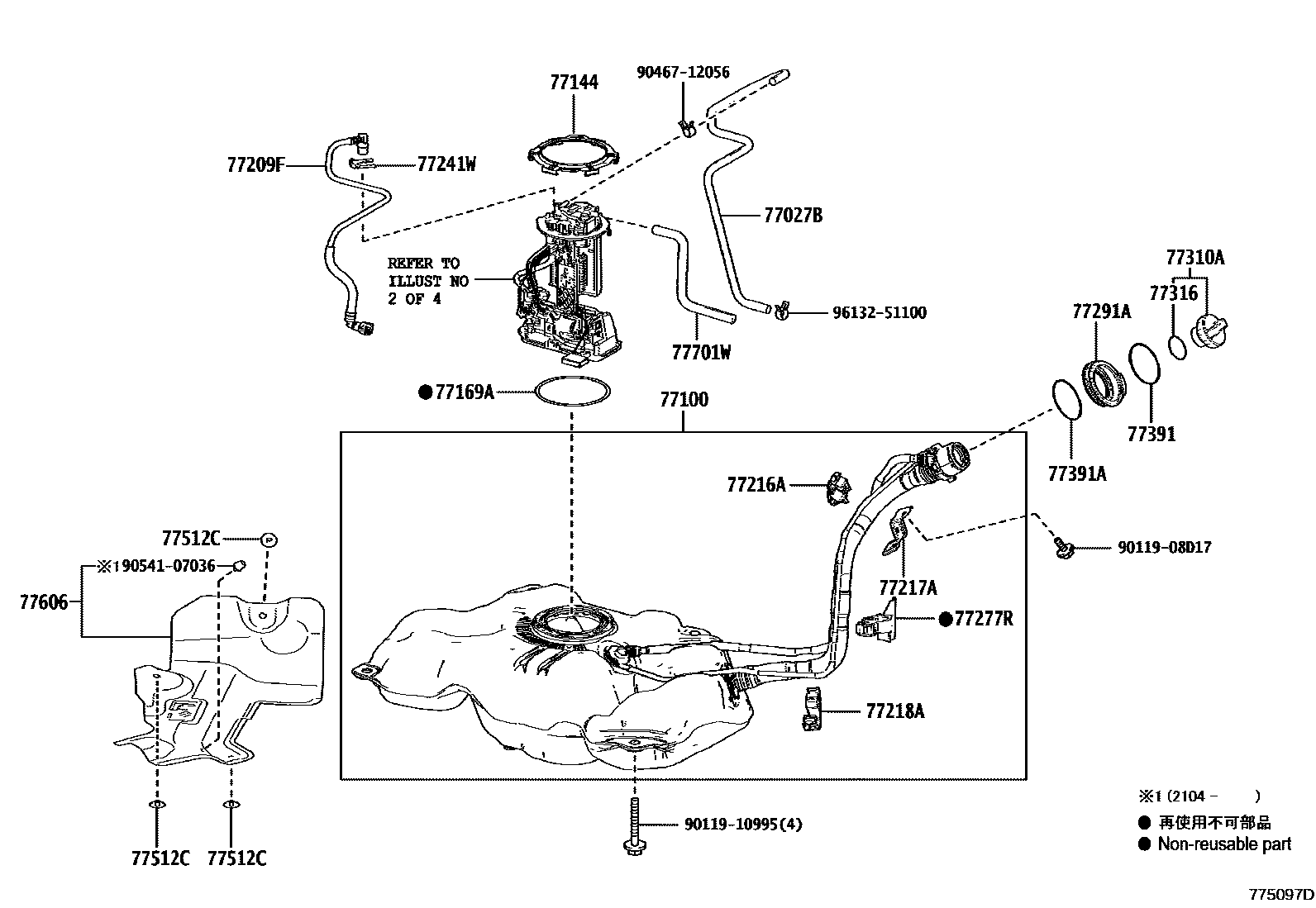

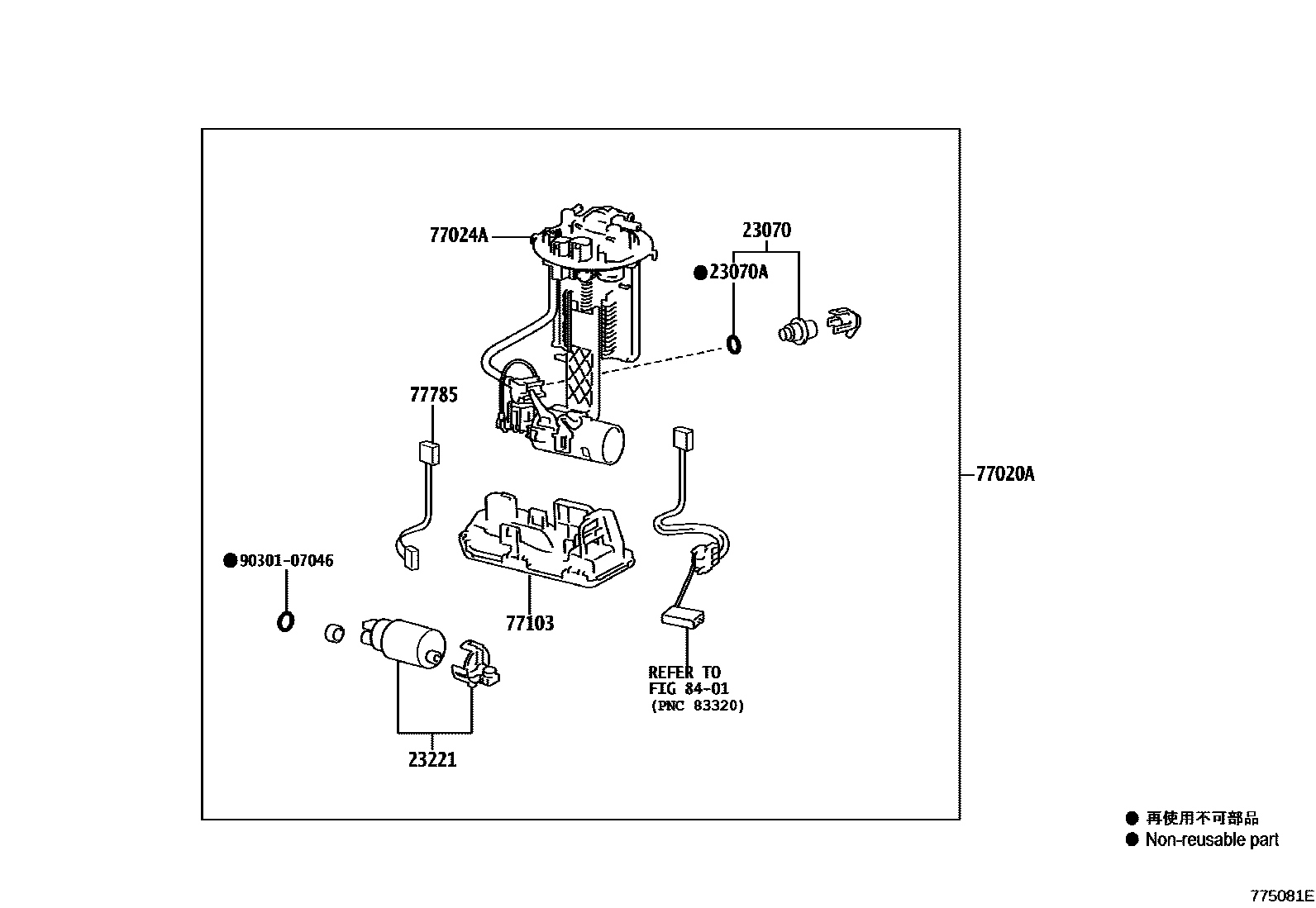

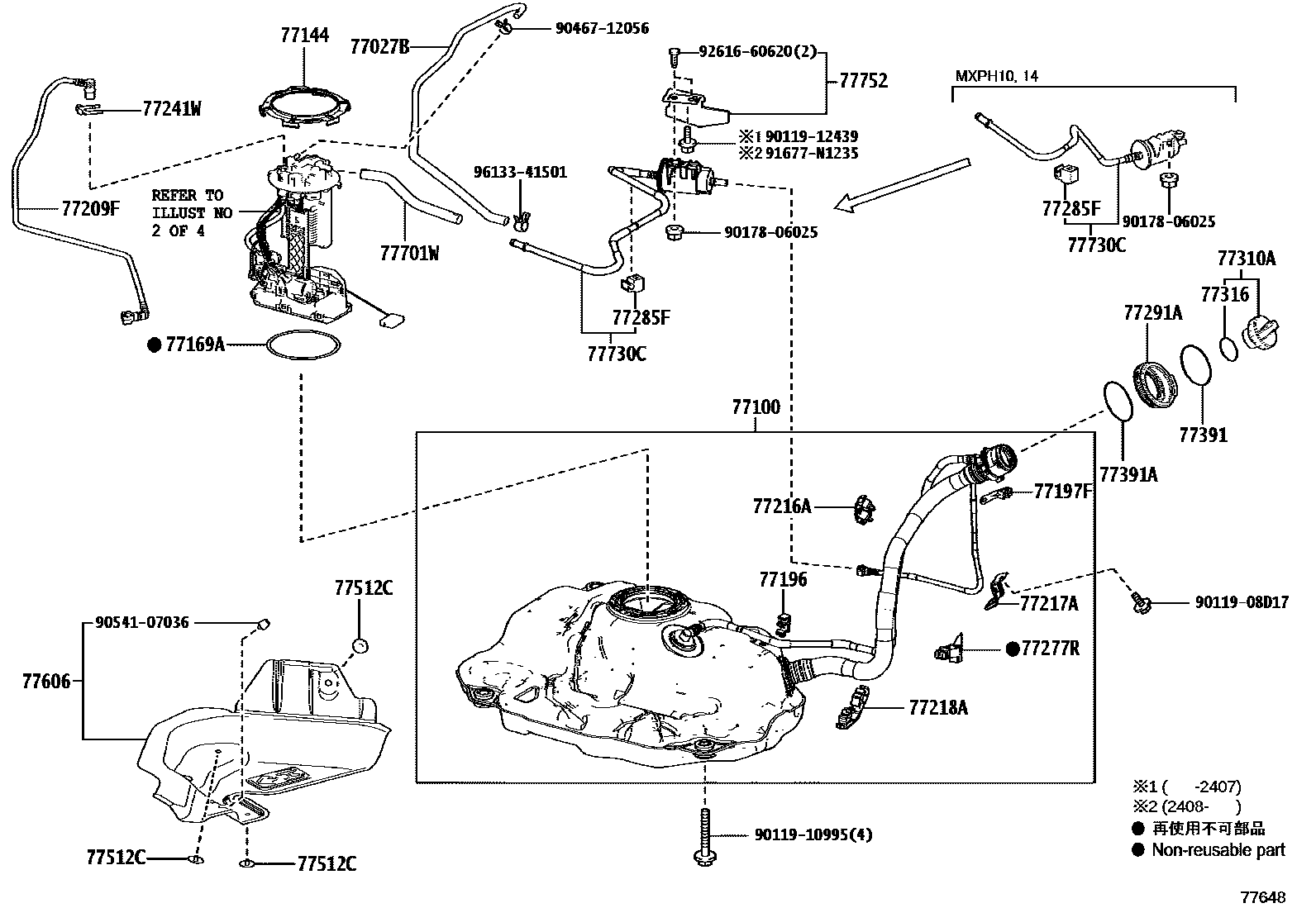

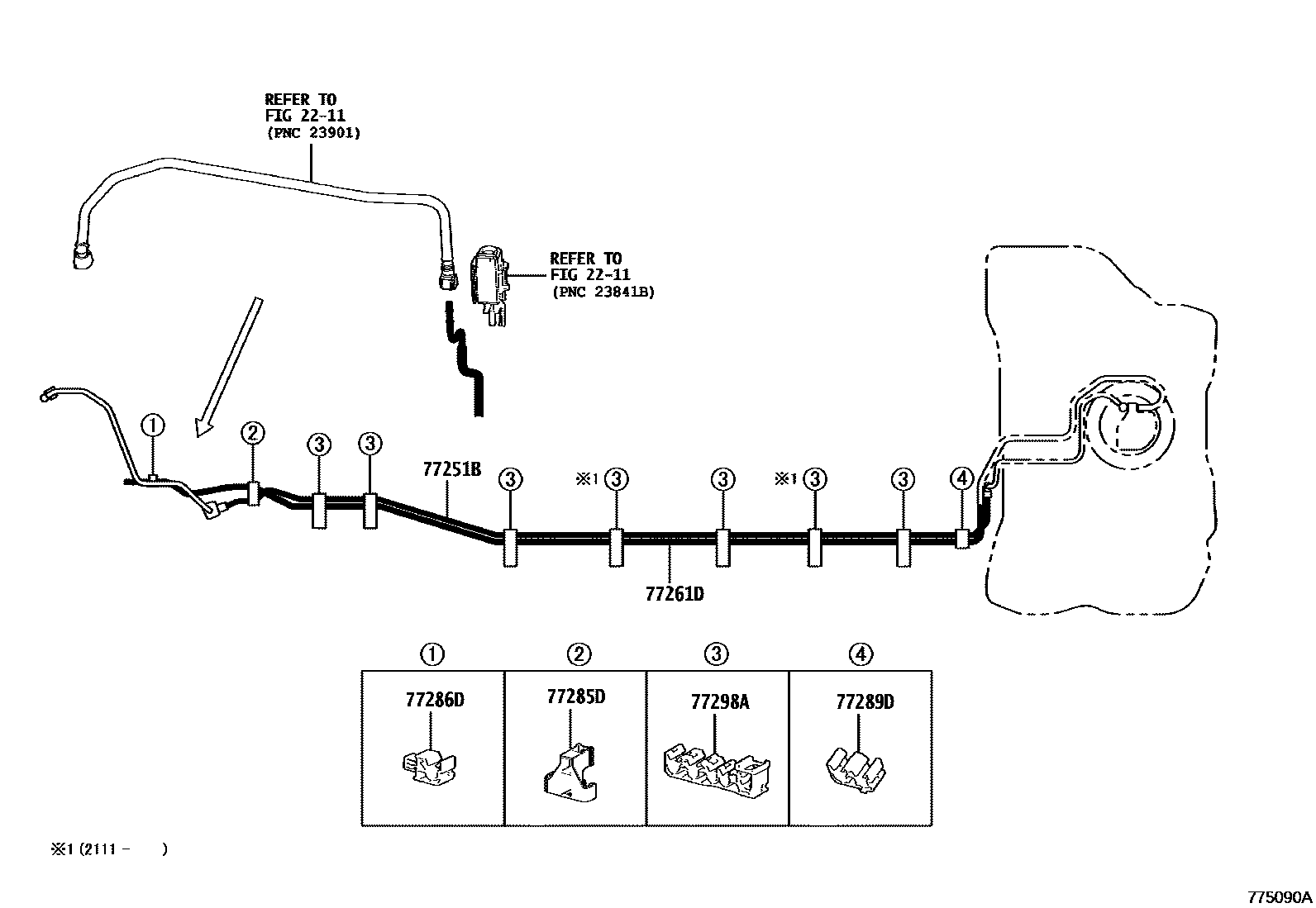

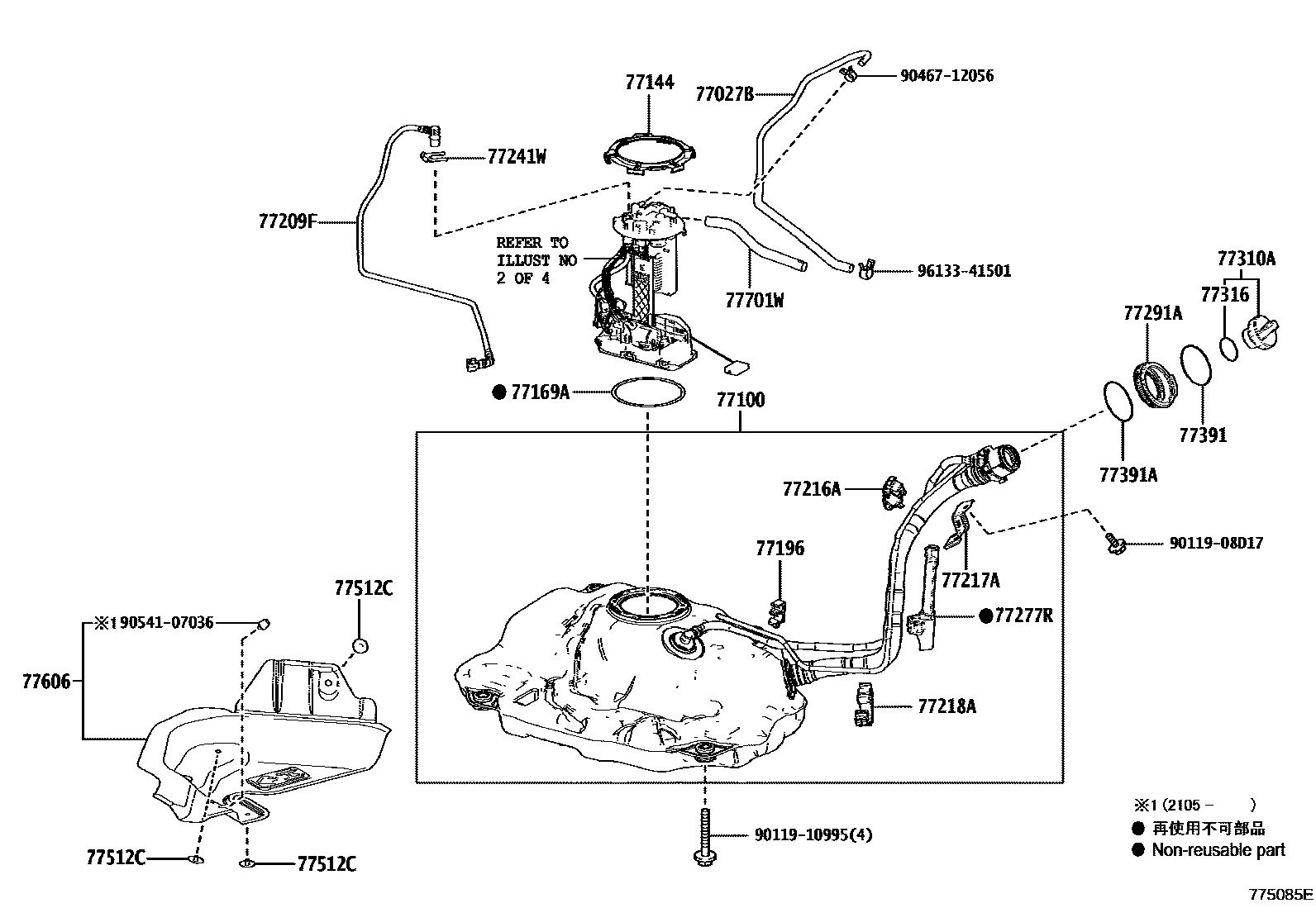

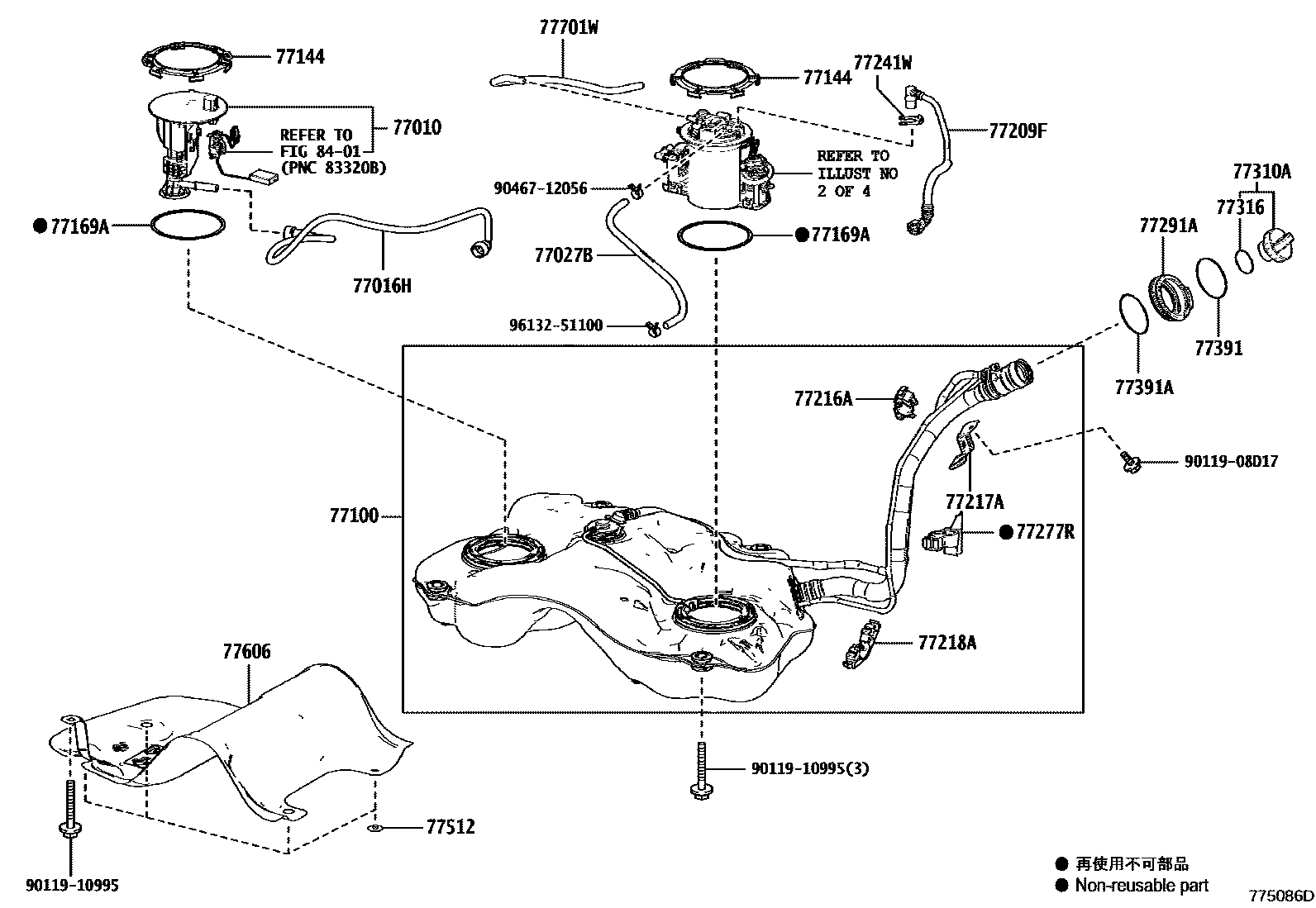

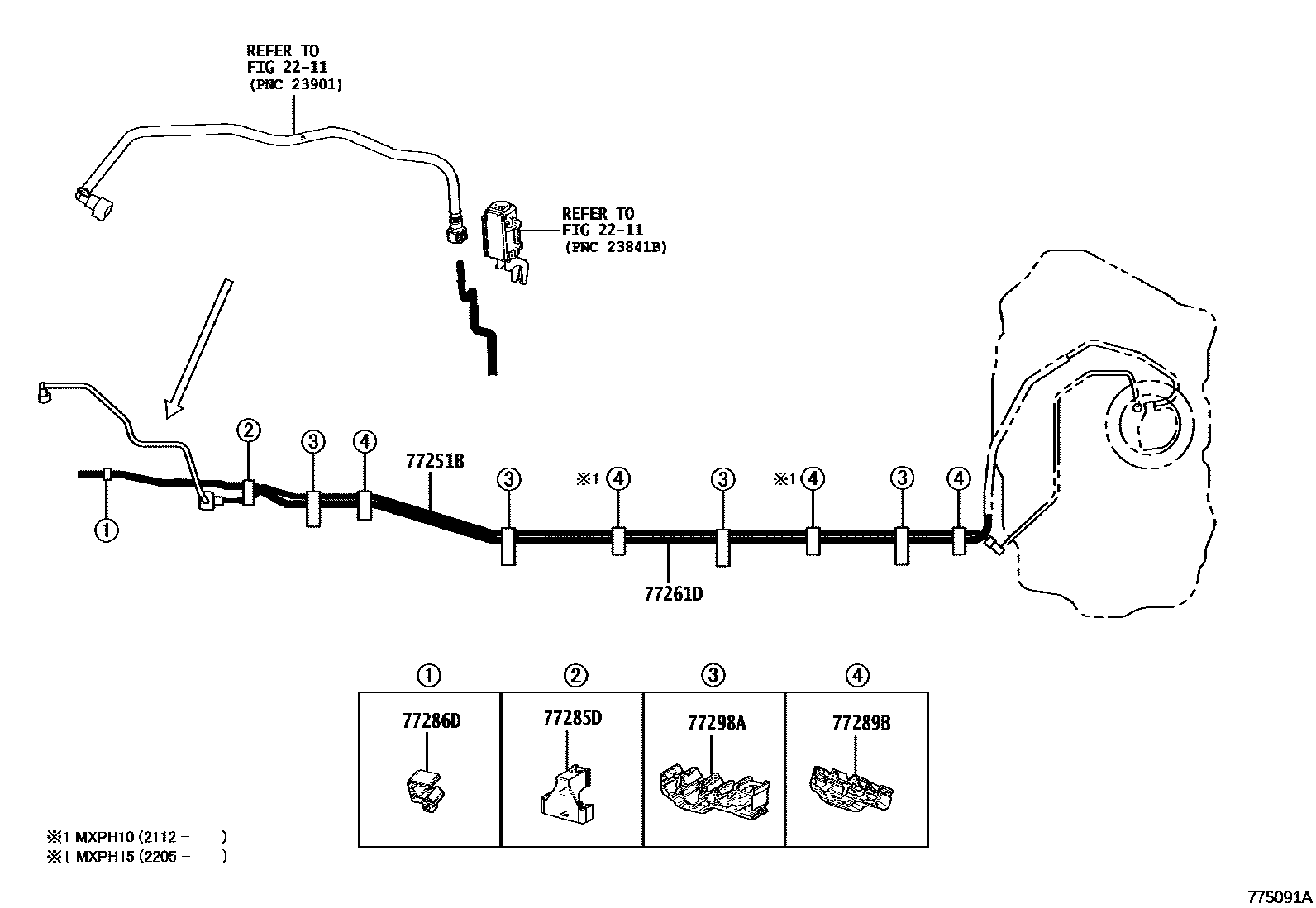

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 18 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | Toyota part | 90301-15024 |
| 23221 | fuel pump | 23210-21020 · 23210-24010 · 23210-37020 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-15040 · 23280-15050 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 23280N | Toyota part | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77010 | Fuel tank vent pipe assembly | 77010-52040 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-52060 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-52580 · 77020-52590 · 77020-52600 · 77020-52610 · 77020-52620 · 77020-52630 · 77020-52680 · 77020-52690 |
| 77024A | Fuel absorber sub-assembly | 77024-52260 · 77024-52310 · 77024-52320 · 77024-52330 · 77024-52360 · 77024-52380 · 77024-52390 |
| 77027B | No. 1 fuel evaporation exhaust pipe sub-assembly | 77027-52210 · 77027-52220 · 77027-52230 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-K0010 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-52630 · 77001-52650 · 77001-52660 · 77001-52670 · 77001-52690 · 77001-52700 |
| 77103 | Toyota part | 77103-52090 · 77103-52100 · 77103-52110 · 77103-52120 · 77103-52130 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-78010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-52010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-52020 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-52280 · 77209-52290 · 77209-52300 · 77209-52310 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-52300 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-52180 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-52050 · 77218-52060 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-52550 · 77251-52560 · 77251-52570 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-52560 · 77261-52570 · 77261-52580 · 77261-52590 |
| 77277R | Fuel tank filler pipe protection device | 77277-52120 · 77277-52130 |
| 77285D | No. 1 fuel pipe clamp | 77285-52170 · 77285-52180 · 77285-52190 |
| 77285F | No. 1 fuel pipe clamp | 77285-50030 |
| 77286D | No. 2 fuel pipe clamp | 77286-52230 · 77286-52240 |
| 77289B | No. 3 fuel pipe clamp | 77289-52200 · 77289-52210 |
| 77289D | No. 5 fuel pipe clamp | 77289-52190 |
| 77291A | Fuel tank filler pipe cover | 77291-K0010 |
| 77298A | No. 4 fuel pipe clamp | 77298-52090 · 77298-52100 · 77298-52110 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 |
| 77310A | Fuel tank cap assembly | 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-K0010 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 · 77366-52030 |
| 77377 | Fuel filler cap lock retainer | 77377-12090 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77512C | Toyota part | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-52140 · 77606-52141 · 77606-52150 · 77606-52160 · 77606-52161 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-52060 · 77701-52070 · 77701-52080 |
| 77730C | Toyota part | 77730-52020 · 77730-52040 |
| 77752 | Carbon canister base bracket | 77752-52080 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-52120 · 77785-52141 · 77785-76010 |
