Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

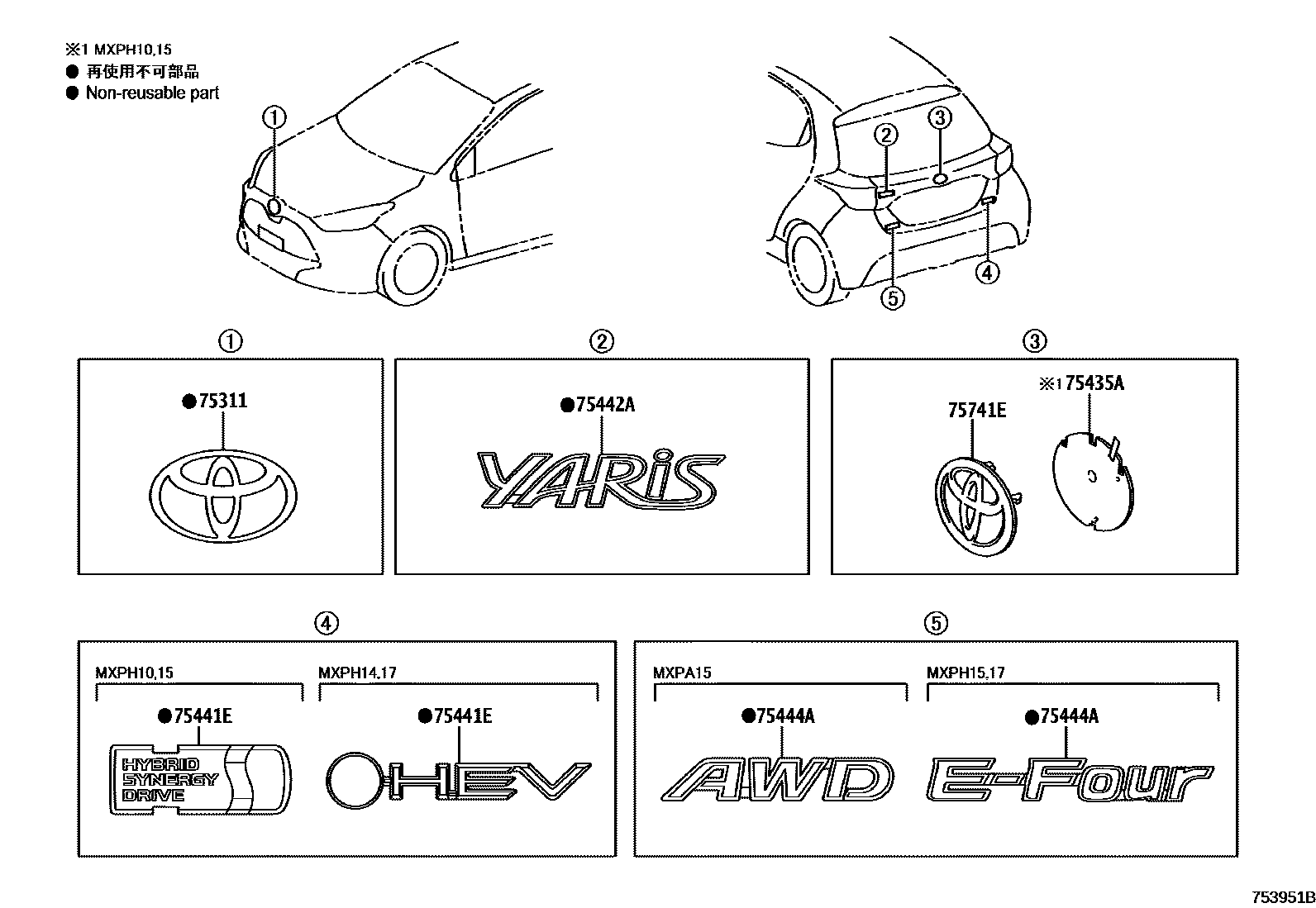

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75403-12040 · 90975-02072 · 90975-02236 |
| 75435A | Rear door trim | 75435-K0010 |
| 75441E | Back door No. 1 nameplate | 75440-52010 · 75441-33180 |
| 75442A | No. 2 nameplate on back door | 75442-K0010 |
| 75444A | No. 4 nameplate on back door | 75444-K0010 · 75444-K0020 |
| 75741E | logo | 90975-02166 · 90975-02214 |
