Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 6 images and 31 PNC and OE references.

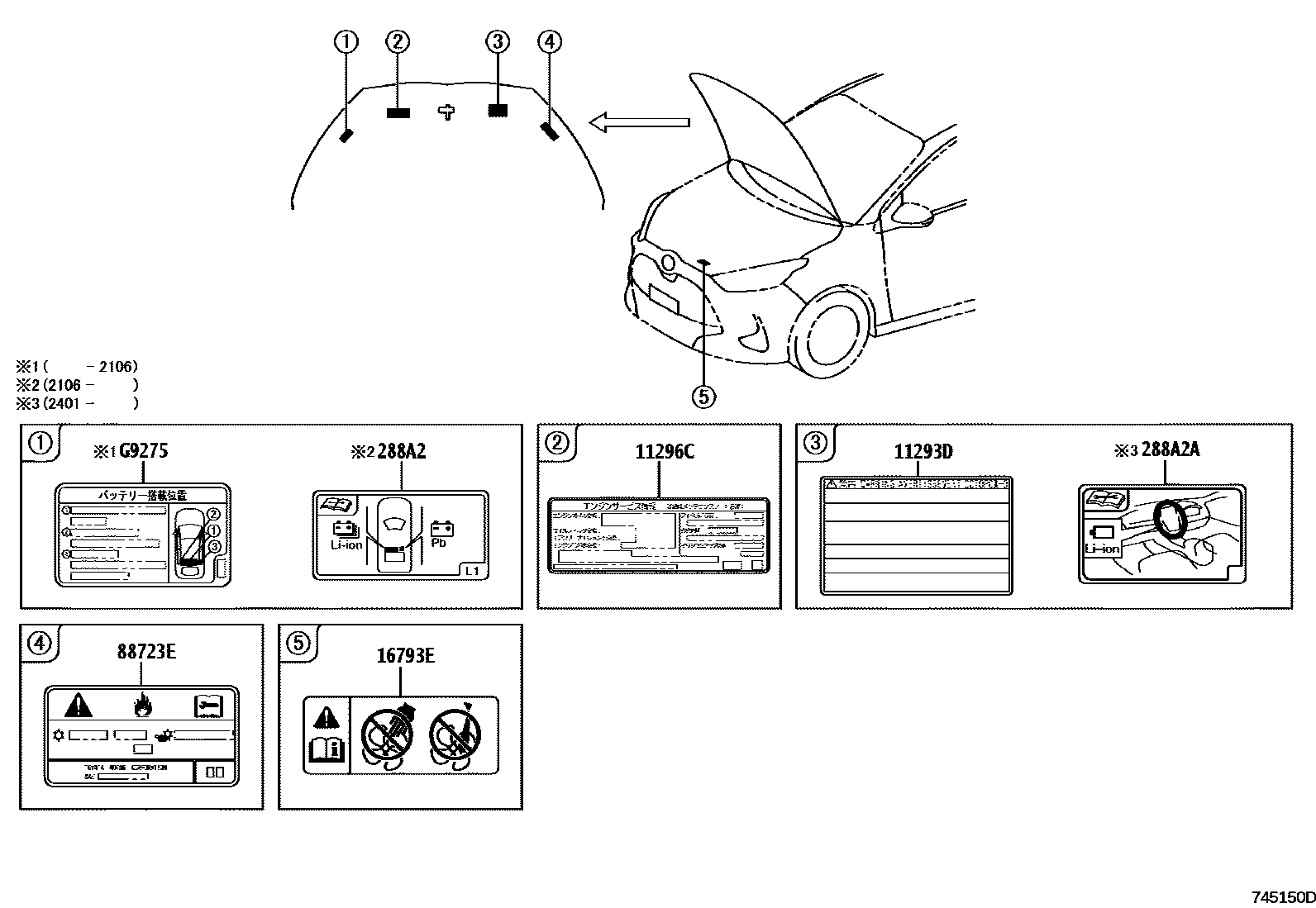

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745150D
警示铭牌(车外和车内) — 745150D (202002 – 999999)

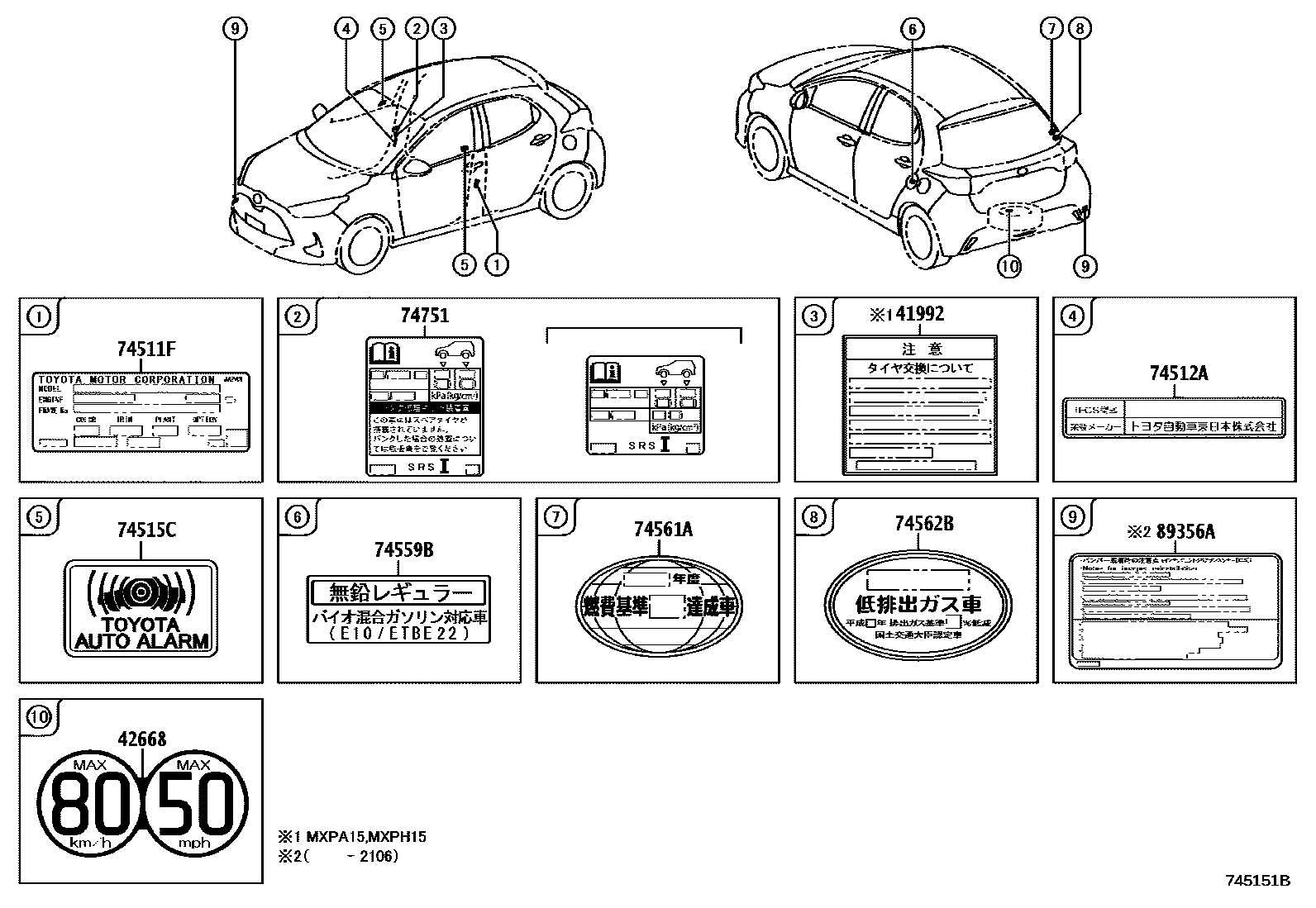

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745151B
警示铭牌(车外和车内) — 745151B (202002 – 999999)

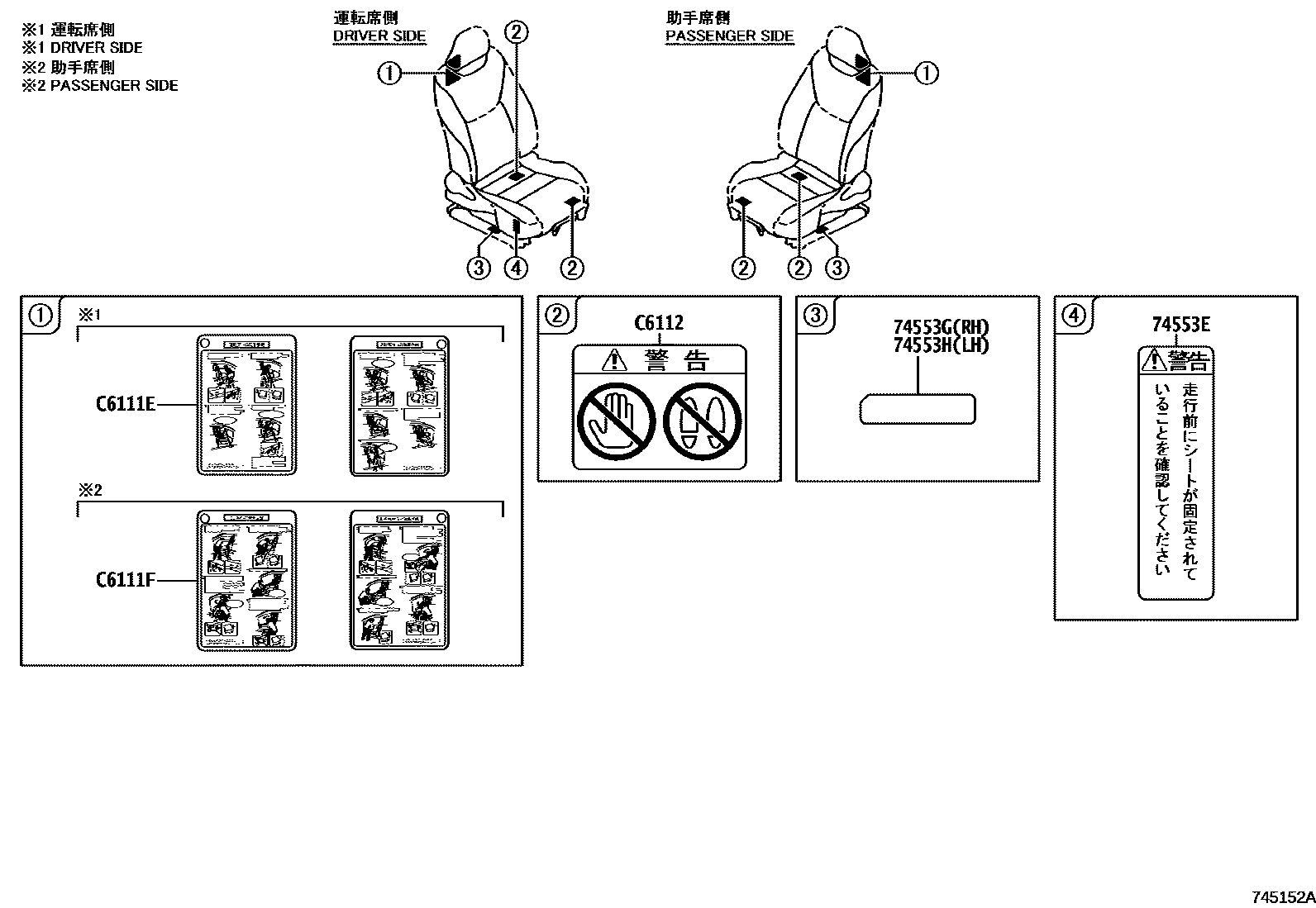

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745152A
警示铭牌(车外和车内) — 745152A (202002 – 999999)

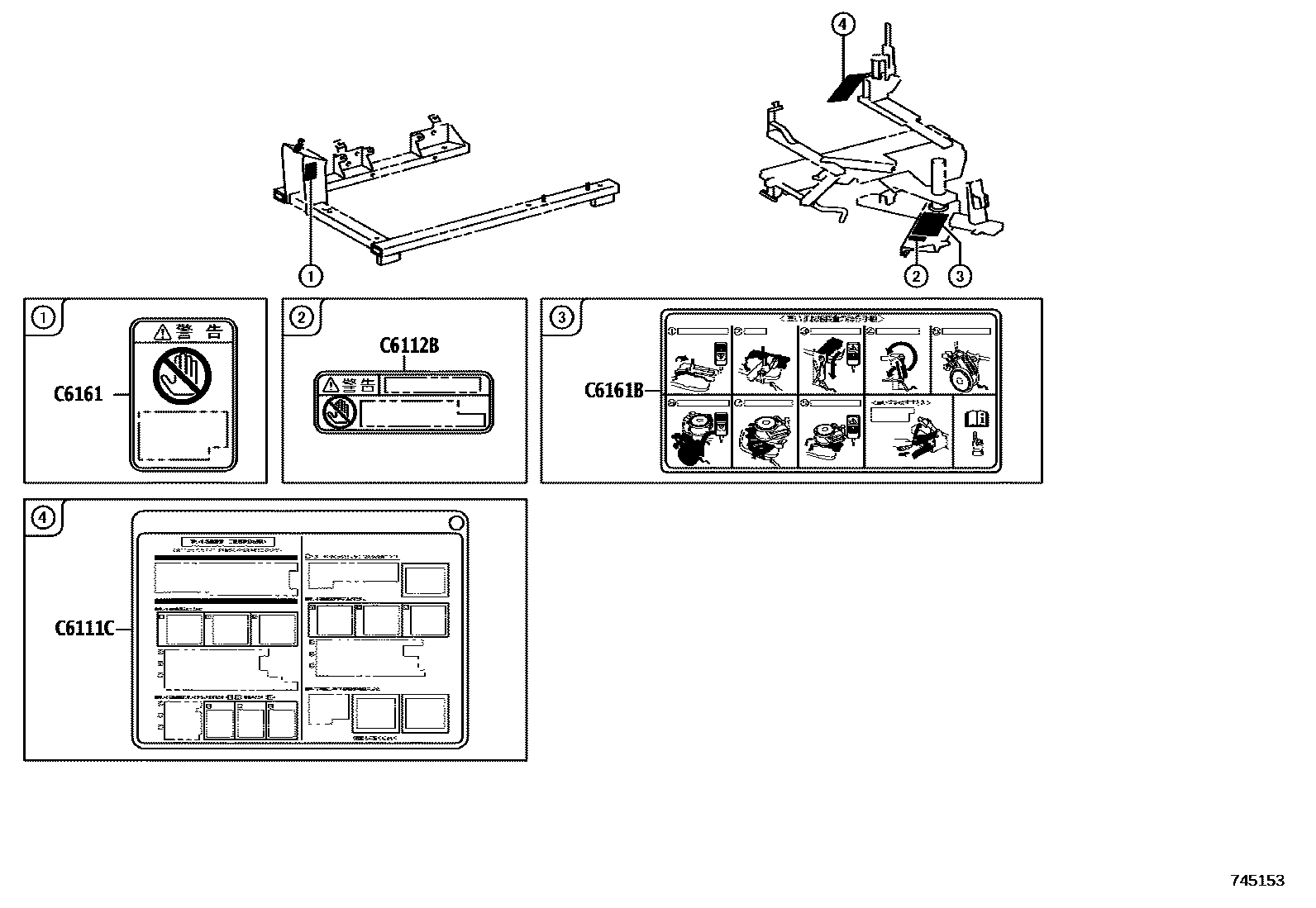

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745153
警示铭牌(车外和车内) — 745153 (202002 – 999999)

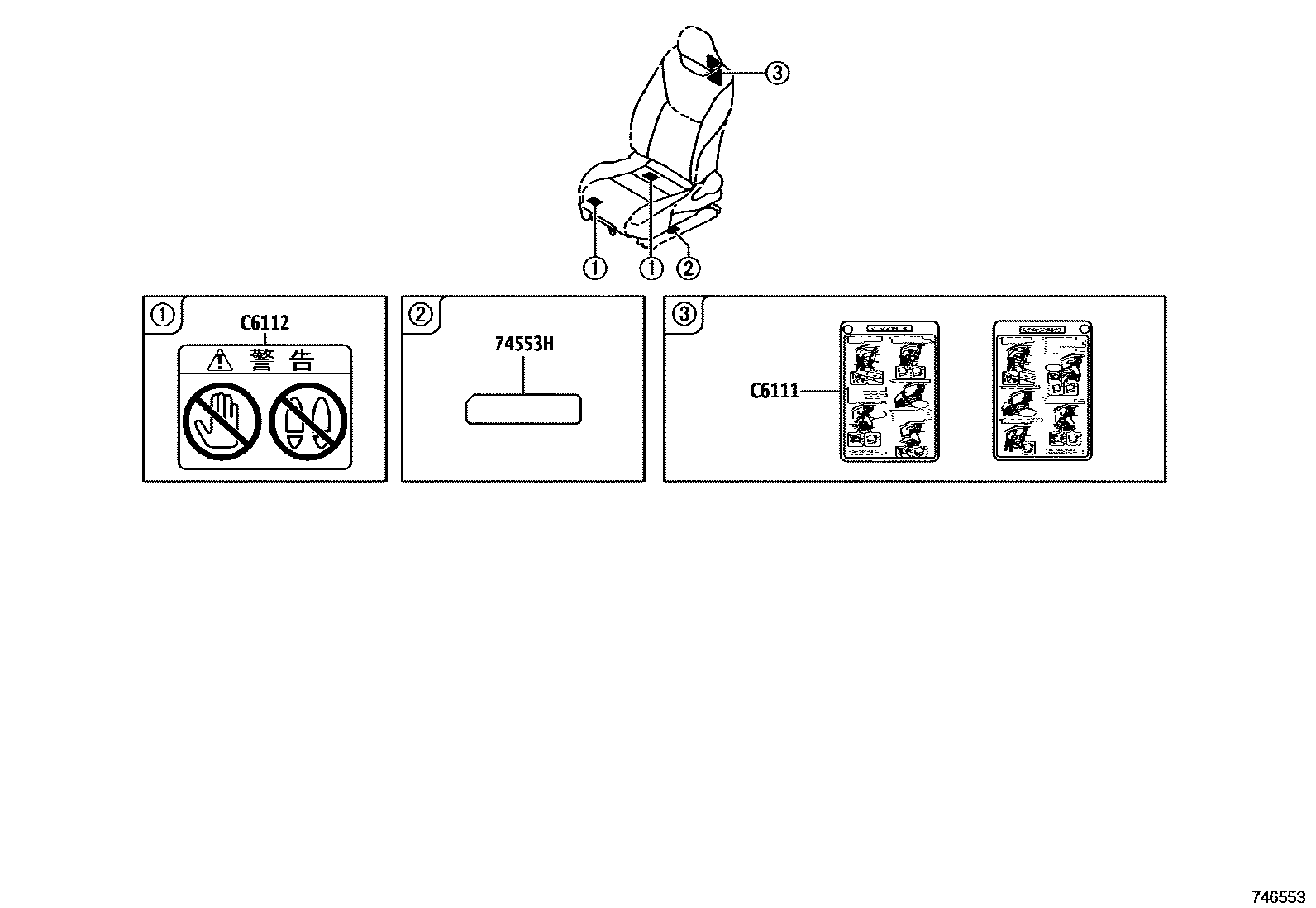

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746553
警示铭牌(车外和车内) — 746553 (202002 – 999999)

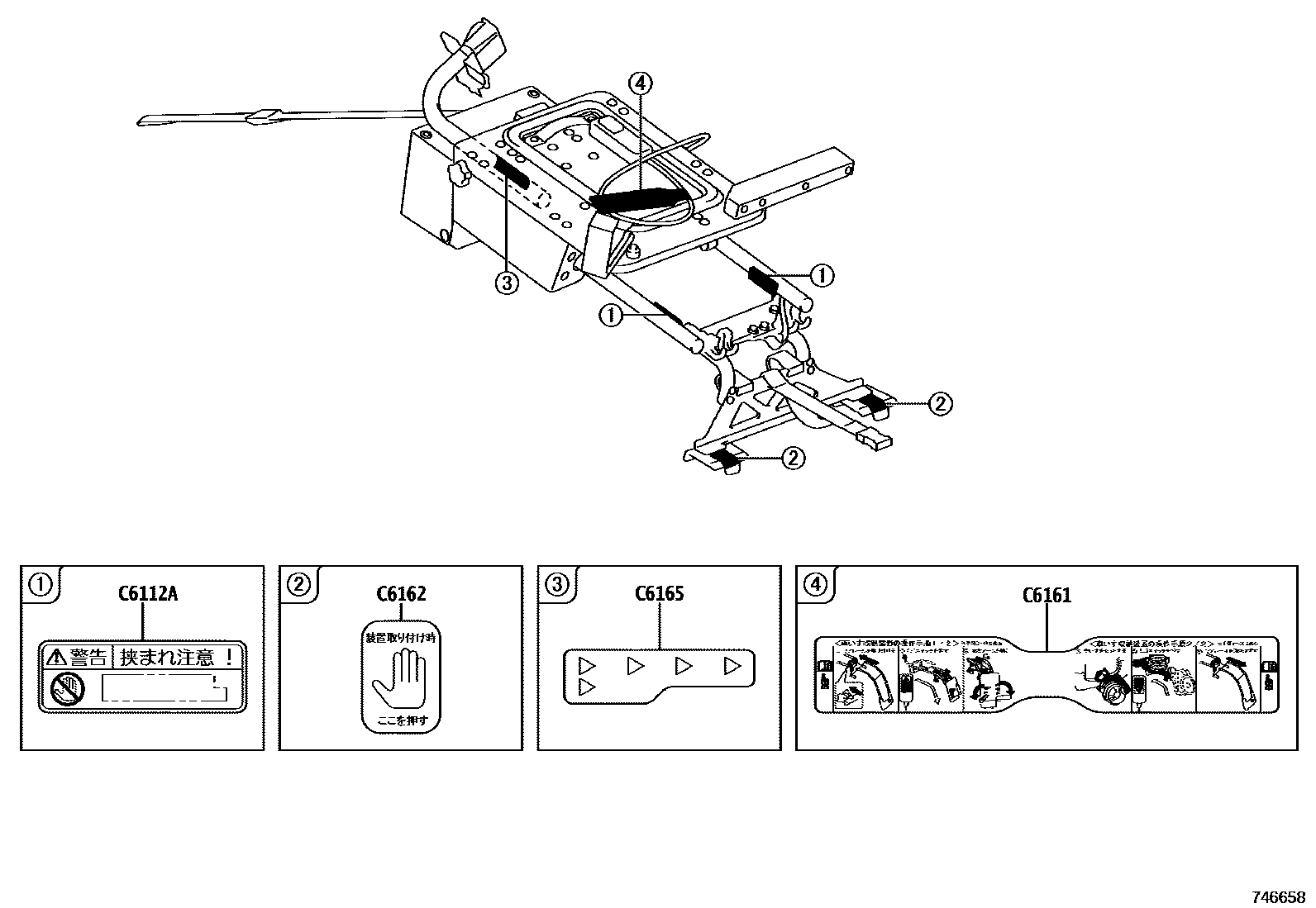

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 746658
警示铭牌(车外和车内) — 746658 (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
11293Dengine warning label11293-36070
11296CEngine maintenance information label11296-15110 · 11296-24020 · 11296-36080
16793EToyota part16793-36030
288A2Toyota part288A2-15020
288A2AToyota part288A2-15050
41992Differential attention label41992-33010
42668Small spare tire warning label42668-42010
74511FNameplate (laser identification label)74511-2B300
74512AIdentification number plate74512-52570 · 74512-52600 · 74512-52630 · 74512-52640 · 74512-52750 · 74512-52760 · 74512-52790 · 74512-52800 · 74512-52830 · 74512-52840
74515CAnti-theft warning information label74515-33020
74553EFront seat warning label74553-52160
74553GToyota part74553-52100
74553HToyota part74553-52120
74559Bfuel information label74559-48060
74561Afuel consumption information label74561-30530 · 74561-47130 · 74561-47140
74562BEmission information label74562-24100 · 74562-30700
74751tire pressure information label42661-52M00 · 42661-52M10 · 42661-52P00 · 42661-52P10 · 42661-K0010 · 42661-K0020 · 42661-K0030 · 42661-K0040 · 42661-K0050 · 42661-K0060
88723ECooler maintenance warning label88723-K0010 · 88723-K0020
89356AToyota part89356-47020
C6111Safety warning nameplateC6111-52130
C6111CToyota partC6111-52110
C6111EToyota partC6111-52120
C6111FToyota partC6111-52130
C6112Safety Information Label No. 2C6112-52050
C6112Asafety information labelC6112-52090
C6112BToyota partC6112-D1171
C6161Electric Lift Warning LabelC6161-52070 · C6161-D1710
C6161BToyota partC6161-52060
C6162No. 2 Electric Lift Warning LabelC6162-52020
C6165Toyota partC6167-52011
G9275No. 1 battery warning labelG9275-K0010
