Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 4 PNC and OE references.

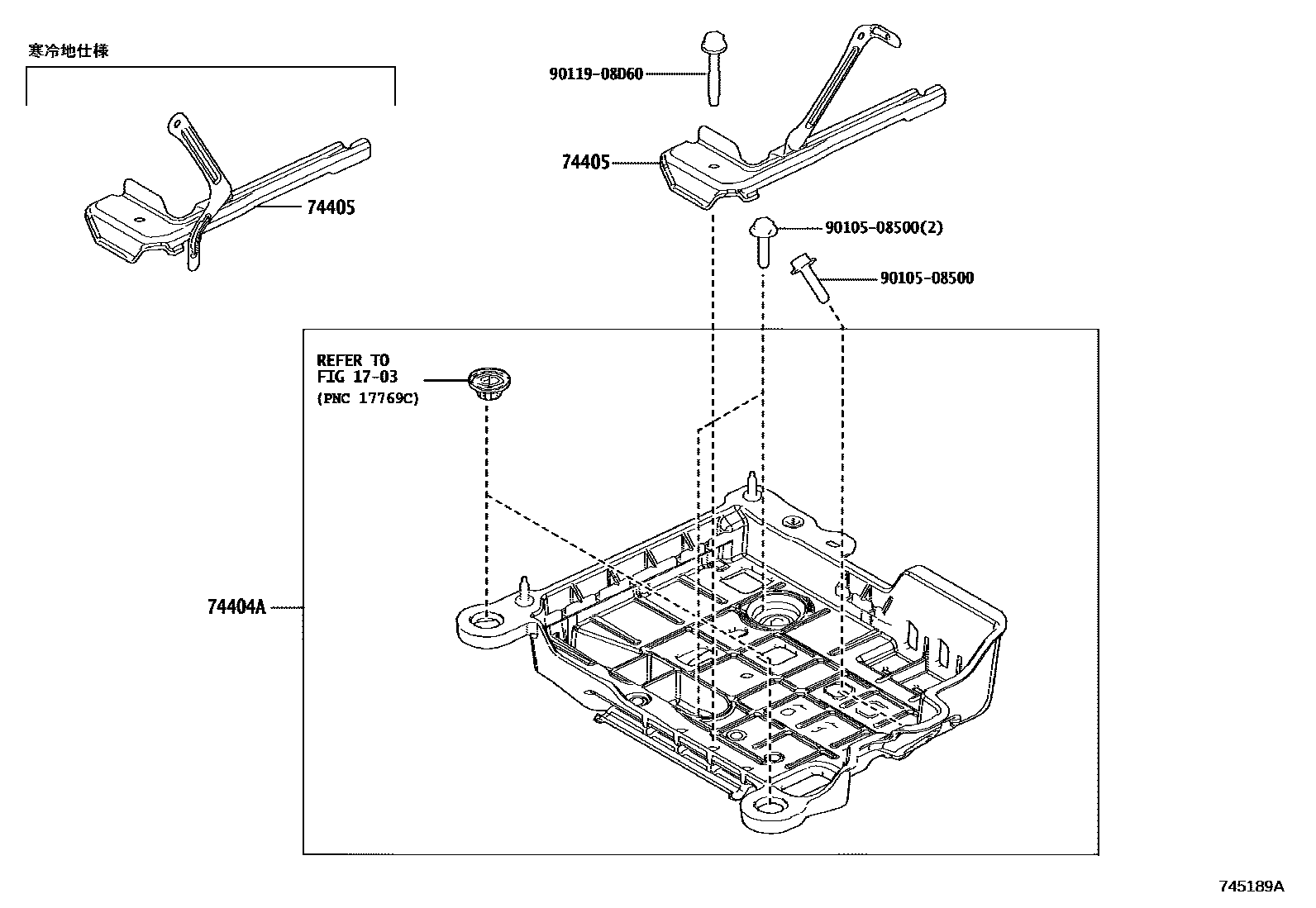

Toyota YARIS battery holder EPC diagram — 745189A
battery holder — 745189A (202002 – 999999)

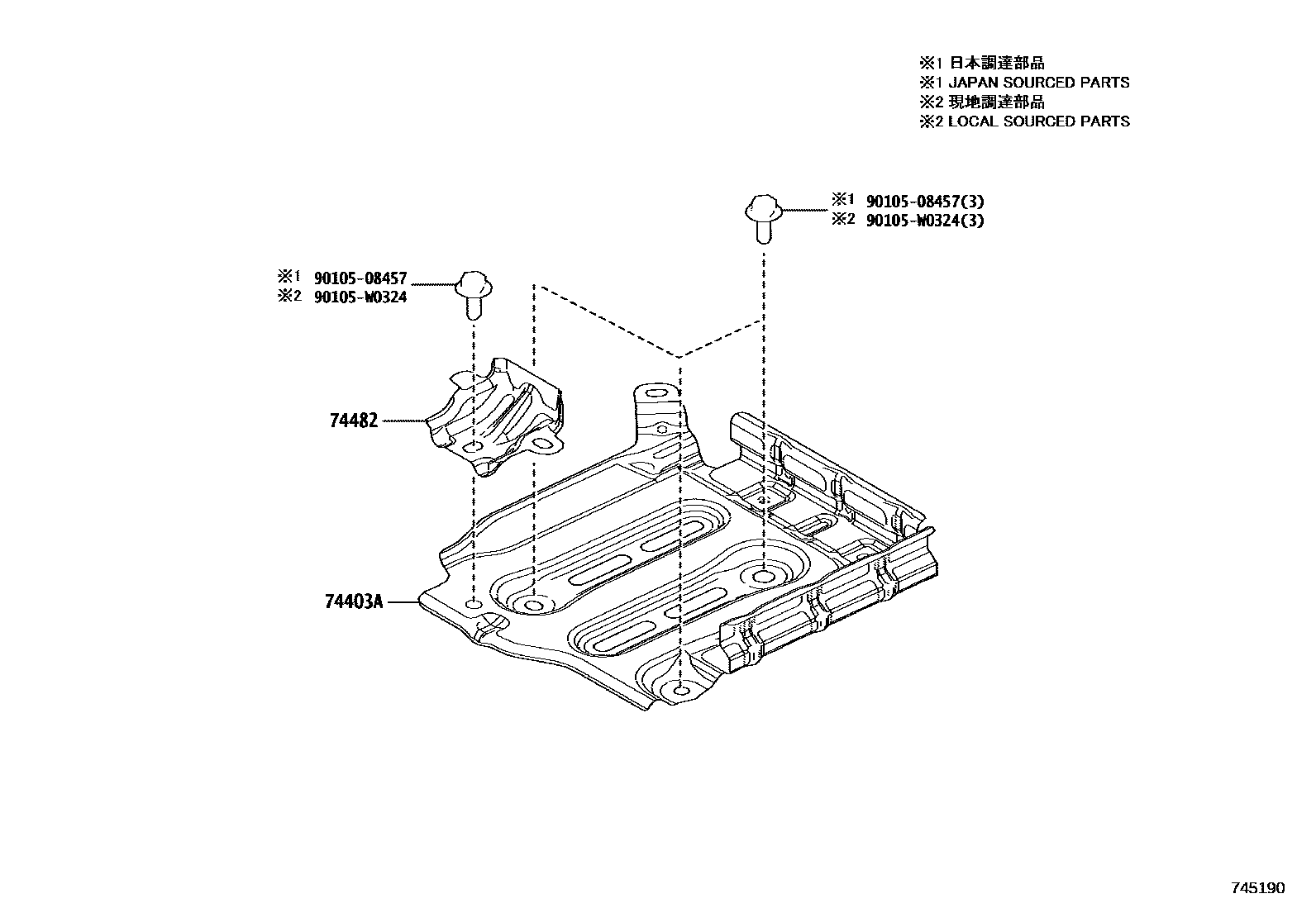

Toyota YARIS battery holder EPC diagram — 745190
battery holder — 745190 (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
74403ABattery bracket sub-assembly74403-K0010
74404ABattery clip sub-assembly74404-52170 · 74404-52200
74405No. 2 battery clip sub-assembly74405-K0010 · 74405-K2010
74482No. 2 battery clip74482-52080
