Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 21 images and 137 PNC and OE references.

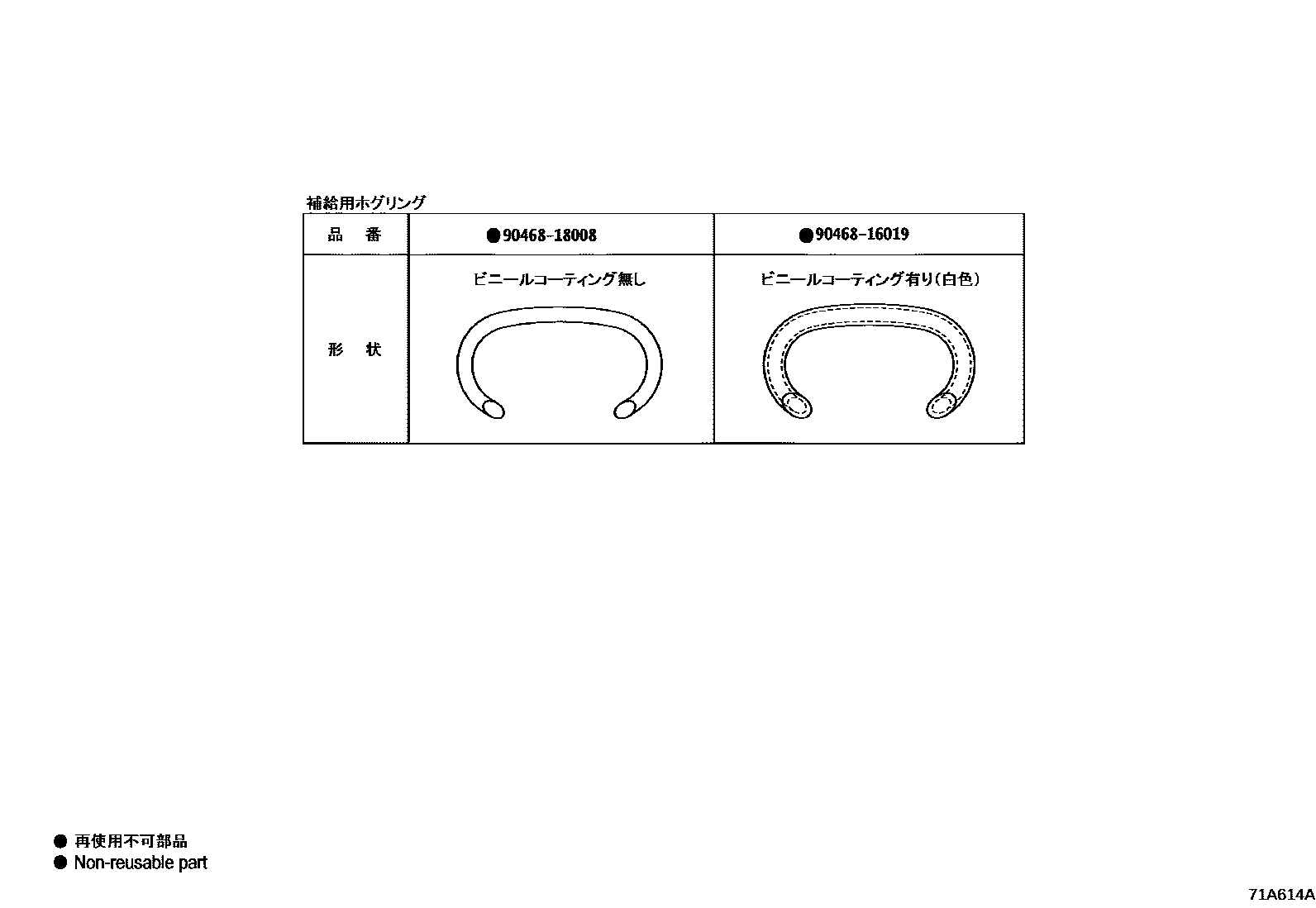

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71A614A
前排座椅和座椅滑轨 — 71A614A (202002 – 999999)

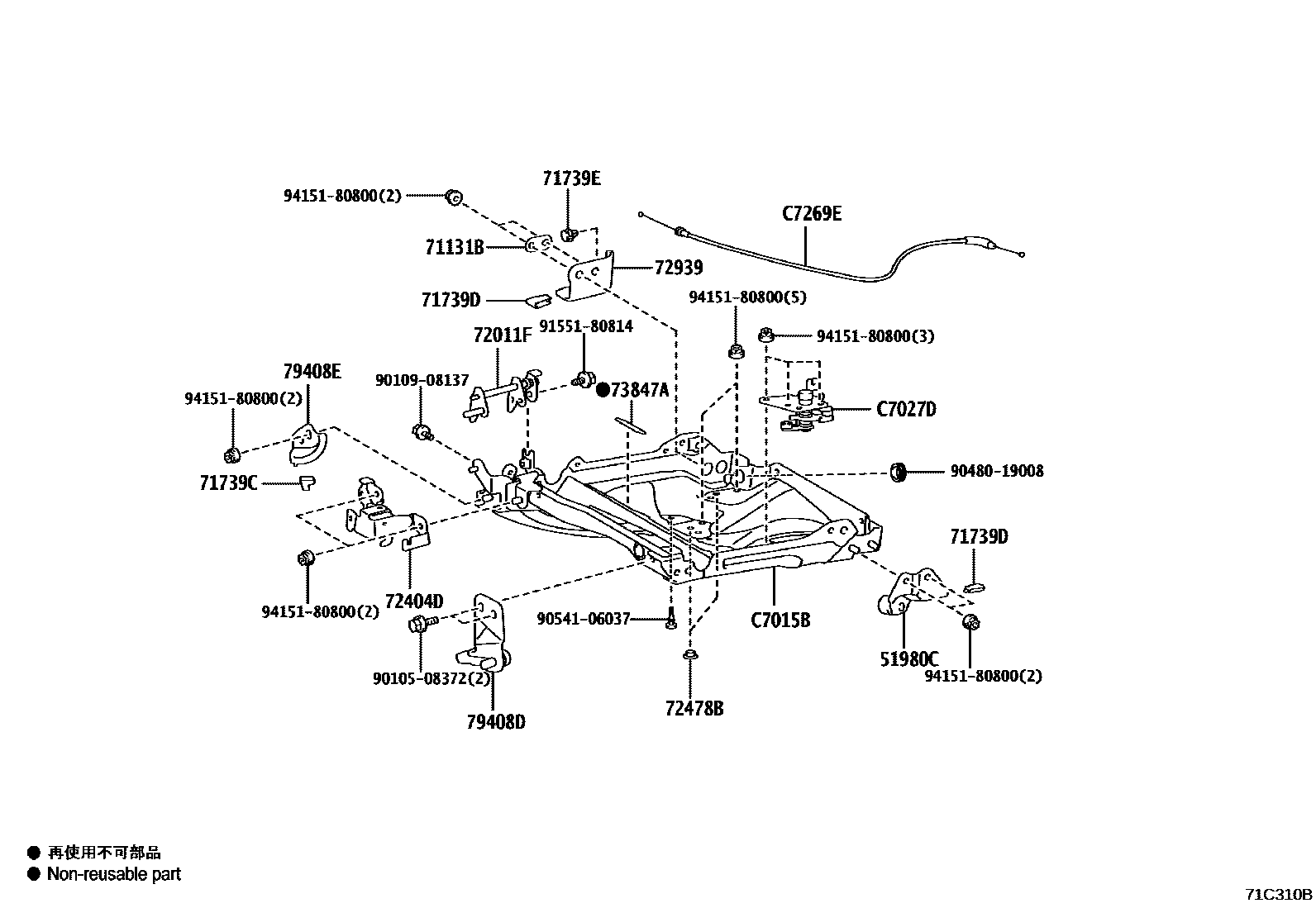

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C310B
前排座椅和座椅滑轨 — 71C310B (202002 – 999999)

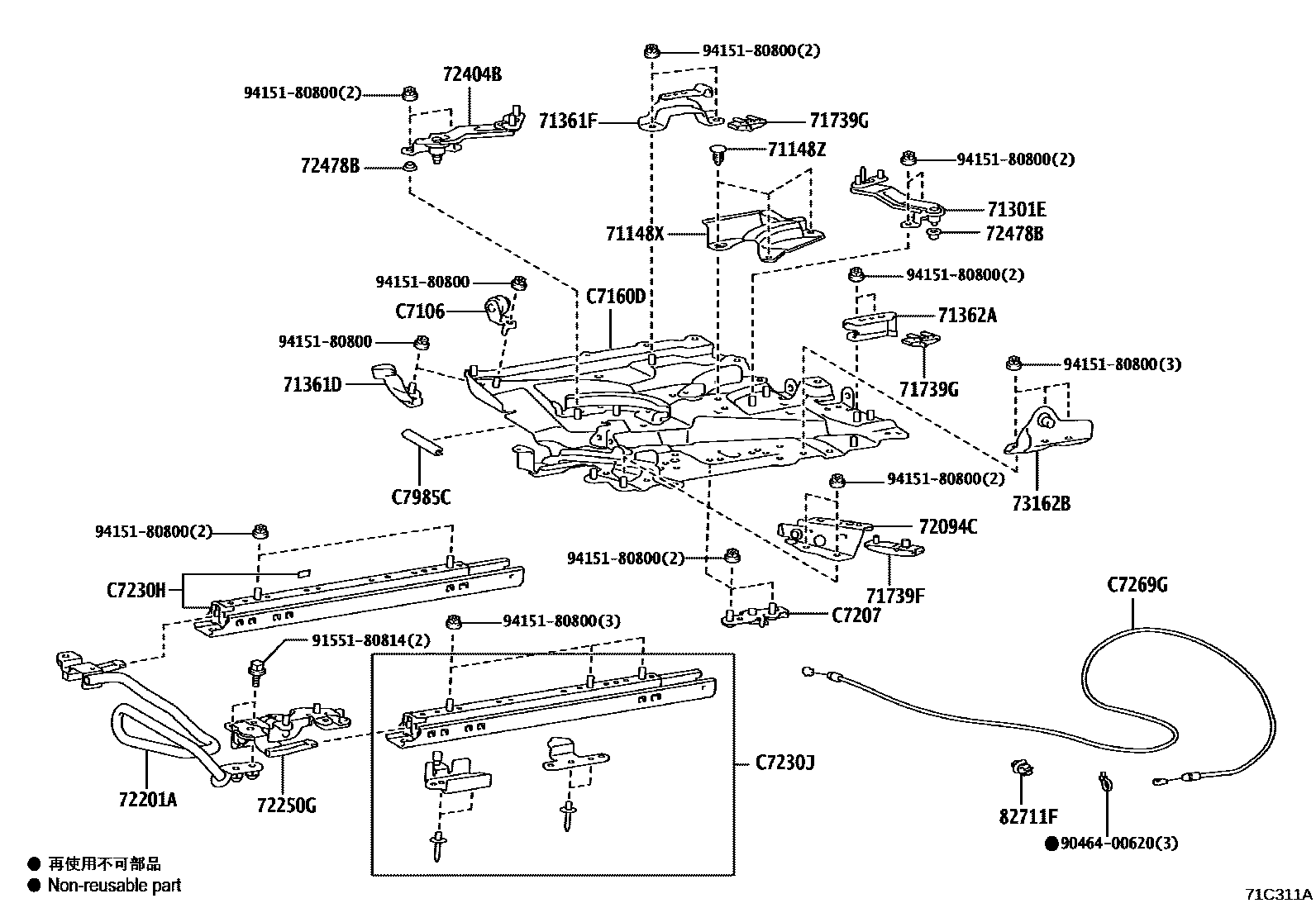

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C311A
前排座椅和座椅滑轨 — 71C311A (202002 – 999999)

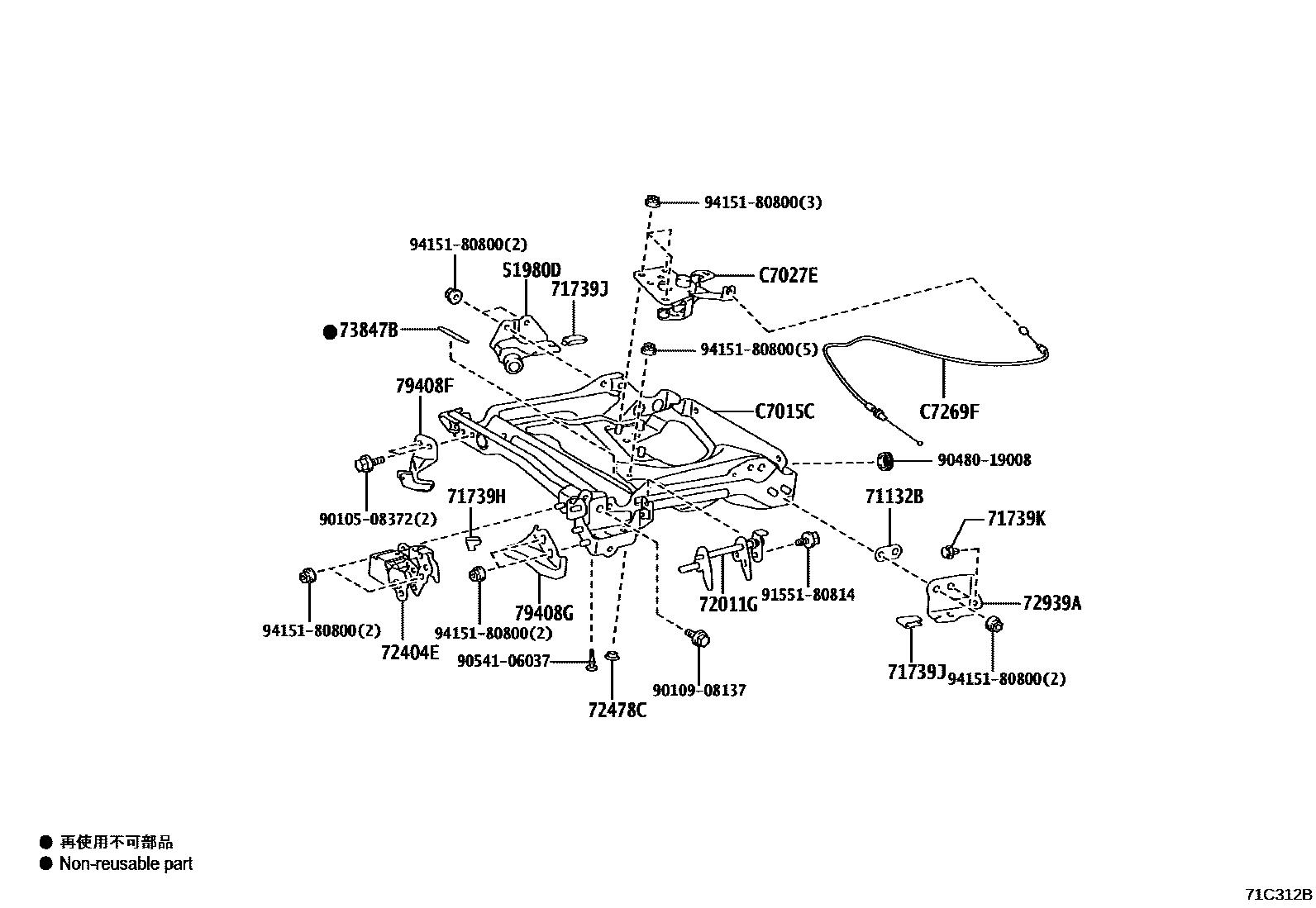

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C312B
前排座椅和座椅滑轨 — 71C312B (202002 – 999999)

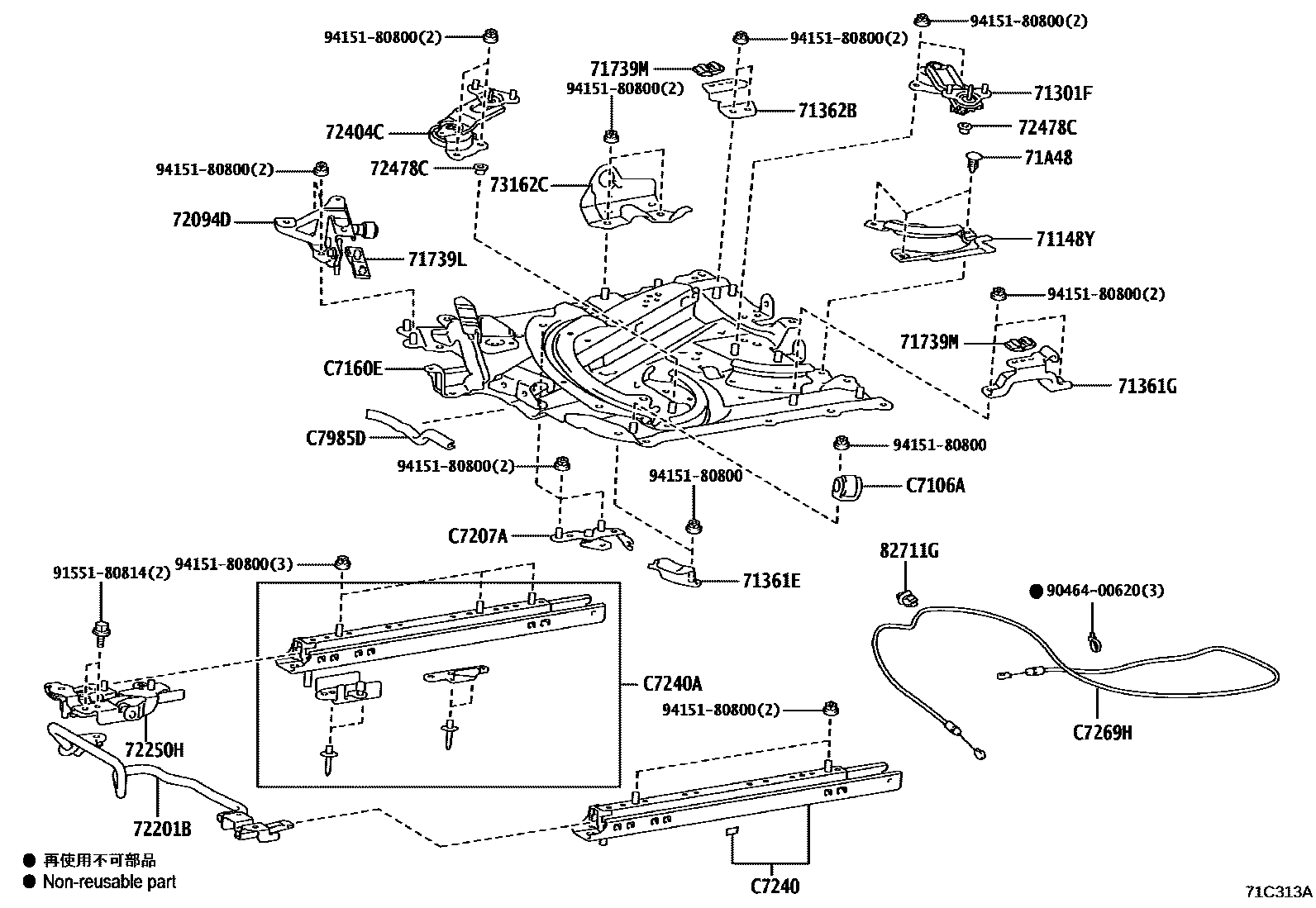

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C313A
前排座椅和座椅滑轨 — 71C313A (202002 – 999999)

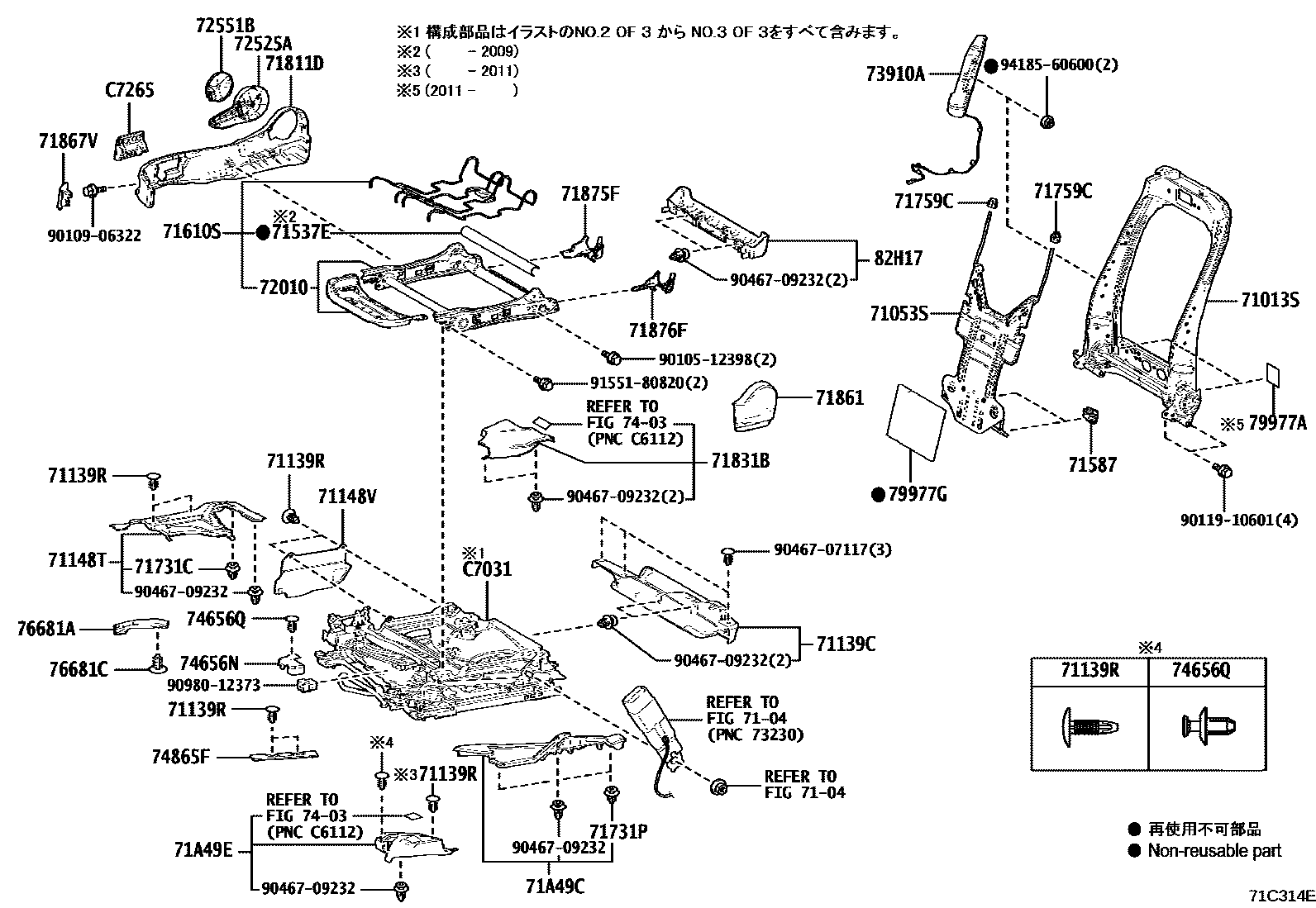

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C314E
前排座椅和座椅滑轨 — 71C314E (202002 – 999999)

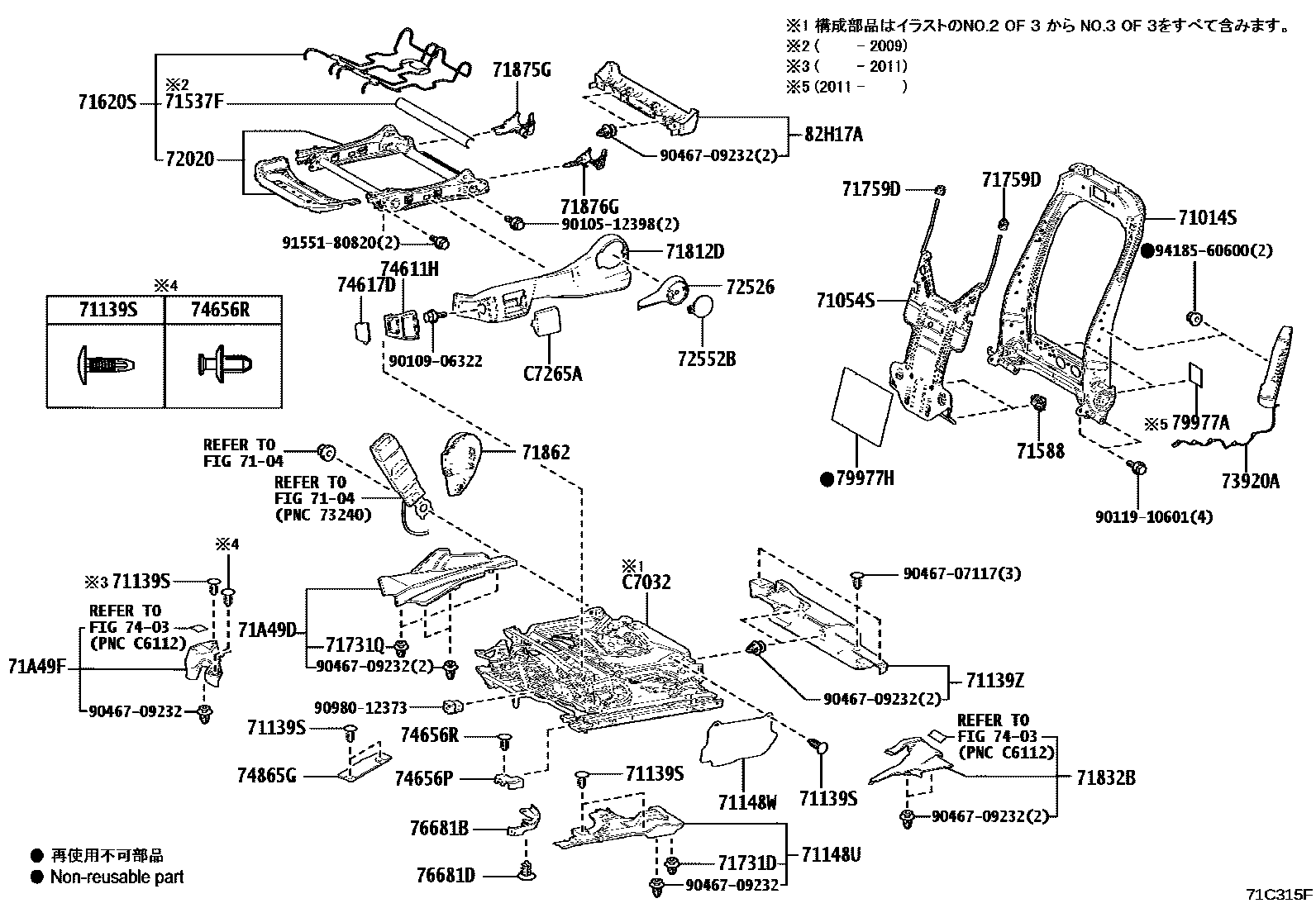

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C315F
前排座椅和座椅滑轨 — 71C315F (202002 – 999999)

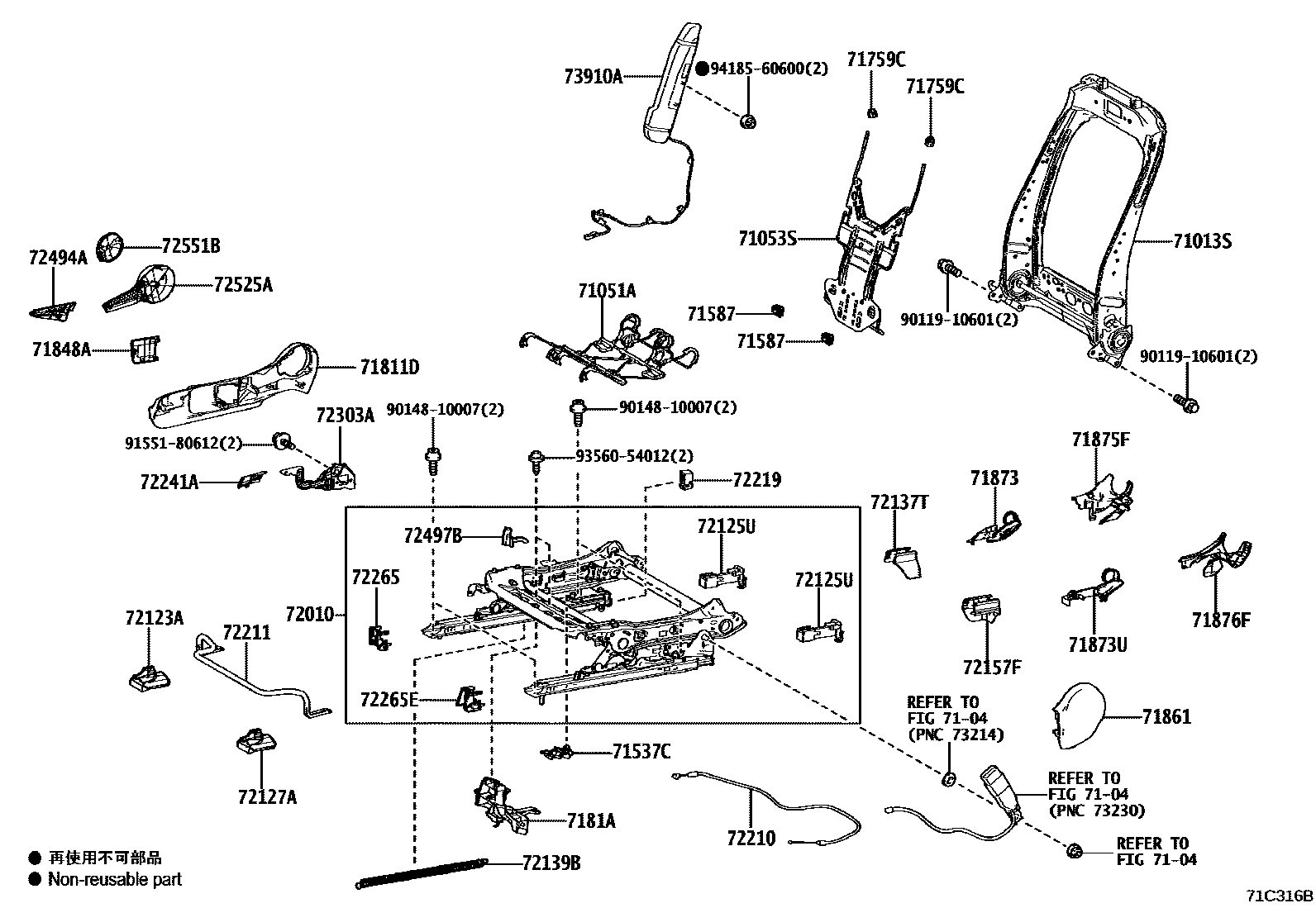

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C316B
前排座椅和座椅滑轨 — 71C316B (202002 – 999999)

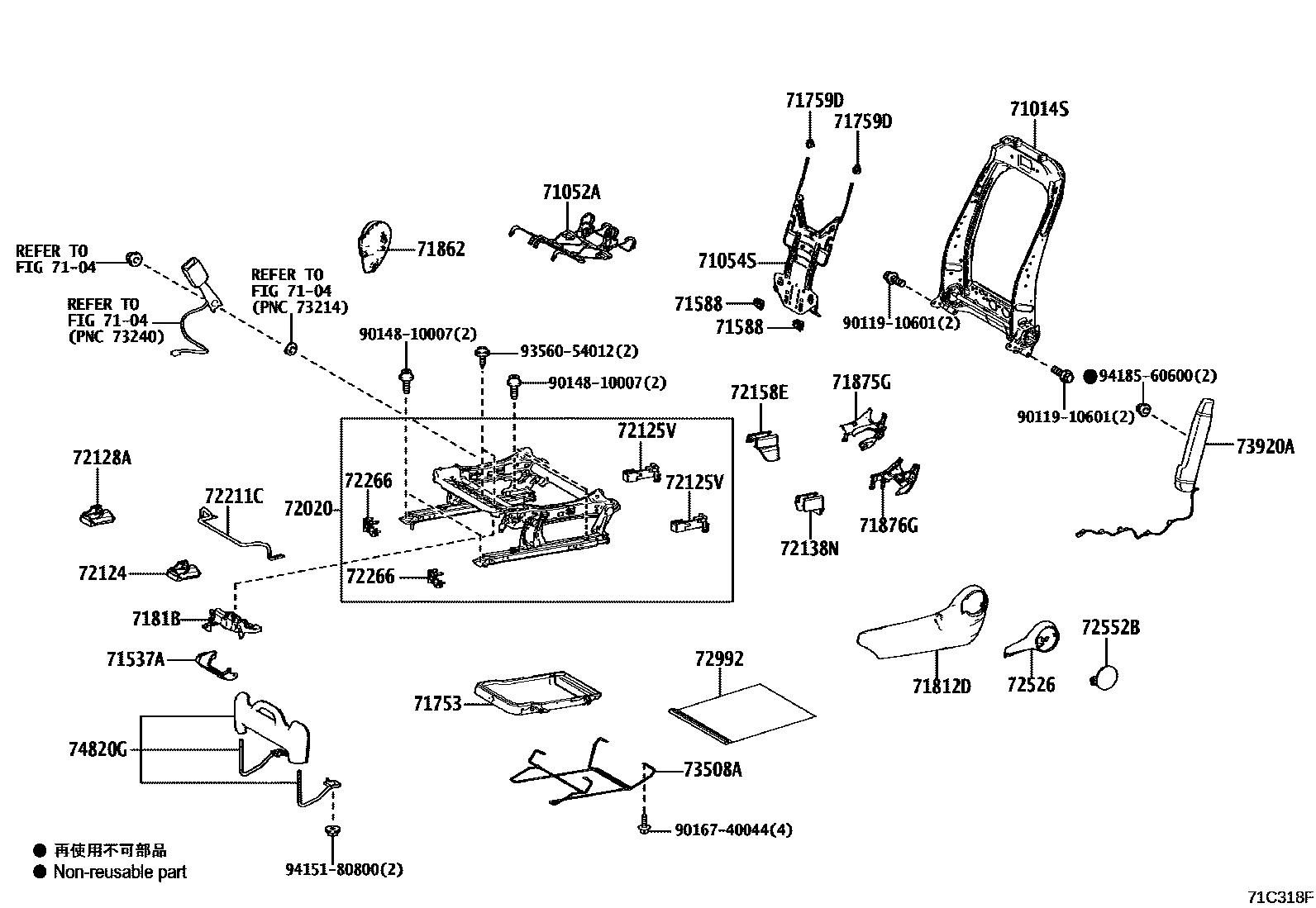

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C318F
前排座椅和座椅滑轨 — 71C318F (202002 – 999999)

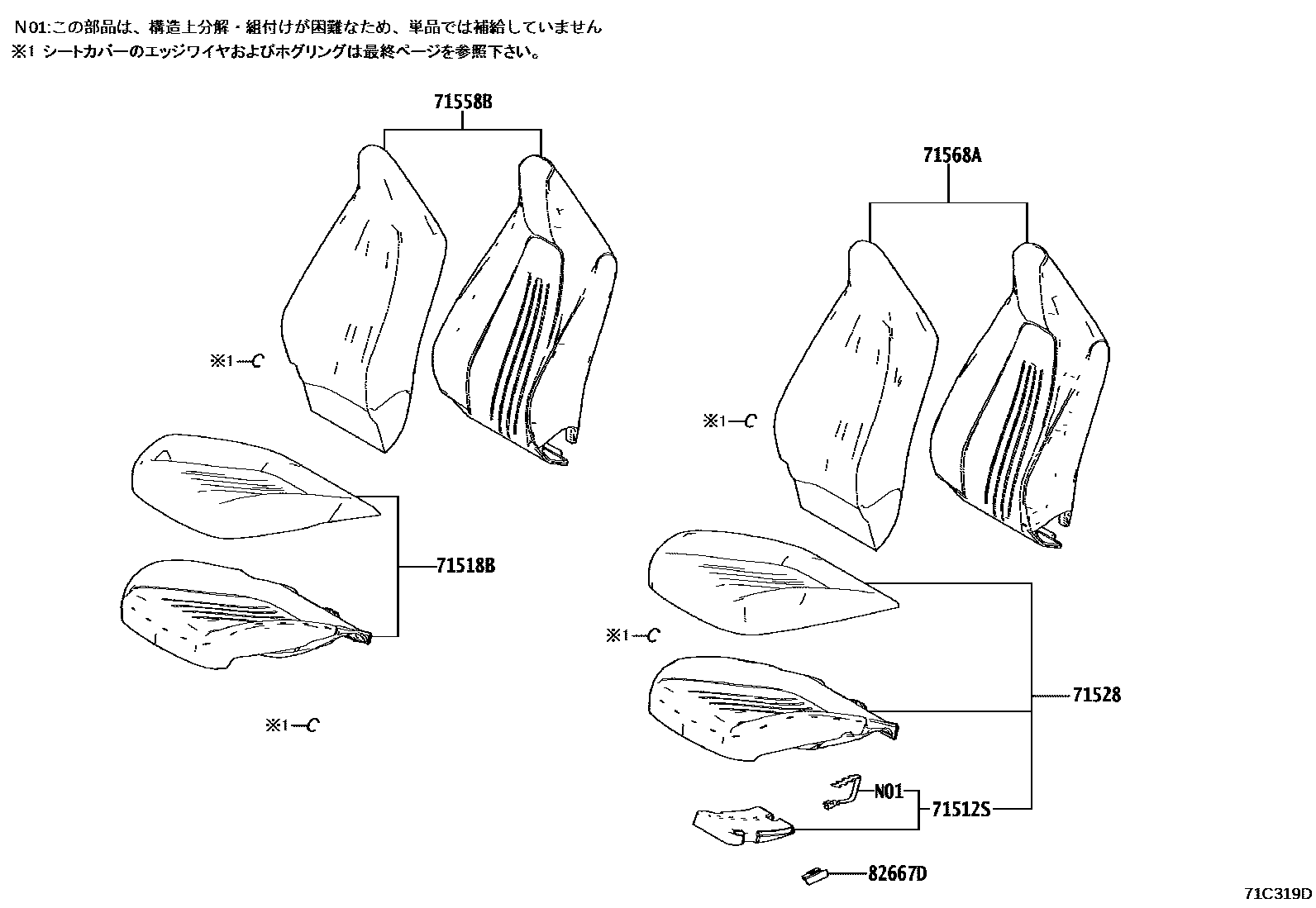

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C319D
前排座椅和座椅滑轨 — 71C319D (202002 – 999999)

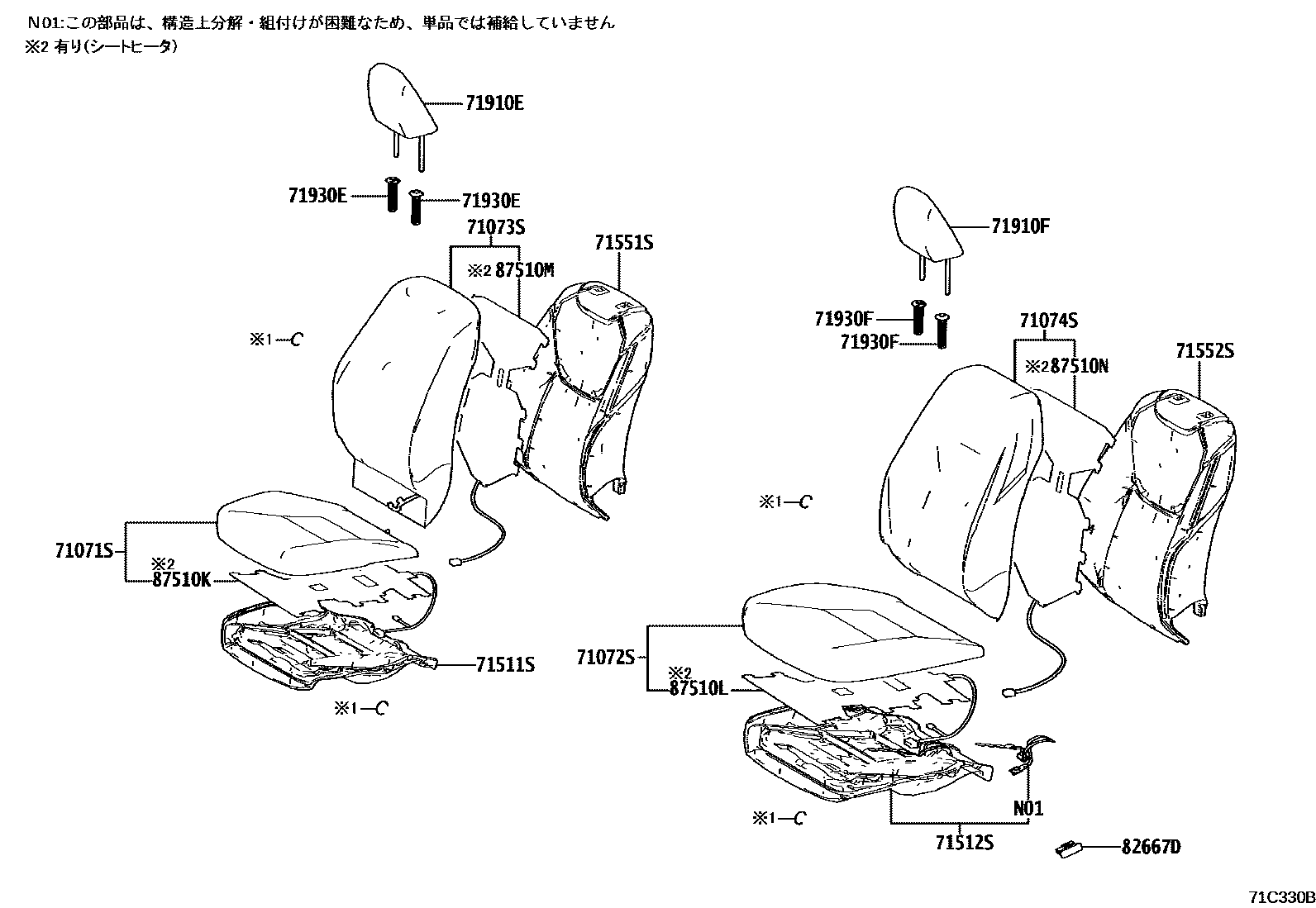

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C330B
前排座椅和座椅滑轨 — 71C330B (202002 – 999999)

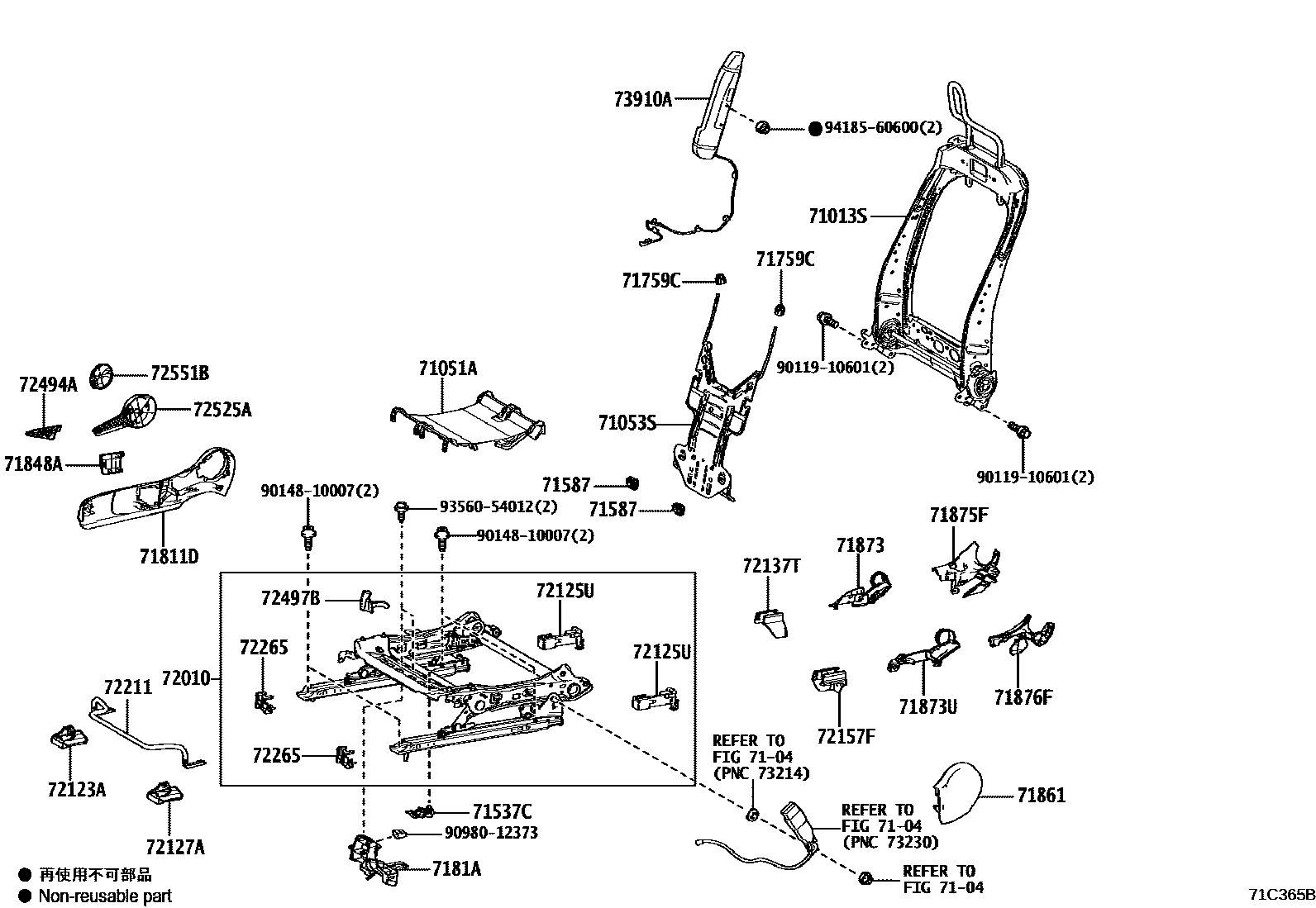

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C365B
前排座椅和座椅滑轨 — 71C365B (202002 – 999999)

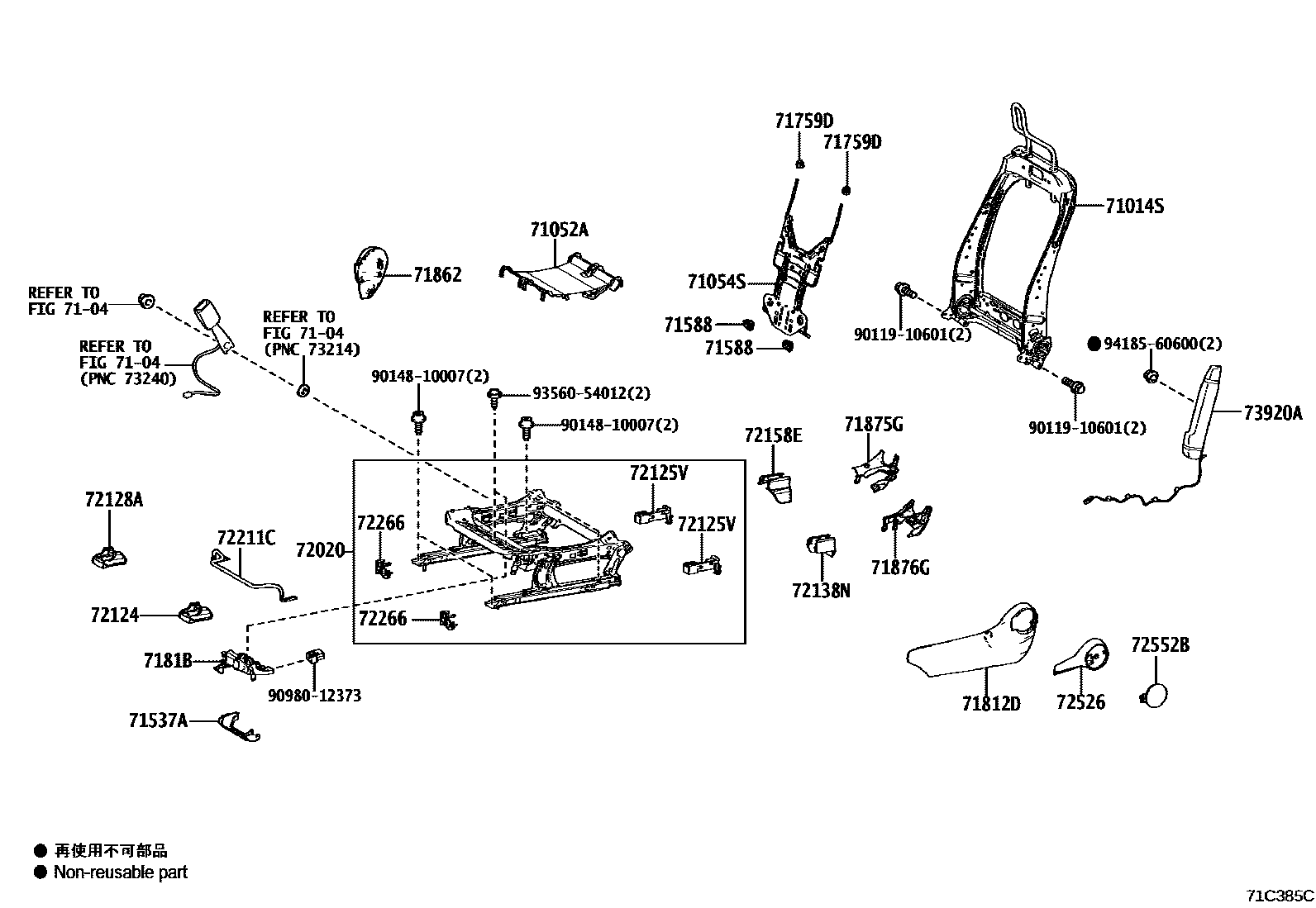

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71C385C
前排座椅和座椅滑轨 — 71C385C (202002 – 999999)

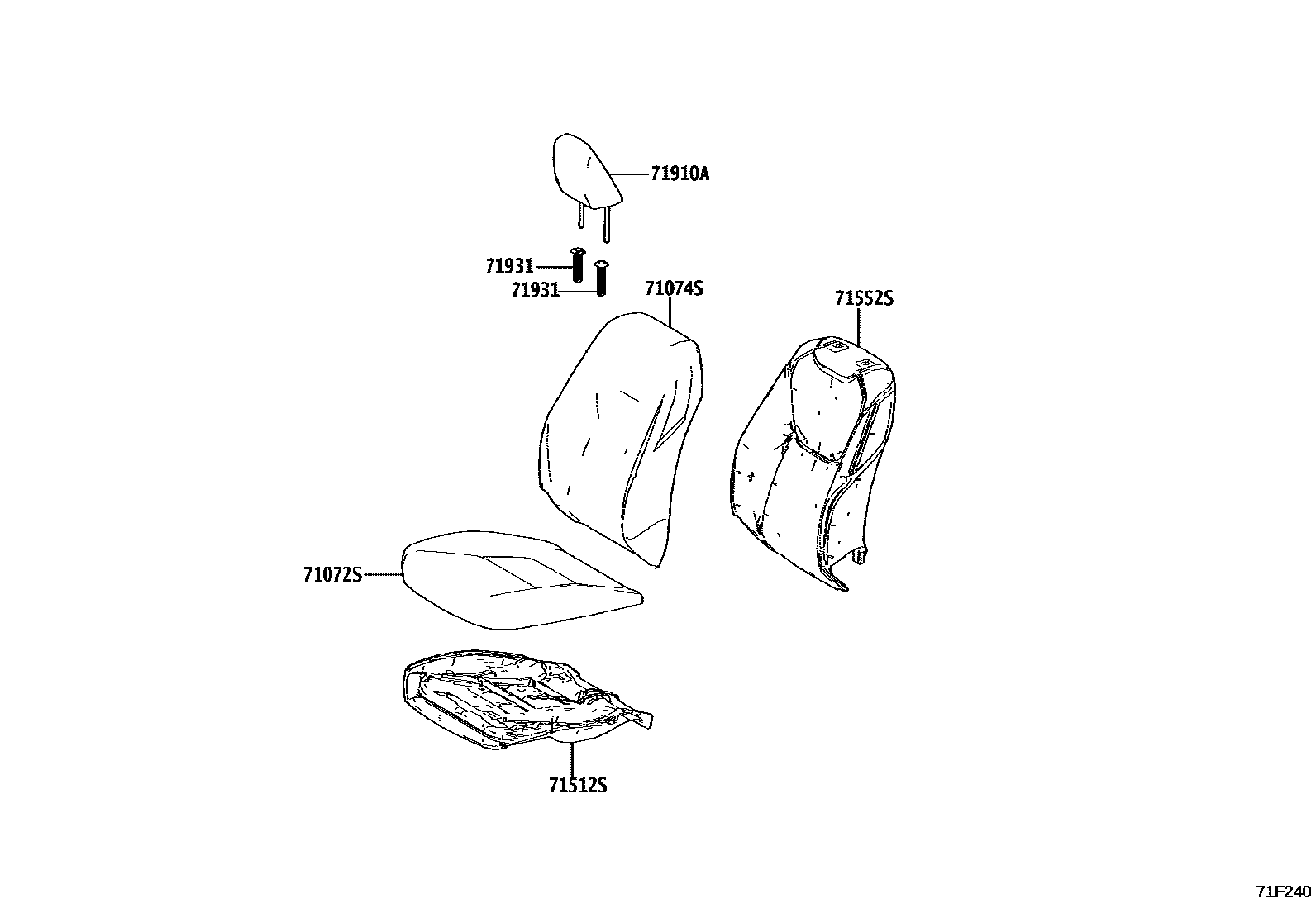

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F240
前排座椅和座椅滑轨 — 71F240 (202002 – 999999)

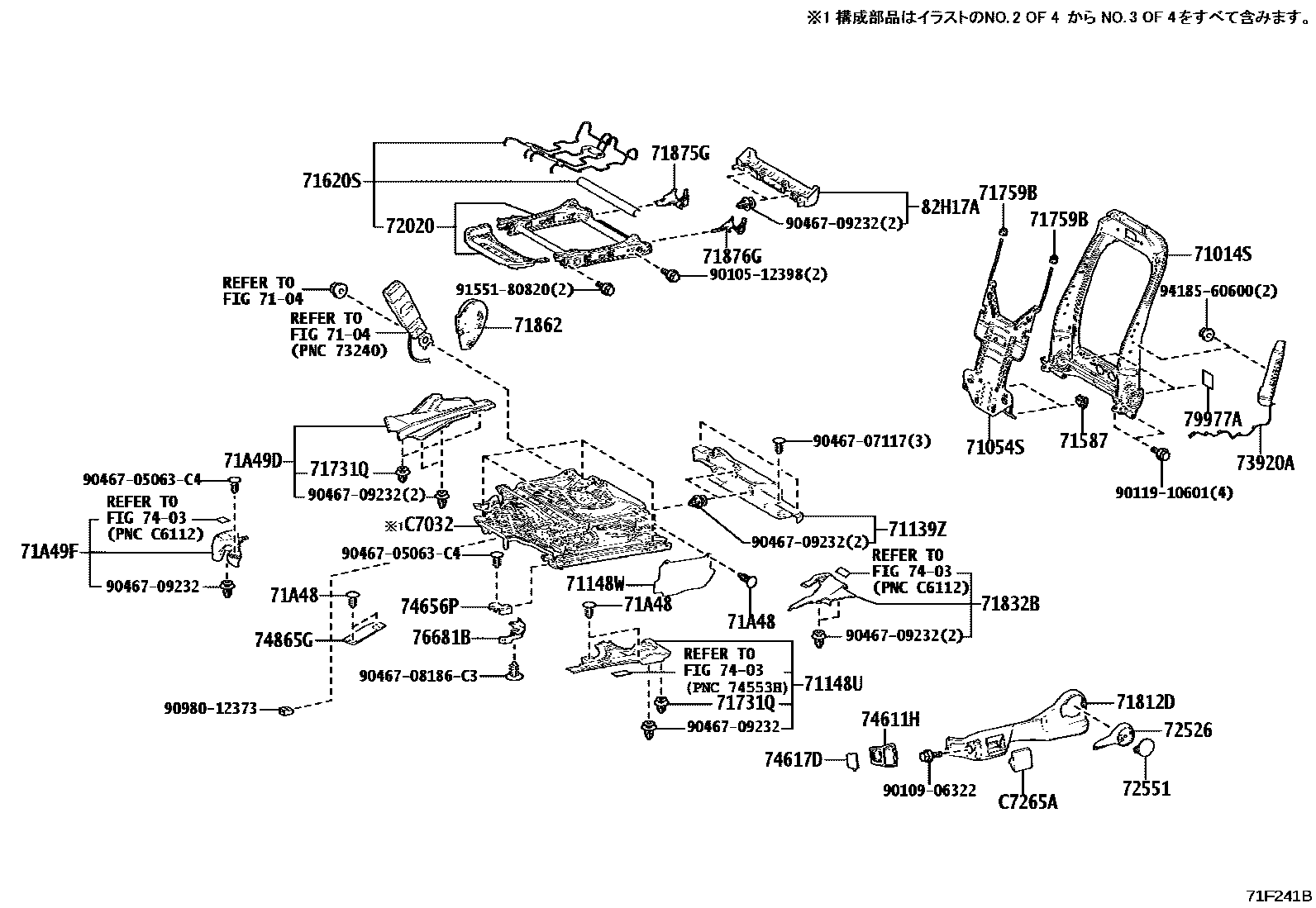

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F241B
前排座椅和座椅滑轨 — 71F241B (202002 – 999999)

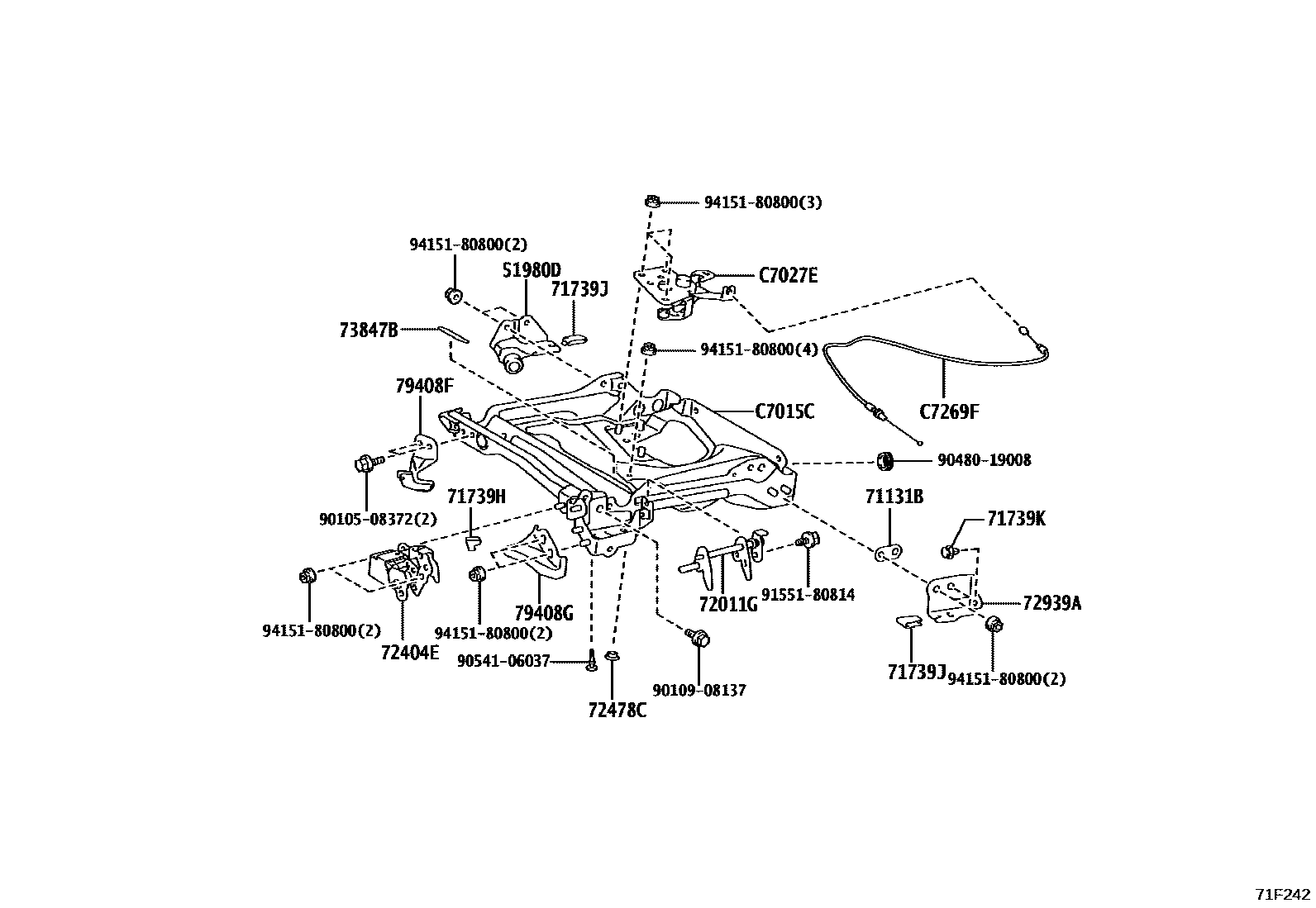

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F242
前排座椅和座椅滑轨 — 71F242 (202002 – 999999)

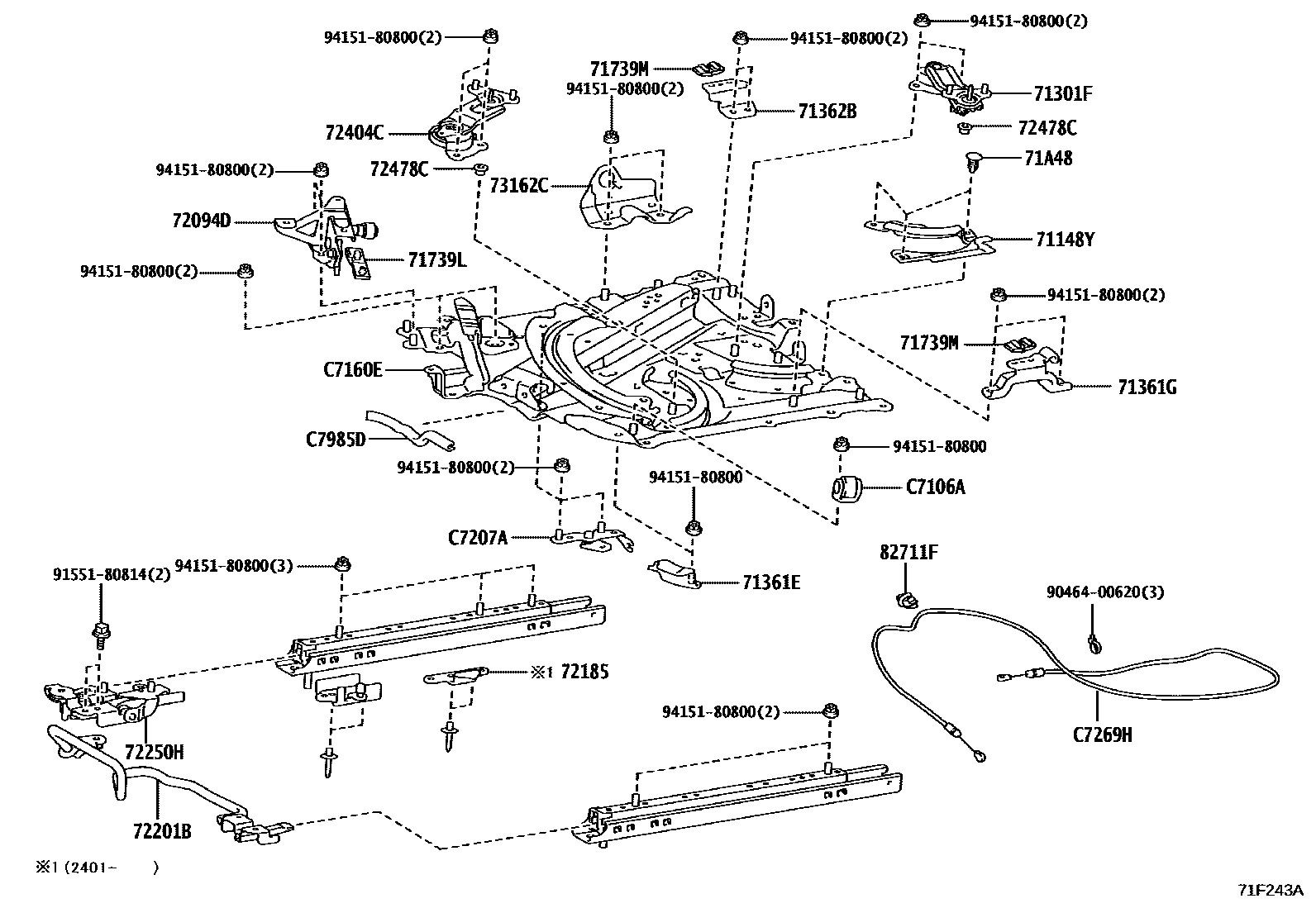

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F243A
前排座椅和座椅滑轨 — 71F243A (202002 – 999999)

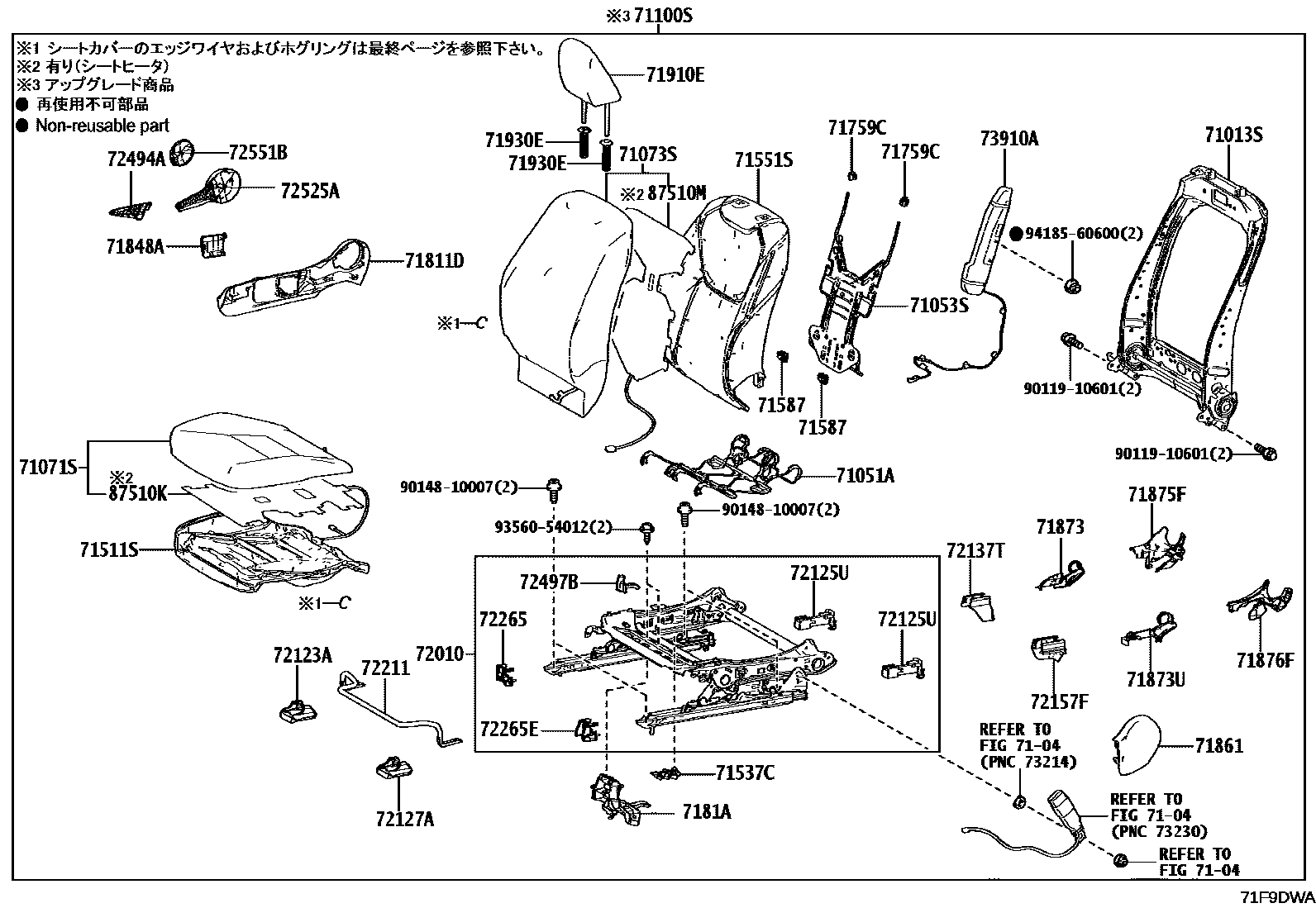

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F9DWA
前排座椅和座椅滑轨 — 71F9DWA (202401 – 999999)

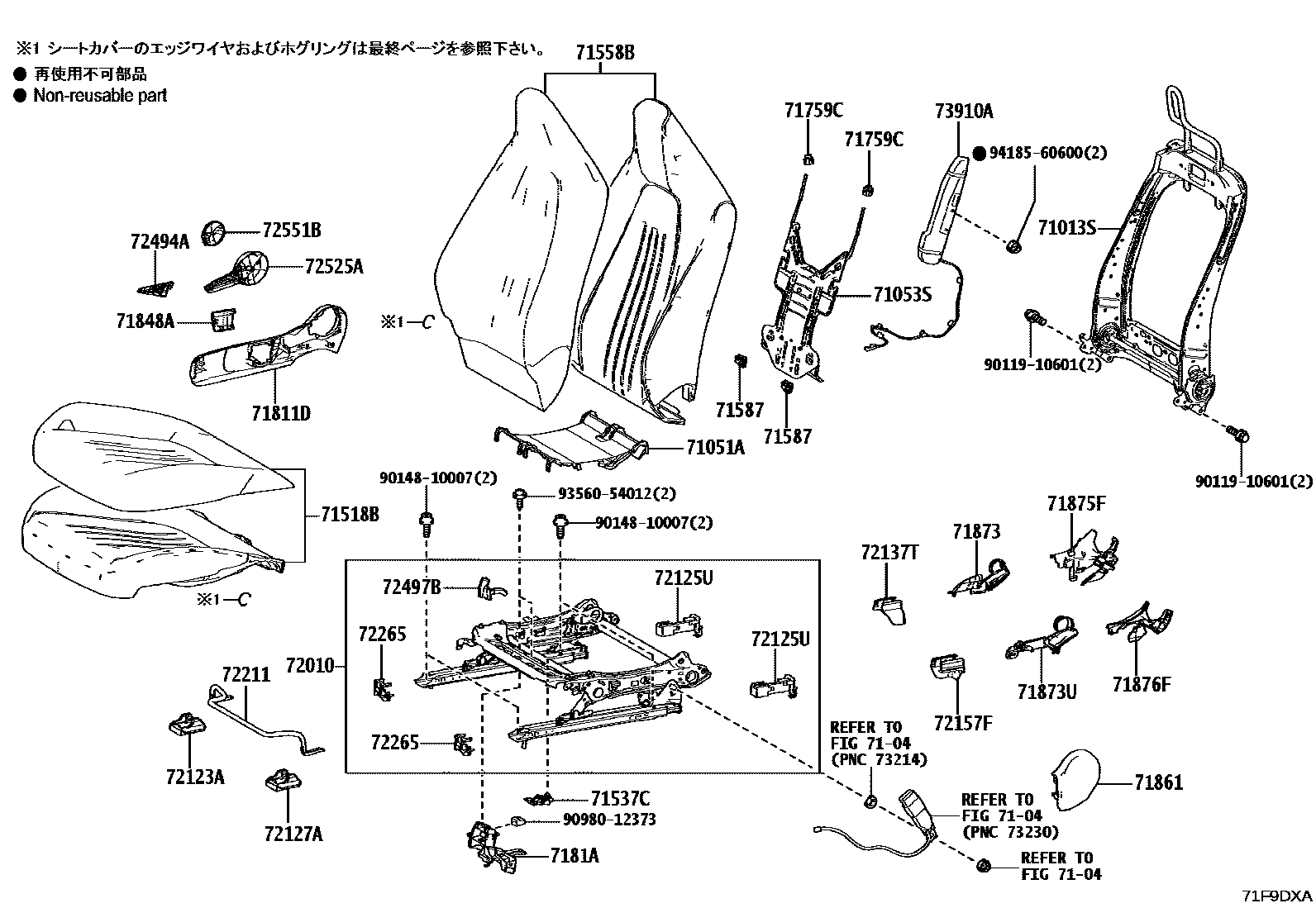

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F9DXA
前排座椅和座椅滑轨 — 71F9DXA (202401 – 999999)

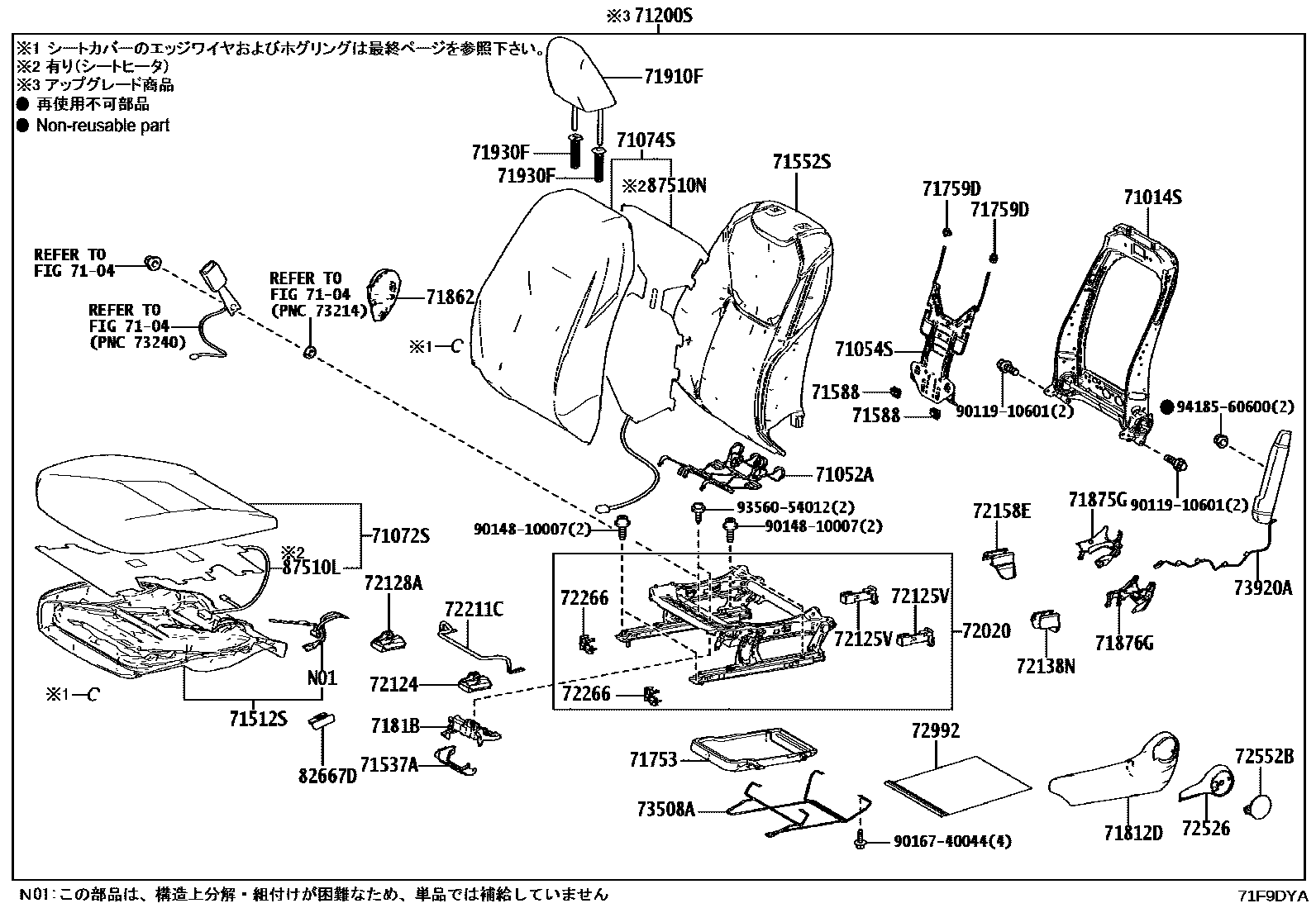

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F9DYA
前排座椅和座椅滑轨 — 71F9DYA (202401 – 999999)

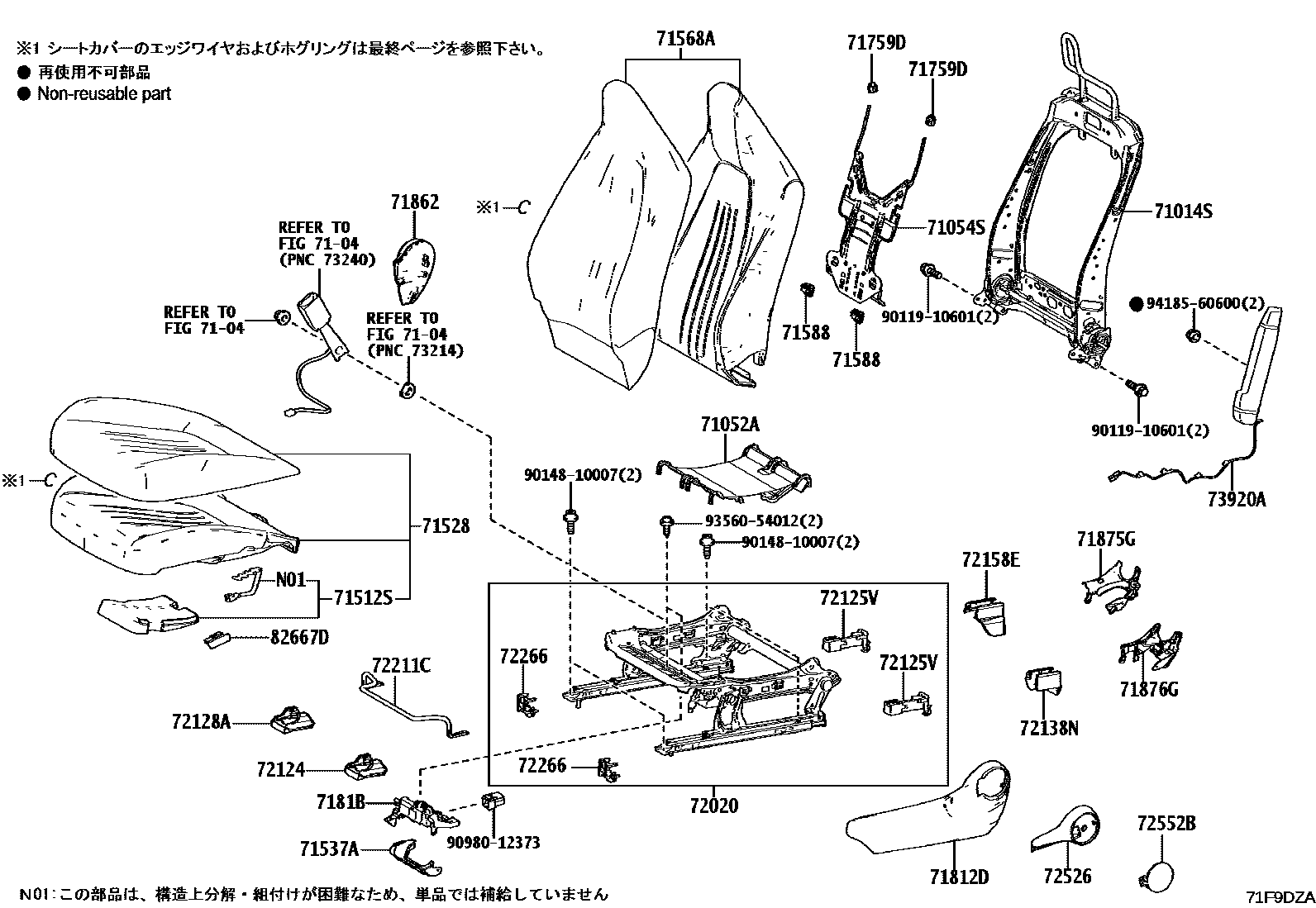

Toyota YARIS 前排座椅和座椅滑轨 EPC diagram — 71F9DZA
前排座椅和座椅滑轨 — 71F9DZA (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
51980CToyota part51980-D1030
51980DToyota part51980-D1040
71013SFront right seat back frame sub-assembly71013-K0040 · 71013-K0041 · 71013-K0070 · 71013-K0071
71014SFront left seat back frame sub-assembly71014-K0040 · 71014-K0041 · 71014-K0070 · 71014-K0071
71051AFront right seat cushion spring sub-assembly71051-47090 · 71051-K0010
71052AFront left seat cushion spring sub-assembly71051-47090 · 71051-K0010
71053SFront right seat back spring sub-assembly71053-47050
71054SFront left seat back spring sub-assembly71053-47050
71072SFront left seat cushion cover (for split seats)71072-D1R50
71074SFront left seat back cover (for split seats)71074-D1Q90
71131BFront seat cushion 171131-D1040
71132BFront seat cushion 271131-D1040
71148VToyota part71148-52080
71148WToyota part71148-52090
71148XToyota part71148-D1180
71148YToyota part71148-D1190
71301EToyota part71301-D1020
71301FToyota part71301-D1020
71361DToyota part71361-D1030
71361EToyota part71361-D1070
71361FToyota part71361-D1050
71361GToyota part71361-D1060
71362AToyota part71362-D1050
71362BToyota part71362-D1060
71511SFront right seat cushion cushion (for split seats)71511-52A00 · 71511-52B30 · 71511-K0090 · 71511-K0091
71512SFront left seat cushion cushion (for split seats)71502-52200 · 71502-52380 · 71502-52381 · 71502-D1030 · 71502-K0130 · 71502-K0140 · 71502-K0141
71537AFront seat cushion protective cover71537-52160
71537CFront right seat cushion edge protective cover71537-K0020
71537EFront seat No. 1 seat cushion protective cover71537-52170
71537FFront seat 2 seat cushion protective cover71537-52170
71551SFront right seat back cushion (for split seats)71551-K0040
71552SFront left seat back cushion (for split seats)71552-D1070 · 71552-K0040
71587Front seat back edge protective cover71587-47010
71588Front seat back edge protective cover No. 271587-47010
71610SFront right seat cushion spring assembly (for split seats)71610-52380
71620SFront left seat cushion spring assembly (for split seats)71610-52380
71731CRight seat cover fastener71731-52010
71731DLeft side seat cover fastener71731-52010
71731PToyota part71731-52010
71731QToyota part71731-52010
71739CToyota part71739-D1100
71739DToyota part71739-D1120
71739EToyota part71739-D1170 · 71739-D1210
71739FToyota part71739-D1130
71739GToyota part71739-D1150
71739HToyota part71739-D1160
71739JToyota part71739-D1120
71739KToyota part71739-D1170 · 71739-D1210
71739LToyota part71739-D1140 · 71739-D1180 · 71739-D1190
71739MToyota part71739-D1200
71759BFront seat back hook71759-50040
71759CFront seat back hook No. 171759-50040
71759DFront seat back hook 271759-50040
7181AToyota part7181A-K0080
7181BToyota part7181B-K0030
71873Front right seat cushion lower guard panel71873-47070
71873UToyota part71873-K0010 · 71873-K0050
71910AFront seat headrest assembly71910-D1B80
72010Front right seat adjuster assembly72010-52C30 · 72010-K0020 · 72010-K0021 · 72010-K0050 · 72010-K0051
72011FToyota part72011-D1020
72011GToyota part72011-D1030
72020Front left seat adjuster assembly72010-52C30 · 72020-52B31 · 72020-K0020 · 72020-K0021 · 72020-K0030 · 72020-K0031
72094CToyota part72094-D1030
72094DToyota part72094-D1040
72125UToyota part72125-47010
72125VToyota part72125-47010
72139BToyota part72139-K0010
72185Toyota part72185-D1110
72201ARight seat slide rail handle sub-assembly72201-D1010
72201BLeft seat slide rail handle sub-assembly72201-D1020
72210Seat slide rail control cable assembly72210-K0010
72211Seat slide adjustment handle72211-47050
72211CSeat slide adjustment handle72211-47050
72219Adjuster spring hook cover72219-52010
72250GToyota part72250-D1020
72250HToyota part72250-D1030
72265Right seat rail upper rail cover72265-47010
72265EToyota part72265-52120
72266Left seat rail upper rail cover72265-47010
72303ARight seat slide rail locking lever sub-assembly72303-K0010
72404BToyota part72404-D1010
72404CToyota part72404-D1020
72404DToyota part72404-D1070
72404EToyota part72404-D1080
72478BToyota part72478-D1020
72478CToyota part72478-D1020
72497BRight height adjuster bracket cover72498-47010
72939Toyota part72939-D1070
72939AToyota part72939-D1080
72992Front left seat cushion cover72991-K0030
73162BToyota part73162-D1010
73162CToyota part73162-D1020
73508AToyota part73508-K0010 · 73508-K0011
73847ARight seat suspension stop cushion73847-D1010
73847BLeft seat suspension stop cushion73847-D1010
73910AFront right seat airbag assembly73910-K0020 · 73910-K0030
73920AFront left seat airbag assembly73920-52280 · 73920-K0020 · 73920-K0030
76681AToyota part76681-52010
76681BToyota part76681-52020
79408DToyota part79408-D1010
79408EToyota part79408-D1050
79408FToyota part79408-D1020
79408GToyota part79408-D1060
79977ASeat back felt pad79977-52240
79977GToyota part79977-52310
79977HToyota part79977-52310
82667DConnector holder82666-47630
82711FWire harness clip82711-1E340
82711GWire harness clip82711-1E340
82H17Toyota part82817-52L40
82H17AToyota part82817-52L40
87510KFront right seat cushion heater assembly87510-K0050
87510LFront left seat cushion heater assembly87510-K0060
87510MFront right seat back heater assembly87530-K0030
87510NFront left seat back heater assembly87530-K0030
C7015BToyota partC7015-D1370
C7015CToyota partC7015-D1380
C7027DToyota partC7027-D1200
C7027EToyota partC7027-D1210
C7031Toyota partC7031-52010 · C7031-52011
C7032Toyota partC7032-52010 · C7032-52011
C7106Toyota partC7106-D1040
C7106AToyota partC7106-D1040
C7160DToyota partC7160-D1440
C7160EToyota partC7160-D1520
C7207Toyota partC7207-D1060
C7207AToyota partC7207-D1080
C7230HToyota partC7230-D1230
C7230JToyota partC7240-D1020
C7240Toyota partC7230-D1240
C7240AToyota partC7240-D1030
C7269EToyota partC7269-D1150
C7269FToyota partC7269-D1150
C7269GToyota partC7269-D1161
C7269HToyota partC7269-D1160 · C7269-D1161
C7985CToyota partC7985-D1050
C7985DToyota partC7985-D1060
