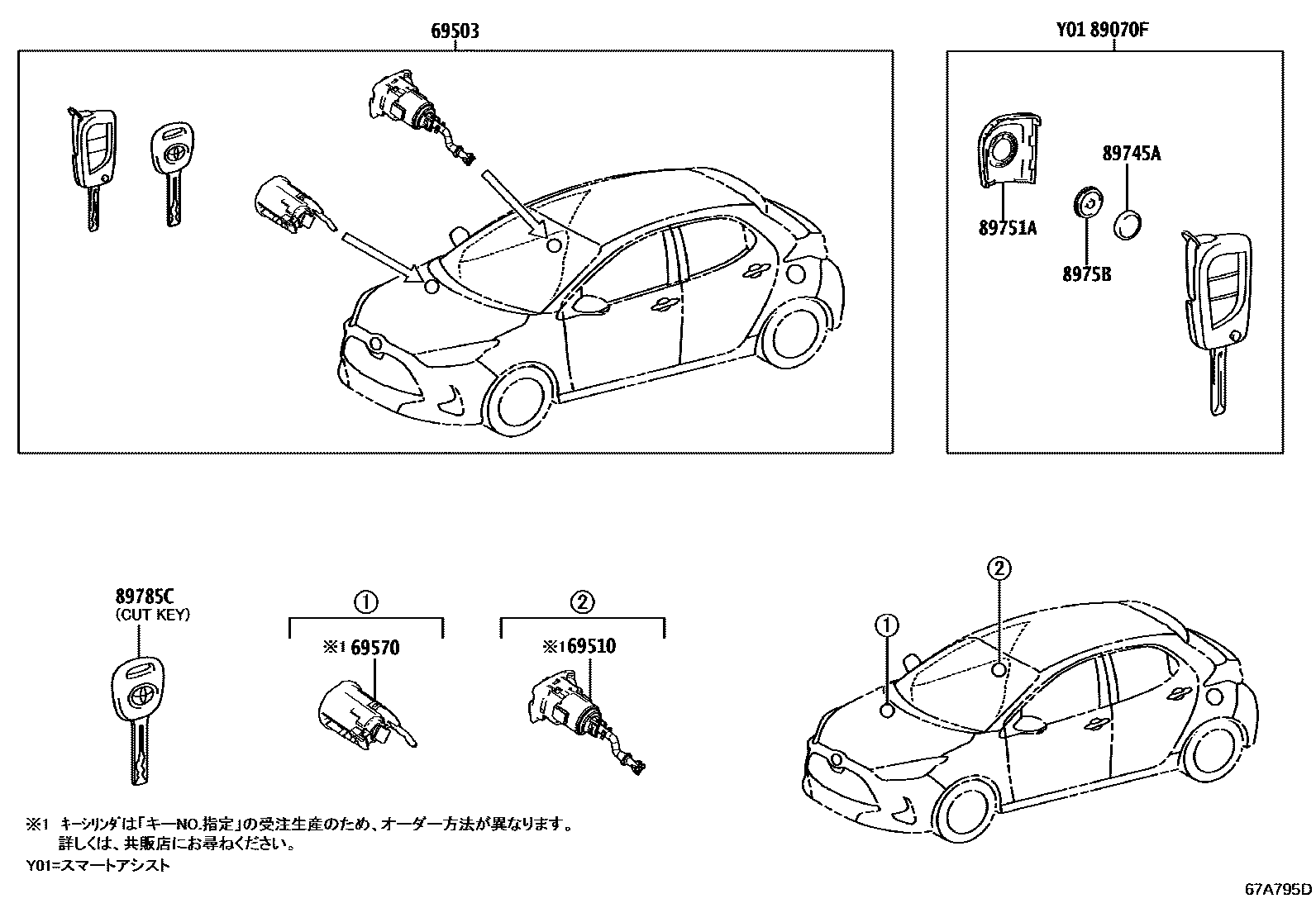

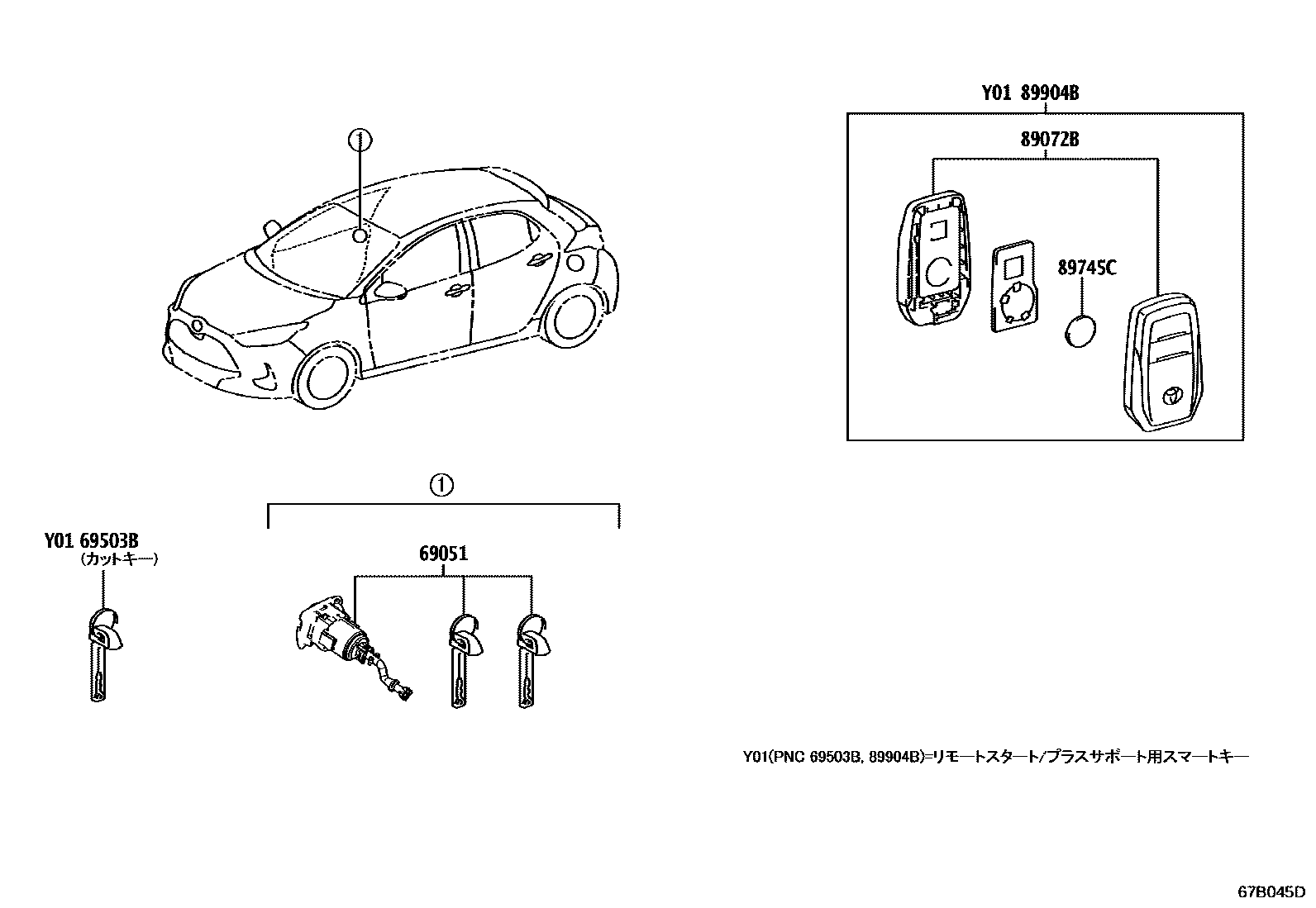

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-K0040 |
| 69503 | Door lock cylinder components | 89704-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 69510 | Right front door lock cylinder assembly | 69510-K0030 |
| 69570 | Ignition switch lock cylinder assembly | 69570-33140 |
| 89070F | Remote key assembly (internal tooth key) | 89070-K0080 |
| 89072B | Remote key shell assembly (for smart key) | 89072-K0010 · 89072-K0020 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-K0010 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785C | transceiver key master transmitter | 89785-28070 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-52160 · 8990H-52161 · 8990H-K0030 · 8990H-K0040 |
