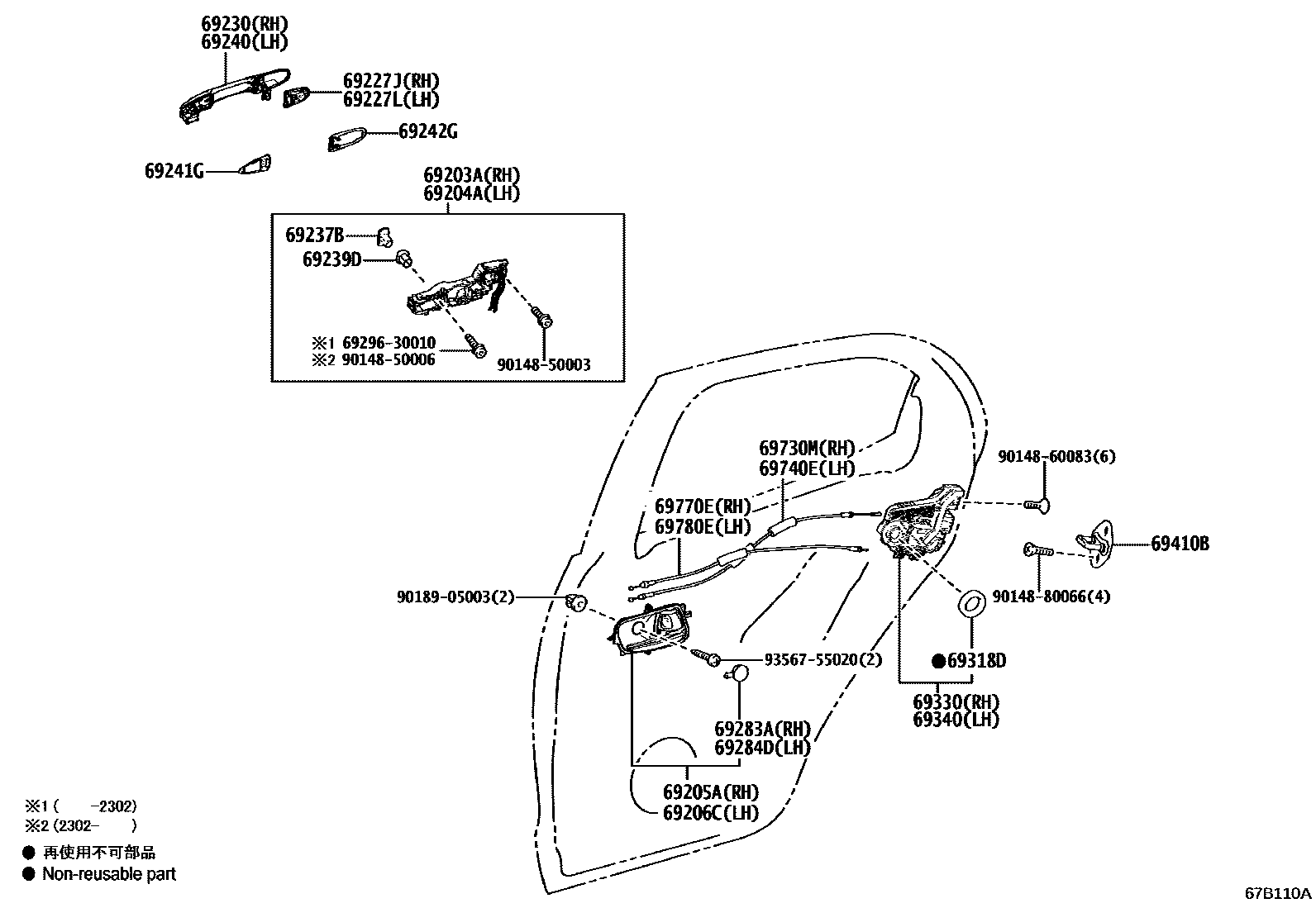

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69203A | Right rear door outer handle frame sub-assembly | 69203-K0010 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-K0010 |
| 69227J | Right rear door outer handle cover | 69227-47020 |
| 69227L | Left rear door outer handle cover | 69227-47020 |
| 69237B | Toyota part | 69237-62010 |
| 69239D | Toyota part | 69239-47010 |
| 69241G | Rear door front exterior handle pad | 69241-47020 |
| 69242G | Rear door rear outer handle pad | 69242-47030 |
| 69318D | door lock harness seal | 69318-47010 |
| 69330 | Right rear door door lock assembly | 69050-K0010 · 69050-K0020 |
| 69340 | Left rear door lock assembly | 69060-K0010 · 69060-K0020 |
| 69410B | Rear door lock plate assembly | 69410-47010 |
| 69730M | Toyota part | 69730-K0010 · 69730-K0011 |
| 69740E | Toyota part | 69730-K0010 · 69730-K0011 |
| 69770E | Toyota part | 69770-K0010 · 69770-K0011 |
| 69780E | Toyota part | 69770-K0010 · 69770-K0011 |
