Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.

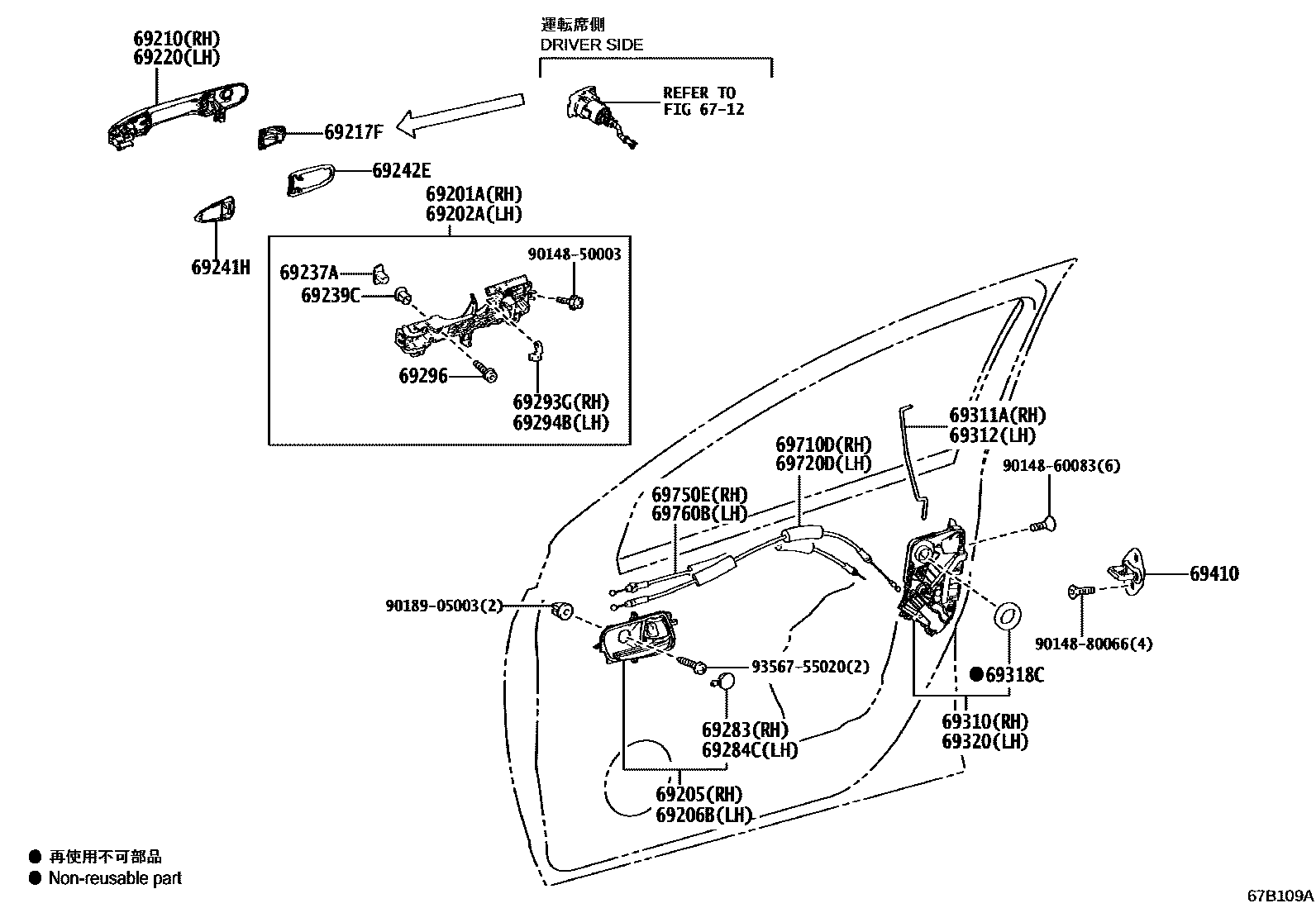

Toyota YARIS 前门锁和车门把手 EPC diagram — 67B109A
前门锁和车门把手 — 67B109A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
69201ARight front door outer handle frame sub-assembly69201-47070
69202ALeft front door outer handle frame sub-assembly69202-47040
69217FLeft front door outer handle cover69217-47020
69237AToyota part69237-62010
69239CToyota part69239-47010
69241HFront door exterior handle pad69241-47020
69242EFront door rear outer handle pad69242-47030
69293GRight front door outer handle buckle69293-12030
69294BLeft front door outer handle buckle69293-12040
69296Car door inner handle screws69296-30010 · 90148-50006
69310Right front door lock assembly69030-K0010 · 69030-K0011
69311ARight front door lock opening lever69311-K0010
69312Left front door lock opening lever69312-K0010
69318Cdoor lock harness seal69318-47010
69320Left front door lock assembly69040-K0010 · 69040-K0011 · 69040-K0020 · 69040-K0021
69410Front door lock plate assembly69410-47010
69710DToyota part69710-K0010 · 69710-K0011
69720DToyota part69710-K0010 · 69710-K0011
69750EToyota part69750-K0010 · 69750-K0011
69760BToyota part69750-K0010 · 69750-K0011
