Toyota YARIS 底板和底板装饰罩 — Figure 6404

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 4 images and 5 PNC and OE references.

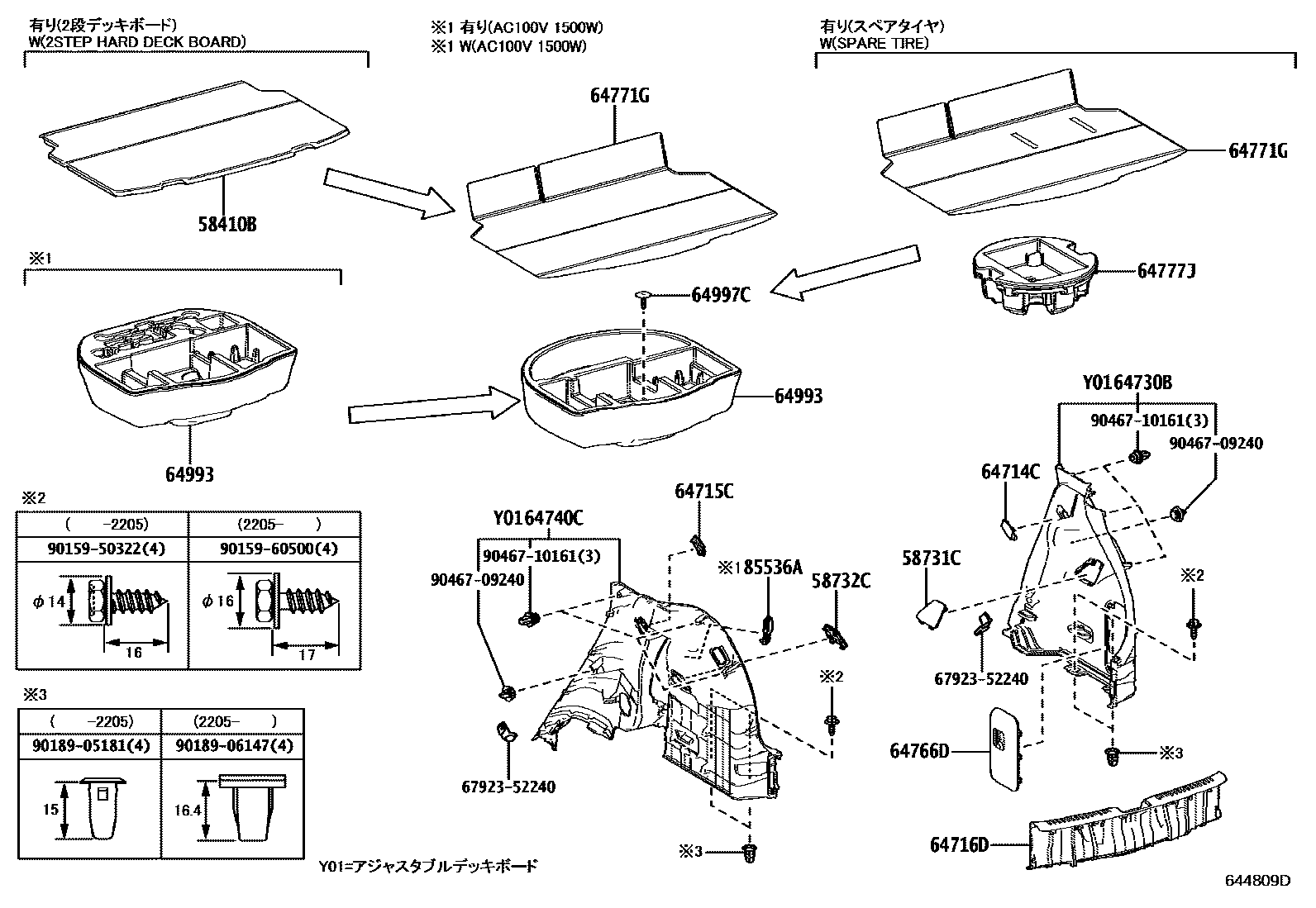

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644809D
底板和底板装饰罩 — 644809D (202002 – 999999)

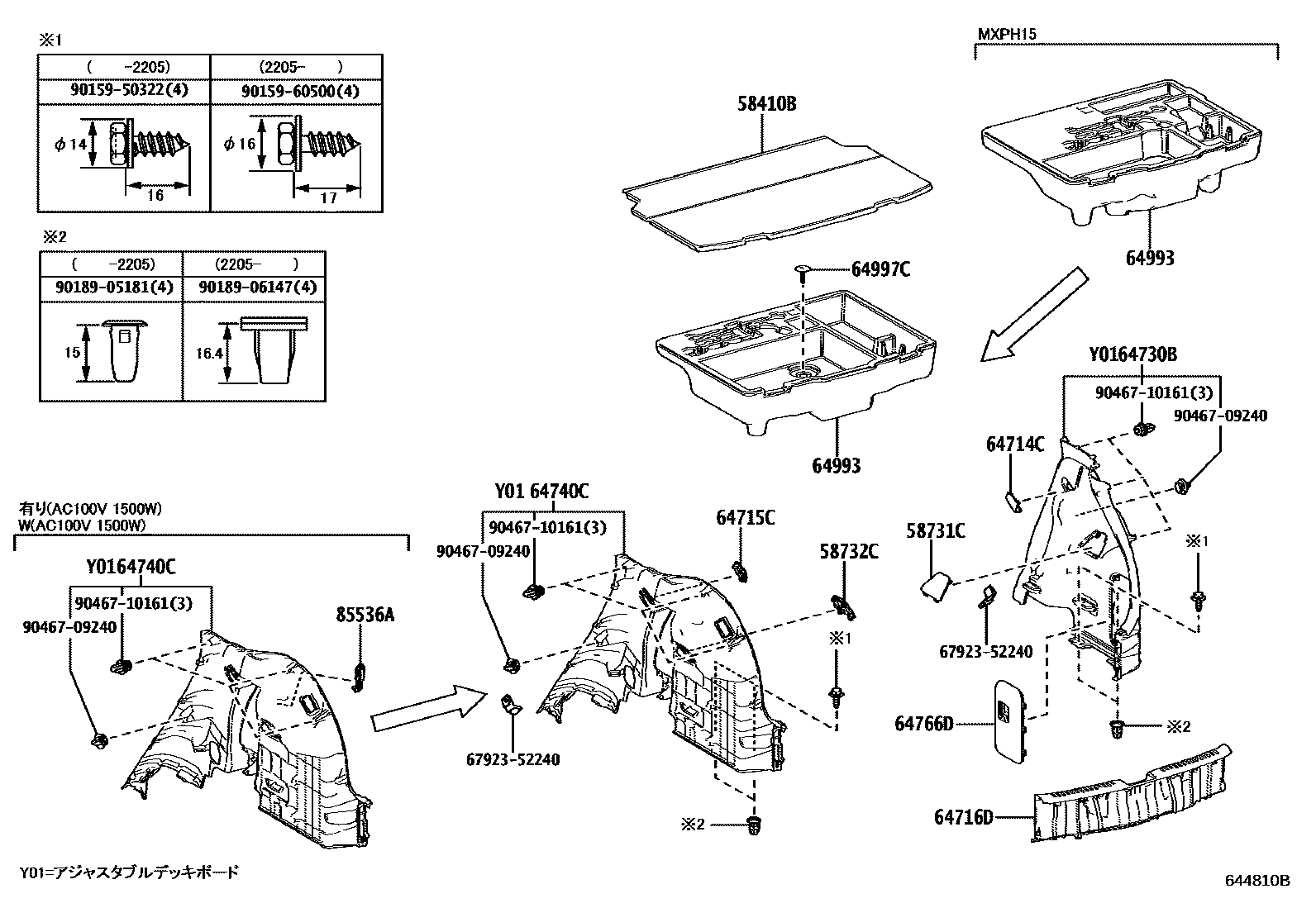

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644810B
底板和底板装饰罩 — 644810B (202002 – 999999)

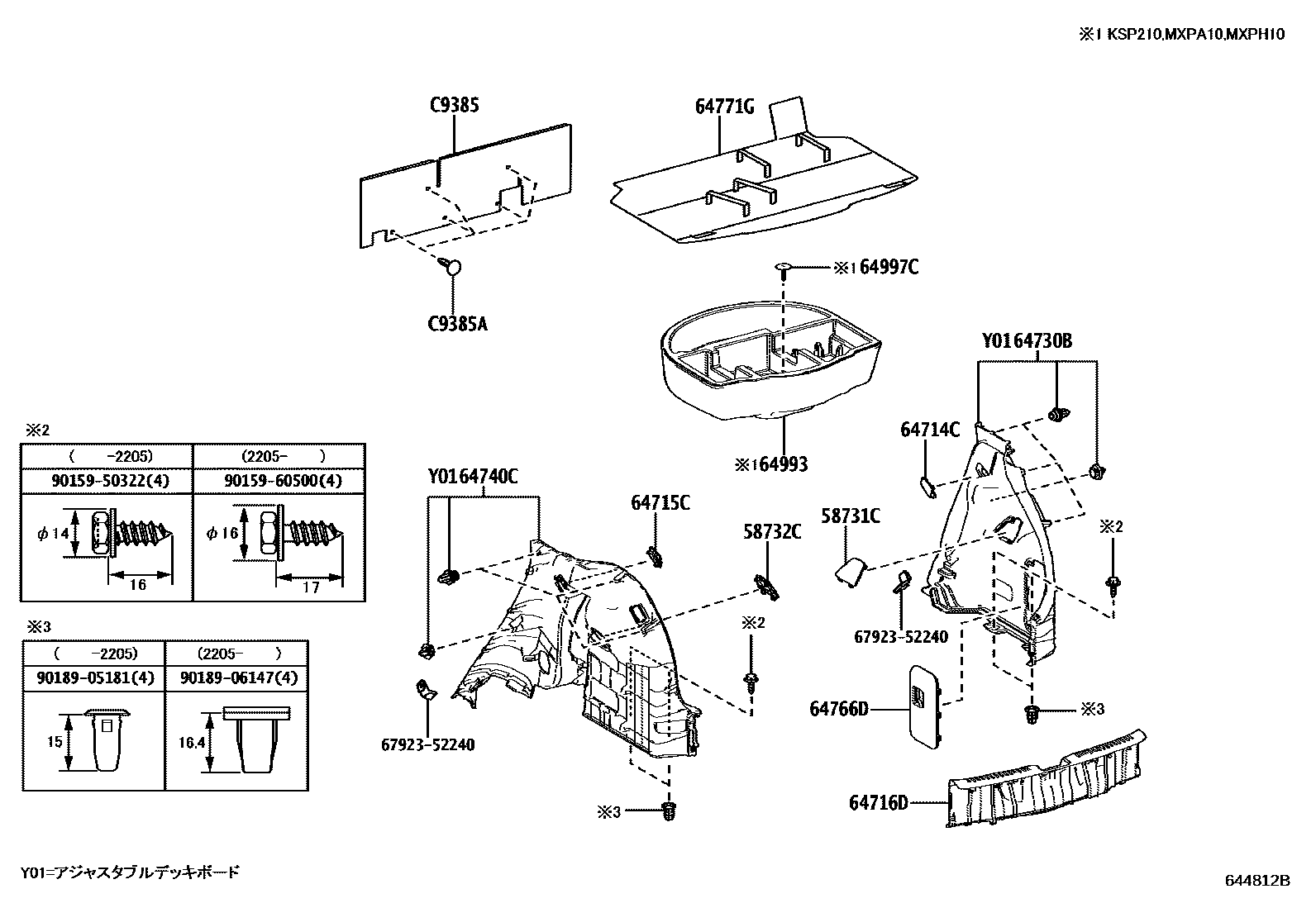

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644812B
底板和底板装饰罩 — 644812B (202002 – 999999)

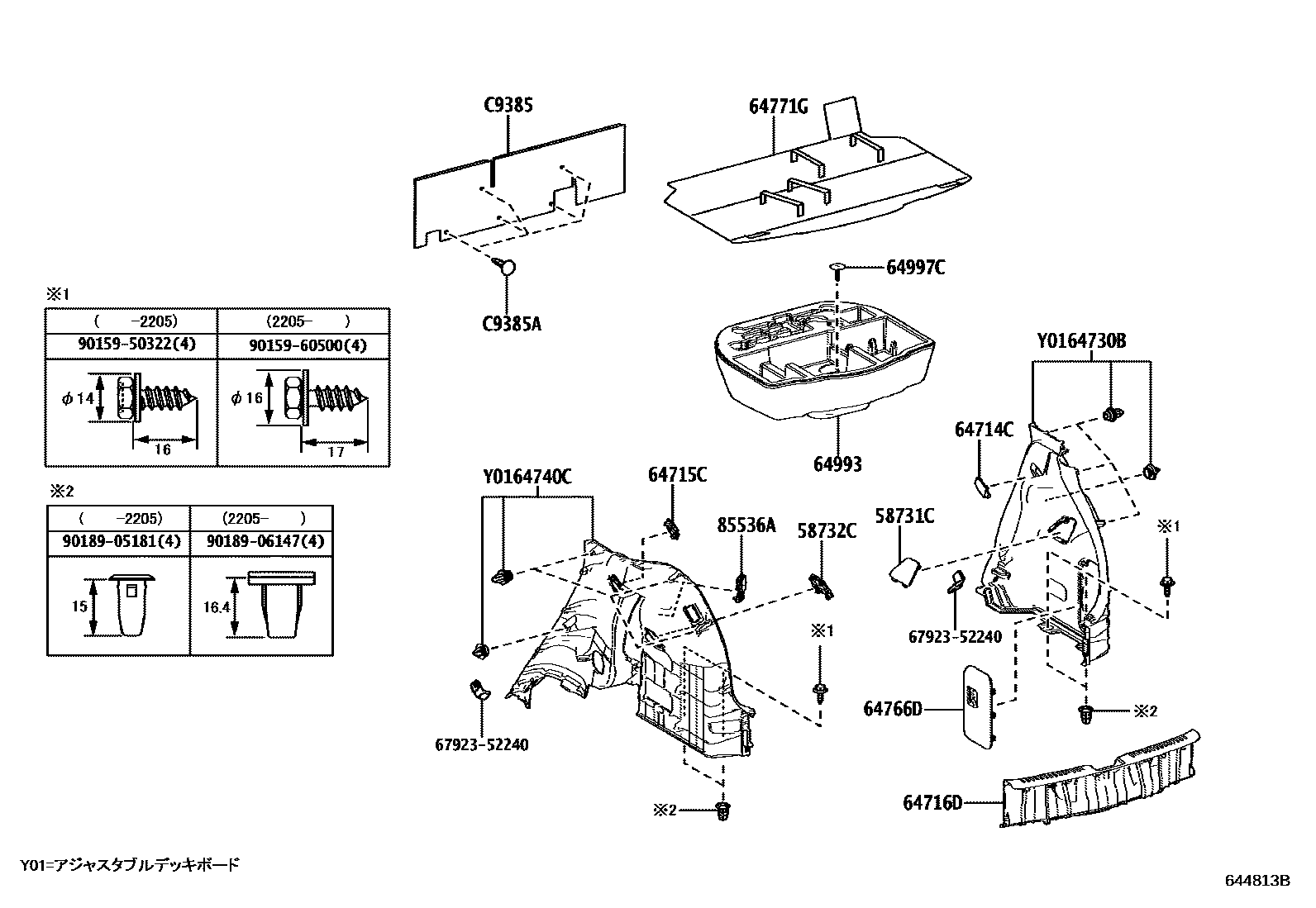

Toyota YARIS 底板和底板装饰罩 EPC diagram — 644813B
底板和底板装饰罩 — 644813B (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
64771GSpare Wheel Cover64771-K0010
64777JSpare tire cushion64777-K0010
64993Bottom floor box64993-52380 · 64993-K0010 · 64993-K0020 · 64993-K0030 · 64993-K0040
64997CClip (for base floor box)64778-52160
C9385Toyota partC9385-52010
