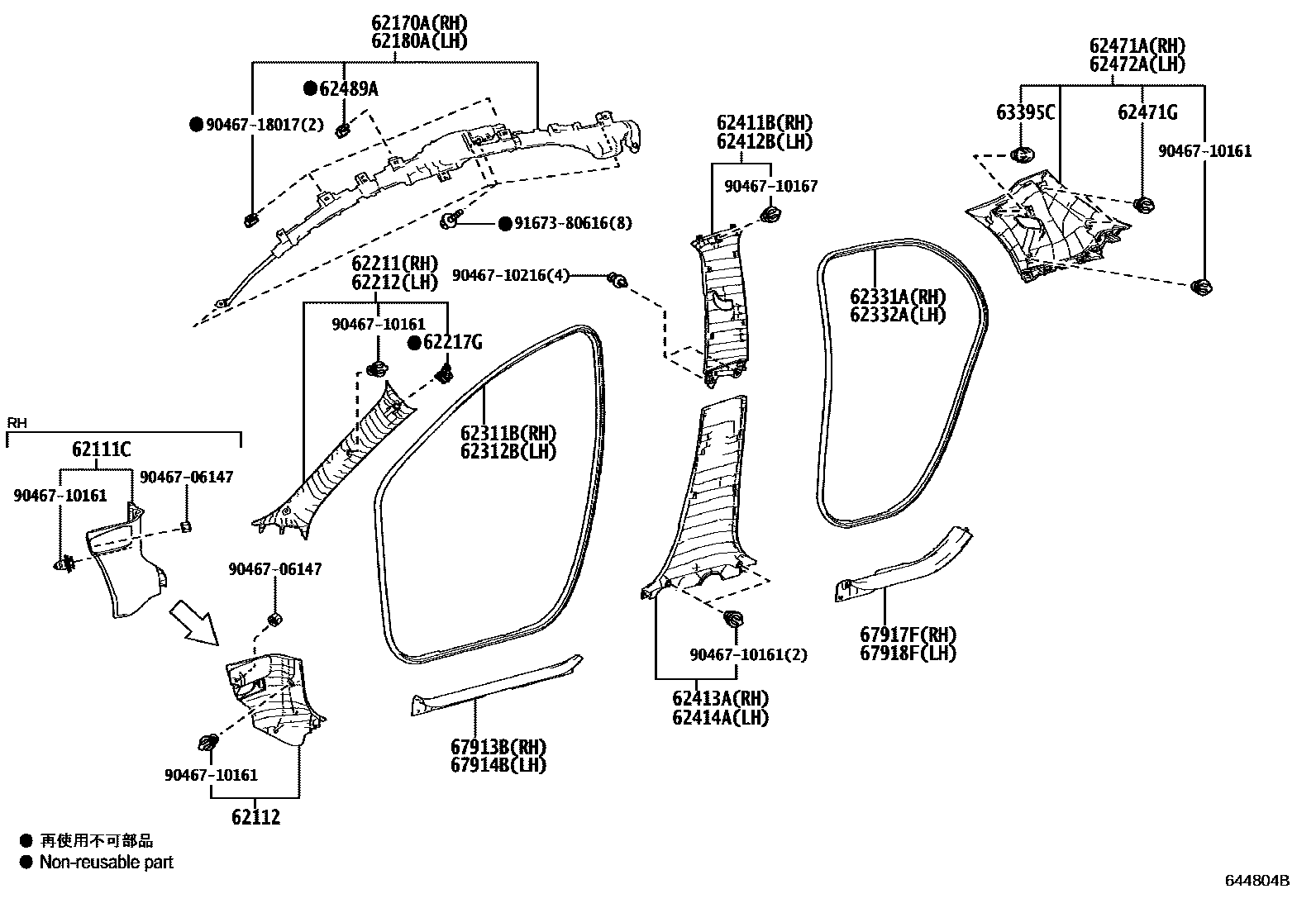

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62170A | Right curtain air bag assembly | 62170-K0010 |
| 62180A | Left curtain air bag assembly | 62180-K0010 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-K0010 |
| 62312B | Left front door opening waterproof tape | 62312-K0010 |
| 62331A | Right rear door opening waterproof tape | 62331-52170 · 62331-K0010 |
| 62332A | Left rear door opening waterproof tape | 62332-52190 · 62332-K0010 |
| 62471G | Roof side interior panel fixing gasket | 67771-28150 |
| 62489A | Roof side interior panel clips | 62489-52010 |
| 63395C | Clips (for roof side interior panels) | 63395-12150 |
