Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

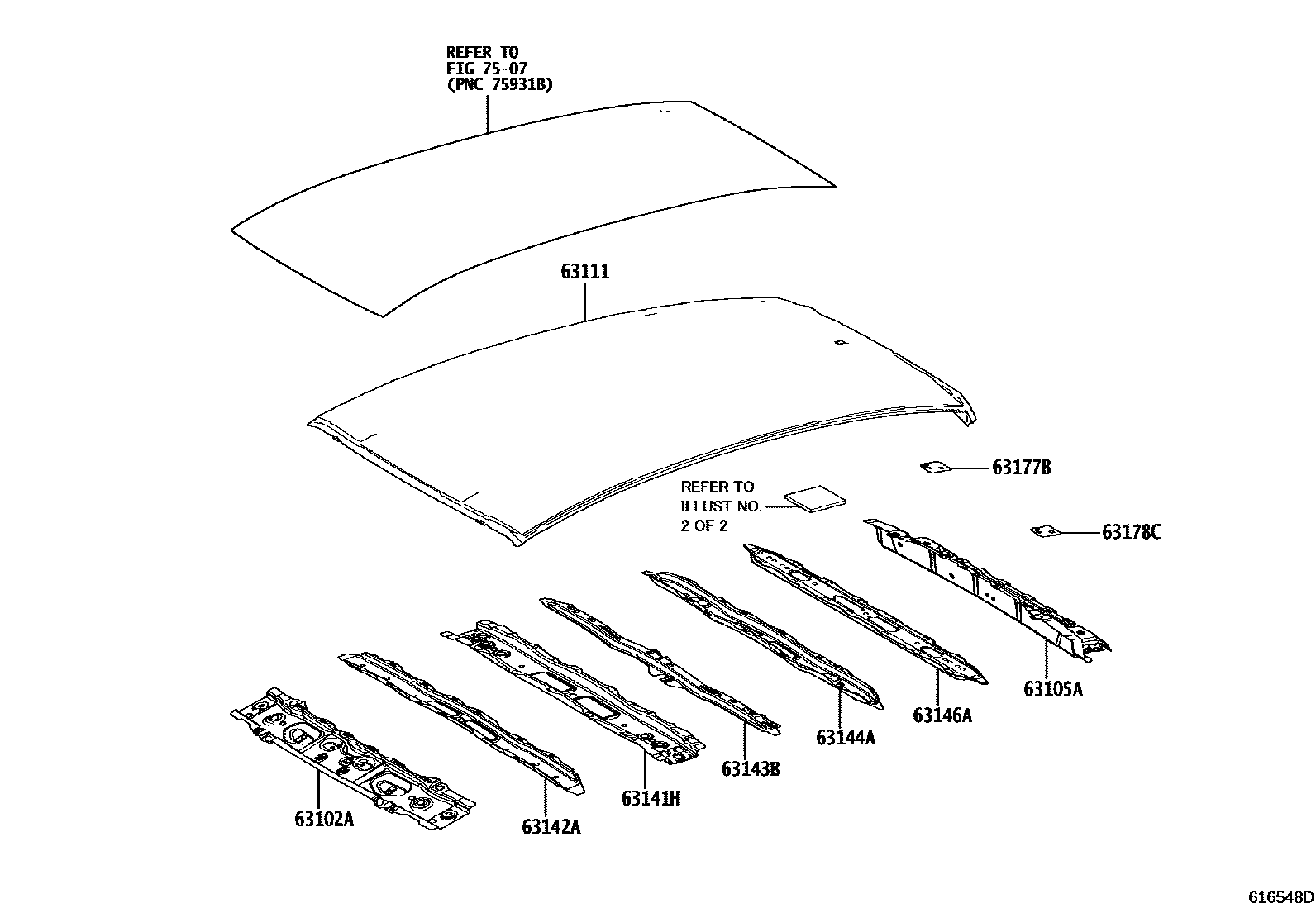

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-K0010 |
| 63105A | Back door opening frame sub-assembly | 63105-52210 |
| 63111 | roof panel | 63111-K0170 |
| 63141H | Center roof panel reinforcement | 63141-K0010 |
| 63142A | No. 2 roof panel reinforcement | 63142-K0040 |
| 63143B | No. 3 roof panel reinforcement | 63143-52200 |
| 63144A | No. 4 roof panel reinforcement | 63144-K0010 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-K0010 |
| 63177B | Toyota part | 63177-52040 |
| 63178C | Toyota part | 63178-52040 |
