Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 64 PNC and OE references.

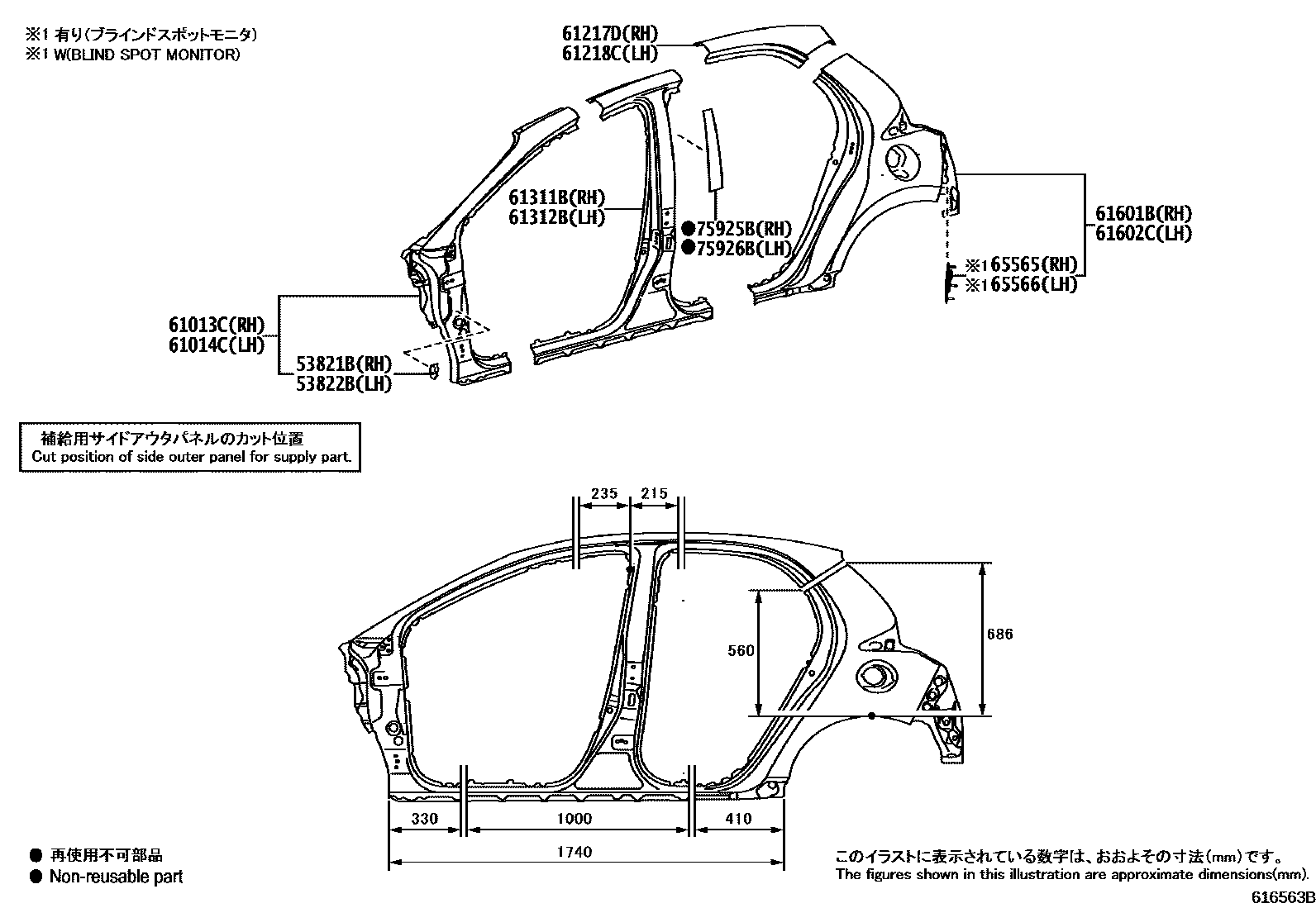

Toyota YARIS 侧梁 EPC diagram — 616563B
侧梁 — 616563B (202002 – 999999)

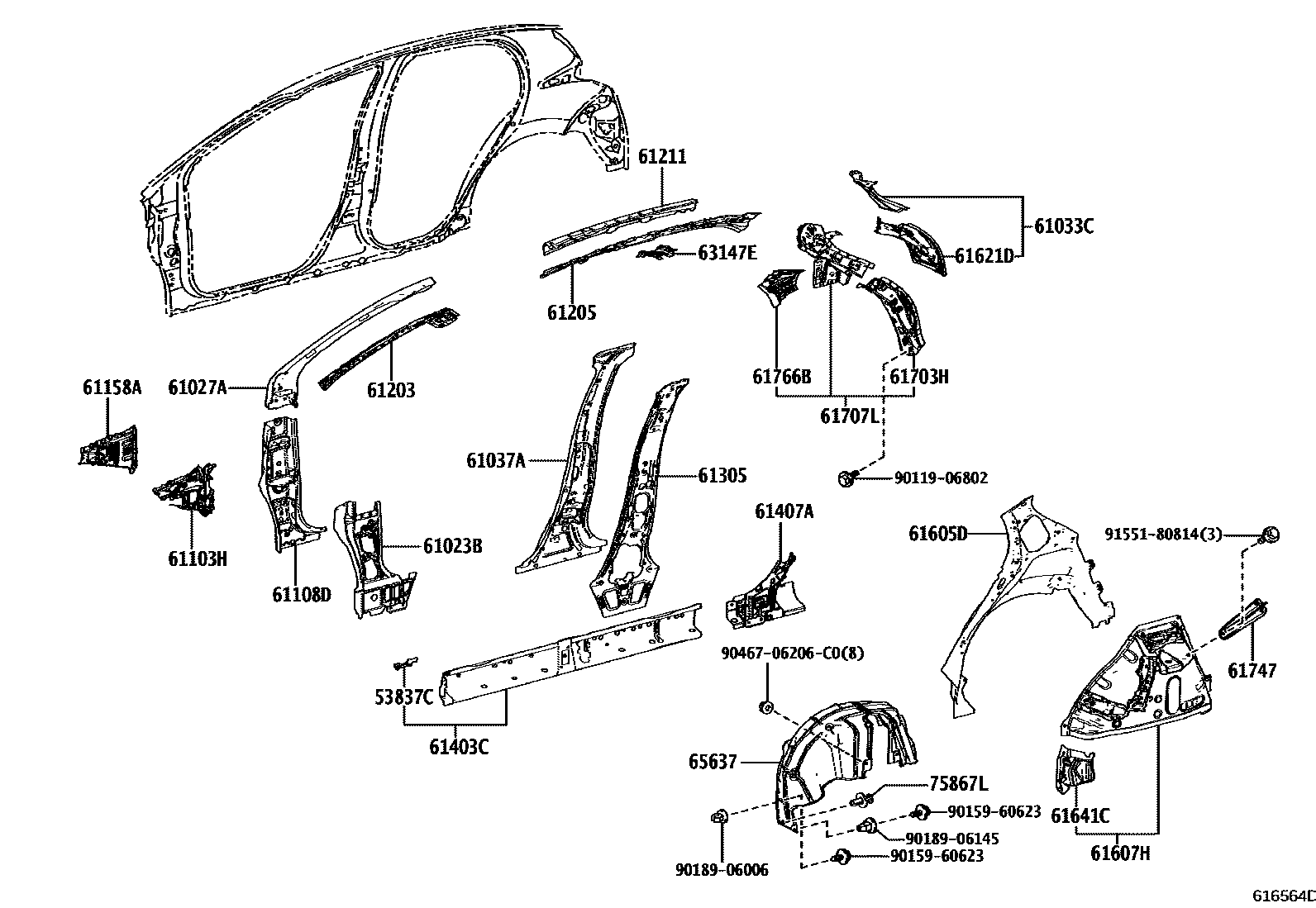

Toyota YARIS 侧梁 EPC diagram — 616564D
侧梁 — 616564D (202002 – 999999)

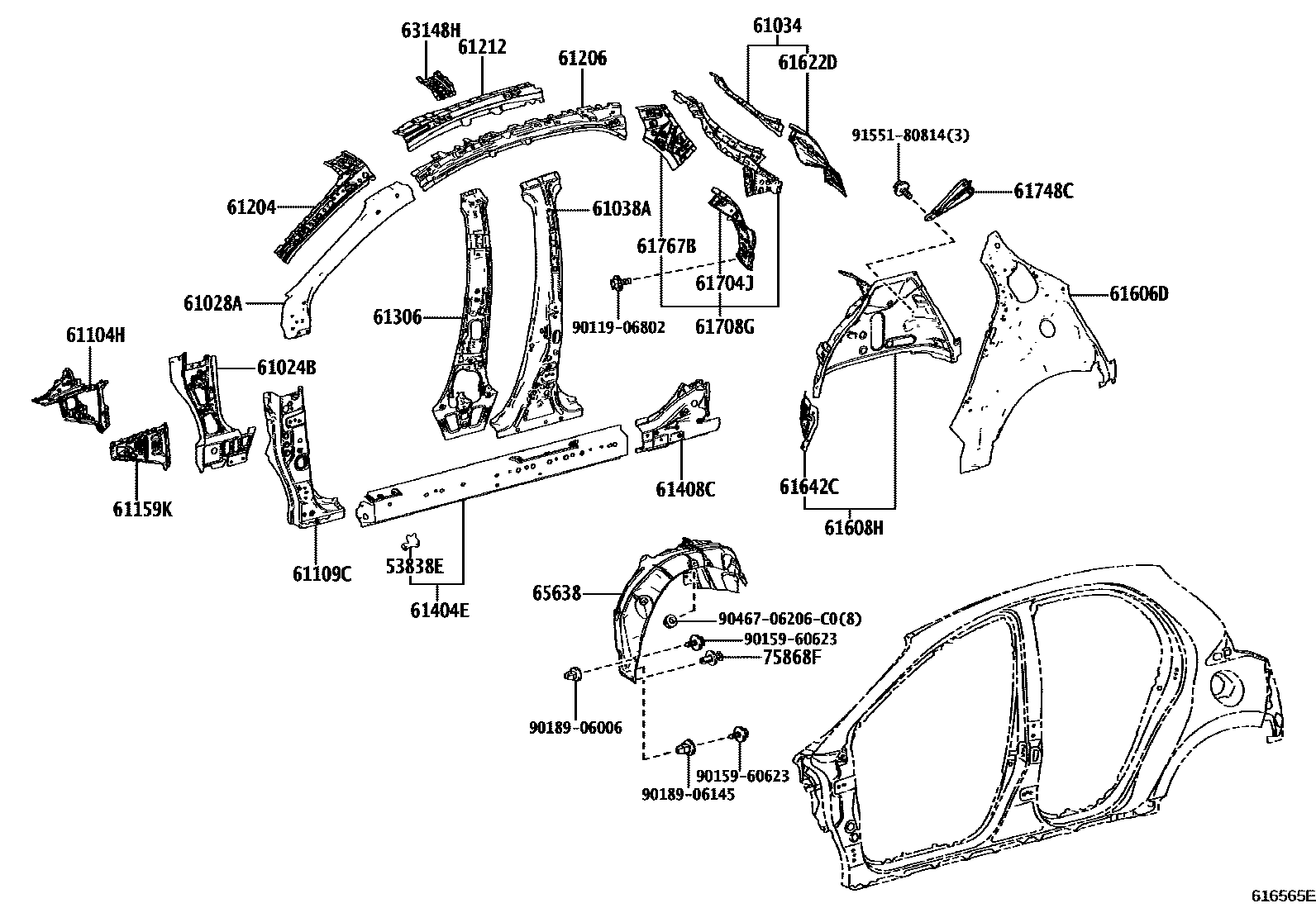

Toyota YARIS 侧梁 EPC diagram — 616565E
侧梁 — 616565E (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
53821BRight front fender rear support53821-48030
53822BLeft front fender rear support53821-48030
53837CNo. 2 right front side panel bracket53837-K0010
53838ENo. 2 left front side panel bracket53838-K0010
61013CRight inner panel sub-assembly61013-52070
61014CLeft inner panel sub-assembly61014-52070
61023BRight body inner front pillar sub-assembly61023-K0010
61024BLeft body inner front pillar sub-assembly61024-K0010
61027ARight body outer front pillar sub-assembly61027-52900
61028ALeft body outer front pillar sub-assembly61028-52900
61033CToyota part61033-52170 · 61033-K0010
61034Rear door opening left reinforcement sub-assembly61034-52170 · 61034-K0010
61037ARight body center pillar reinforcement sub-assembly61037-52360 · 61037-K0010
61038ALeft body center pillar reinforcement sub-assembly61038-52360 · 61038-K0010
61103HToyota part61103-K0010
61104HToyota part61104-K0010
61108DFront panel right lower reinforcement sub-assembly61108-K0010
61109CFront panel left lower reinforcement sub-assembly61109-K0010
61158AExtension section under right front pillar61158-K0010
61159KExtension section under left front pillar61159-K0010
61203Roof right inner longitudinal beam sub-assembly61203-K0010
61204Roof left inner longitudinal beam sub-assembly61204-K0010
61205Right rear roof inner longitudinal beam sub-assembly61205-K0010 · 61205-K0011
61206Left rear roof inner longitudinal beam sub-assembly61206-K0010
61211Roof right outer longitudinal beam61211-K0010
61212Roof left outer longitudinal beam61212-K0010
61217DNo. 4 longitudinal beam on the outer right side of the roof61217-52020
61218CNo. 4 longitudinal beam on the left side of the roof61218-52020
61305Right body center pillar lower reinforcement sub-assembly61305-K0010
61306Left body center pillar lower reinforcement sub-assembly61306-K0010
61311BRight body outer center pillar61311-52100 · 61311-52101
61312BLeft body outer center pillar61312-52100 · 61312-52101
61403CRight door outer sill reinforcement sub-assembly61403-52903 · 61403-K0904
61404ELeft door outer sill reinforcement sub-assembly61404-52903 · 61404-K0904
61407AToyota part61407-K0010
61408CToyota part61408-K0010
61601BRight side enclosure sub-assembly61601-52840 · 61601-52850
61602CLeft side enclosure sub-assembly61602-52840 · 61602-52850
61605DSpare tire hinge upper fixing part sub-assembly61605-52100
61606DSpare tire hinge lower fixing part sub-assembly61606-52100
61607HRight side wheel cover lining plate sub-assembly61607-52460
61608HLeft side wheel cover lining plate sub-assembly61608-K0050 · 61608-K0051
61621DBack door right opening slot61621-52240 · 61621-K0060
61622DRear door left opening slot61622-52250 · 61622-K0050
61641CRight front side wheel housing corner panel61641-K0010
61642CLeft front side wheel housing corner panel61642-K0010
61703HRoof inner right reinforcement sub-assembly61703-K0030
61704JRoof inner left reinforcement sub-assembly61704-K0030
61707LRight front roof inner panel sub-assembly61707-52080
61708GLeft front roof inner panel sub-assembly61708-52090
61747Roof right inner panel to wheel housing bracket61747-K0010
61748CRoof left inner panel to wheel arch bracket61748-K0010
61766BRight seat belt anchor to roof inner reinforcement61766-52190
61767BLeft-hand seat belt anchor to roof inner reinforcement61767-52210
63147ERoof panel reinforcement bracket63147-K0010
63148HRoof panel reinforcement bracket63148-K0010
65565Right side panel rear end lining65565-50010
65566Left side panel rear end lining65565-50010
65637Right rear wheel house lining65637-K0040
65638Left rear wheel house lining65638-K0040 · 65638-K0041
75867LToyota part75867-30140 · 75867-33050
75868FToyota part75867-30140 · 75867-33050
75925BNo. 3 right side light-blocking film75925-K0010
75926BNo. 3 left shading film75926-K0010
