Toyota YARIS 地板隔热垫 — Figure 5802

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 4 images and 4 PNC and OE references.

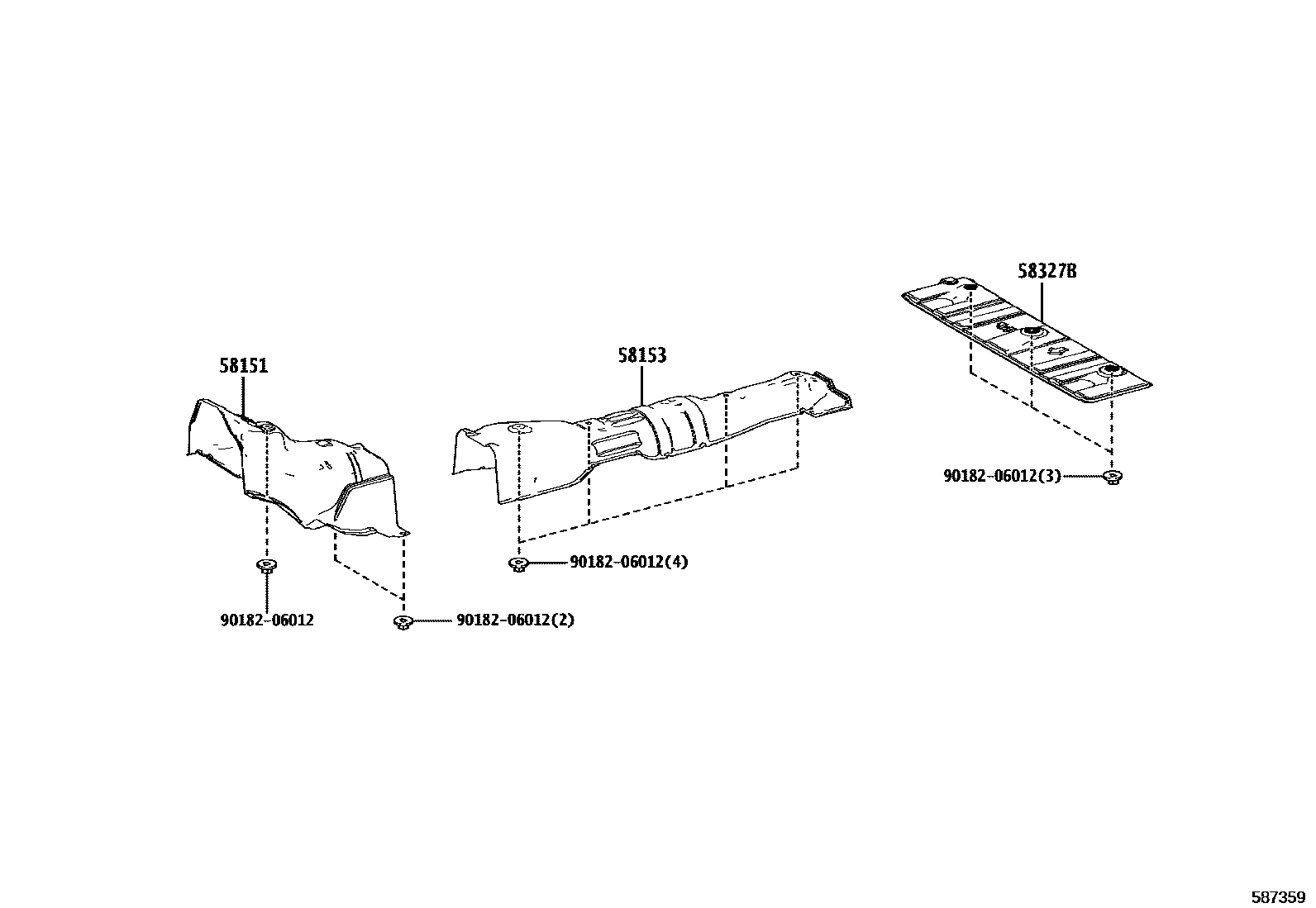

Toyota YARIS 地板隔热垫 EPC diagram — 587359
地板隔热垫 — 587359 (202002 – 999999)

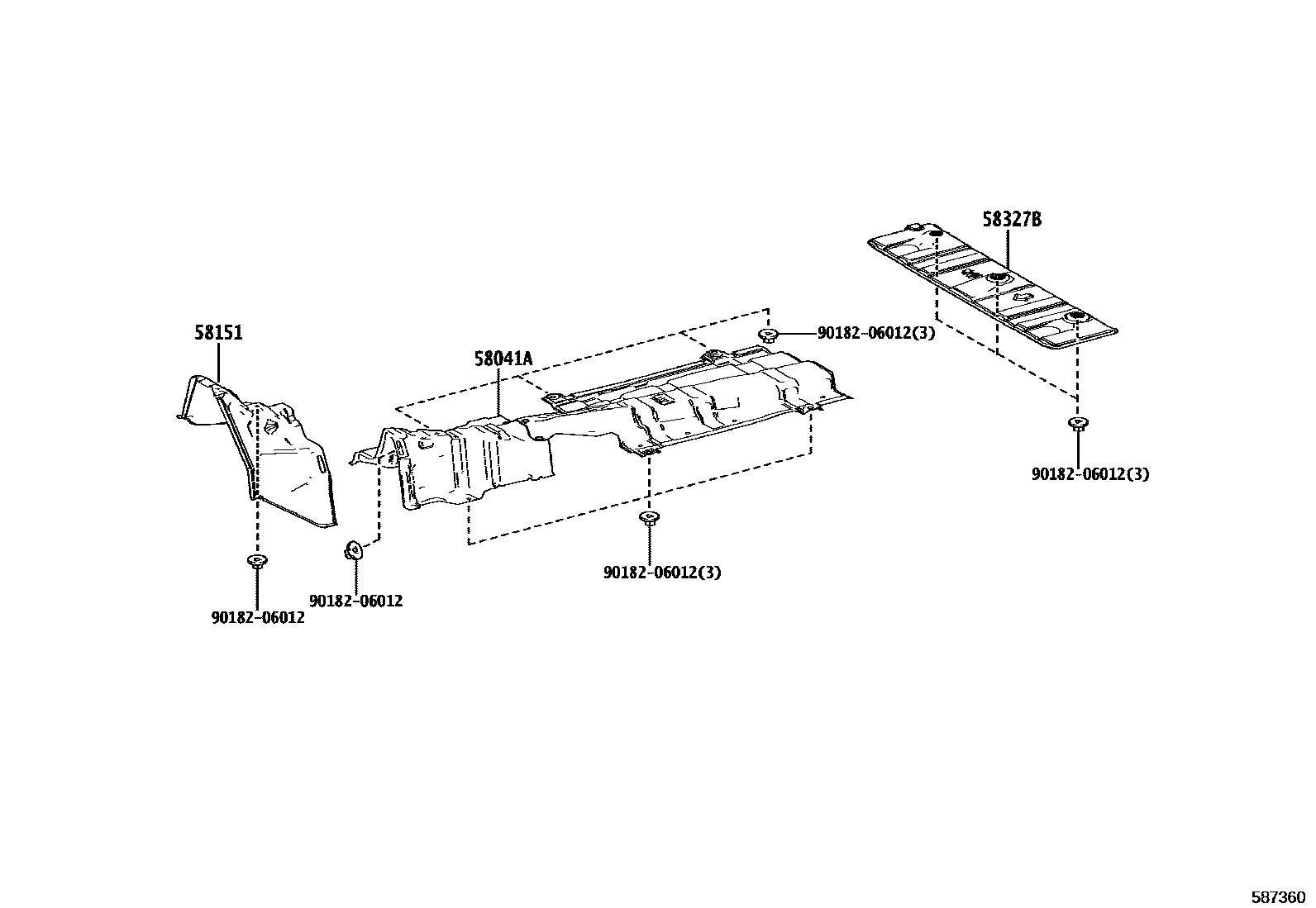

Toyota YARIS 地板隔热垫 EPC diagram — 587360
地板隔热垫 — 587360 (202003 – 999999)
Toyota YARIS 地板隔热垫 EPC diagram — 587391
地板隔热垫 — 587391 (202002 – 999999)

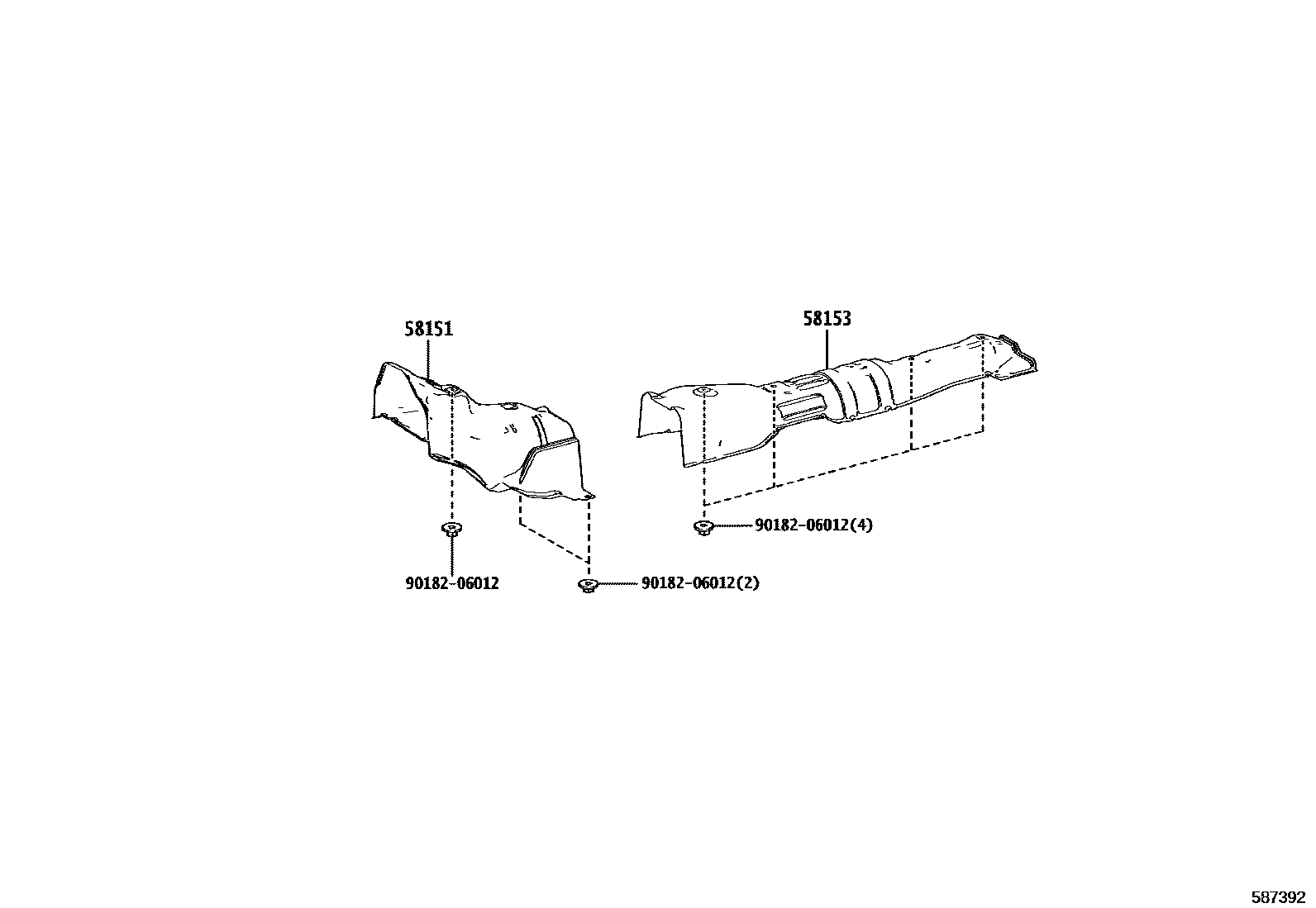

Toyota YARIS 地板隔热垫 EPC diagram — 587392
地板隔热垫 — 587392 (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
58041AFront floor insulation pad sub-assembly No. 158041-52040
58151Front floor insulation mat No. 158151-K0030 · 58151-K0040
58153Front floor insulation mat No. 258153-52200 · 58153-K0040
58327BMain muffler heat insulation pad58327-K0020
