Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

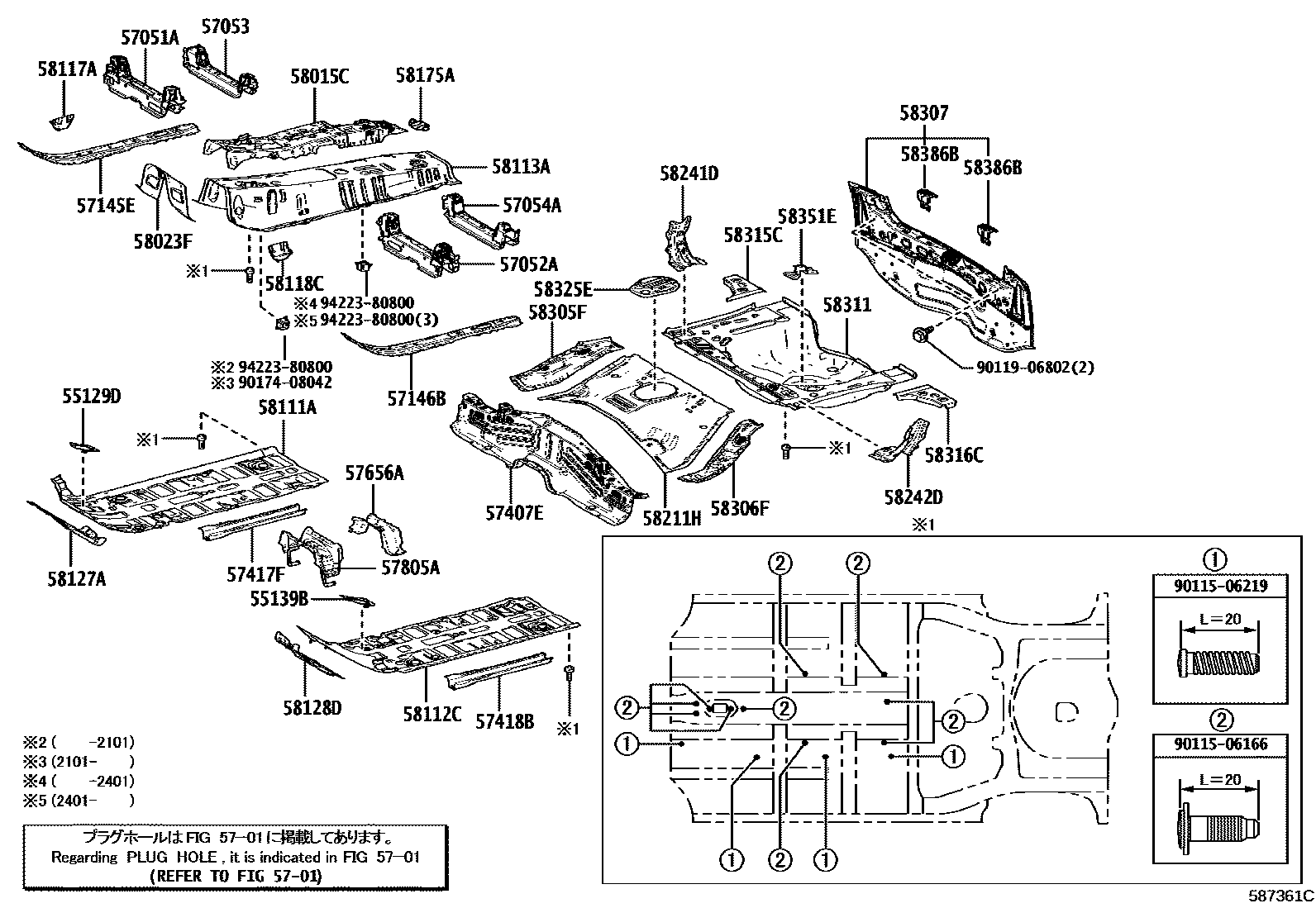

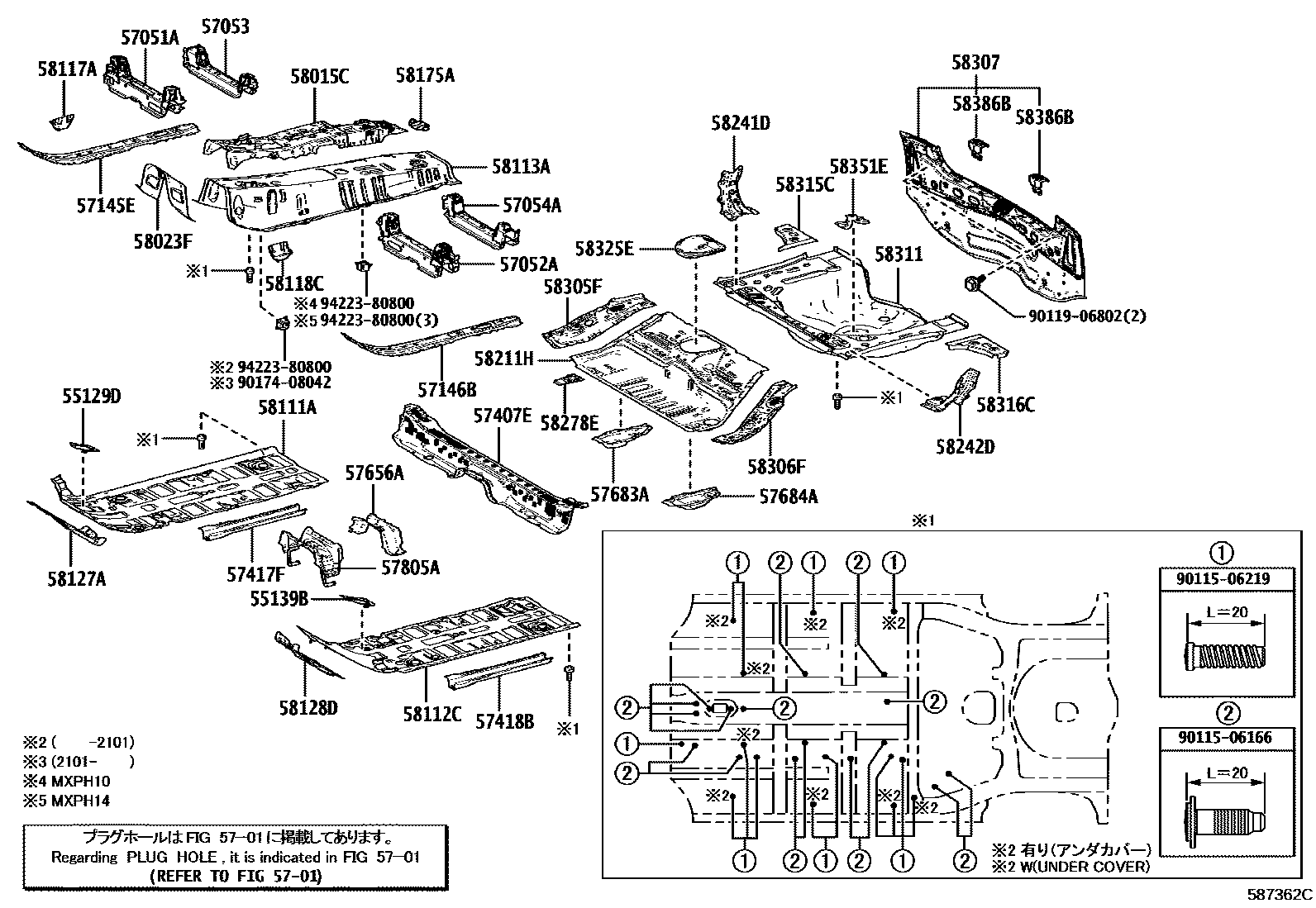

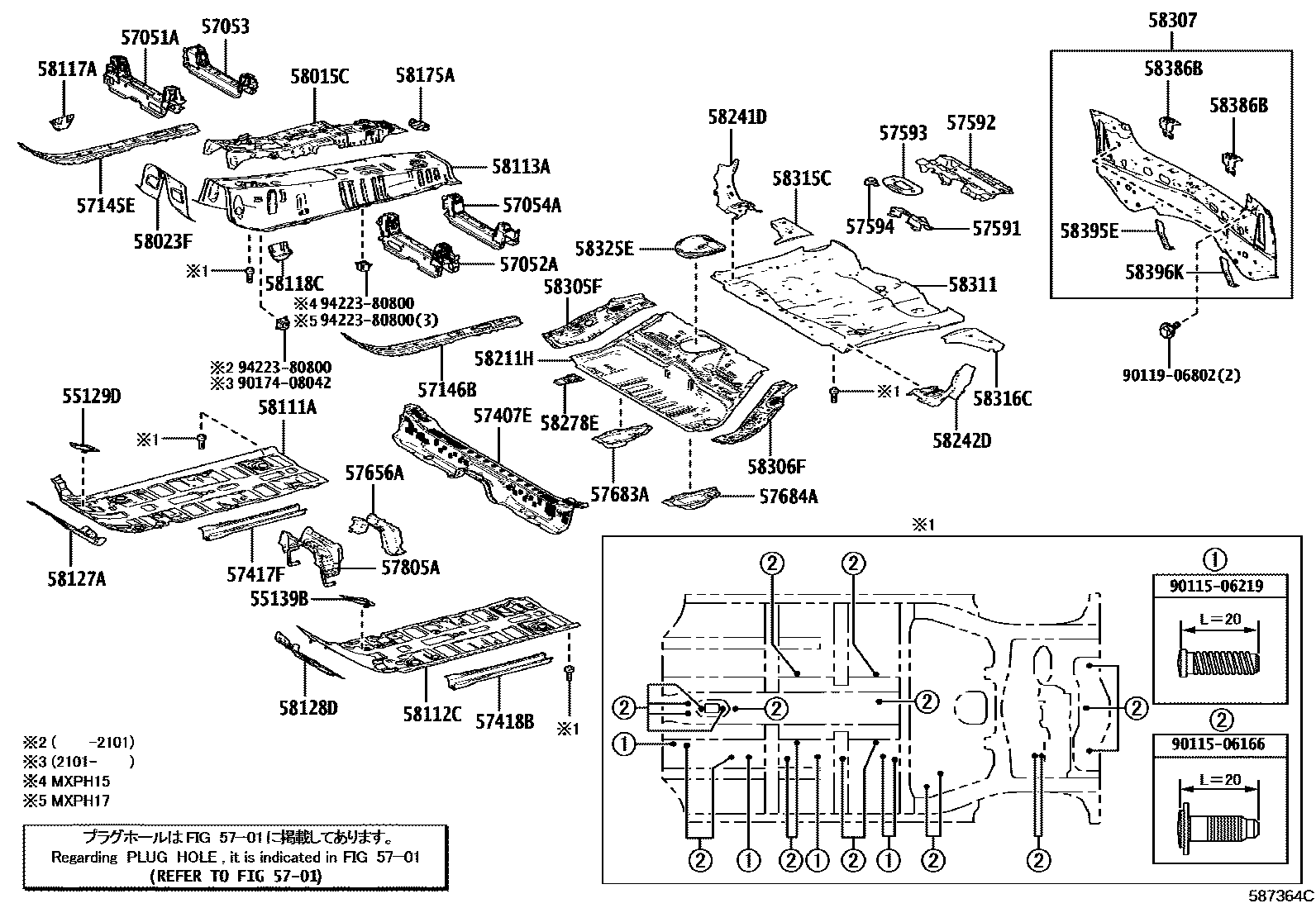

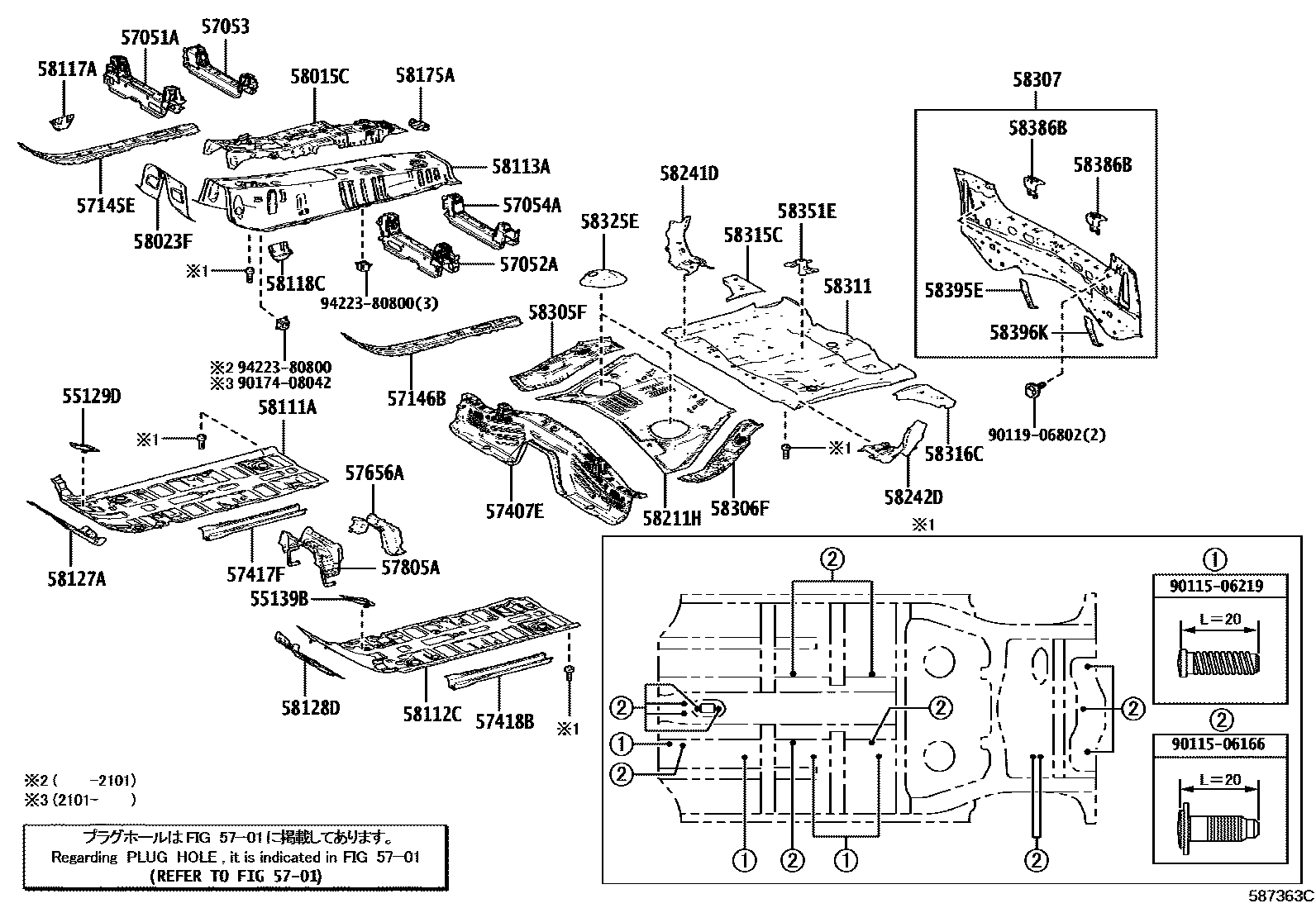

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129D | Right front panel hole cover | 55129-52060 · 55129-K0010 |
| 55139B | Left front panel hole cover | 55139-52030 · 55139-K0010 |
| 57051A | Front floor right cross member sub-assembly | 57051-52110 |
| 57052A | Front floor left cross member sub-assembly | 57052-52100 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-K0010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-K0010 |
| 57145E | Toyota part | 57145-K0010 |
| 57146B | Toyota part | 57146-K0010 |
| 57407E | Center floor beam sub-assembly | 57407-K0010 · 57407-K0020 · 57407-K0030 |
| 57417F | Front floor lower right reinforcement | 57417-K0010 |
| 57418B | Front floor lower left reinforcement | 57417-K0010 |
| 57591 | Voltage converter front lower mounting bracket | 57591-K0010 |
| 57592 | Voltage converter rear lower mounting bracket | 57592-K0010 |
| 57593 | Voltage converter front mounting bracket | 57593-K0010 |
| 57594 | Voltage converter rear upper mounting bracket | 57594-K0010 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-K0020 · 57656-K0030 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-K0020 |
| 57684A | No. 2 fuel tank mounting bracket | 57684-K0020 |
| 57805A | Rear No. 1 seat support No. 1 reinforcement sub-assembly | 57805-K0020 · 57805-K0030 |
| 58015C | Toyota part | 58015-K0010 · 58015-K0020 |
| 58023F | Toyota part | 58023-K0010 |
| 58111A | Front floor right bottom panel | 58111-K0010 |
| 58112C | Front floor left bottom panel | 58112-K0010 |
| 58113A | front floor center panel | 58113-52230 · 58113-52240 · 58113-52520 · 58113-52530 |
| 58117A | Front floor right reinforcement | 58117-52090 |
| 58118C | Front floor left reinforcement | 58118-52040 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-K0010 |
| 58128D | Toyota part | 58128-K0010 |
| 58175A | No. 1 parking brake base reinforcement | 58175-K0020 |
| 58211H | central floor base | 58211-K0010 · 58211-K0020 · 58211-K0030 |
| 58241D | Right front wheel housing inner corner panel | 58203-K0010 · 58241-K0010 |
| 58242D | Left front wheel housing inner corner panel | 58204-K0010 · 58242-K0010 |
| 58278E | Floor side reinforcement No. 2 | 58278-K0010 |
| 58305F | Rear floor right side panel sub-assembly | 58305-52120 · 58305-K0010 · 58305-K0020 |
| 58306F | Rear floor left side panel sub-assembly | 58306-52160 · 58306-K0010 · 58306-K0020 |
| 58307 | Body lower back panel sub-assembly | 58307-K0010 · 58307-K0011 · 58307-K0020 · 58307-K0021 |
| 58311 | rear floor pan | 58311-K0020 · 58311-K0021 · 58311-K0022 · 58311-K0030 · 58311-K0031 · 58311-K0032 · 58311-K0040 · 58311-K0041 · 58311-K0042 |
| 58315C | Rear floor right side panel extension | 58315-K0010 |
| 58316C | Rear floor left side panel extension | 58316-K0010 |
| 58325E | Rear floor access hole cover | 58325-K0010 · 58325-K0020 · 58325-K0030 |
| 58351E | Spare tire clip bracket | 58351-12060 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-47020 |
| 58395E | Back door opening lower right corner panel | 58395-K0020 |
| 58396K | Rear door opening lower left corner panel | 58395-K0020 |
