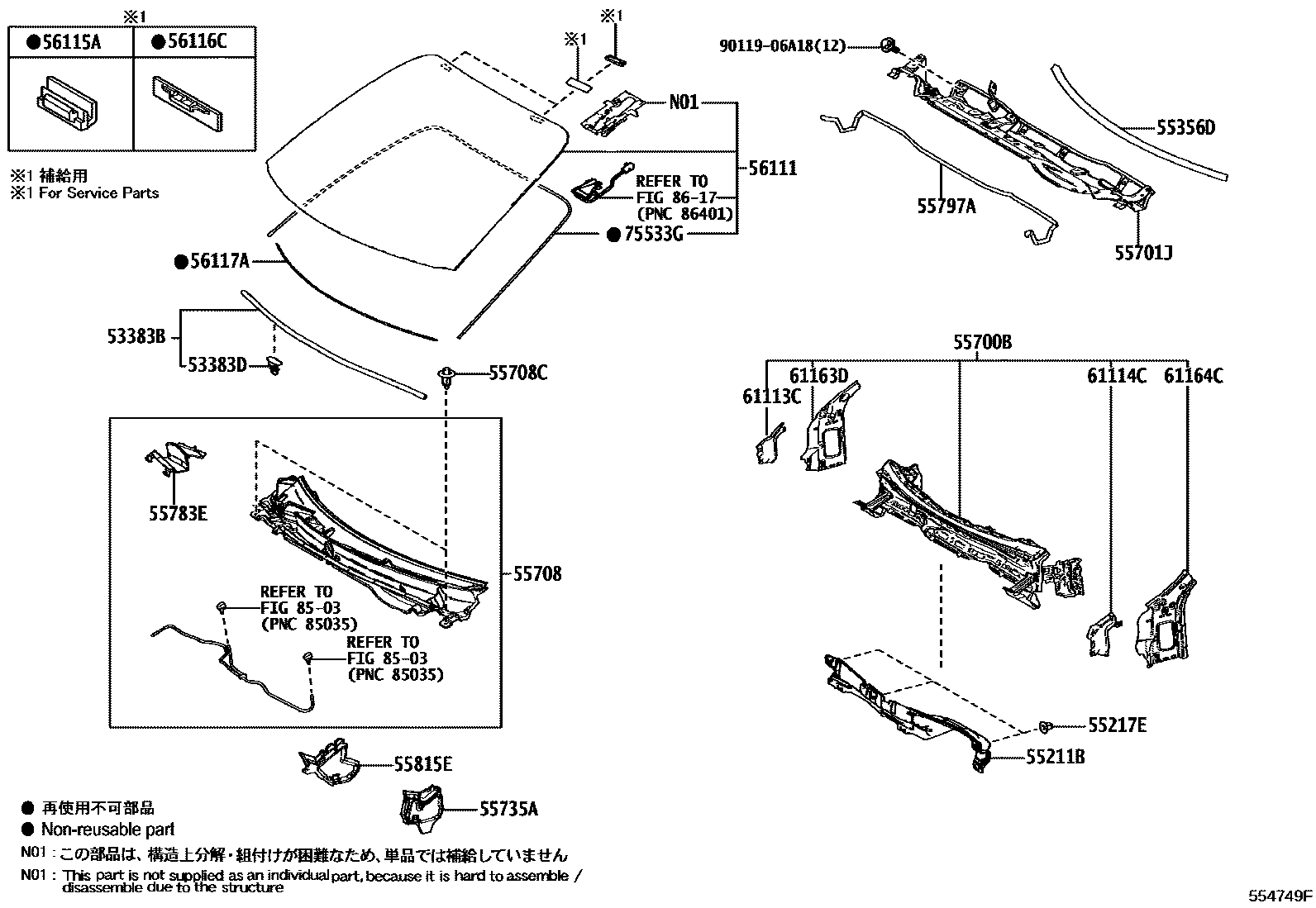

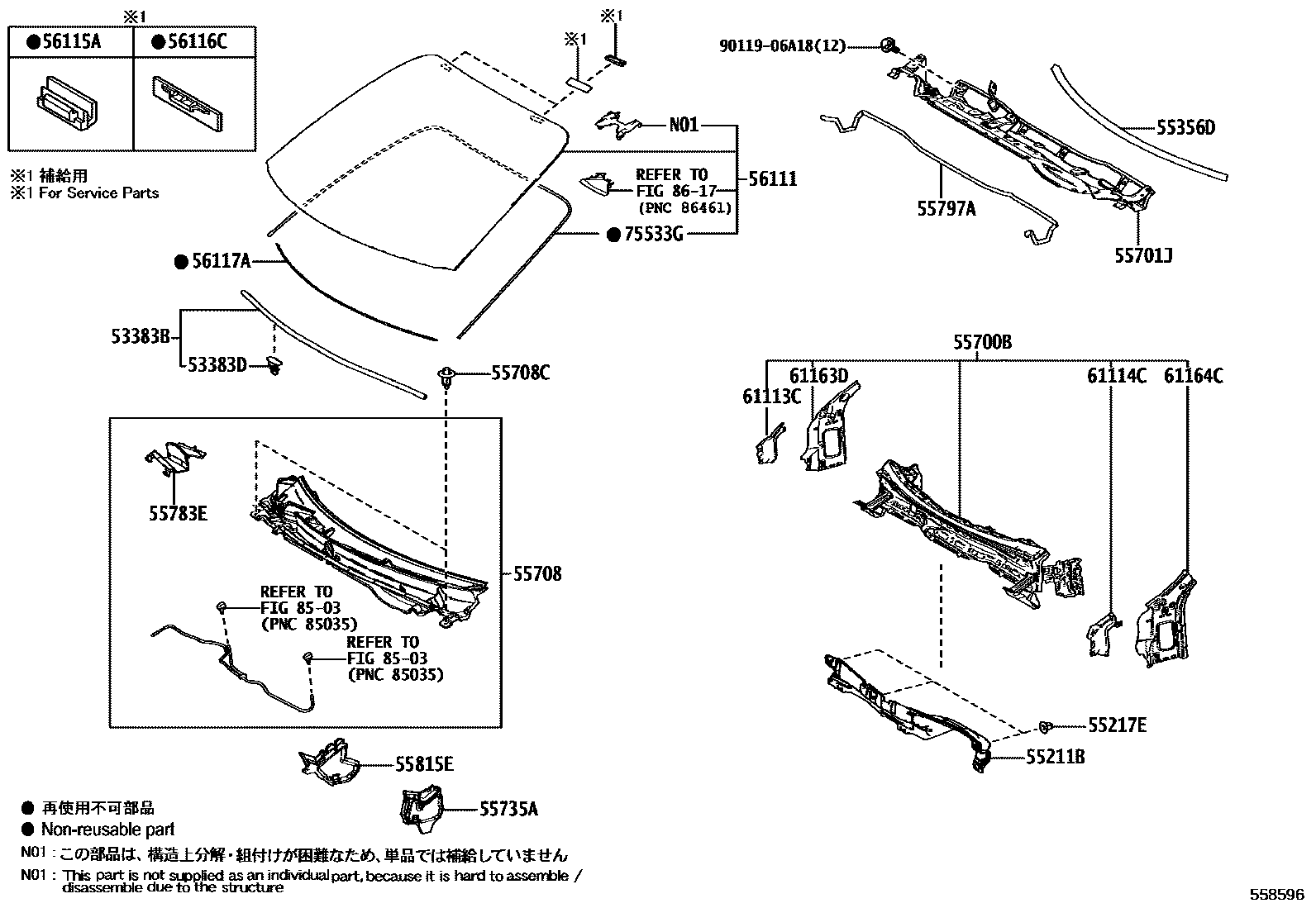

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-K0010 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55211B | Front panel silencer | 55211-K0050 |
| 55217E | Toyota part | 55217-51010 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-K2010 |
| 55700B | Toyota part | 55700-52450 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-52420 · 55701-52470 |
| 55708 | Toyota part | 55708-K0010 · 55708-K0020 |
| 55735A | Left waterproof cover panel | 55735-K0060 |
| 55783E | Toyota part | 55783-K0010 |
| 55797A | Front wall pumping device seal | 55797-K0010 |
| 55815E | No. 1 front vent seal | 55815-K0060 |
| 56111 | windshield | 56101-52B00 · 56101-52B10 · 56101-52R80 · 56101-52R90 · 56101-52S10 · 56101-52S20 · 56101-52S30 · 56101-52S40 · 56101-52S50 · 56101-52S60 · 56101-52S70 · 56101-52U10 · 56101-52U20 · 56101-52U30 · 56101-52U40 · 56101-52U50 · 56101-52U60 · 56101-52X10 · 56101-52X20 · 56101-52X40 · 56101-52X60 · 56101-52X80 · 56101-52Y00 · 56101-52Y20 · 56101-52Y40 · 56101-52Y50 · 56101-52Y60 · 56101-52Y80 · 56101-52Z00 · 56101-52Z20 · 56101-52Z40 · 56101-K0010 · 56101-K0020 · 56101-K0030 · 56101-K0050 · 56101-K0060 · 56101-K0070 · 56101-K0080 · 56101-K0090 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 61113C | Toyota part | 61113-K0010 |
| 61114C | Toyota part | 61114-K0010 |
| 61163D | Toyota part | 61163-K0010 |
| 61164C | Toyota part | 61164-K0010 |
| 75533G | Windshield outer protective strip | 75533-K0010 |
