Toyota YARIS 仪表板和手套箱 — Figure 5501

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 6 images and 18 PNC and OE references.

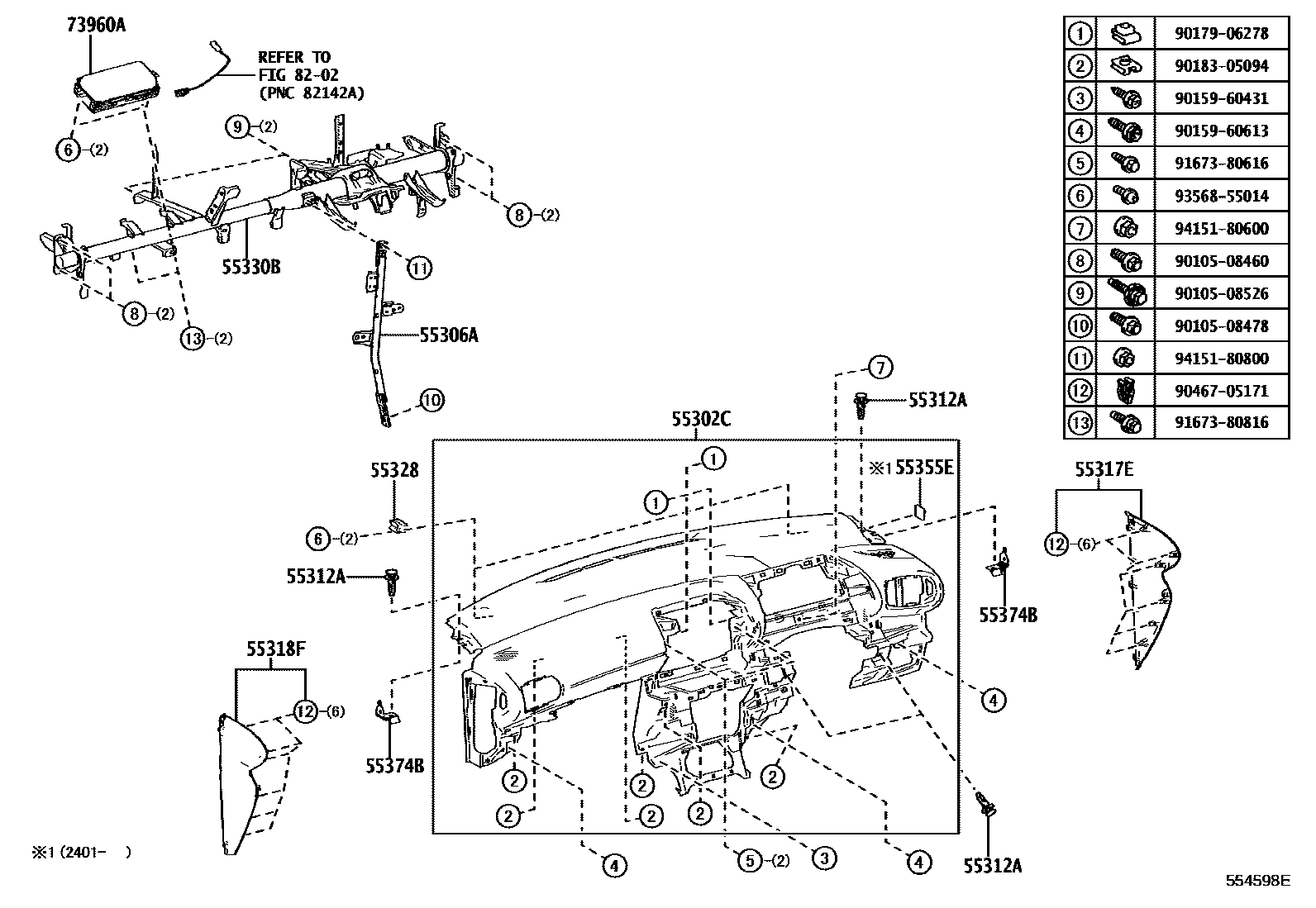

Toyota YARIS 仪表板和手套箱 EPC diagram — 554598E
仪表板和手套箱 — 554598E (202002 – 999999)

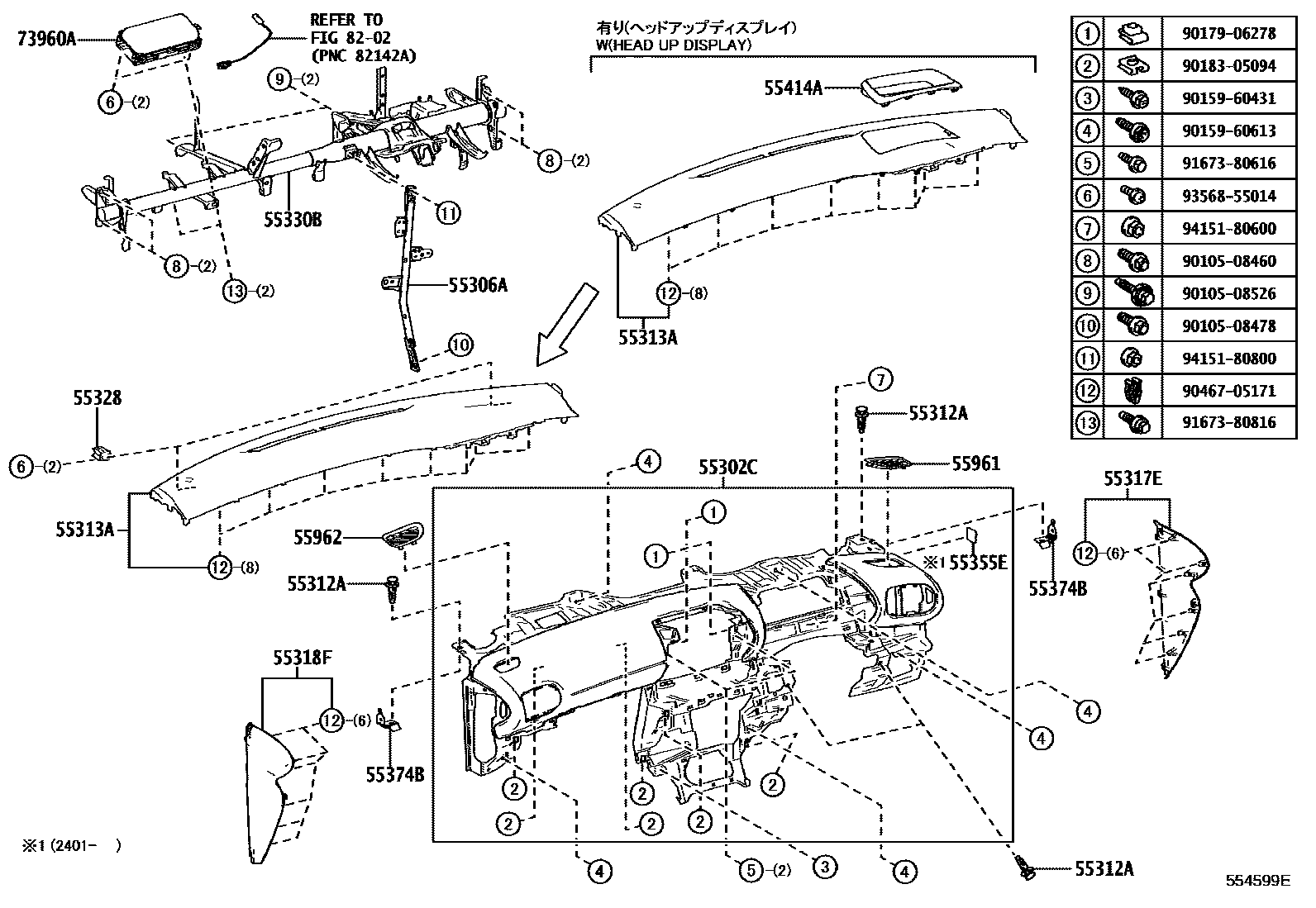

Toyota YARIS 仪表板和手套箱 EPC diagram — 554599E
仪表板和手套箱 — 554599E (202002 – 999999)

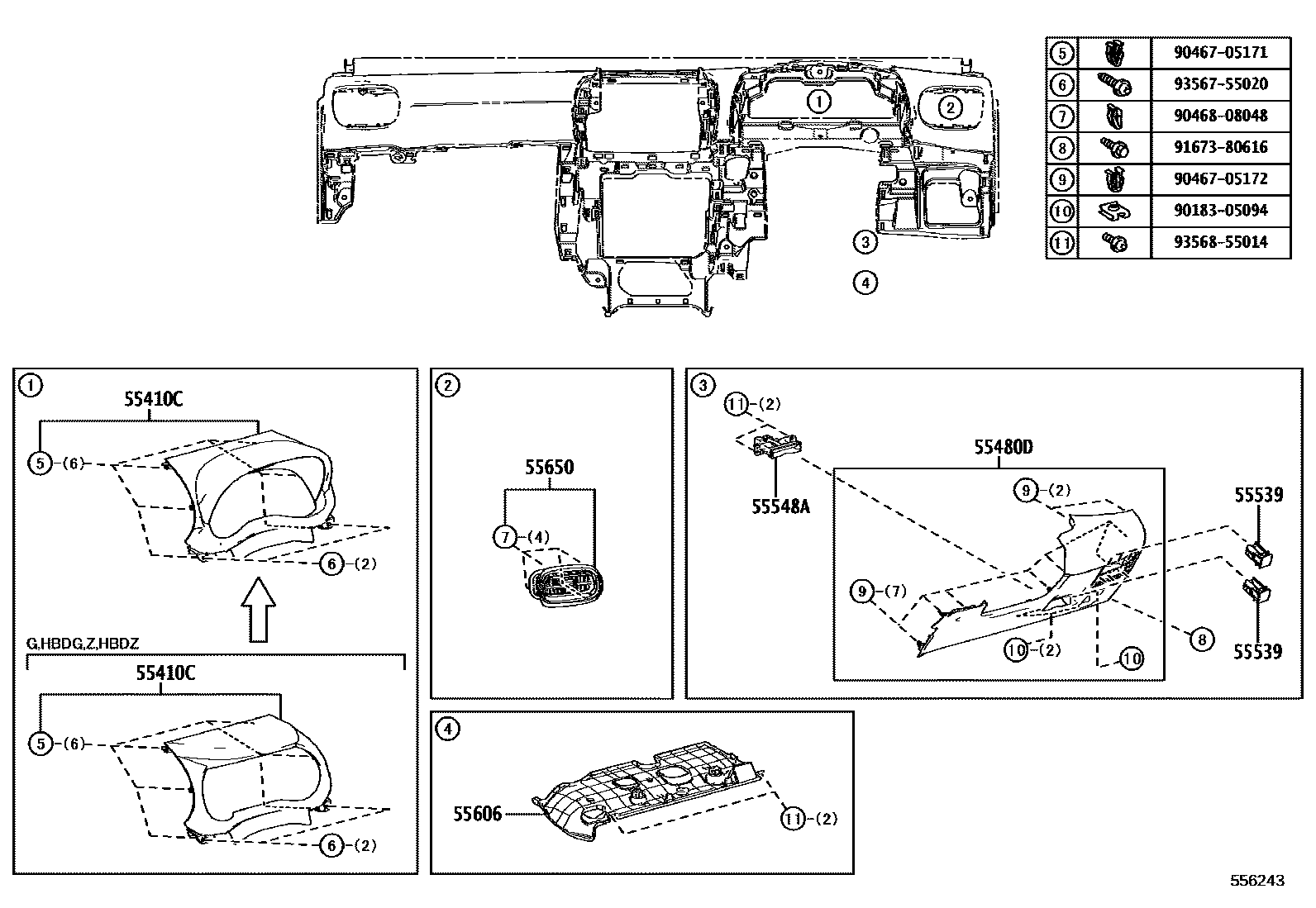

Toyota YARIS 仪表板和手套箱 EPC diagram — 556243
仪表板和手套箱 — 556243 (202002 – 999999)

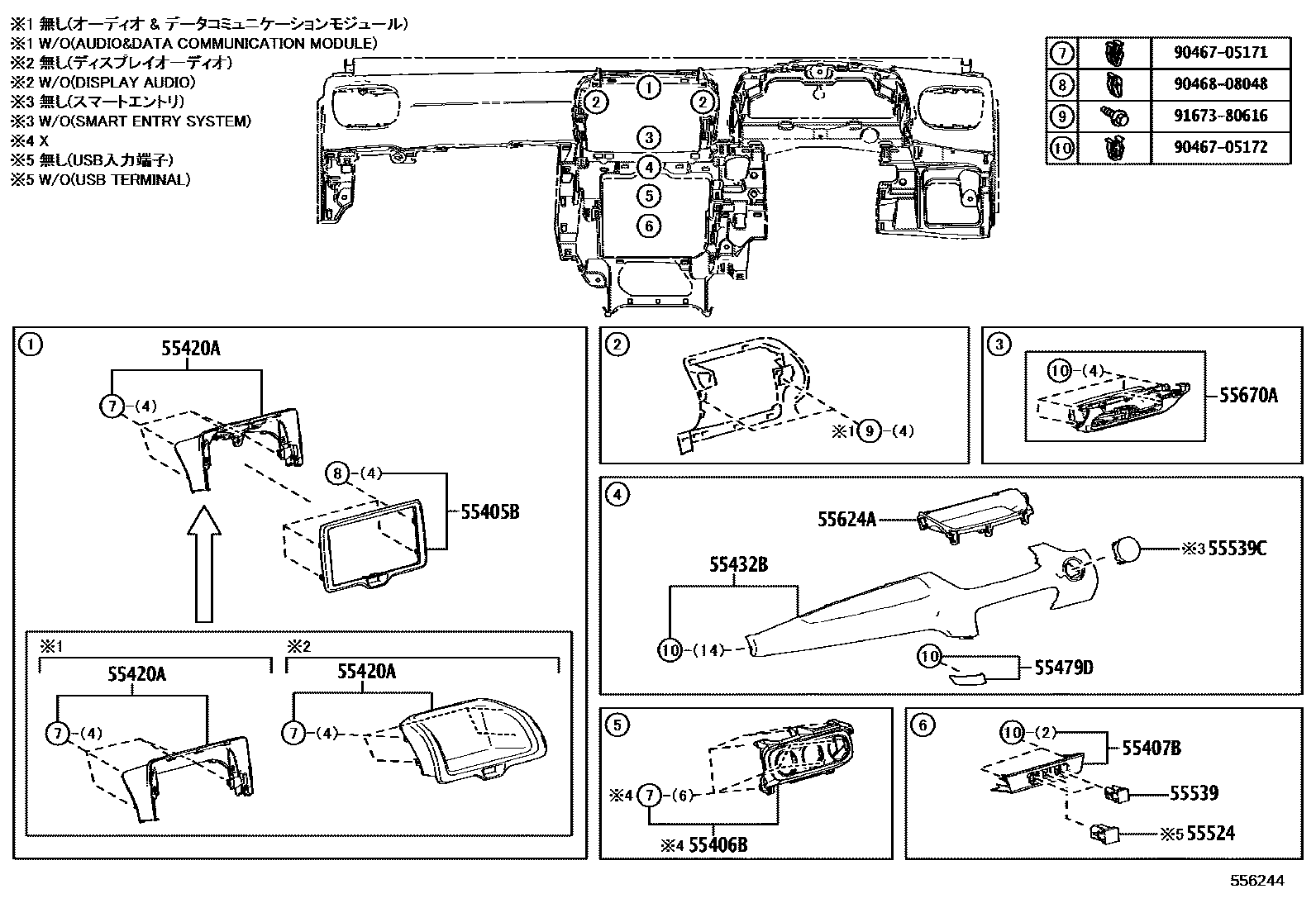

Toyota YARIS 仪表板和手套箱 EPC diagram — 556244
仪表板和手套箱 — 556244 (202002 – 202401)

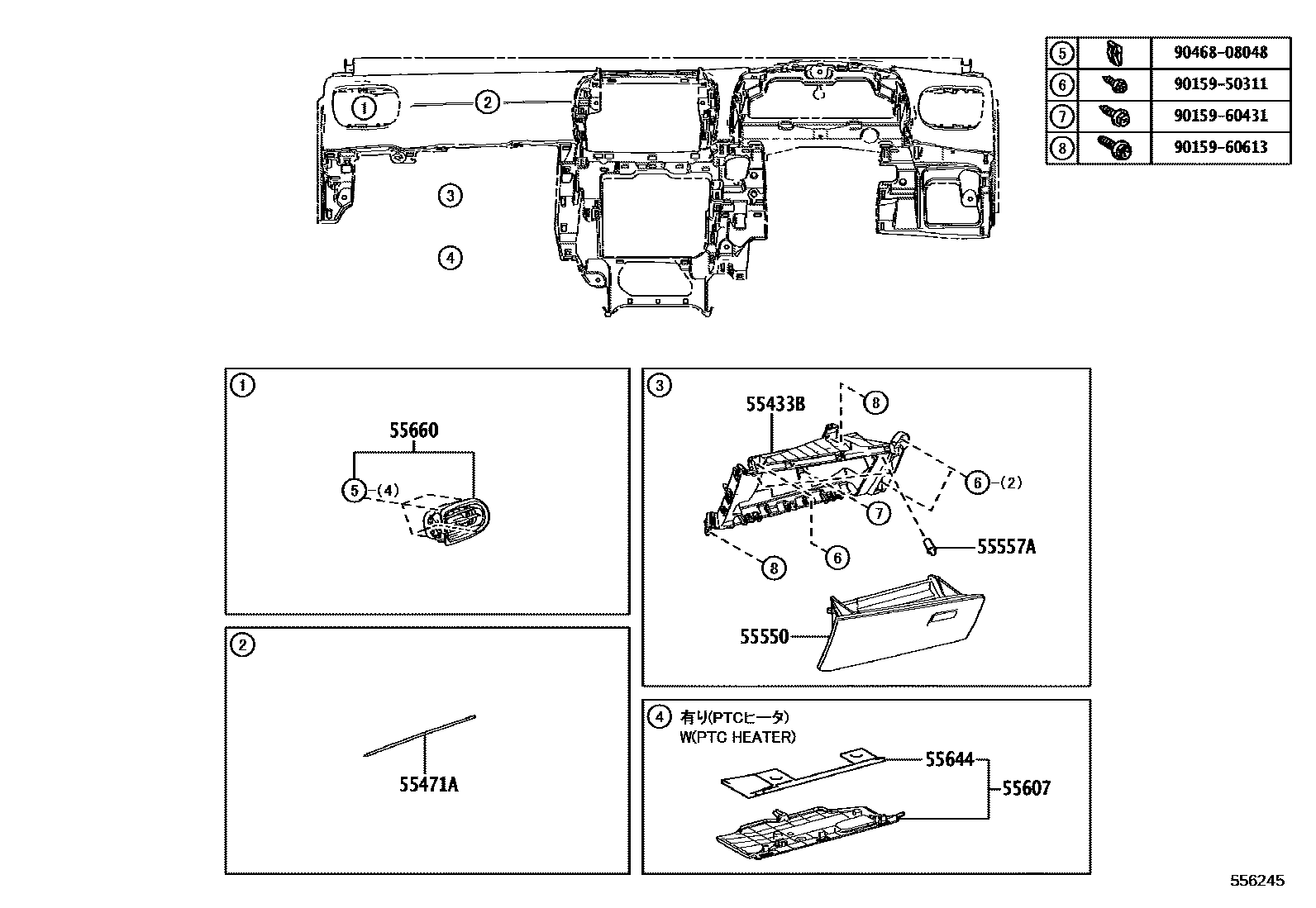

Toyota YARIS 仪表板和手套箱 EPC diagram — 556245
仪表板和手套箱 — 556245 (202002 – 999999)
Toyota YARIS 仪表板和手套箱 EPC diagram — 5585EE
仪表板和手套箱 — 5585EE (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
55306AInstrument panel No. 1 bracket sub-assembly55306-K0010
55312ADashboard clip52161-16010
55328Instrument panel pin 155328-12430 · 55328-60090
55330BInstrument panel reinforcement assembly55330-52A50 · 55330-52B00 · 55330-52B10 · 55330-K0010
55355EDashboard cushion55355-53050
55374BDashboard bracket55363-52010 · 55363-52020
55405BCenter instrument cluster decorative panel sub-assembly55405-52E00 · 55405-K0010 · 55405-K0020
55406BCenter instrument cluster lower decorative panel sub-assembly55406-K0010
55407BSwitch hole seat sub-assembly55407-52150 · 55407-K0010
55410CInstrument cluster decorative panel assembly55410-K0010 · 55410-K0020
55420ACenter instrument cluster decorative panel assembly55420-52160 · 55420-52220 · 55420-52230 · 55420-K0010
55479DInstrument cluster lower trim panel trim parts55479-K0040
55557AGlove box cover limit pad55557-10040
55606Instrument panel No. 1 bottom cover sub-assembly55606-K0010
55607Instrument panel No. 2 bottom cover sub-assembly55607-K0010
55644No. 2 lower instrument panel muffler pad55644-K0030
55670AInstrument panel central air register assembly55670-K0010
73960ADashboard passenger air bag assembly without cover73960-K0010
