Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 9 images and 45 PNC and OE references.

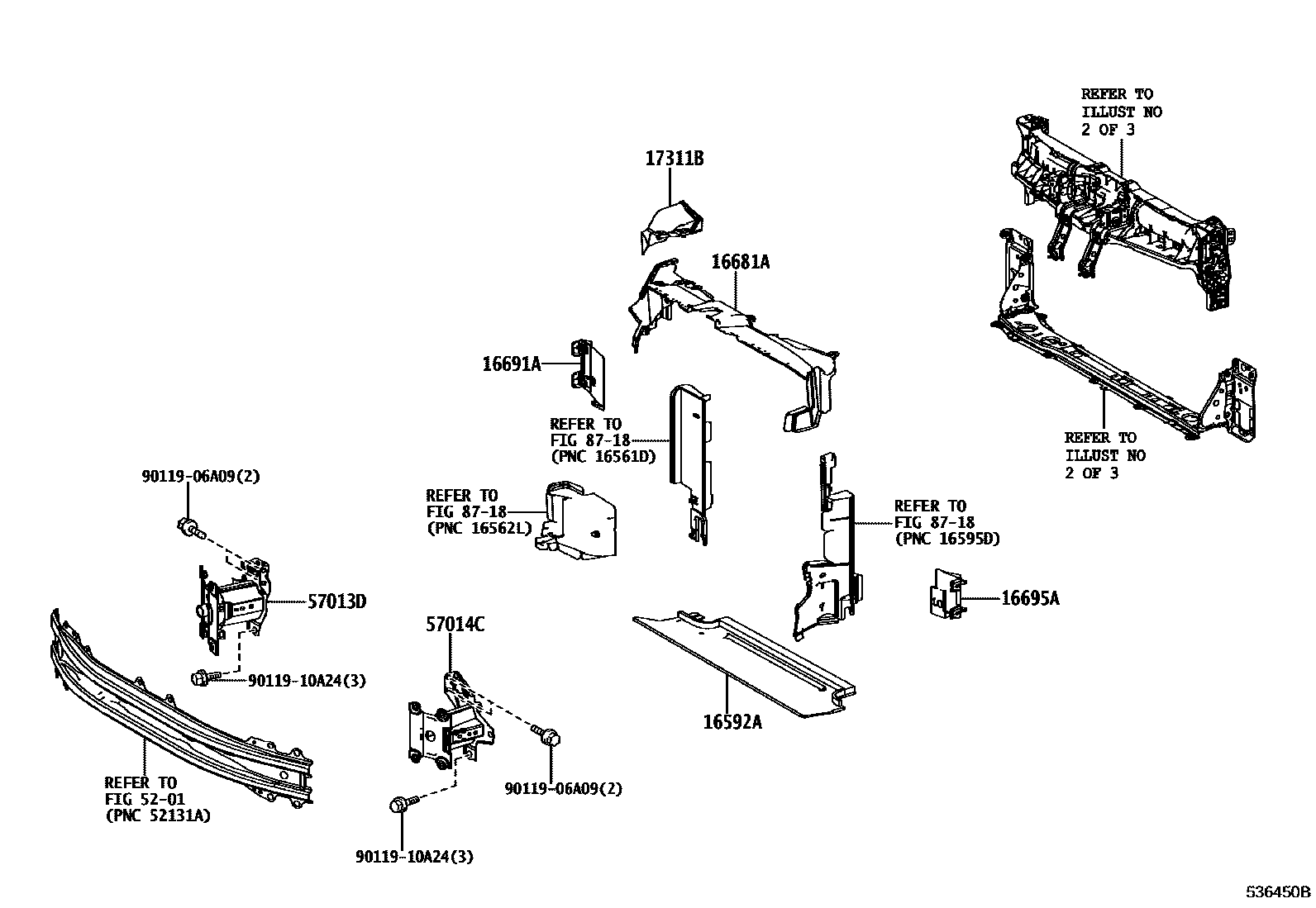

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 536450B
前翼子板挡泥板和前围板 — 536450B (202002 – 202401)

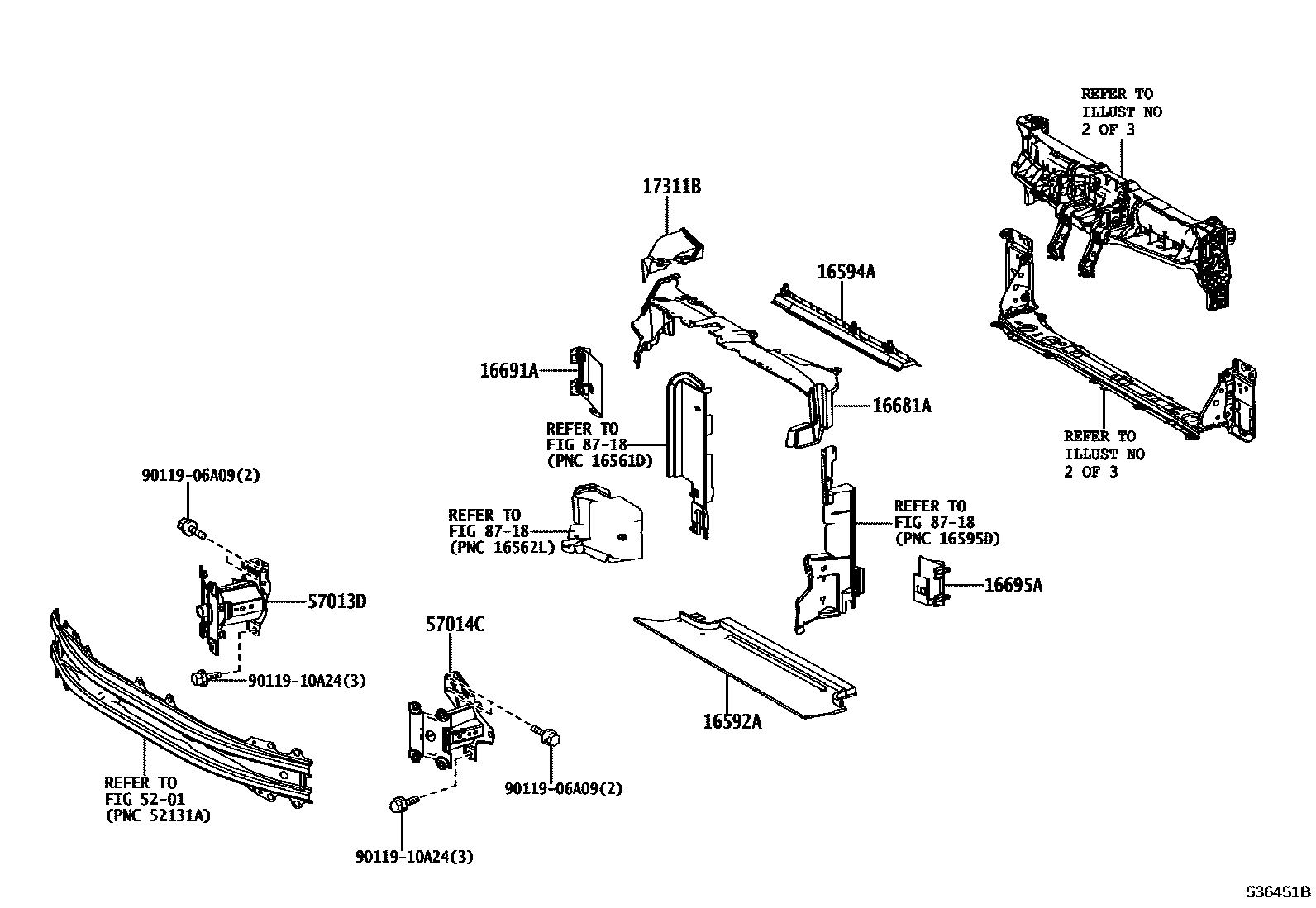

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 536451B
前翼子板挡泥板和前围板 — 536451B (202002 – 202401)

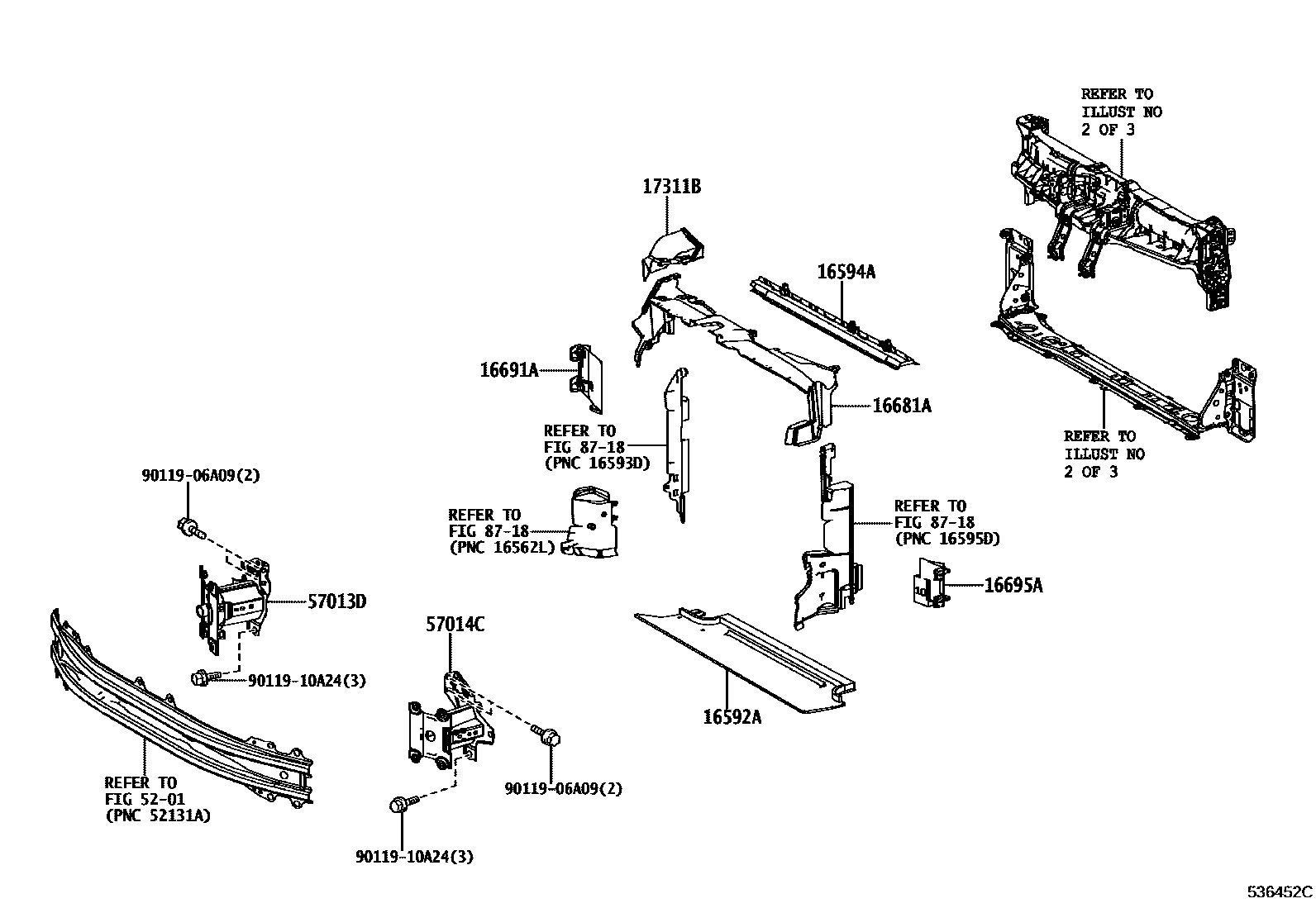

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 536452C
前翼子板挡泥板和前围板 — 536452C (202002 – 999999)

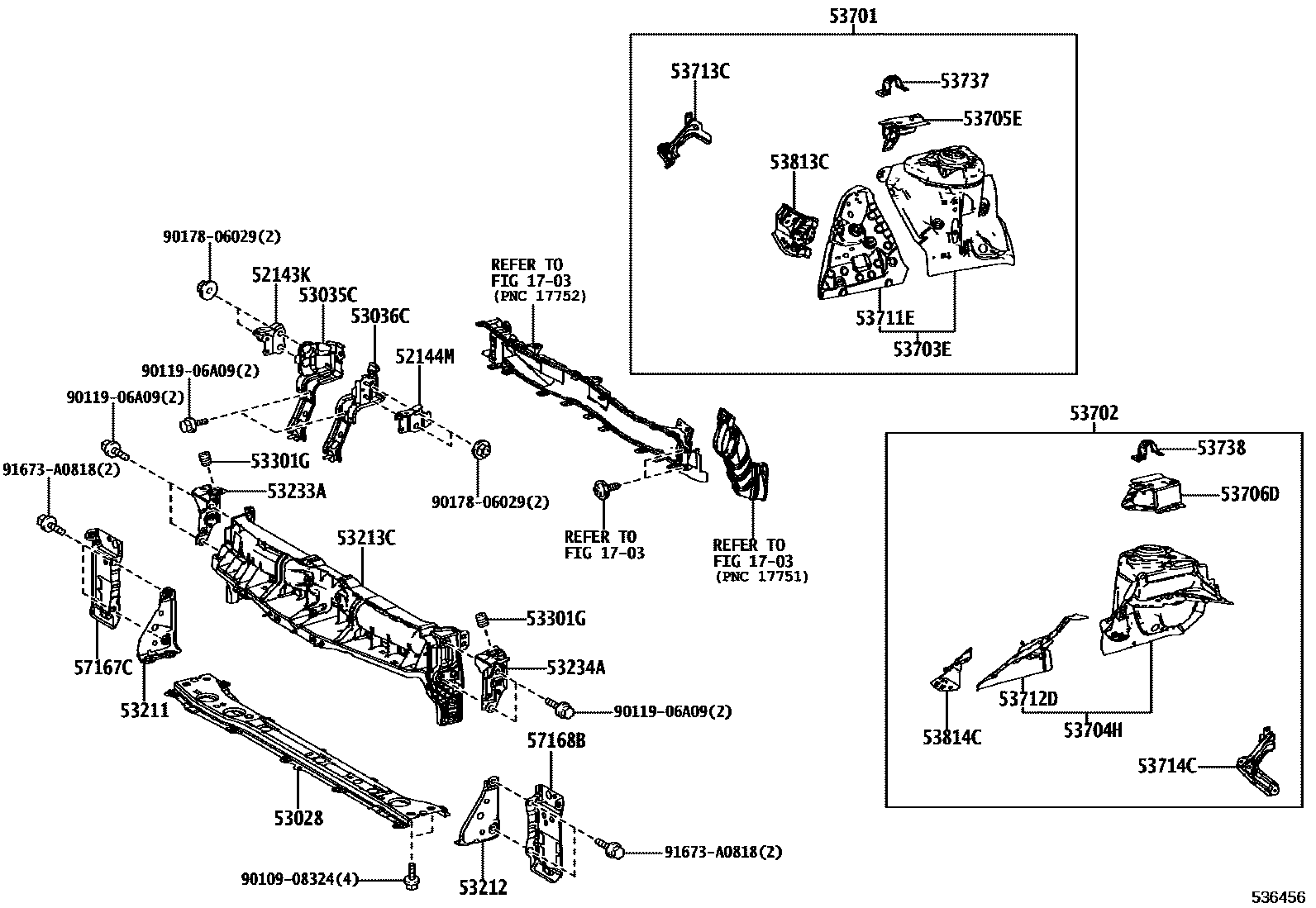

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 536456
前翼子板挡泥板和前围板 — 536456 (202002 – 999999)

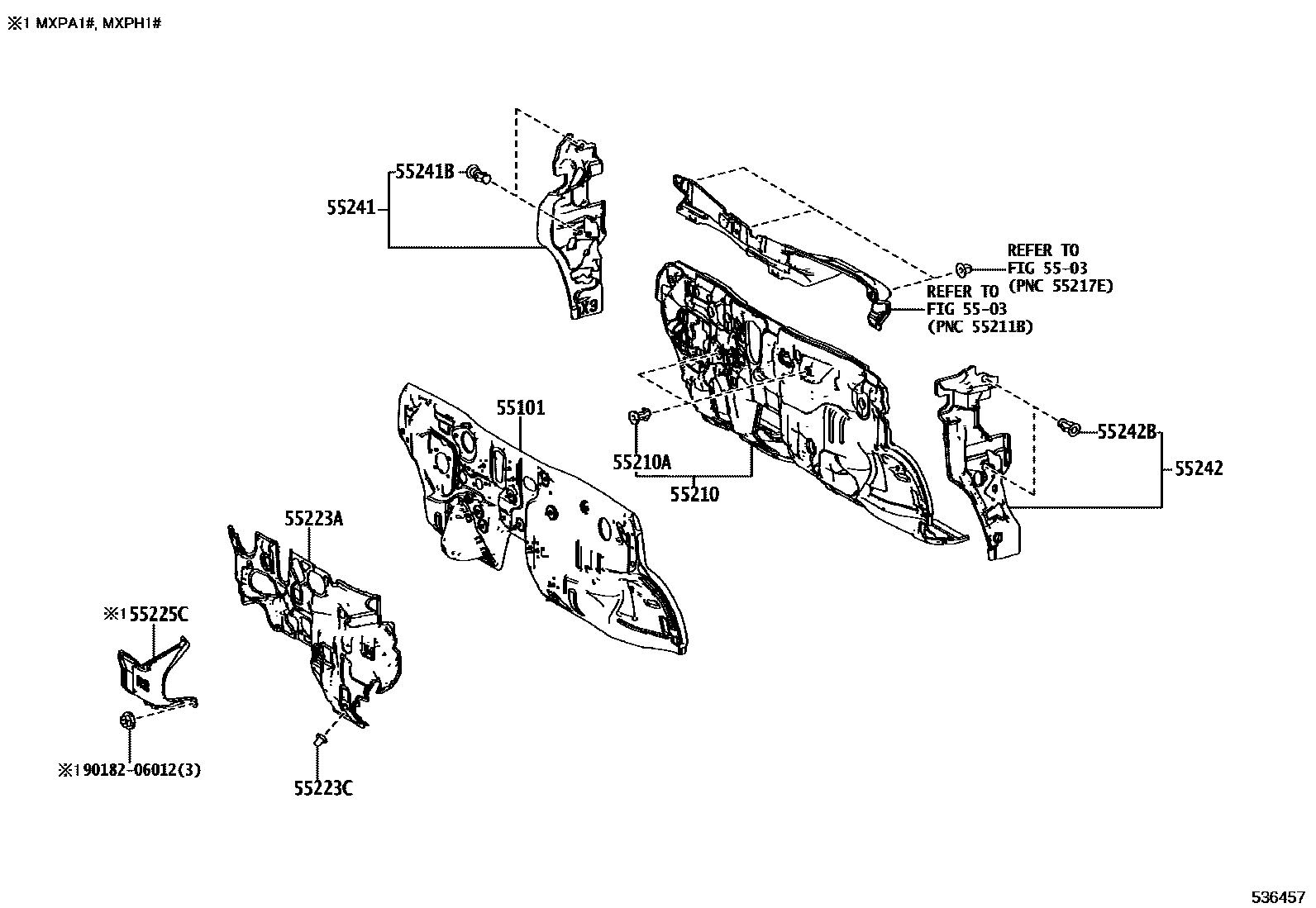

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 536457
前翼子板挡泥板和前围板 — 536457 (202002 – 999999)

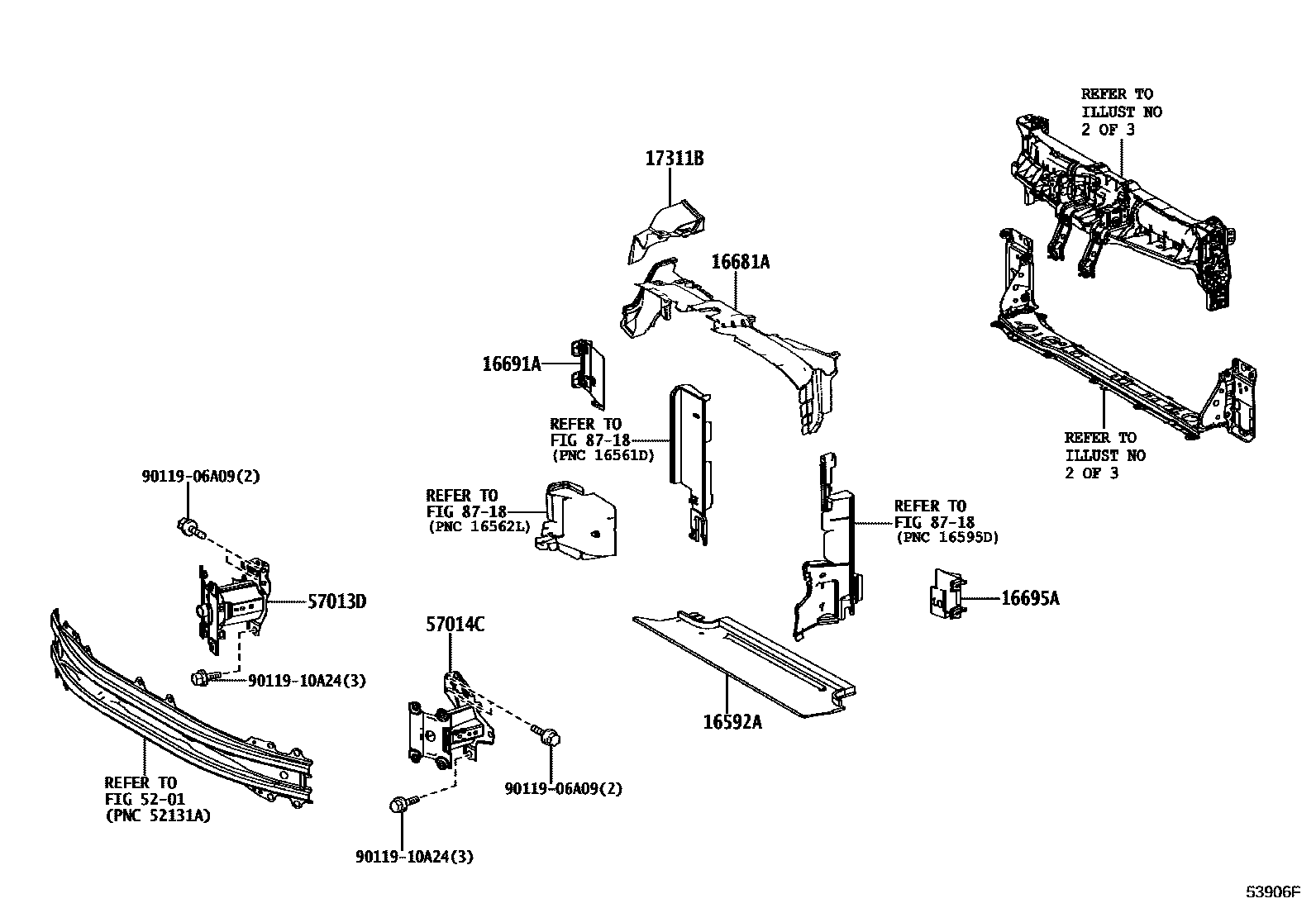

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 53906F
前翼子板挡泥板和前围板 — 53906F (202401 – 999999)

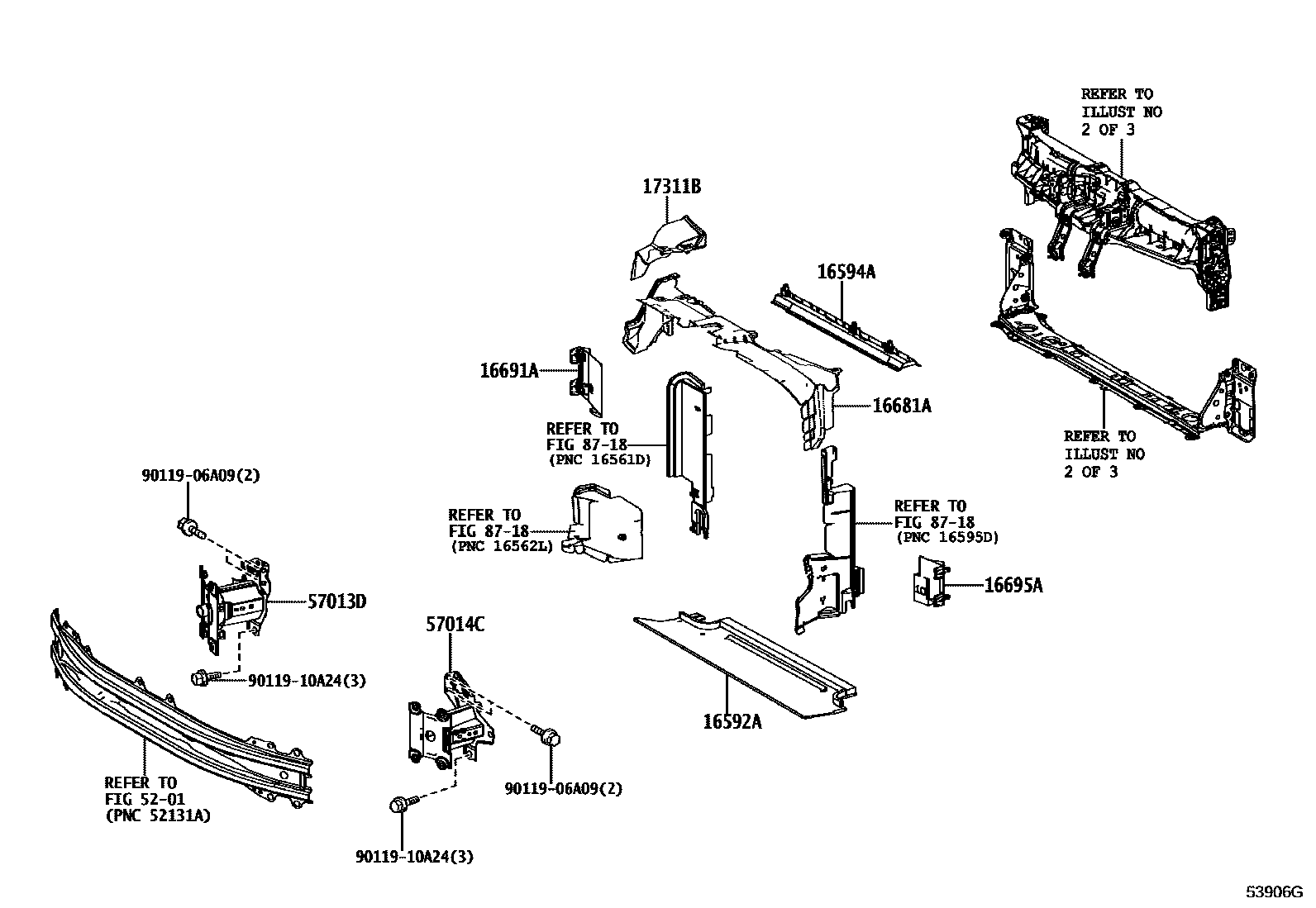

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 53906G
前翼子板挡泥板和前围板 — 53906G (202401 – 999999)

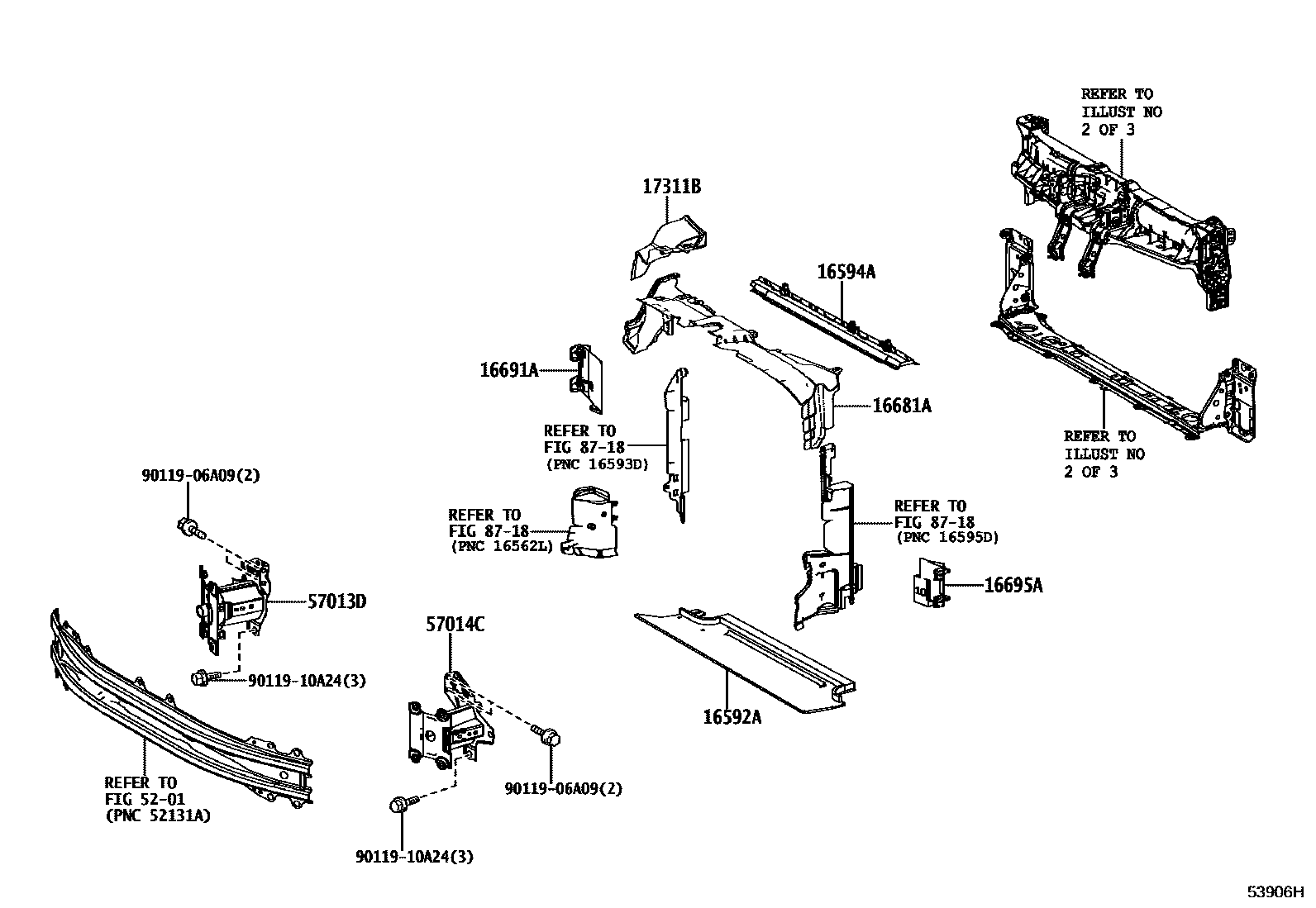

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 53906H
前翼子板挡泥板和前围板 — 53906H (202401 – 999999)
Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 53906I
前翼子板挡泥板和前围板 — 53906I (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
16592AToyota part16592-15020
16594AToyota part16594-15010 · 16594-15020
16681AToyota part16681-15021 · 16681-15070
16691AToyota part16691-15020
16695AToyota part16695-15010
17311BToyota part17311-15010 · 17311-15060
52143KToyota part52143-K0030
52144MToyota part52144-K0030
53028Radiator lower bracket sub-assembly53028-K0010
53035CToyota part53035-K0010
53036CToyota part53036-K0010
53211Radiator right side support53211-K0010
53212Radiator left support53212-K0010
53213CRadiator front upper bracket53213-52180 · 53213-K0010
53233ANo. 1 right headlight bracket53233-52170 · 53233-K0010
53234ANo. 1 left headlight bracket53234-52180 · 53234-K0010
53301Gengine cover cushion90541-15040
53701Right front fender fender sub-assembly53701-K0010
53702Left front fender fender sub-assembly53702-K0010
53703EToyota part53703-52050
53704HToyota part53704-52090
53705EFront fender to front wall right side beam sub-assembly53705-K0010
53706DFront fender to front wall left side beam sub-assembly53706-K0010
53711EToyota part53711-K0010
53712DToyota part53712-K0010
53713CRight front fender fender front extension53713-K0010
53714CLeft front fender fender front extension53714-K0010
53737Right front fender to front wall side sill53737-K0010
53738Left front fender to front wall side sill53738-K0010
53813CRight front fender extension53813-K0010
53814CLeft front fender extension53814-K0010
55101Front apron sub-assembly55101-52740 · 55101-52750
55210Front wall insulation pad assembly55210-52510 · 55210-K0050
55210Aclip90467-11122
55223AFront wall outer heat insulation pad55223-52140
55223Cclip90467-06197
55225CToyota part55225-K0030
55241Front panel No. 1 right side silencer55241-K0030
55241BToyota part90467-13079
55242Front panel No. 1 left side silencer55242-52050 · 55242-K0030
55242BToyota part90467-13079
57013DToyota part57013-K0010
57014CToyota part57014-K0010
57167CFront cross member right corner panel57167-K0010
57168BFront cross member left corner panel57168-K0010
