Toyota YARIS 发动机盖和前翼子板 — Figure 5302

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 34 PNC and OE references.

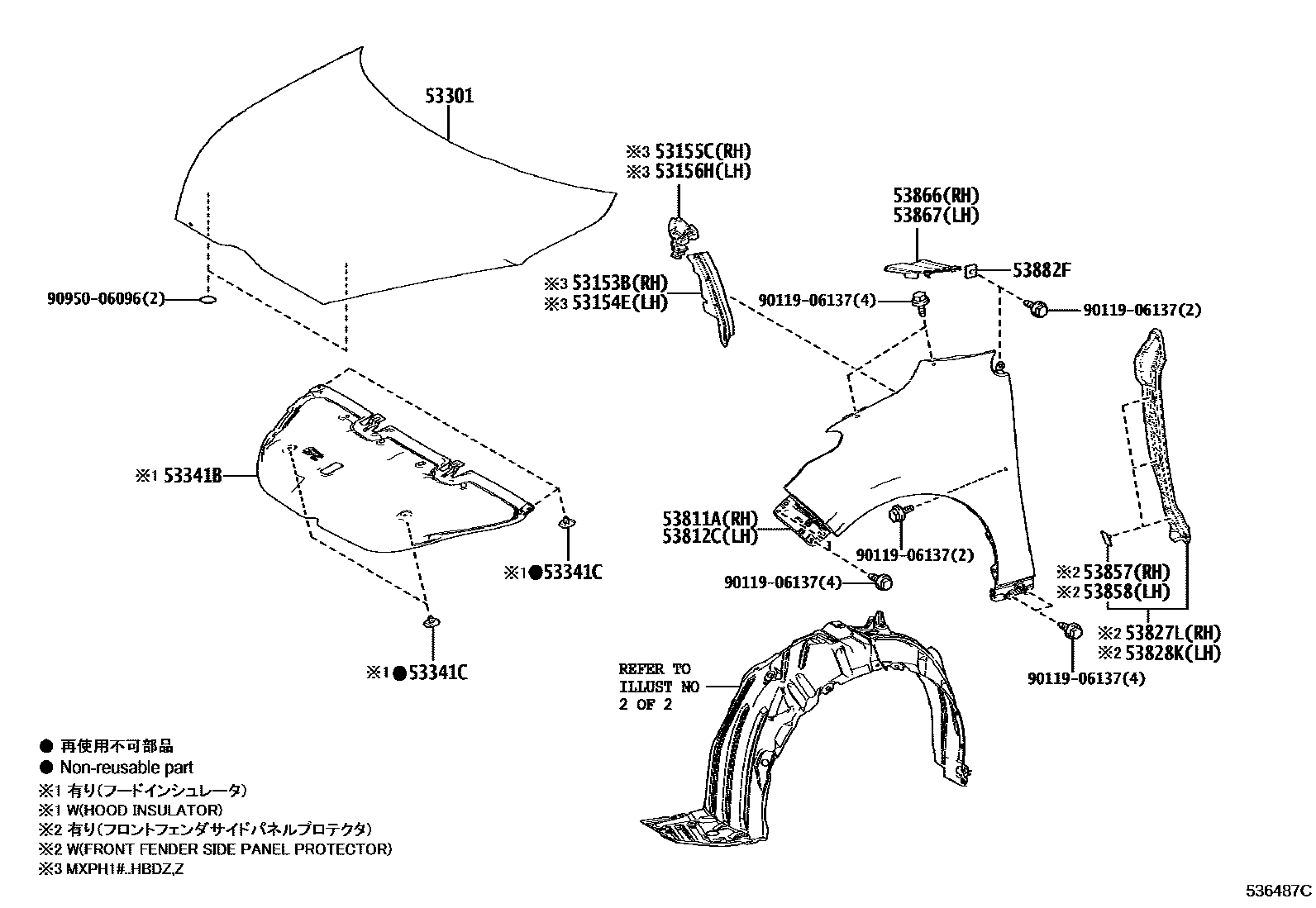

Toyota YARIS 发动机盖和前翼子板 EPC diagram — 536487C
发动机盖和前翼子板 — 536487C (202002 – 999999)

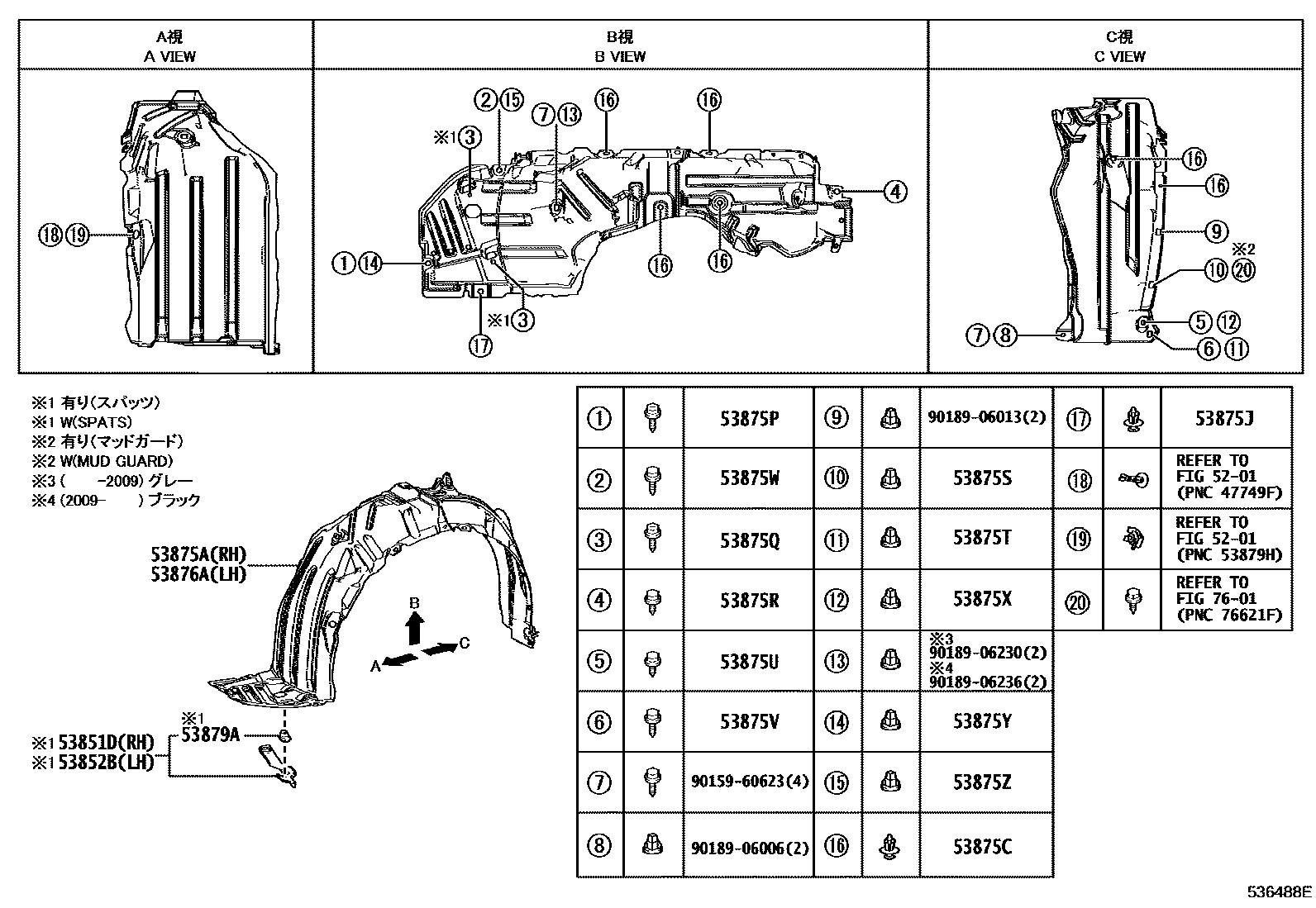

Toyota YARIS 发动机盖和前翼子板 EPC diagram — 536488E
发动机盖和前翼子板 — 536488E (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153Bfront side deflector53153-K0010
53154EToyota part53154-K0010
53155CRadiator grille seal No. 153155-K0010
53156HToyota part53156-K0010
53301Engine cover sub-assembly53301-K0010
53341Bengine cover gasket53341-K0050
53341CClip (for engine cover gasket)90467-09050
53811Aright front fender53811-K0060
53812Cleft front fender53812-K0060
53827LRight front fender side panel protector53827-K0010
53828KLeft front fender side panel protector53828-K0010
53851DRight front fender outer panel pad53851-K0010
53852BLeft front fender exterior panel pad53852-K0010
53857Right front fender external panel fixing piece53857-12010
53858Left front fender external panel fixing piece53857-12010
53866Right front fender to cowl side seal53866-K0010
53867Left front fender to cowl side seal53867-K0010
53875ARight front fender lining53875-K0010
53875CFront fender lining clip90467-07214
53875JToyota part90467-07220
53875PToyota part90159-60477
53875QToyota part90159-60477
53875RToyota part90159-60623
53875SToyota part90189-06013
53875TToyota part90189-06145
53875UToyota part90159-60623
53875VToyota part90159-60623
53875WToyota part90159-60477
53875XToyota part90189-06145
53875YToyota part90189-06237
53875ZToyota part90189-06237
53876ALeft front fender lining53876-K0010 · 53876-K0011
53879AFront fender lining fixing parts53879-17020
53882Ffront fender seal53882-16030
