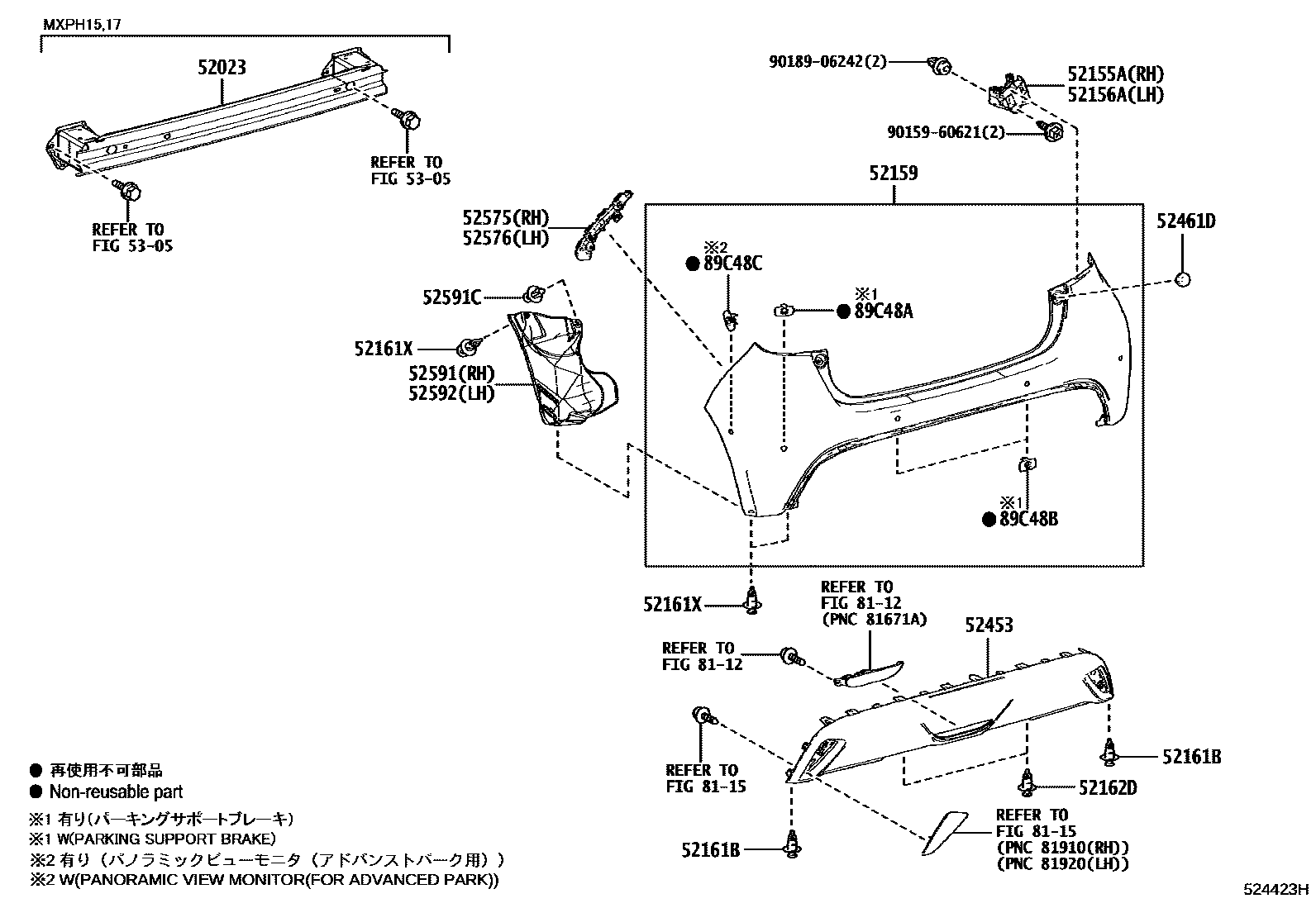

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0W020 |
| 52155A | Rear bumper right side bracket | 52155-K0010 |
| 52156A | Rear bumper left bracket | 52156-K0010 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52161X | Toyota part | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52453 | Toyota part | 52453-K0010 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-K0010 |
| 52576 | Rear bumper left side fixing bracket | 52576-K0010 |
| 52591 | Rear bumper right seal | 52591-52450 |
| 52591C | Toyota part | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-52450 |
| 89C48A | Toyota part | 89348-K0230 · 89348-K0231 |
| 89C48B | Toyota part | 89348-K0230 · 89348-K0231 |
| 89C48C | Toyota part | 89348-K0240 · 89348-K0241 · 89348-K0310 · 89348-K0311 |
