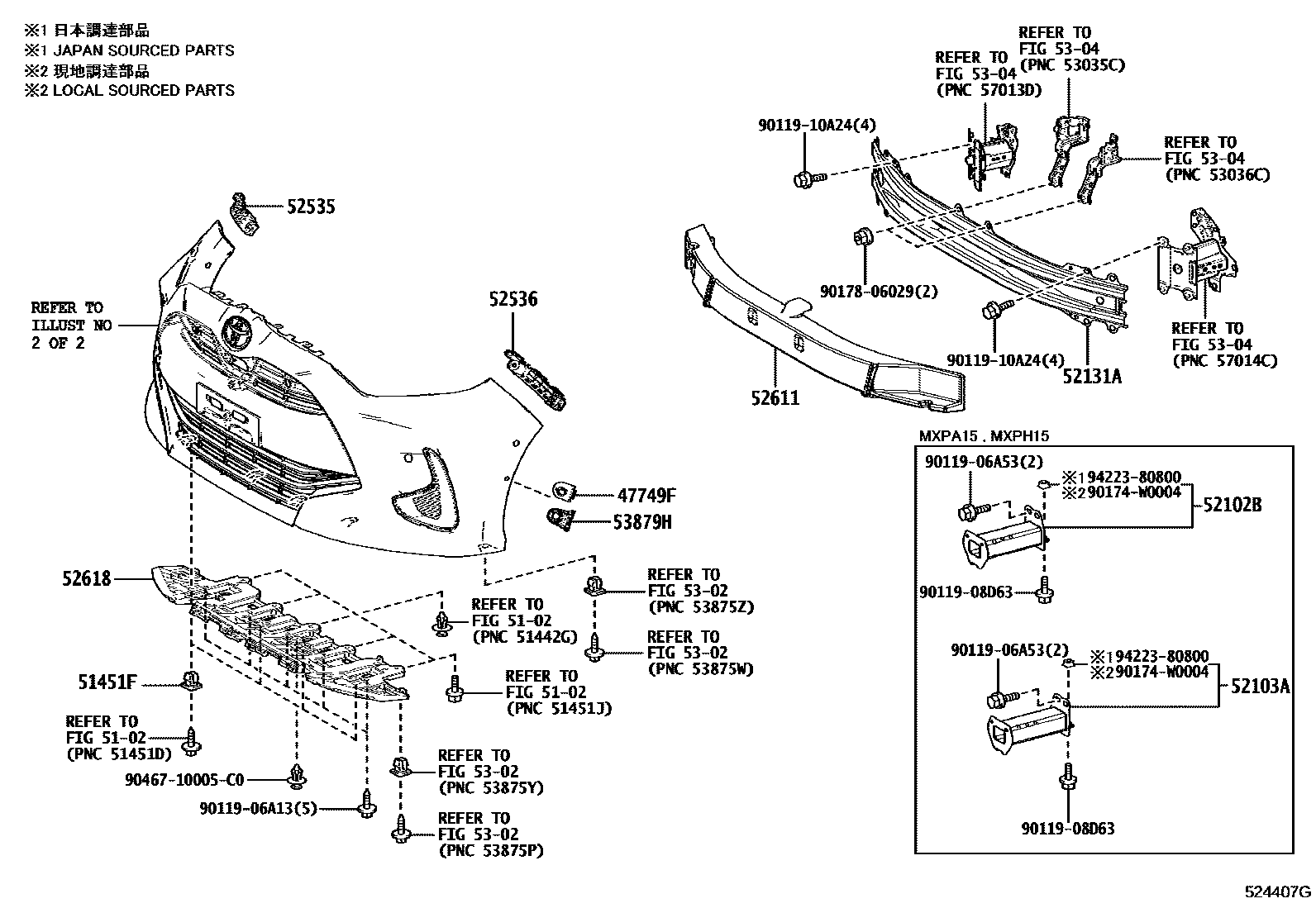

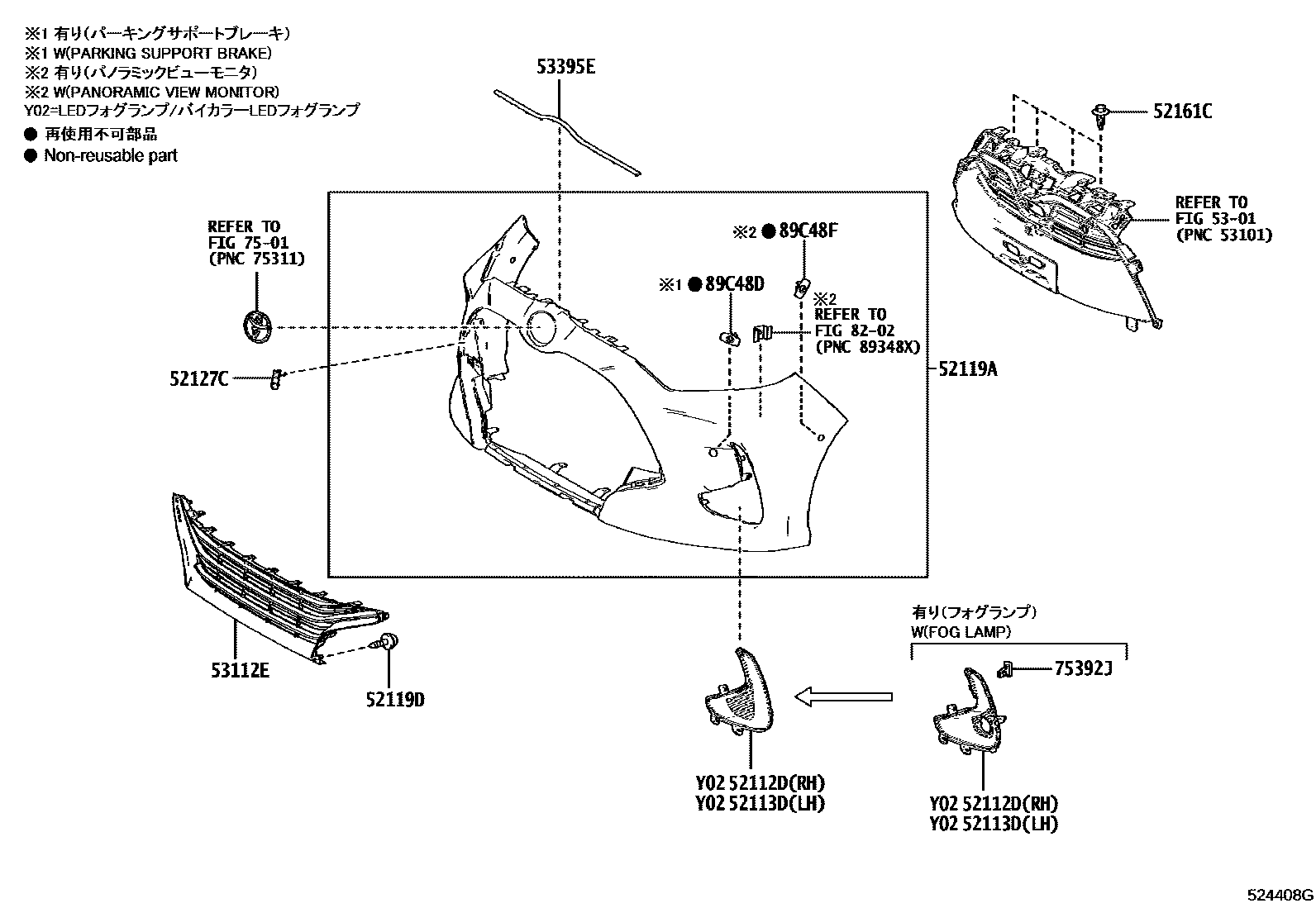

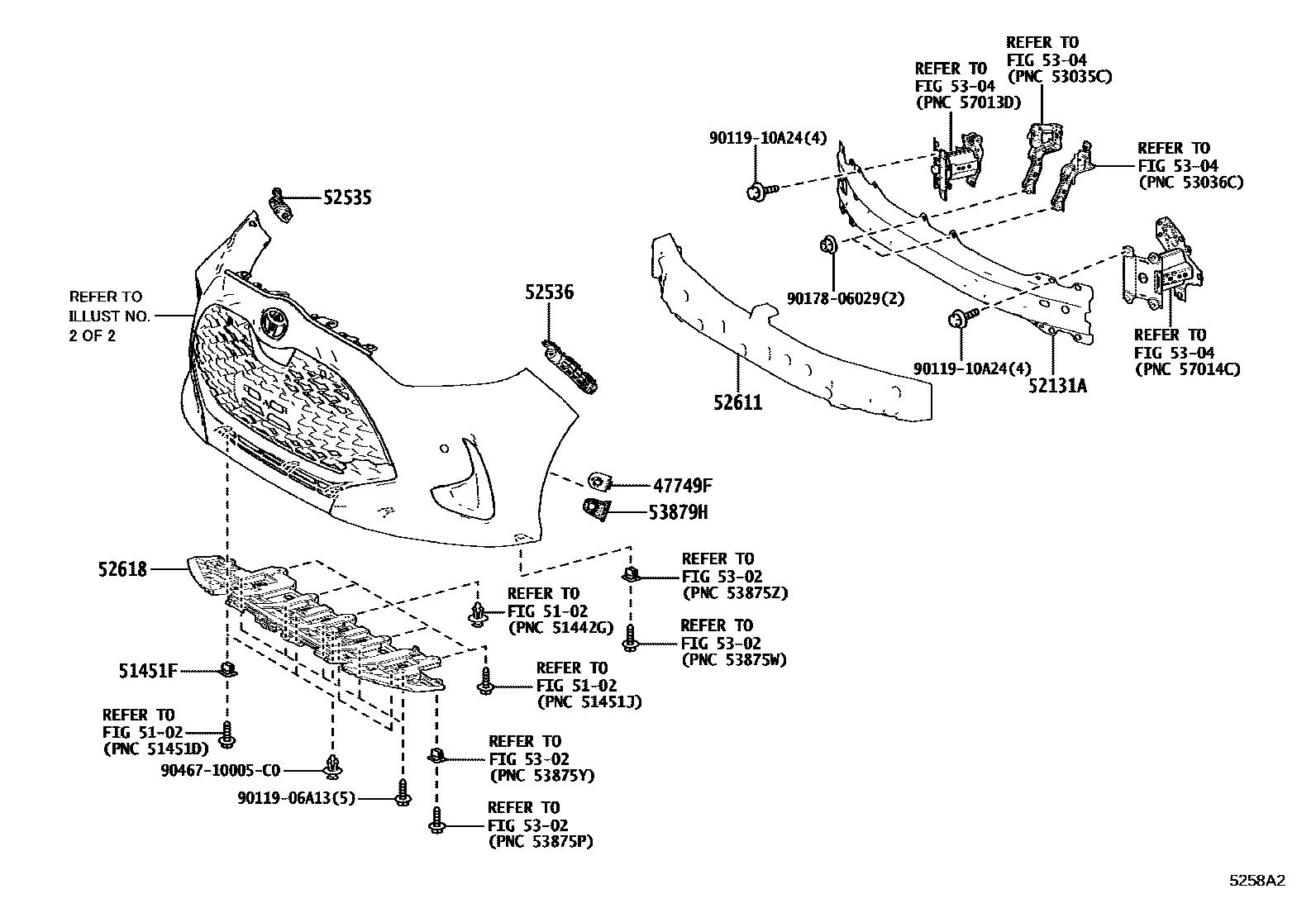

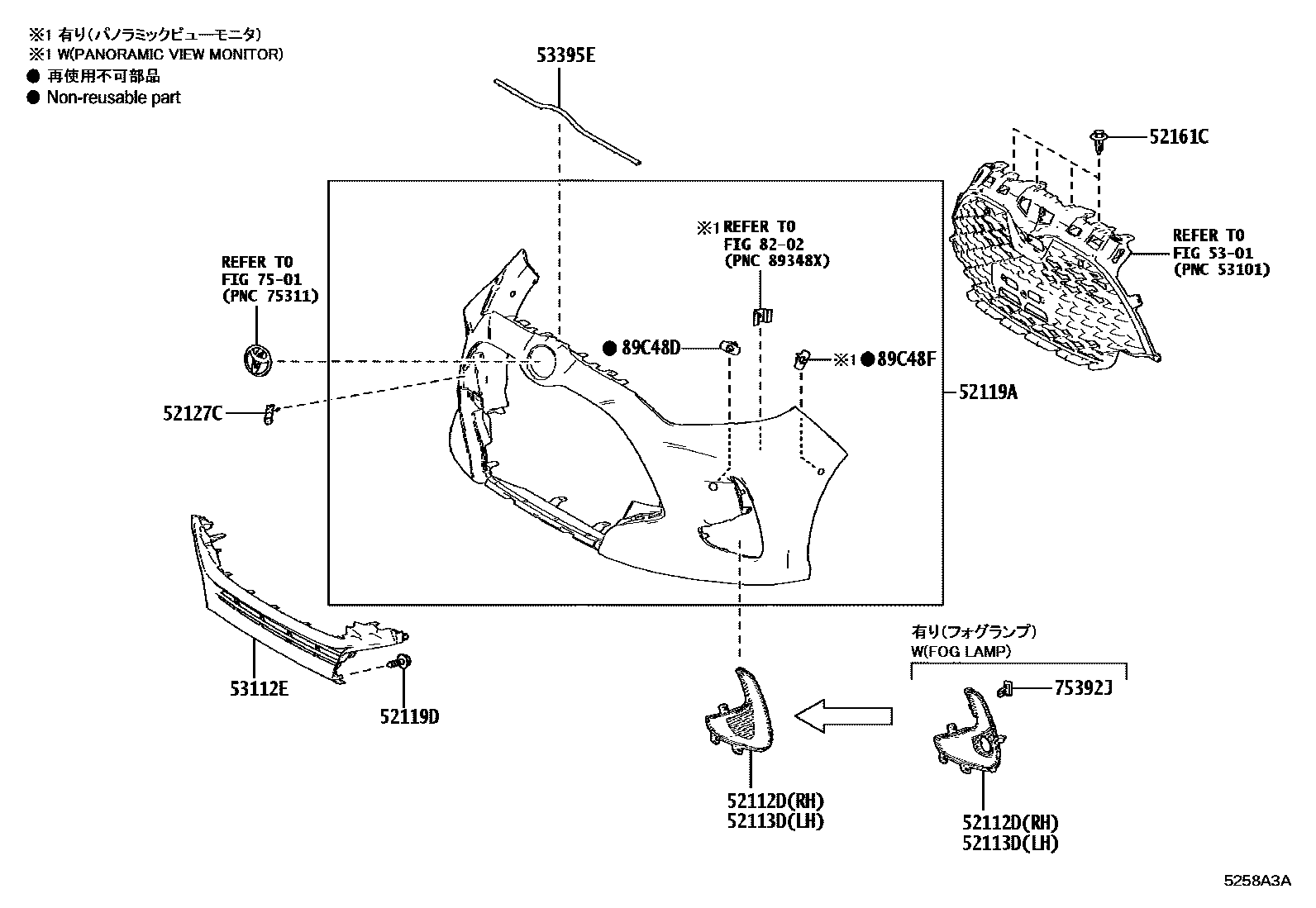

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | Toyota part | 47749-33030 |
| 51451F | Toyota part | 90189-06237 |
| 52102B | Front bumper right extension section sub-assembly | 52102-K0010 · 52102-K0020 |
| 52103A | Front bumper left extension section sub-assembly | 52103-K0010 · 52103-K0020 |
| 52112D | Front bumper right extension | 52112-K0020 · 52112-K0041 |
| 52113D | Front bumper left extension | 52113-K0020 · 52113-K0041 |
| 52119D | Toyota part | 90167-50063 |
| 52131A | Front bumper reinforcement | 52131-52360 · 52131-K0010 · 52131-K0011 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-K0030 |
| 52536 | Front bumper left fixed bracket | 52536-K0030 |
| 52611 | front bumper energy absorber | 52611-52430 · 52611-K0030 |
| 52618 | Front bumper lower shock absorber | 52618-52170 |
| 53112E | No. 1 radiator lower grille | 53112-52880 · 53112-K0040 |
| 53395E | Engine cover to front end plate seal | 53395-K0010 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
| 89C48F | Toyota part | 89348-K0240 · 89348-K0241 · 89348-K0310 · 89348-K0311 |
