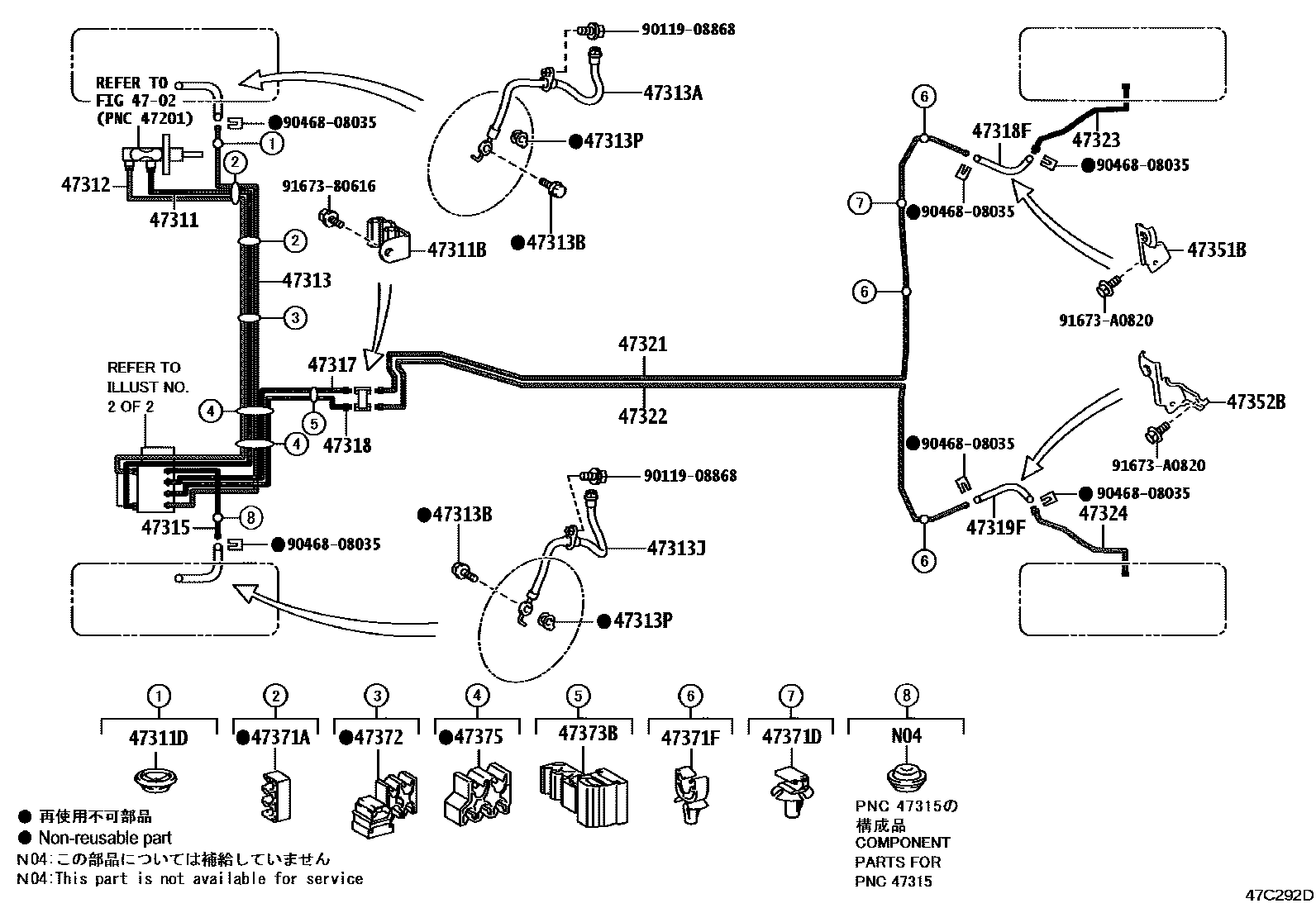

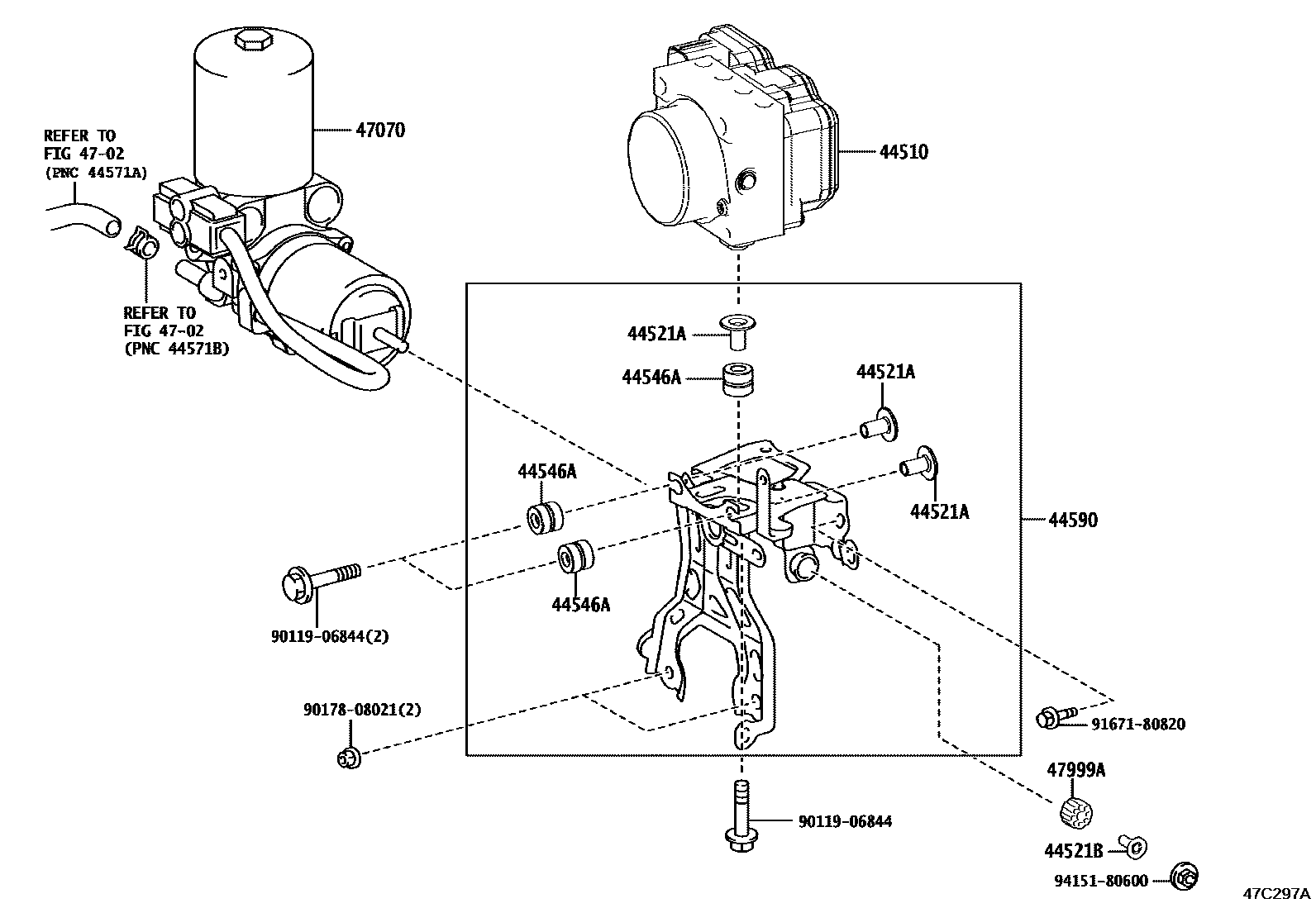

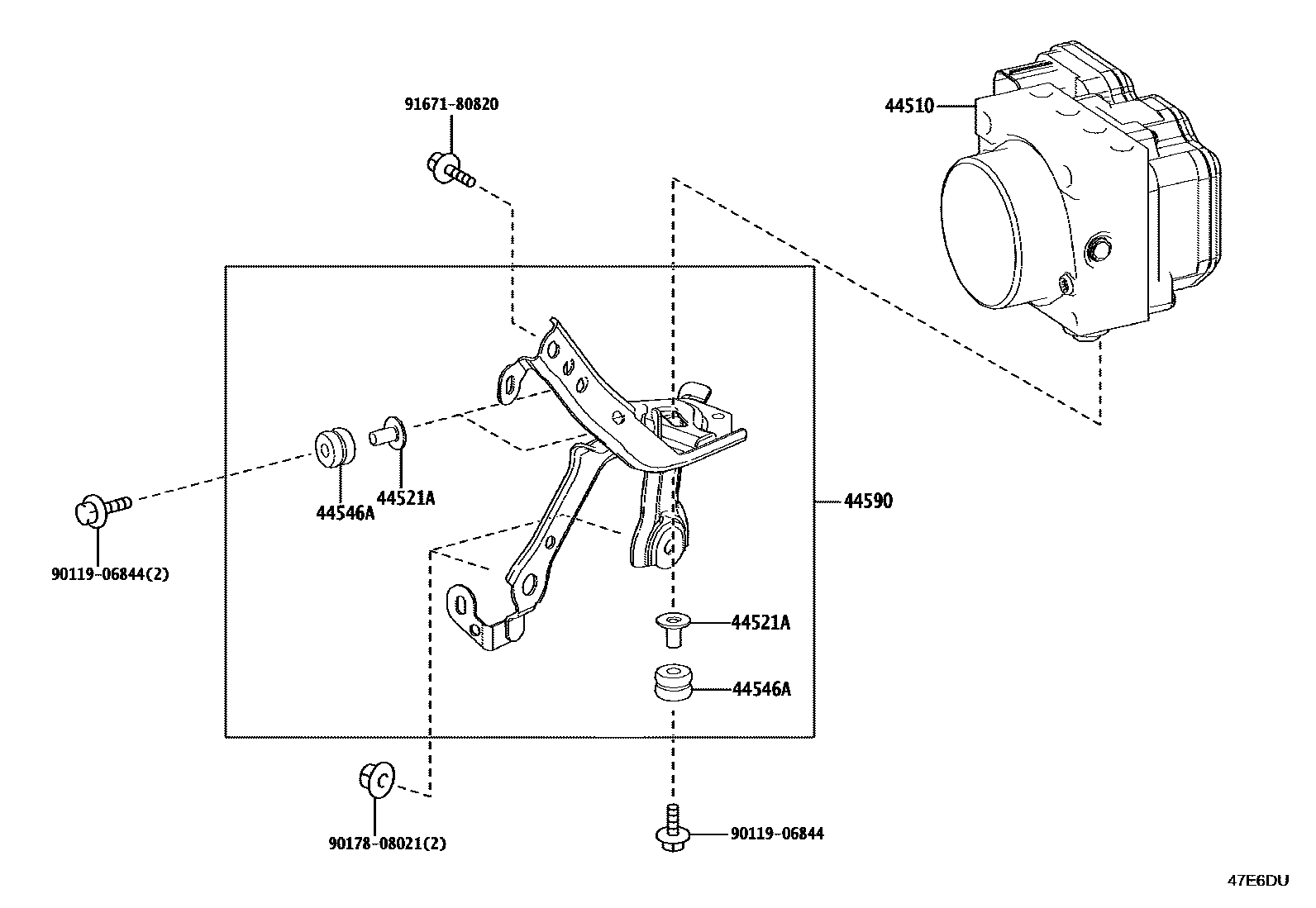

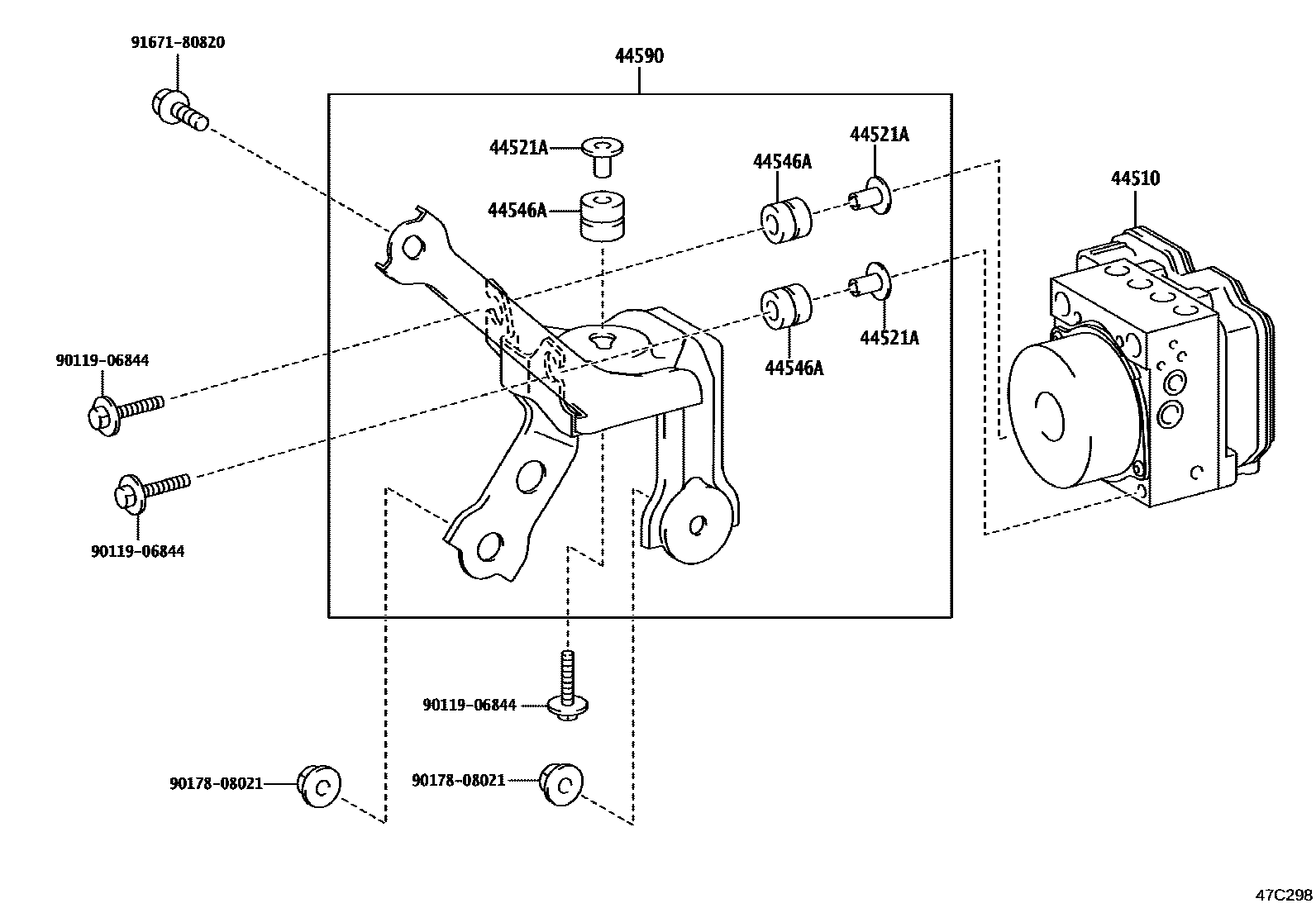

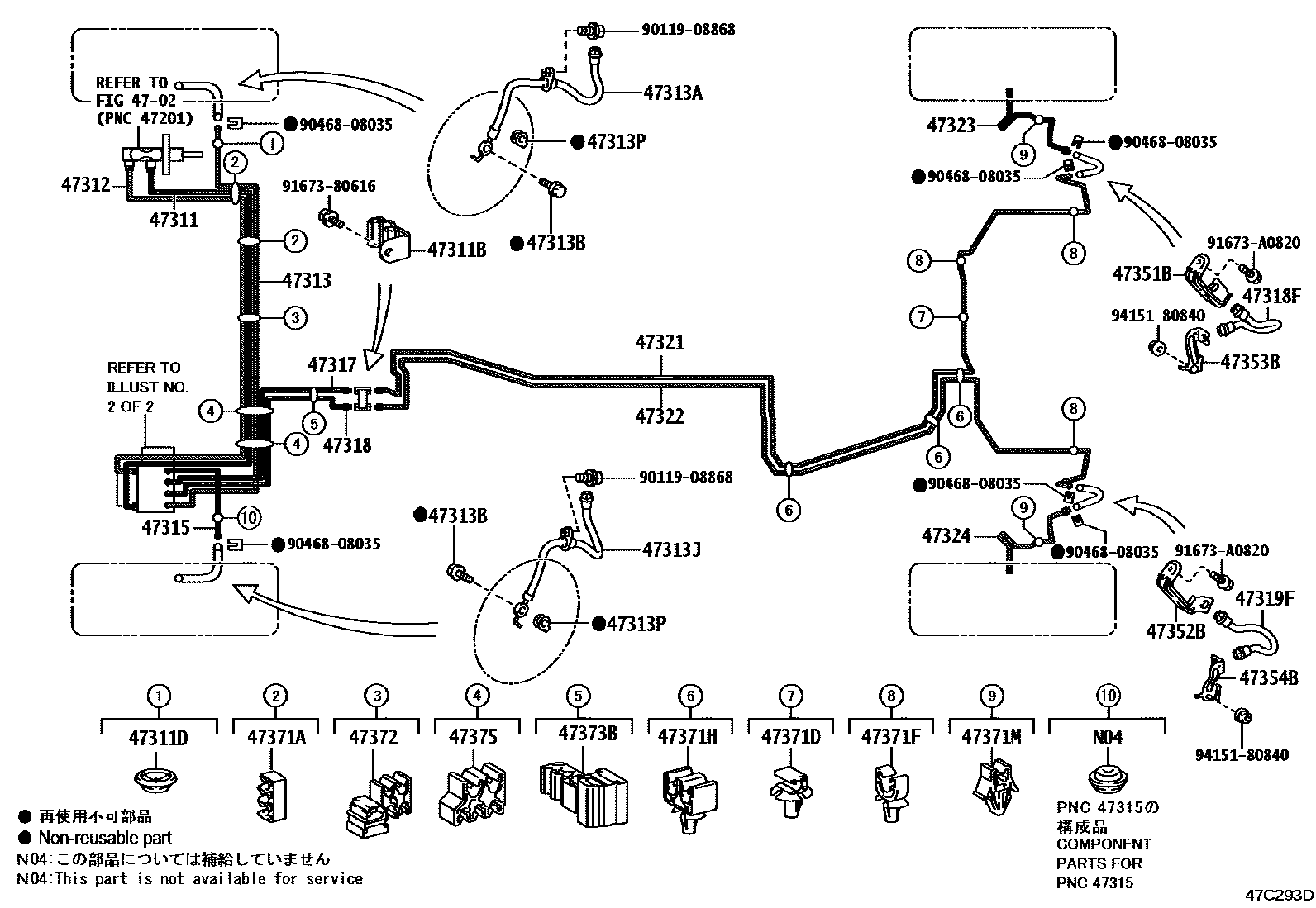

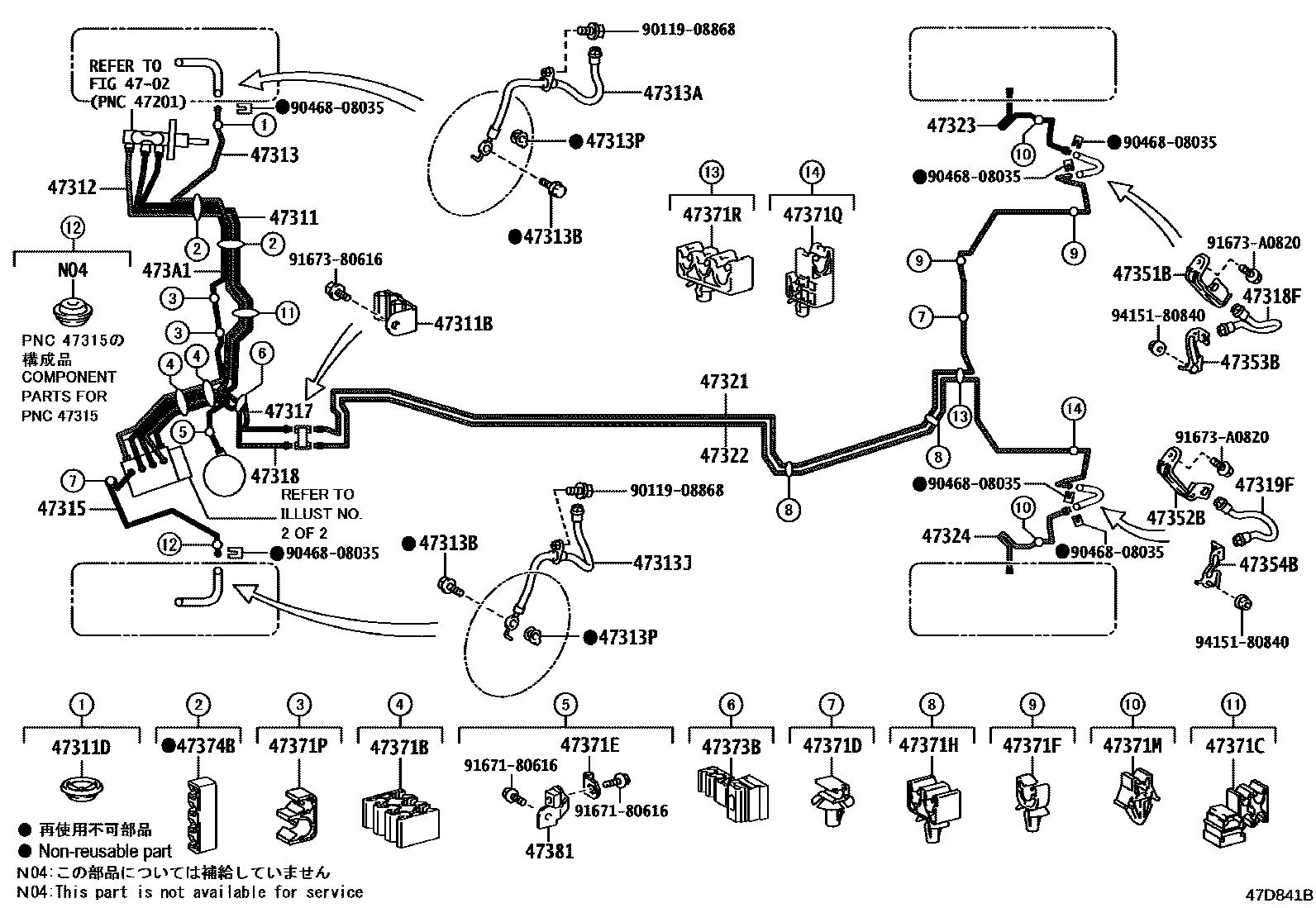

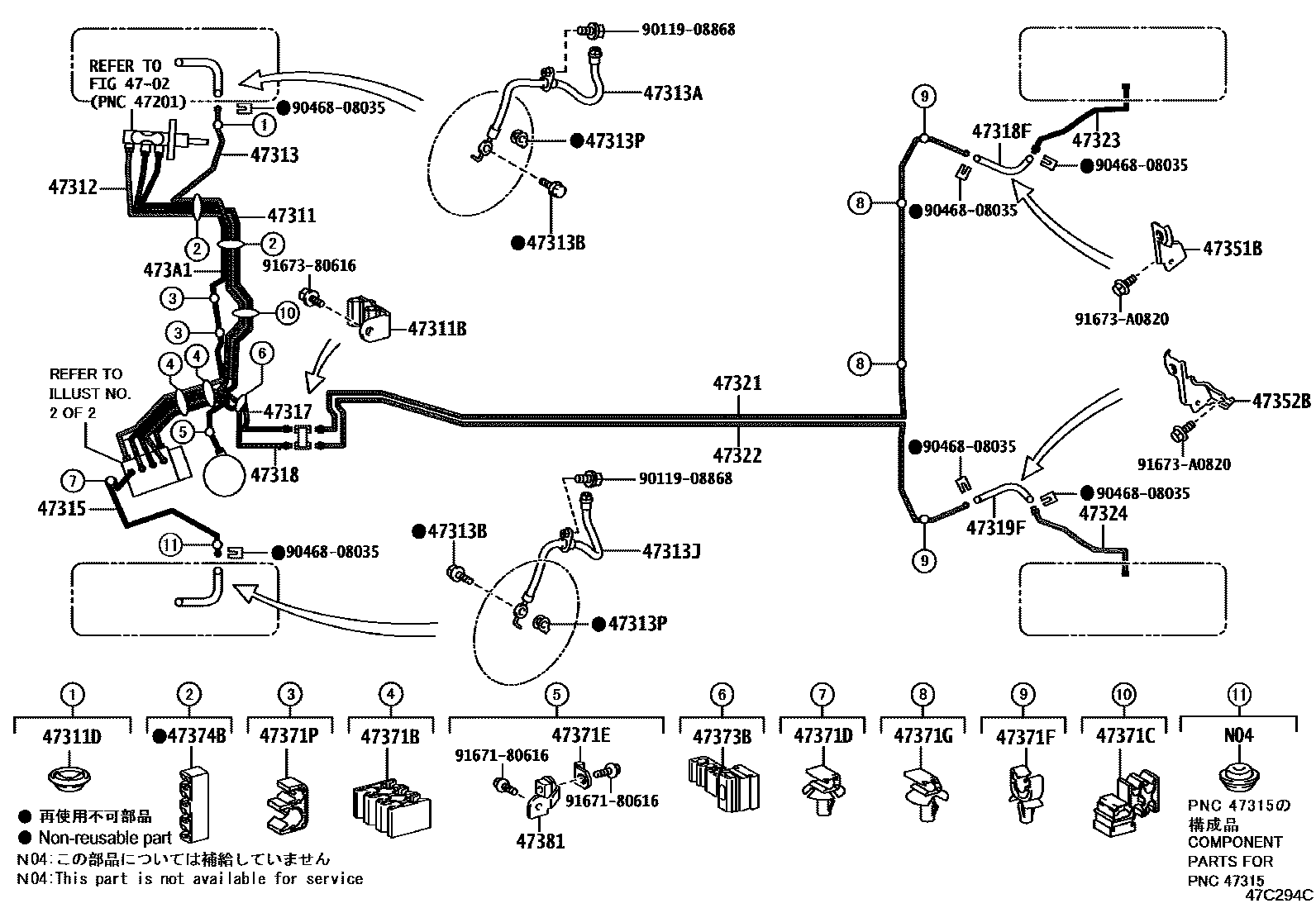

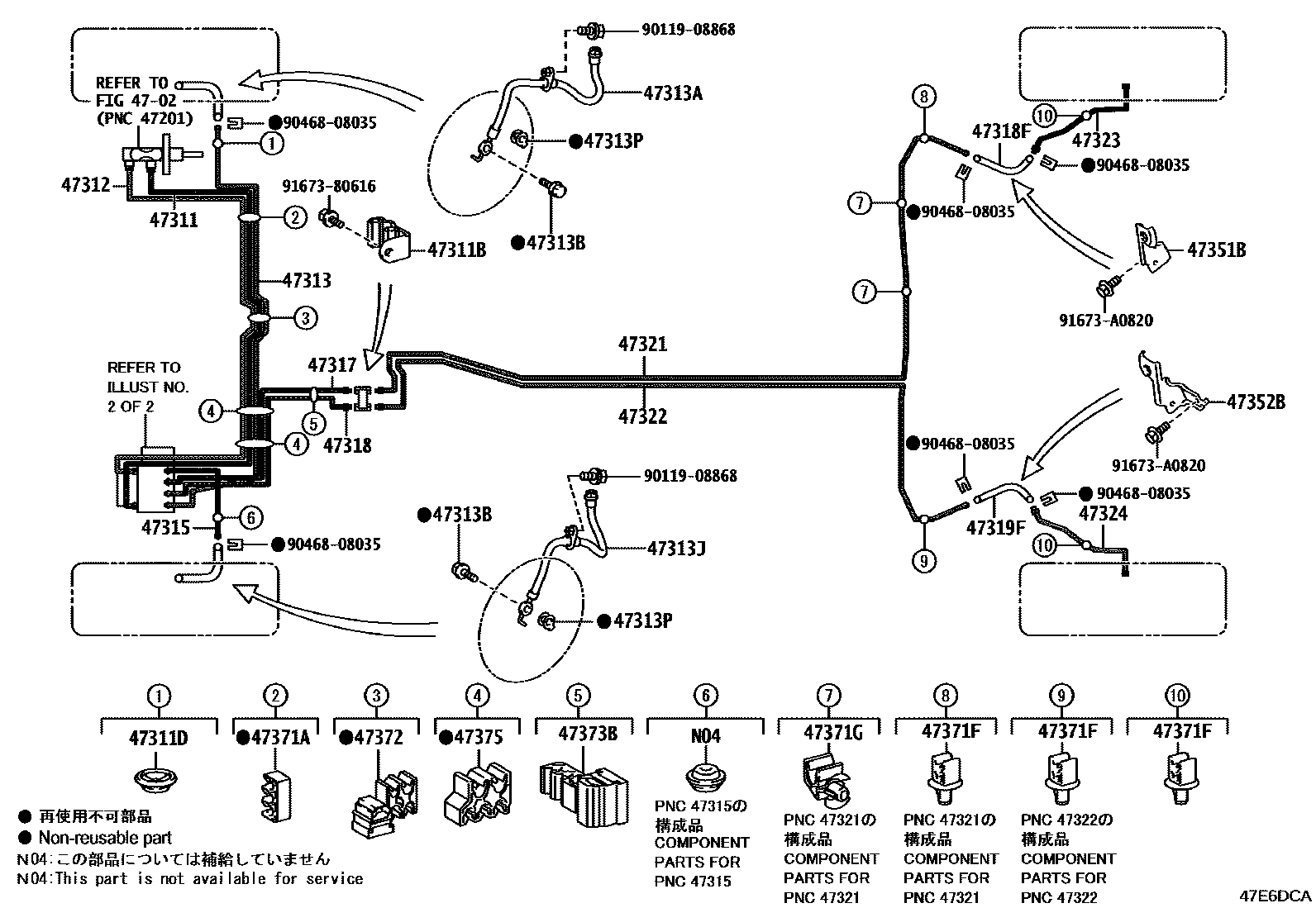

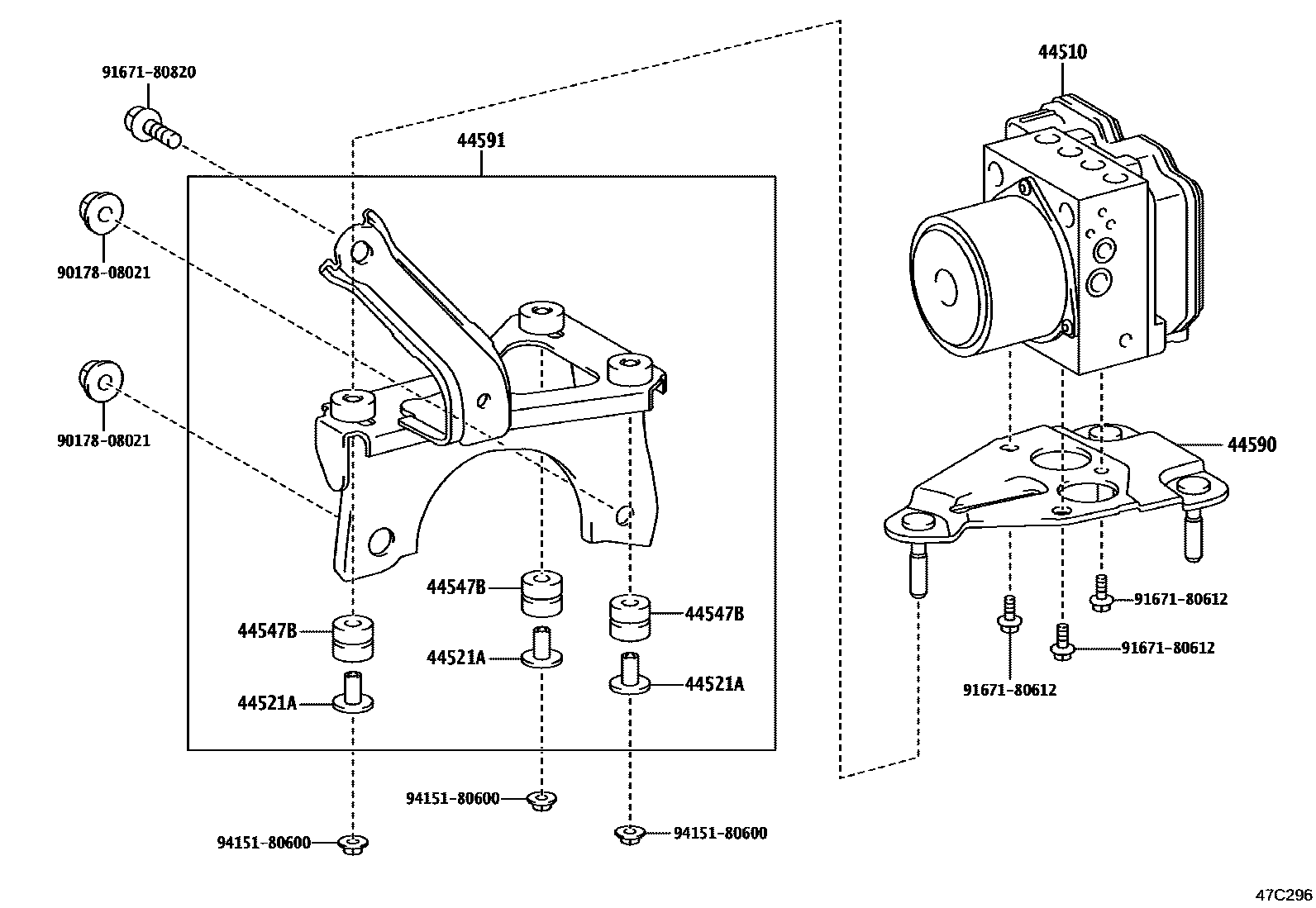

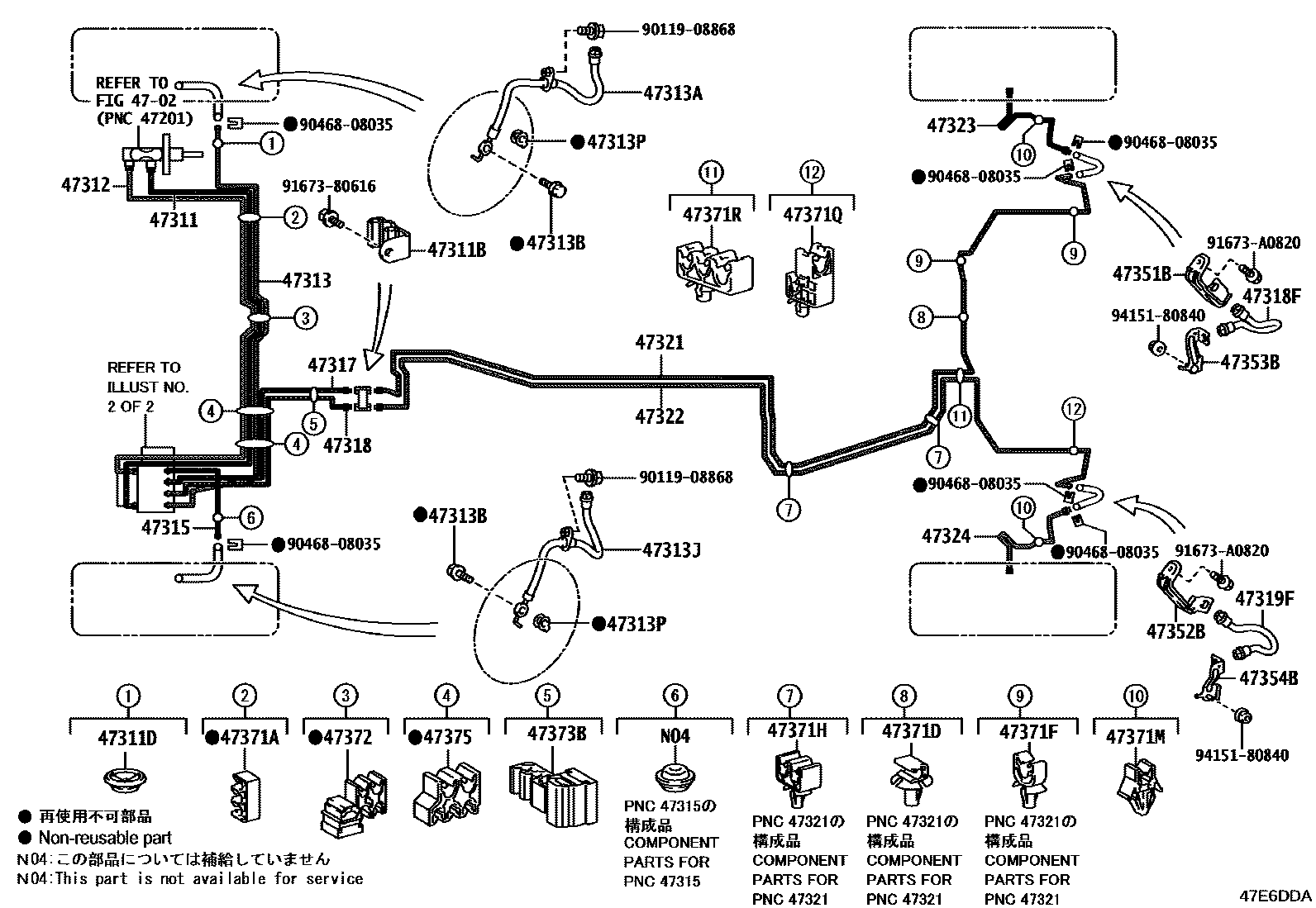

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 11 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-47060 · 44050-52V00 · 44050-52V10 · 44050-52V11 · 44050-52W30 · 44050-52W40 · 44050-52W50 · 44050-K0010 · 44050-K0290 |
| 44521A | Toyota part | 44521-12050 |
| 44521B | Toyota part | 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-K0010 |
| 44590 | Brake actuator bracket assembly | 44590-52290 · 44590-K0010 · 44590-K0020 · 44590-K0030 |
| 44591 | No. 1 brake actuator bracket | 44591-K0070 |
| 47070 | Brake booster pump assembly | 47070-K0020 |
| 47311 | No. 1 front brake pipe | 47311-52850 · 47311-K0010 · 47311-K0020 · 47311-K0110 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10317 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-52850 · 47312-K0010 · 47312-K0020 · 47312-K0110 |
| 47313 | No. 3 front brake pipe | 47313-52400 · 47313-K0010 · 47313-K0020 |
| 47313A | No. 1 front flexible hose | 90947-02J36 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02J37 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-52400 · 47315-K0010 · 47315-K0020 |
| 47317 | No. 7 front brake pipe | 47317-52400 · 47317-K0010 · 47317-K0020 |
| 47318 | No. 8 front brake pipe | 47318-52400 · 47318-K0010 · 47318-K0020 |
| 47318F | Right rear flexible hose | 90947-02H59 · 90947-02J46 |
| 47319F | Left rear flexible hose | 90947-02H59 · 90947-02J46 |
| 47321 | No. 1 rear brake pipe | 47321-52540 · 47321-K0010 · 47321-K0020 · 47321-K0030 · 47321-K0040 |
| 47322 | No. 2 rear brake pipe | 47322-52490 · 47322-K0010 · 47322-K0020 · 47322-K0030 |
| 47323 | No. 3 rear brake pipe | 47323-52200 · 47323-52210 · 47323-K0010 · 47323-K0030 |
| 47324 | No. 4 rear brake pipe | 47324-52190 · 47324-52200 · 47324-K0010 · 47324-K0030 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-K0010 · 47351-K0050 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-K0010 · 47352-K0050 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-K0020 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-K0020 |
| 47371A | No. 1 brake pipe clamp | 90949-01E43 |
| 47371B | No. 6 brake pipe clamp | 90949-01D99 |
| 47371C | No. 7 brake pipe clamp | 90949-01E51 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90461-10854 |
| 47371F | No. 10 brake pipe clamp | 90949-01E01 |
| 47371G | No. 11 brake pipe clamp | 90949-01E10 |
| 47371H | No. 12 brake pipe clamp | 90949-01E02 |
| 47371M | No. 13 brake pipe clamp | 90949-01C32 |
| 47371P | Toyota part | 47371-33380 |
| 47371Q | Toyota part | 77299-52120 |
| 47371R | Toyota part | 77299-52130 |
| 47372 | No. 2 brake pipe clamp | 90949-01E30 |
| 47373B | No. 3 brake pipe clamp | 90949-01E62 |
| 47374B | No. 4 brake pipe clamp | 90949-01D95 |
| 47375 | No. 5 brake pipe clamp | 90949-01E40 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-K0010 |
| 473A1 | Toyota part | 473A1-K0010 |
| 47999A | Bushing (for brake pull actuator bracket) | 47965-30010 |
